HIT chain sling quality grade 8, single-leg, can be shortened Safety load hooks

HIT chain sling quality grade 8, single-leg, can be shortened Safety load hooks

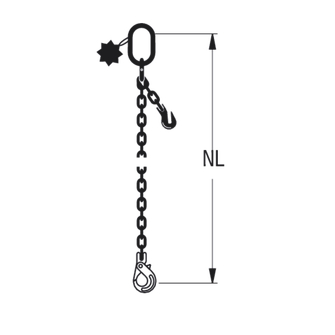

Chain sling with shortener parallel hook and safety load hook for single-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • can be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    2
    701191
    G81 H8A-6-1.12T-RA-PKU-SHK-2M
    Reference no. 701191
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.7
  • 1120
    900
    6
    3
    701192
    G81 H8A-6-1.12T-RA-PKU-SHK-3M
    Reference no. 701192
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.5
  • 1120
    900
    6
    4
    701193
    G81 H8A-6-1.12T-RA-PKU-SHK-4M
    Reference no. 701193
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.3
  • 1120
    900
    6
    6
    701194
    G81 H8A-6-1.12T-RA-PKU-SHK-6M
    Reference no. 701194
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.9
  • 2000
    1600
    8
    2
    701195
    G81 H8A-8-2T-RA-PKU-SHK-2M
    Reference no. 701195
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
  • 2000
    1600
    8
    3
    701196
    G81 H8A-8-2T-RA-PKU-SHK-3M
    Reference no. 701196
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6
  • 2000
    1600
    8
    4
    701197
    G81 H8A-8-2T-RA-PKU-SHK-4M
    Reference no. 701197
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
  • 2000
    1600
    8
    6
    701198
    G81 H8A-8-2T-RA-PKU-SHK-6M
    Reference no. 701198
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.2
  • 3150
    2520
    10
    2
    701199
    G81 H8A-10-3.15T-RA-PKU-SHK-2M
    Reference no. 701199
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.4
  • 3150
    2520
    10
    3
    701200
    G81 H8A-10-3.15T-RA-PKU-SHK-3M
    Reference no. 701200
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.6
  • 3150
    2520
    10
    4
    701201
    G81 H8A-10-3.15T-RA-PKU-SHK-4M
    Reference no. 701201
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.8
  • 3150
    2520
    10
    6
    701202
    G81 H8A-10-3.15T-RA-PKU-SHK-6M
    Reference no. 701202
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.2
  • 5300
    4240
    13
    2
    701204
    G81 H8A-13-5.3T-RA-PKU-SHK-2M
    Reference no. 701204
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 13.7
  • 5300
    4240
    13
    3
    701205
    G81 H8A-13-5.3T-RA-PKU-SHK-3M
    Reference no. 701205
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 17.3
  • 5300
    4240
    13
    4
    701206
    G81 H8A-13-5.3T-RA-PKU-SHK-4M
    Reference no. 701206
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 21.1
  • 5300
    4240
    13
    6
    701207
    G81 H8A-13-5.3T-RA-PKU-SHK-6M
    Reference no. 701207
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.8
  • 8000
    6400
    16
    2
    701208
    C81 H8A-16-8T-RA-PKU-SHK-2M
    Reference no. 701208
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.5
  • 8000
    6400
    16
    3
    701209
    C81 H8A-16-8T-RA-PKU-SHK-3M
    Reference no. 701209
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28
  • 8000
    6400
    16
    4
    701210
    C81 H8A-16-8T-RA-PKU-SHK-4M
    Reference no. 701210
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 34
  • 8000
    6400
    16
    6
    701211
    C81 H8A-16-8T-RA-PKU-SHK-6M
    Reference no. 701211
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.5
  • 10000
    8000
    18
    2
    701212
    C81 H8A-18-10T-RA-PKU-SHK-2M
    Reference no. 701212
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 30.9
  • 10000
    8000
    18
    3
    701213
    C81 H8A-18-10T-RA-PKU-SHK-3M
    Reference no. 701213
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 37.9
  • 10000
    8000
    18
    4
    701214
    C81 H8A-18-10T-RA-PKU-SHK-4M
    Reference no. 701214
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 44.9
  • 10000
    8000
    18
    6
    701215
    C81 H8A-18-10T-RA-PKU-SHK-6M
    Reference no. 701215
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 59.8
  • 12500
    10000
    20
    2
    701216
    C81 H8A-20-12.5T-RA-PKU-SHK-2M
    Reference no. 701216
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 35.3
  • 12500
    10000
    20
    3
    701217
    C81 H8A-20-12.5T-RA-PKU-SHK-3M
    Reference no. 701217
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 44
  • 12500
    10000
    20
    4
    701218
    C81 H8A-20-12.5T-RA-PKU-SHK-4M
    Reference no. 701218
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 53.7
  • 12500
    10000
    20
    6
    701219
    C81 H8A-20-12.5T-RA-PKU-SHK-6M
    Reference no. 701219
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 71
  • 15000
    12000
    22
    2
    493263
    C81 H8A-22-15T-RA-PK-U-SHK-2M
    Reference no. 493263
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 50.323
  • 15000
    12000
    22
    3
    493264
    C81 H8A-22-15T-RA-PK-U-SHK-3M
    Reference no. 493264
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 61.223
  • 15000
    12000
    22
    4
    493265
    C81 H8A-22-15T-RA-PK-U-SHK-4M
    Reference no. 493265
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 72.123
  • 15000
    12000
    22
    6
    493266
    C81 H8A-22-15T-RA-PK-U-SHK-6M
    Reference no. 493266
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 93.923
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701191
  • Details
    G81 H8A-6-1.12T-RA-PKU-SHK-2M
    Reference no. 701191
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701192
  • Details
    G81 H8A-6-1.12T-RA-PKU-SHK-3M
    Reference no. 701192
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.5
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701193
  • Details
    G81 H8A-6-1.12T-RA-PKU-SHK-4M
    Reference no. 701193
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.3
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701194
  • Details
    G81 H8A-6-1.12T-RA-PKU-SHK-6M
    Reference no. 701194
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.9
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701195
  • Details
    G81 H8A-8-2T-RA-PKU-SHK-2M
    Reference no. 701195
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.6
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701196
  • Details
    G81 H8A-8-2T-RA-PKU-SHK-3M
    Reference no. 701196
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 6
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701197
  • Details
    G81 H8A-8-2T-RA-PKU-SHK-4M
    Reference no. 701197
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 7.4
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701198
  • Details
    G81 H8A-8-2T-RA-PKU-SHK-6M
    Reference no. 701198
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 10.2
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701199
  • Details
    G81 H8A-10-3.15T-RA-PKU-SHK-2M
    Reference no. 701199
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 7.4
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701200
  • Details
    G81 H8A-10-3.15T-RA-PKU-SHK-3M
    Reference no. 701200
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 9.6
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701201
  • Details
    G81 H8A-10-3.15T-RA-PKU-SHK-4M
    Reference no. 701201
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 11.8
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701202
  • Details
    G81 H8A-10-3.15T-RA-PKU-SHK-6M
    Reference no. 701202
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 16.2
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701204
  • Details
    G81 H8A-13-5.3T-RA-PKU-SHK-2M
    Reference no. 701204
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 13.7
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701205
  • Details
    G81 H8A-13-5.3T-RA-PKU-SHK-3M
    Reference no. 701205
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 17.3
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701206
  • Details
    G81 H8A-13-5.3T-RA-PKU-SHK-4M
    Reference no. 701206
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 21.1
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701207
  • Details
    G81 H8A-13-5.3T-RA-PKU-SHK-6M
    Reference no. 701207
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 28.8
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701208
  • Details
    C81 H8A-16-8T-RA-PKU-SHK-2M
    Reference no. 701208
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.5
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701209
  • Details
    C81 H8A-16-8T-RA-PKU-SHK-3M
    Reference no. 701209
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701210
  • Details
    C81 H8A-16-8T-RA-PKU-SHK-4M
    Reference no. 701210
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 34
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701211
  • Details
    C81 H8A-16-8T-RA-PKU-SHK-6M
    Reference no. 701211
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.5
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701212
  • Details
    C81 H8A-18-10T-RA-PKU-SHK-2M
    Reference no. 701212
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 30.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701213
  • Details
    C81 H8A-18-10T-RA-PKU-SHK-3M
    Reference no. 701213
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 37.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701214
  • Details
    C81 H8A-18-10T-RA-PKU-SHK-4M
    Reference no. 701214
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 44.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701215
  • Details
    C81 H8A-18-10T-RA-PKU-SHK-6M
    Reference no. 701215
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 59.8
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701216
  • Details
    C81 H8A-20-12.5T-RA-PKU-SHK-2M
    Reference no. 701216
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 35.3
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701217
  • Details
    C81 H8A-20-12.5T-RA-PKU-SHK-3M
    Reference no. 701217
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 44
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701218
  • Details
    C81 H8A-20-12.5T-RA-PKU-SHK-4M
    Reference no. 701218
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 53.7
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701219
  • Details
    C81 H8A-20-12.5T-RA-PKU-SHK-6M
    Reference no. 701219
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 71
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493263
  • Details
    C81 H8A-22-15T-RA-PK-U-SHK-2M
    Reference no. 493263
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 50.323
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493264
  • Details
    C81 H8A-22-15T-RA-PK-U-SHK-3M
    Reference no. 493264
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 61.223
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493265
  • Details
    C81 H8A-22-15T-RA-PK-U-SHK-4M
    Reference no. 493265
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 72.123
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493266
  • Details
    C81 H8A-22-15T-RA-PK-U-SHK-6M
    Reference no. 493266
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 93.923
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
