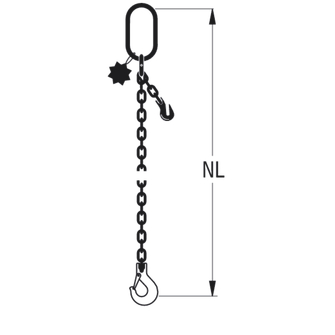

HIT chain sling quality grade 8, single-leg, can be shortened with extra-large suspension link and standard load hook

HIT chain sling quality grade 8, single-leg, can be shortened with extra-large suspension link and standard load hook
Chain sling with extra-large suspension link, shortener parallel hook and standard load hooks for single-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • can be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    2
    493151
    G81 H8A-6-1.12T-RL-PKU-HK-2M
    Reference no. 493151
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.085
  • 1120
    900
    6
    3
    493152
    G81 H8A-6-1.12T-RL-PKU-HK-3M
    Reference no. 493152
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.885
  • 1120
    900
    6
    4
    493153
    G81 H8A-6-1.12T-RL-PKU-HK-4M
    Reference no. 493153
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.685
  • 1120
    900
    6
    6
    493154
    G81 H8A-6-1.12T-RL-PKU-HK-6M
    Reference no. 493154
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 8.285
  • 2000
    1600
    8
    2
    493156
    G81 H8A-8-2T-RL-PKU-HK-2M
    Reference no. 493156
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.666
  • 2000
    1600
    8
    3
    493157
    G81 H8A-8-2T-RL-PKU-HK-3M
    Reference no. 493157
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 8.066
  • 2000
    1600
    8
    4
    493158
    G81 H8A-8-2T-RL-PKU-HK-4M
    Reference no. 493158
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.466
  • 2000
    1600
    8
    6
    493159
    G81 H8A-8-2T-RL-PKU-HK-6M
    Reference no. 493159
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 12.266
  • 3150
    2520
    10
    2
    493161
    G81 H8A-10-3.15T-RL-PKU-HK-2M
    Reference no. 493161
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10.414
  • 3150
    2520
    10
    3
    493162
    G81 H8A-10-3.15T-RL-PKU-HK-3M
    Reference no. 493162
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 12.614
  • 3150
    2520
    10
    4
    493163
    G81 H8A-10-3.15T-RL-PKU-HK-4M
    Reference no. 493163
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 14.814
  • 3150
    2520
    10
    6
    493164
    G81 H8A-10-3.15T-RL-PKU-HK-6M
    Reference no. 493164
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 19.214
  • 5300
    4240
    13
    2
    493166
    G81 H8A-13-5.3T-RL-PKU-HK-2M
    Reference no. 493166
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14.833
  • 5300
    4240
    13
    3
    493167
    G81 H8A-13-5.3T-RL-PKU-HK-3M
    Reference no. 493167
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.633
  • 5300
    4240
    13
    4
    493168
    G81 H8A-13-5.3T-RL-PKU-HK-4M
    Reference no. 493168
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.433
  • 5300
    4240
    13
    6
    493169
    G81 H8A-13-5.3T-RL-PKU-HK-6M
    Reference no. 493169
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.033
  • 8000
    6400
    16
    2
    493171
    C81 H8A-16-8T-RL-PK-U-HK-2M
    Reference no. 493171
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.42
  • 8000
    6400
    16
    3
    493172
    C81 H8A-16-8T-RL-PK-U-HK-3M
    Reference no. 493172
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28.12
  • 8000
    6400
    16
    4
    493173
    C81 H8A-16-8T-RL-PK-U-HK-4M
    Reference no. 493173
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 33.82
  • 8000
    6400
    16
    6
    493174
    C81 H8A-16-8T-RL-PK-U-HK-6M
    Reference no. 493174
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.22
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493151
  • Details
    G81 H8A-6-1.12T-RL-PKU-HK-2M
    Reference no. 493151
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 5.085
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493152
  • Details
    G81 H8A-6-1.12T-RL-PKU-HK-3M
    Reference no. 493152
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.885
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493153
  • Details
    G81 H8A-6-1.12T-RL-PKU-HK-4M
    Reference no. 493153
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.685
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 493154
  • Details
    G81 H8A-6-1.12T-RL-PKU-HK-6M
    Reference no. 493154
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 8.285
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493156
  • Details
    G81 H8A-8-2T-RL-PKU-HK-2M
    Reference no. 493156
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.666
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493157
  • Details
    G81 H8A-8-2T-RL-PKU-HK-3M
    Reference no. 493157
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 8.066
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493158
  • Details
    G81 H8A-8-2T-RL-PKU-HK-4M
    Reference no. 493158
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.466
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 493159
  • Details
    G81 H8A-8-2T-RL-PKU-HK-6M
    Reference no. 493159
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 12.266
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493161
  • Details
    G81 H8A-10-3.15T-RL-PKU-HK-2M
    Reference no. 493161
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 10.414
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493162
  • Details
    G81 H8A-10-3.15T-RL-PKU-HK-3M
    Reference no. 493162
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 12.614
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493163
  • Details
    G81 H8A-10-3.15T-RL-PKU-HK-4M
    Reference no. 493163
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 14.814
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493164
  • Details
    G81 H8A-10-3.15T-RL-PKU-HK-6M
    Reference no. 493164
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 19.214
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493166
  • Details
    G81 H8A-13-5.3T-RL-PKU-HK-2M
    Reference no. 493166
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 14.833
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493167
  • Details
    G81 H8A-13-5.3T-RL-PKU-HK-3M
    Reference no. 493167
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 18.633
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493168
  • Details
    G81 H8A-13-5.3T-RL-PKU-HK-4M
    Reference no. 493168
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 22.433
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493169
  • Details
    G81 H8A-13-5.3T-RL-PKU-HK-6M
    Reference no. 493169
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 30.033
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493171
  • Details
    C81 H8A-16-8T-RL-PK-U-HK-2M
    Reference no. 493171
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 22.42
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493172
  • Details
    C81 H8A-16-8T-RL-PK-U-HK-3M
    Reference no. 493172
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 28.12
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493173
  • Details
    C81 H8A-16-8T-RL-PK-U-HK-4M
    Reference no. 493173
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 33.82
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 493174
  • Details
    C81 H8A-16-8T-RL-PK-U-HK-6M
    Reference no. 493174
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 45.22
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
