HIT Chain slings in quality grade 8, single-leg Standard load hook

HIT Chain slings in quality grade 8, single-leg Standard load hook

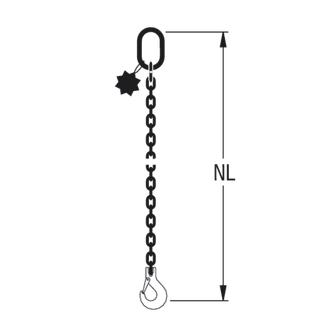

Chain sling with safety load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    1
    701076
    G81 H8A-6-1.12T-RA-HK-1M
    Reference no. 701076
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.5
  • 1120
    900
    6
    2
    701077
    G81 H8A-6-1.12T-RA-HK-2M
    Reference no. 701077
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.3
  • 1120
    900
    6
    3
    701078
    G81 H8A-6-1.12T-RA-HK-3M
    Reference no. 701078
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.1
  • 1120
    900
    6
    4
    701079
    G81 H8A-6-1.12T-RA-HK-4M
    Reference no. 701079
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 3.9
  • 1120
    900
    6
    6
    701080
    G81 H8A-6-1.12T-RA-HK-6M
    Reference no. 701080
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.5
  • 2000
    1600
    8
    1
    701083
    G81 H8A-8-2T-RA-HK-1M
    Reference no. 701083
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
  • 2000
    1600
    8
    2
    701084
    G81 H8A-8-2T-RA-HK-2M
    Reference no. 701084
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4
  • 2000
    1600
    8
    3
    701085
    G81 H8A-8-2T-RA-HK-3M
    Reference no. 701085
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.3
  • 2000
    1600
    8
    4
    701086
    G81 H8A-8-2T-RA-HK-4M
    Reference no. 701086
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.7
  • 2000
    1600
    8
    6
    701088
    G81 H8A-8-2T-RA-HK-6M
    Reference no. 701088
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.6
  • 3150
    2520
    10
    1
    703001
    G81 H8A-10-3.15T-RA-HK-1M
    Reference no. 703001
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.1
  • 3150
    2520
    10
    2
    701090
    G81 H8A-10-3.15T-RA-HK-2M
    Reference no. 701090
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.2
  • 3150
    2520
    10
    3
    701091
    G81 H8A-10-3.15T-RA-HK-3M
    Reference no. 701091
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 8.4
  • 3150
    2520
    10
    4
    701092
    G81 H8A-10-3.15T-RA-HK-4M
    Reference no. 701092
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 10.7
  • 3150
    2520
    10
    6
    701093
    G81 H8A-10-3.15T-RA-HK-6M
    Reference no. 701093
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 15
  • 5300
    4240
    13
    1
    701094
    G81 H8A-13-5.3T-RA-HK-1M
    Reference no. 701094
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 6.9
  • 5300
    4240
    13
    2
    701095
    G81 H8A-13-5.3T-RA-HK-2M
    Reference no. 701095
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 10.8
  • 5300
    4240
    13
    3
    701096
    G81 H8A-13-5.3T-RA-HK-3M
    Reference no. 701096
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 14.6
  • 5300
    4240
    13
    4
    701097
    G81 H8A-13-5.3T-RA-HK-4M
    Reference no. 701097
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 18.5
  • 5300
    4240
    13
    6
    701098
    G81 H8A-13-5.3T-RA-HK-6M
    Reference no. 701098
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 26.2
  • 8000
    6400
    16
    1
    701100
    C81 H8A-16-8T-RA-HK-1M
    Reference no. 701100
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 10.7
  • 8000
    6400
    16
    2
    701101
    C81 H8A-16-8T-RA-HK-2M
    Reference no. 701101
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 16.7
  • 8000
    6400
    16
    3
    701103
    C81 H8A-16-8T-RA-HK-3M
    Reference no. 701103
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 22.2
  • 8000
    6400
    16
    4
    701104
    C81 H8A-16-8T-RA-HK-4M
    Reference no. 701104
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 28.2
  • 8000
    6400
    16
    6
    701105
    C81 H8A-16-8T-RA-HK-6M
    Reference no. 701105
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 39.1
  • 10000
    8000
    18
    1
    701106
    C81 H8A-18-10T-RA-HK-1M
    Reference no. 701106
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 16
  • 10000
    8000
    18
    2
    493106
    C81 H8A-18-10T-RA-HK-2M
    Reference no. 493106
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 23.346
  • 10000
    8000
    18
    3
    493107
    C81 H8A-18-10T-RA-HK-3M
    Reference no. 493107
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 30.646
  • 10000
    8000
    18
    4
    493108
    C81 H8A-18-10T-RA-HK-4M
    Reference no. 493108
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 37.946
  • 10000
    8000
    18
    6
    493109
    C81 H8A-18-10T-RA-HK-6M
    Reference no. 493109
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 52.546
  • 12500
    10000
    20
    1
    701111
    C81 H8A-20-12.5T-RA-HK-1M
    Reference no. 701111
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 18.9
  • 12500
    10000
    20
    2
    492689
    C81 H8A-20-12.5T-RA-HK-2M
    Reference no. 492689
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 26.11
  • 12500
    10000
    20
    3
    492690
    C81 H8A-20-12.5T-RA-HK-3M
    Reference no. 492690
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 35.11
  • 12500
    10000
    20
    4
    492691
    C81 H8A-20-12.5T-RA-HK-4M
    Reference no. 492691
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 44.11
  • 12500
    10000
    20
    6
    492692
    C81 H8A-20-12.5T-RA-HK-6M
    Reference no. 492692
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 62.11
  • 15000
    12000
    22
    1
    701112
    C81 H8A-22-15T-RA-HK-1M
    Reference no. 701112
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 1
    Weight approx. [kg] 26.1
  • 15000
    12000
    22
    2
    492693
    C81 H8A-22-15T-RA-HK-2M
    Reference no. 492693
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 33.978
  • 15000
    12000
    22
    3
    492694
    C81 H8A-22-15T-RA-HK-3M
    Reference no. 492694
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 44.878
  • 15000
    12000
    22
    4
    492695
    C81 H8A-22-15T-RA-HK-4M
    Reference no. 492695
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 55.778
  • 21200
    16960
    26
    1
    701113
    C81 H8A-26-21.2T-RA-HK-1M
    Reference no. 701113
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 1
    Weight approx. [kg] 36.9
  • 21200
    17000
    26
    2
    493050
    C81 H8A-26-21.2T-RA-HK-2M
    Reference no. 493050
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 51.838
  • 21200
    17000
    26
    3
    493051
    C81 H8A-26-21.2T-RA-HK-3M
    Reference no. 493051
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 67.038
  • 21200
    17000
    26
    4
    493052
    C81 H8A-26-21.2T-RA-HK-4M
    Reference no. 493052
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 82.238
  • 21200
    17000
    26
    6
    493053
    C81 H8A-26-21.2T-RA-HK-6M
    Reference no. 493053
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 112.638
  • 31500
    25000
    32
    2
    493027
    C81 H8A-32-31.5T-RA-H-2M
    Reference no. 493027
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 81.21
  • 31500
    25000
    32
    3
    493028
    C81 H8A-32-31.5T-RA-H-3M
    Reference no. 493028
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 104.21
  • 31500
    25000
    32
    4
    493029
    C81 H8A-32-31.5T-RA-H-4M
    Reference no. 493029
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 127.21
  • 31500
    25000
    32
    6
    493030
    C81 H8A-32-31.5T-RA-H-6M
    Reference no. 493030
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 173.21
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701076
  • Details
    G81 H8A-6-1.12T-RA-HK-1M
    Reference no. 701076
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.5
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701077
  • Details
    G81 H8A-6-1.12T-RA-HK-2M
    Reference no. 701077
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.3
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701078
  • Details
    G81 H8A-6-1.12T-RA-HK-3M
    Reference no. 701078
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.1
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701079
  • Details
    G81 H8A-6-1.12T-RA-HK-4M
    Reference no. 701079
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701080
  • Details
    G81 H8A-6-1.12T-RA-HK-6M
    Reference no. 701080
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701083
  • Details
    G81 H8A-8-2T-RA-HK-1M
    Reference no. 701083
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701084
  • Details
    G81 H8A-8-2T-RA-HK-2M
    Reference no. 701084
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701085
  • Details
    G81 H8A-8-2T-RA-HK-3M
    Reference no. 701085
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.3
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701086
  • Details
    G81 H8A-8-2T-RA-HK-4M
    Reference no. 701086
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.7
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701088
  • Details
    G81 H8A-8-2T-RA-HK-6M
    Reference no. 701088
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.6
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 703001
  • Details
    G81 H8A-10-3.15T-RA-HK-1M
    Reference no. 703001
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701090
  • Details
    G81 H8A-10-3.15T-RA-HK-2M
    Reference no. 701090
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.2
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701091
  • Details
    G81 H8A-10-3.15T-RA-HK-3M
    Reference no. 701091
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 8.4
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701092
  • Details
    G81 H8A-10-3.15T-RA-HK-4M
    Reference no. 701092
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 10.7
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701093
  • Details
    G81 H8A-10-3.15T-RA-HK-6M
    Reference no. 701093
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 15
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701094
  • Details
    G81 H8A-13-5.3T-RA-HK-1M
    Reference no. 701094
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 6.9
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701095
  • Details
    G81 H8A-13-5.3T-RA-HK-2M
    Reference no. 701095
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 10.8
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701096
  • Details
    G81 H8A-13-5.3T-RA-HK-3M
    Reference no. 701096
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 14.6
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701097
  • Details
    G81 H8A-13-5.3T-RA-HK-4M
    Reference no. 701097
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 18.5
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701098
  • Details
    G81 H8A-13-5.3T-RA-HK-6M
    Reference no. 701098
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 26.2
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701100
  • Details
    C81 H8A-16-8T-RA-HK-1M
    Reference no. 701100
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 10.7
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701101
  • Details
    C81 H8A-16-8T-RA-HK-2M
    Reference no. 701101
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 16.7
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701103
  • Details
    C81 H8A-16-8T-RA-HK-3M
    Reference no. 701103
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 22.2
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701104
  • Details
    C81 H8A-16-8T-RA-HK-4M
    Reference no. 701104
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 28.2
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701105
  • Details
    C81 H8A-16-8T-RA-HK-6M
    Reference no. 701105
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 39.1
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 1
Reference no. 701106
  • Details
    C81 H8A-18-10T-RA-HK-1M
    Reference no. 701106
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 16
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 493106
  • Details
    C81 H8A-18-10T-RA-HK-2M
    Reference no. 493106
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 23.346
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 493107
  • Details
    C81 H8A-18-10T-RA-HK-3M
    Reference no. 493107
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 30.646
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 493108
  • Details
    C81 H8A-18-10T-RA-HK-4M
    Reference no. 493108
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 37.946
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 493109
  • Details
    C81 H8A-18-10T-RA-HK-6M
    Reference no. 493109
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Clear height [mm] 200
    Clearance [mm] 110
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 52.546
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 701111
  • Details
    C81 H8A-20-12.5T-RA-HK-1M
    Reference no. 701111
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 18.9
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 492689
  • Details
    C81 H8A-20-12.5T-RA-HK-2M
    Reference no. 492689
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 26.11
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 492690
  • Details
    C81 H8A-20-12.5T-RA-HK-3M
    Reference no. 492690
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 35.11
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 492691
  • Details
    C81 H8A-20-12.5T-RA-HK-4M
    Reference no. 492691
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 44.11
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 492692
  • Details
    C81 H8A-20-12.5T-RA-HK-6M
    Reference no. 492692
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Clear height [mm] 260
    Clearance [mm] 140
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 62.11
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 1
Reference no. 701112
  • Details
    C81 H8A-22-15T-RA-HK-1M
    Reference no. 701112
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 1
    Weight approx. [kg] 26.1
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 492693
  • Details
    C81 H8A-22-15T-RA-HK-2M
    Reference no. 492693
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 33.978
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 492694
  • Details
    C81 H8A-22-15T-RA-HK-3M
    Reference no. 492694
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 44.878
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 492695
  • Details
    C81 H8A-22-15T-RA-HK-4M
    Reference no. 492695
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 55.778
Working load limit 0° [kg] 21200
Working load limit laced 16960
Nominal size of chain [mm] 26
Effective length WLL [m] 1
Reference no. 701113
  • Details
    C81 H8A-26-21.2T-RA-HK-1M
    Reference no. 701113
    Working load limit 0° [kg] 21200
    Working load limit laced 16960
    Nominal size of chain [mm] 26
    Effective length WLL [m] 1
    Weight approx. [kg] 36.9
Working load limit 0° [kg] 21200
Working load limit laced 17000
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 493050
  • Details
    C81 H8A-26-21.2T-RA-HK-2M
    Reference no. 493050
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 51.838
Working load limit 0° [kg] 21200
Working load limit laced 17000
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 493051
  • Details
    C81 H8A-26-21.2T-RA-HK-3M
    Reference no. 493051
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 67.038
Working load limit 0° [kg] 21200
Working load limit laced 17000
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 493052
  • Details
    C81 H8A-26-21.2T-RA-HK-4M
    Reference no. 493052
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 82.238
Working load limit 0° [kg] 21200
Working load limit laced 17000
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 493053
  • Details
    C81 H8A-26-21.2T-RA-HK-6M
    Reference no. 493053
    Working load limit 0° [kg] 21200
    Working load limit laced 17000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 112.638
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 493027
  • Details
    C81 H8A-32-31.5T-RA-H-2M
    Reference no. 493027
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 81.21
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 493028
  • Details
    C81 H8A-32-31.5T-RA-H-3M
    Reference no. 493028
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 104.21
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 493029
  • Details
    C81 H8A-32-31.5T-RA-H-4M
    Reference no. 493029
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 127.21
Working load limit 0° [kg] 31500
Working load limit laced 25000
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 493030
  • Details
    C81 H8A-32-31.5T-RA-H-6M
    Reference no. 493030
    Working load limit 0° [kg] 31500
    Working load limit laced 25000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 173.21
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
