HIT Chain slings in quality grade 8, single-leg Safety load hooks

HIT Chain slings in quality grade 8, single-leg Safety load hooks

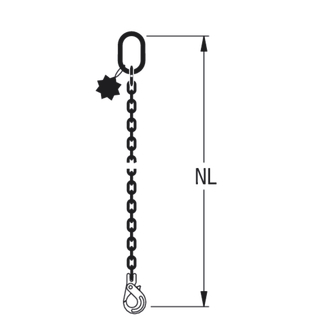

Chain sling with self-closing safety load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    1
    701149
    G81 H8A-6-1.12T-RA-SHK-1M
    Reference no. 701149
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.7
  • 1120
    900
    6
    2
    701150
    G81 H8A-6-1.12T-RA-SHK-2M
    Reference no. 701150
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.5
  • 1120
    900
    6
    3
    701151
    G81 H8A-6-1.12T-RA-SHK-3M
    Reference no. 701151
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.3
  • 1120
    900
    6
    4
    701152
    G81 H8A-6-1.12T-RA-SHK-4M
    Reference no. 701152
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
  • 1120
    900
    6
    6
    701153
    G81 H8A-6-1.12T-RA-SHK-6M
    Reference no. 701153
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.7
  • 2000
    1600
    8
    1
    701154
    G81 H8A-8-2T-RA-SHK-1M
    Reference no. 701154
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
  • 2000
    1600
    8
    2
    701155
    G81 H8A-8-2T-RA-SHK-2M
    Reference no. 701155
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.1
  • 2000
    1600
    8
    3
    701156
    G81 H8A-8-2T-RA-SHK-3M
    Reference no. 701156
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.5
  • 2000
    1600
    8
    4
    701157
    G81 H8A-8-2T-RA-SHK-4M
    Reference no. 701157
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.9
  • 2000
    1600
    8
    6
    701158
    G81 H8A-8-2T-RA-SHK-6M
    Reference no. 701158
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.7
  • 3150
    2520
    10
    1
    701159
    G81 H8A-10-3.15T-RA-SHK-1M
    Reference no. 701159
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.3
  • 3150
    2520
    10
    2
    701160
    G81 H8A-10-3.15T-RA-SHK-2M
    Reference no. 701160
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.6
  • 3150
    2520
    10
    3
    701161
    G81 H8A-10-3.15T-RA-SHK-3M
    Reference no. 701161
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 8.7
  • 3150
    2520
    10
    4
    701162
    G81 H8A-10-3.15T-RA-SHK-4M
    Reference no. 701162
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 10.9
  • 3150
    2520
    10
    6
    701163
    G81 H8A-10-3.15T-RA-SHK-6M
    Reference no. 701163
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 15.3
  • 5300
    4240
    13
    1
    701164
    G81 H8A-13-5.3T-RA-SHK-1M
    Reference no. 701164
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.7
  • 5300
    4240
    13
    2
    701166
    G81 H8A-13-5.3T-RA-SHK-2M
    Reference no. 701166
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.5
  • 5300
    4240
    13
    3
    701167
    G81 H8A-13-5.3T-RA-SHK-3M
    Reference no. 701167
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.1
  • 5300
    4240
    13
    4
    701168
    G81 H8A-13-5.3T-RA-SHK-4M
    Reference no. 701168
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 18.9
  • 5300
    4240
    13
    6
    701169
    G81 H8A-13-5.3T-RA-SHK-6M
    Reference no. 701169
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 26.6
  • 8000
    6400
    16
    1
    701170
    C81 H8A-16-8T-RA-SHK-1M
    Reference no. 701170
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.1
  • 8000
    6400
    16
    2
    701171
    C81 H8A-16-8T-RA-SHK-2M
    Reference no. 701171
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 18.6
  • 8000
    6400
    16
    3
    701172
    C81 H8A-16-8T-RA-SHK-3M
    Reference no. 701172
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.1
  • 8000
    6400
    16
    4
    701173
    C81 H8A-16-8T-RA-SHK-4M
    Reference no. 701173
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 30.1
  • 8000
    6400
    16
    6
    701174
    C81 H8A-16-8T-RA-SHK-6M
    Reference no. 701174
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 41.6
  • 10000
    8000
    18
    1
    701175
    C81 H8A-18-10T-RA-SHK-1M
    Reference no. 701175
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 17.6
  • 10000
    8000
    18
    2
    701176
    C81 H8A-18-10T-RA-SHK-2M
    Reference no. 701176
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 24.7
  • 10000
    8000
    18
    3
    701177
    C81 H8A-18-10T-RA-SHK-3M
    Reference no. 701177
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 31.8
  • 10000
    8000
    18
    4
    701178
    C81 H8A-18-10T-RA-SHK-4M
    Reference no. 701178
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 38.9
  • 10000
    8000
    18
    6
    701179
    C81 H8A-18-10T-RA-SHK-6M
    Reference no. 701179
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 53.9
  • 12500
    10000
    20
    1
    701180
    C81 H8A-20-12.5T-RA-SHK-1M
    Reference no. 701180
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 20.5
  • 12500
    10000
    20
    2
    701181
    C81 H8A-20-12.5T-RA-SHK-2M
    Reference no. 701181
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 29.2
  • 12500
    10000
    20
    3
    701182
    C81 H8A-20-12.5T-RA-SHK-3M
    Reference no. 701182
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 37.8
  • 12500
    10000
    20
    4
    701183
    C81 H8A-20-12.5T-RA-SHK-4M
    Reference no. 701183
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 47.5
  • 12500
    10000
    20
    6
    701184
    C81 H8A-20-12.5T-RA-SHK-6M
    Reference no. 701184
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 64.8
  • 15000
    12000
    22
    1
    701185
    C81 H8A-22-15T-RA-SHK-1M
    Reference no. 701185
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 1
    Weight approx. [kg] 31.7
  • 15000
    12000
    22
    2
    493197
    C81 H8A-22-15T-RA-SHK-2M
    Reference no. 493197
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 38.946
  • 15000
    12000
    22
    3
    493198
    C81 H8A-22-15T-RA-SHK-3M
    Reference no. 493198
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 49.846
  • 15000
    12000
    22
    4
    493199
    C81 H8A-22-15T-RA-SHK-4M
    Reference no. 493199
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 60.746
  • 15000
    12000
    22
    6
    493200
    C81 H8A-22-15T-RA-SHK-6M
    Reference no. 493200
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 82.546
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701149
  • Details
    G81 H8A-6-1.12T-RA-SHK-1M
    Reference no. 701149
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 1.7
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701150
  • Details
    G81 H8A-6-1.12T-RA-SHK-2M
    Reference no. 701150
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 2.5
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701151
  • Details
    G81 H8A-6-1.12T-RA-SHK-3M
    Reference no. 701151
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701152
  • Details
    G81 H8A-6-1.12T-RA-SHK-4M
    Reference no. 701152
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701153
  • Details
    G81 H8A-6-1.12T-RA-SHK-6M
    Reference no. 701153
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 5.7
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701154
  • Details
    G81 H8A-8-2T-RA-SHK-1M
    Reference no. 701154
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701155
  • Details
    G81 H8A-8-2T-RA-SHK-2M
    Reference no. 701155
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 4.1
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701156
  • Details
    G81 H8A-8-2T-RA-SHK-3M
    Reference no. 701156
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701157
  • Details
    G81 H8A-8-2T-RA-SHK-4M
    Reference no. 701157
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 6.9
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701158
  • Details
    G81 H8A-8-2T-RA-SHK-6M
    Reference no. 701158
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 9.7
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701159
  • Details
    G81 H8A-10-3.15T-RA-SHK-1M
    Reference no. 701159
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 4.3
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701160
  • Details
    G81 H8A-10-3.15T-RA-SHK-2M
    Reference no. 701160
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 6.6
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701161
  • Details
    G81 H8A-10-3.15T-RA-SHK-3M
    Reference no. 701161
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 8.7
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701162
  • Details
    G81 H8A-10-3.15T-RA-SHK-4M
    Reference no. 701162
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 10.9
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701163
  • Details
    G81 H8A-10-3.15T-RA-SHK-6M
    Reference no. 701163
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 15.3
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701164
  • Details
    G81 H8A-13-5.3T-RA-SHK-1M
    Reference no. 701164
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 7.7
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701166
  • Details
    G81 H8A-13-5.3T-RA-SHK-2M
    Reference no. 701166
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 11.5
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701167
  • Details
    G81 H8A-13-5.3T-RA-SHK-3M
    Reference no. 701167
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 15.1
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701168
  • Details
    G81 H8A-13-5.3T-RA-SHK-4M
    Reference no. 701168
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 18.9
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701169
  • Details
    G81 H8A-13-5.3T-RA-SHK-6M
    Reference no. 701169
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 26.6
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701170
  • Details
    C81 H8A-16-8T-RA-SHK-1M
    Reference no. 701170
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 13.1
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701171
  • Details
    C81 H8A-16-8T-RA-SHK-2M
    Reference no. 701171
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 18.6
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701172
  • Details
    C81 H8A-16-8T-RA-SHK-3M
    Reference no. 701172
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.1
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701173
  • Details
    C81 H8A-16-8T-RA-SHK-4M
    Reference no. 701173
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 30.1
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701174
  • Details
    C81 H8A-16-8T-RA-SHK-6M
    Reference no. 701174
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 41.6
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 1
Reference no. 701175
  • Details
    C81 H8A-18-10T-RA-SHK-1M
    Reference no. 701175
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 1
    Weight approx. [kg] 17.6
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701176
  • Details
    C81 H8A-18-10T-RA-SHK-2M
    Reference no. 701176
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 24.7
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701177
  • Details
    C81 H8A-18-10T-RA-SHK-3M
    Reference no. 701177
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 31.8
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701178
  • Details
    C81 H8A-18-10T-RA-SHK-4M
    Reference no. 701178
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 38.9
Working load limit 0° [kg] 10000
Working load limit laced 8000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701179
  • Details
    C81 H8A-18-10T-RA-SHK-6M
    Reference no. 701179
    Working load limit 0° [kg] 10000
    Working load limit laced 8000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 53.9
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 1
Reference no. 701180
  • Details
    C81 H8A-20-12.5T-RA-SHK-1M
    Reference no. 701180
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 1
    Weight approx. [kg] 20.5
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701181
  • Details
    C81 H8A-20-12.5T-RA-SHK-2M
    Reference no. 701181
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 29.2
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701182
  • Details
    C81 H8A-20-12.5T-RA-SHK-3M
    Reference no. 701182
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 37.8
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701183
  • Details
    C81 H8A-20-12.5T-RA-SHK-4M
    Reference no. 701183
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 47.5
Working load limit 0° [kg] 12500
Working load limit laced 10000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701184
  • Details
    C81 H8A-20-12.5T-RA-SHK-6M
    Reference no. 701184
    Working load limit 0° [kg] 12500
    Working load limit laced 10000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 64.8
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 1
Reference no. 701185
  • Details
    C81 H8A-22-15T-RA-SHK-1M
    Reference no. 701185
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Nominal size of chain [mm] 22
    Effective length WLL [m] 1
    Weight approx. [kg] 31.7
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493197
  • Details
    C81 H8A-22-15T-RA-SHK-2M
    Reference no. 493197
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 38.946
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493198
  • Details
    C81 H8A-22-15T-RA-SHK-3M
    Reference no. 493198
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 49.846
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493199
  • Details
    C81 H8A-22-15T-RA-SHK-4M
    Reference no. 493199
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 60.746
Working load limit 0° [kg] 15000
Working load limit laced 12000
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493200
  • Details
    C81 H8A-22-15T-RA-SHK-6M
    Reference no. 493200
    Working load limit 0° [kg] 15000
    Working load limit laced 12000
    Clear height [mm] 300
    Clearance [mm] 160
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 82.546
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
