HIT Chain slings in quality grade 8, single-leg with extra-large suspension link and standard load hook

HIT Chain slings in quality grade 8, single-leg with extra-large suspension link and standard load hook

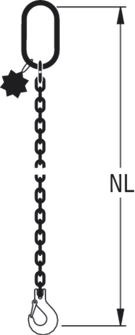

Chain sling with extra-large suspension link and standard load hook for single-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • single-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 1120
    900
    6
    1
    493110
    G81 H8A-6-1.12T-RL-HK-1M
    Reference no. 493110
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.028
  • 1120
    900
    6
    2
    493111
    G81 H8A-6-1.12T-RL-HK-2M
    Reference no. 493111
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.828
  • 1120
    900
    6
    3
    493112
    G81 H8A-6-1.12T-RL-HK-3M
    Reference no. 493112
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.628
  • 1120
    900
    6
    4
    493113
    G81 H8A-6-1.12T-RL-HK-4M
    Reference no. 493113
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.428
  • 1120
    900
    6
    6
    493114
    G81 H8A-6-1.12T-RL-HK-6M
    Reference no. 493114
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 8.028
  • 2000
    1600
    8
    1
    493115
    G81 H8A-8-2T-RL-HK-1M
    Reference no. 493115
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.832
  • 2000
    1600
    8
    2
    493116
    G81 H8A-8-2T-RL-HK-2M
    Reference no. 493116
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.232
  • 2000
    1600
    8
    3
    493117
    G81 H8A-8-2T-RL-HK-3M
    Reference no. 493117
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 7.632
  • 2000
    1600
    8
    4
    493118
    G81 H8A-8-2T-RL-HK-4M
    Reference no. 493118
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.032
  • 2000
    1600
    8
    6
    493119
    G81 H8A-8-2T-RL-HK-6M
    Reference no. 493119
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11.832
  • 3150
    2520
    10
    1
    493120
    G81 H8A-10-3.15T-RL-HK-1M
    Reference no. 493120
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 7.15
  • 3150
    2520
    10
    2
    493121
    G81 H8A-10-3.15T-RL-HK-2M
    Reference no. 493121
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.35
  • 3150
    2520
    10
    3
    493122
    G81 H8A-10-3.15T-RL-HK-3M
    Reference no. 493122
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 11.55
  • 3150
    2520
    10
    4
    493123
    G81 H8A-10-3.15T-RL-HK-4M
    Reference no. 493123
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 13.75
  • 3150
    2520
    10
    6
    493124
    G81 H8A-10-3.15T-RL-HK-6M
    Reference no. 493124
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 18.15
  • 5300
    4240
    13
    1
    493125
    G81 H8A-13-5.3T-RL-HK-1M
    Reference no. 493125
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.94
  • 5300
    4240
    13
    2
    493126
    G81 H8A-13-5.3T-RL-HK-2M
    Reference no. 493126
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.74
  • 5300
    4240
    13
    3
    493127
    G81 H8A-13-5.3T-RL-HK-3M
    Reference no. 493127
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.54
  • 5300
    4240
    13
    4
    493128
    G81 H8A-13-5.3T-RL-HK-4M
    Reference no. 493128
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.34
  • 5300
    4240
    13
    6
    493129
    G81 H8A-13-5.3T-RL-HK-6M
    Reference no. 493129
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 27.94
  • 8000
    6400
    16
    1
    493130
    C81 H8A-16-8T-RL-HK-1M
    Reference no. 493130
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 12.725
  • 8000
    6400
    16
    2
    493131
    C81 H8A-16-8T-RL-HK-2M
    Reference no. 493131
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 18.425
  • 8000
    6400
    16
    3
    493132
    C81 H8A-16-8T-RL-HK-3M
    Reference no. 493132
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.125
  • 8000
    6400
    16
    4
    493133
    C81 H8A-16-8T-RL-HK-4M
    Reference no. 493133
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 29.825
  • 8000
    6400
    16
    6
    701117
    C81 H8A-16-8T-RL-HK-6M
    Reference no. 701117
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 42.1
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 493110
  • Details
    G81 H8A-6-1.12T-RL-HK-1M
    Reference no. 493110
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.028
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493111
  • Details
    G81 H8A-6-1.12T-RL-HK-2M
    Reference no. 493111
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 4.828
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493112
  • Details
    G81 H8A-6-1.12T-RL-HK-3M
    Reference no. 493112
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 5.628
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493113
  • Details
    G81 H8A-6-1.12T-RL-HK-4M
    Reference no. 493113
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 6.428
Working load limit 0° [kg] 1120
Working load limit laced 900
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 493114
  • Details
    G81 H8A-6-1.12T-RL-HK-6M
    Reference no. 493114
    Working load limit 0° [kg] 1120
    Working load limit laced 900
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 8.028
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 493115
  • Details
    G81 H8A-8-2T-RL-HK-1M
    Reference no. 493115
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 4.832
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493116
  • Details
    G81 H8A-8-2T-RL-HK-2M
    Reference no. 493116
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 6.232
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493117
  • Details
    G81 H8A-8-2T-RL-HK-3M
    Reference no. 493117
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 7.632
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493118
  • Details
    G81 H8A-8-2T-RL-HK-4M
    Reference no. 493118
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 9.032
Working load limit 0° [kg] 2000
Working load limit laced 1600
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 493119
  • Details
    G81 H8A-8-2T-RL-HK-6M
    Reference no. 493119
    Working load limit 0° [kg] 2000
    Working load limit laced 1600
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 11.832
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 493120
  • Details
    G81 H8A-10-3.15T-RL-HK-1M
    Reference no. 493120
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 7.15
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493121
  • Details
    G81 H8A-10-3.15T-RL-HK-2M
    Reference no. 493121
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 9.35
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493122
  • Details
    G81 H8A-10-3.15T-RL-HK-3M
    Reference no. 493122
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 11.55
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493123
  • Details
    G81 H8A-10-3.15T-RL-HK-4M
    Reference no. 493123
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 13.75
Working load limit 0° [kg] 3150
Working load limit laced 2520
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493124
  • Details
    G81 H8A-10-3.15T-RL-HK-6M
    Reference no. 493124
    Working load limit 0° [kg] 3150
    Working load limit laced 2520
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 18.15
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 493125
  • Details
    G81 H8A-13-5.3T-RL-HK-1M
    Reference no. 493125
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 8.94
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493126
  • Details
    G81 H8A-13-5.3T-RL-HK-2M
    Reference no. 493126
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 12.74
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493127
  • Details
    G81 H8A-13-5.3T-RL-HK-3M
    Reference no. 493127
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 16.54
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493128
  • Details
    G81 H8A-13-5.3T-RL-HK-4M
    Reference no. 493128
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 20.34
Working load limit 0° [kg] 5300
Working load limit laced 4240
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493129
  • Details
    G81 H8A-13-5.3T-RL-HK-6M
    Reference no. 493129
    Working load limit 0° [kg] 5300
    Working load limit laced 4240
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 27.94
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 493130
  • Details
    C81 H8A-16-8T-RL-HK-1M
    Reference no. 493130
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 12.725
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493131
  • Details
    C81 H8A-16-8T-RL-HK-2M
    Reference no. 493131
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 18.425
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493132
  • Details
    C81 H8A-16-8T-RL-HK-3M
    Reference no. 493132
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 24.125
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493133
  • Details
    C81 H8A-16-8T-RL-HK-4M
    Reference no. 493133
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 29.825
Working load limit 0° [kg] 8000
Working load limit laced 6400
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701117
  • Details
    C81 H8A-16-8T-RL-HK-6M
    Reference no. 701117
    Working load limit 0° [kg] 8000
    Working load limit laced 6400
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 42.1
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
