HIT chain sling quality grade 8, 4-leg, can be shortened Safety load hooks

HIT chain sling quality grade 8, 4-leg, can be shortened Safety load hooks

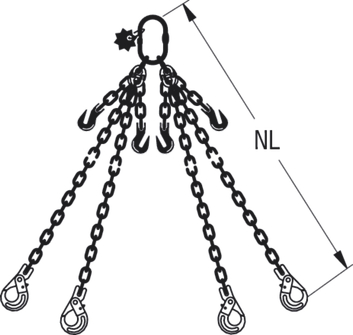

Chain sling with shortener parallel hook and safety load hook for 4-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    2
    701609
    G84 H8A-6-2.36T-GA-PKU-SHK-2M
    Reference no. 701609
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.8
  • 2360
    1700
    6
    3
    701610
    G84 H8A-6-2.36T-GA-PKU-SHK-3M
    Reference no. 701610
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13
  • 2360
    1700
    6
    4
    701611
    G84 H8A-6-2.36T-GA-PKU-SHK-4M
    Reference no. 701611
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.2
  • 2360
    1700
    6
    6
    701612
    G84 H8A-6-2.36T-GA-PKU-SHK-6M
    Reference no. 701612
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.7
  • 4250
    3000
    8
    2
    701613
    G84 H8A-8-4.25T-GA-PKU-SHK-2M
    Reference no. 701613
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
  • 4250
    3000
    8
    3
    701614
    G84 H8A-8-4.25T-GA-PKU-SHK-3M
    Reference no. 701614
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23
  • 4250
    3000
    8
    4
    701615
    G84 H8A-8-4.25T-GA-PKU-SHK-4M
    Reference no. 701615
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 28.7
  • 4250
    3000
    8
    6
    701616
    G84 H8A-8-4.25T-GA-PKU-SHK-6M
    Reference no. 701616
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 39.7
  • 6700
    4750
    10
    2
    701617
    G84 H8A-10-6.7T-GA-PKU-SHK-2M
    Reference no. 701617
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 27.8
  • 6700
    4750
    10
    3
    701618
    G84 H8A-10-6.7T-GA-PKU-SHK-3M
    Reference no. 701618
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.8
  • 6700
    4750
    10
    4
    701619
    G84 H8A-10-6.7T-GA-PKU-SHK-4M
    Reference no. 701619
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 45.7
  • 6700
    4750
    10
    6
    701620
    G84 H8A-10-6.7T-GA-PKU-SHK-6M
    Reference no. 701620
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 63.2
  • 11200
    8000
    13
    2
    701621
    G84 H8A-13-11.2T-GA-PKU-SHK-2M
    Reference no. 701621
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 51.6
  • 11200
    8000
    13
    3
    701622
    G84 H8A-13-11.2T-GA-PKU-SHK-3M
    Reference no. 701622
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 67
  • 11200
    8000
    13
    4
    701623
    G84 H8A-13-11.2T-GA-PKU-SHK-4M
    Reference no. 701623
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 82.4
  • 11200
    8000
    13
    6
    701624
    G84 H8A-13-11.2T-GA-PKU-SHK-6M
    Reference no. 701624
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 112
  • 17000
    11800
    16
    2
    701625
    C84 H8A-16-17T-GA-PKU-SHK-2M
    Reference no. 701625
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 85.3
  • 17000
    11800
    16
    3
    701626
    C84 H8A-16-17T-GA-PKU-SHK-3M
    Reference no. 701626
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 109.4
  • 17000
    11800
    16
    4
    701627
    C84 H8A-16-17T-GA-PKU-SHK-4M
    Reference no. 701627
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 131.3
  • 17000
    11800
    16
    6
    701628
    C84 H8A-16-17T-GA-PKU-SHK-6M
    Reference no. 701628
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 177.2
  • 21200
    15000
    18
    2
    701629
    C84 H8A-18-21.2T-GA-PKU-SHK-2M
    Reference no. 701629
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 117.4
  • 21200
    15000
    18
    3
    701630
    C84 H8A-18-21.2T-GA-PKU-SHK-3M
    Reference no. 701630
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 145.4
  • 21200
    15000
    18
    4
    701631
    C84 H8A-18-21.2T-GA-PKU-SHK-4M
    Reference no. 701631
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 173.4
  • 21200
    15000
    18
    6
    701632
    C84 H8A-18-21.2T-GA-PKU-SHK-6M
    Reference no. 701632
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 233
  • 21200
    15000
    20
    2
    701633
    C84 H8A-20-21.2T-GA-PKU-SHK-2M
    Reference no. 701633
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 131.7
  • 26500
    19000
    20
    3
    701634
    C84 H8A-20-26.5T-GA-PKU-SHK-3M
    Reference no. 701634
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 166.3
  • 26500
    19000
    20
    4
    701635
    C84 H8A-20-26.5T-GA-PKU-SHK-4M
    Reference no. 701635
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 200.8
  • 26500
    19000
    20
    6
    701636
    C84 H8A-20-26.5T-GA-PKU-SHK-6M
    Reference no. 701636
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 274.3
  • 31500
    22400
    22
    2
    493453
    C84 H8A-22-31.5T-GA-PK-U-SHK-2M
    Reference no. 493453
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 175.476
  • 31500
    22400
    22
    3
    493454
    C84 H8A-22-31.5T-GA-PK-U-SHK-3M
    Reference no. 493454
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 219.076
  • 31500
    22400
    22
    4
    493455
    C84 H8A-22-31.5T-GA-PK-U-SHK-4M
    Reference no. 493455
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 262.676
  • 31500
    22400
    22
    6
    493456
    C84 H8A-22-31.5T-GA-PK-U-SHK-6M
    Reference no. 493456
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 349.876
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701609
  • Details
    G84 H8A-6-2.36T-GA-PKU-SHK-2M
    Reference no. 701609
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.8
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701610
  • Details
    G84 H8A-6-2.36T-GA-PKU-SHK-3M
    Reference no. 701610
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 13
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701611
  • Details
    G84 H8A-6-2.36T-GA-PKU-SHK-4M
    Reference no. 701611
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 16.2
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701612
  • Details
    G84 H8A-6-2.36T-GA-PKU-SHK-6M
    Reference no. 701612
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 22.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701613
  • Details
    G84 H8A-8-4.25T-GA-PKU-SHK-2M
    Reference no. 701613
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 17.4
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701614
  • Details
    G84 H8A-8-4.25T-GA-PKU-SHK-3M
    Reference no. 701614
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 23
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701615
  • Details
    G84 H8A-8-4.25T-GA-PKU-SHK-4M
    Reference no. 701615
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 28.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701616
  • Details
    G84 H8A-8-4.25T-GA-PKU-SHK-6M
    Reference no. 701616
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 39.7
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701617
  • Details
    G84 H8A-10-6.7T-GA-PKU-SHK-2M
    Reference no. 701617
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 27.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701618
  • Details
    G84 H8A-10-6.7T-GA-PKU-SHK-3M
    Reference no. 701618
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 36.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701619
  • Details
    G84 H8A-10-6.7T-GA-PKU-SHK-4M
    Reference no. 701619
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 45.7
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701620
  • Details
    G84 H8A-10-6.7T-GA-PKU-SHK-6M
    Reference no. 701620
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 63.2
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701621
  • Details
    G84 H8A-13-11.2T-GA-PKU-SHK-2M
    Reference no. 701621
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 51.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701622
  • Details
    G84 H8A-13-11.2T-GA-PKU-SHK-3M
    Reference no. 701622
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 67
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701623
  • Details
    G84 H8A-13-11.2T-GA-PKU-SHK-4M
    Reference no. 701623
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 82.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701624
  • Details
    G84 H8A-13-11.2T-GA-PKU-SHK-6M
    Reference no. 701624
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 112
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701625
  • Details
    C84 H8A-16-17T-GA-PKU-SHK-2M
    Reference no. 701625
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 85.3
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701626
  • Details
    C84 H8A-16-17T-GA-PKU-SHK-3M
    Reference no. 701626
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 109.4
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701627
  • Details
    C84 H8A-16-17T-GA-PKU-SHK-4M
    Reference no. 701627
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 131.3
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701628
  • Details
    C84 H8A-16-17T-GA-PKU-SHK-6M
    Reference no. 701628
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 177.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701629
  • Details
    C84 H8A-18-21.2T-GA-PKU-SHK-2M
    Reference no. 701629
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 117.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701630
  • Details
    C84 H8A-18-21.2T-GA-PKU-SHK-3M
    Reference no. 701630
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 145.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701631
  • Details
    C84 H8A-18-21.2T-GA-PKU-SHK-4M
    Reference no. 701631
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 173.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701632
  • Details
    C84 H8A-18-21.2T-GA-PKU-SHK-6M
    Reference no. 701632
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 233
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701633
  • Details
    C84 H8A-20-21.2T-GA-PKU-SHK-2M
    Reference no. 701633
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 131.7
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701634
  • Details
    C84 H8A-20-26.5T-GA-PKU-SHK-3M
    Reference no. 701634
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 166.3
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701635
  • Details
    C84 H8A-20-26.5T-GA-PKU-SHK-4M
    Reference no. 701635
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 200.8
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701636
  • Details
    C84 H8A-20-26.5T-GA-PKU-SHK-6M
    Reference no. 701636
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 274.3
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493453
  • Details
    C84 H8A-22-31.5T-GA-PK-U-SHK-2M
    Reference no. 493453
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 175.476
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493454
  • Details
    C84 H8A-22-31.5T-GA-PK-U-SHK-3M
    Reference no. 493454
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 219.076
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493455
  • Details
    C84 H8A-22-31.5T-GA-PK-U-SHK-4M
    Reference no. 493455
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 262.676
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493456
  • Details
    C84 H8A-22-31.5T-GA-PK-U-SHK-6M
    Reference no. 493456
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 349.876
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
