HIT chain sling quality grade 8, 4-leg, can be shortened Standard load hook

HIT chain sling quality grade 8, 4-leg, can be shortened Standard load hook

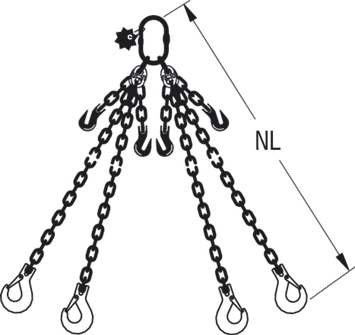

Chain sling with shortener parallel hook and standard load hook for 4-leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • can be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    2
    701583
    G84 H8A-6-2.36T-GA-PKU-HK-2M
    Reference no. 701583
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.1
  • 2360
    1700
    6
    3
    701584
    G84 H8A-6-2.36T-GA-PKU-HK-3M
    Reference no. 701584
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 12.3
  • 2360
    1700
    6
    4
    701585
    G84 H8A-6-2.36T-GA-PKU-HK-4M
    Reference no. 701585
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 15.6
  • 2360
    1700
    6
    6
    701586
    G84 H8A-6-2.36T-GA-PKU-HK-6M
    Reference no. 701586
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 21.9
  • 4250
    3000
    8
    2
    701587
    G84 H8A-8-4.25T-GA-PKU-HK-2M
    Reference no. 701587
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 16.9
  • 4250
    3000
    8
    3
    701588
    G84 H8A-8-4.25T-GA-PKU-HK-3M
    Reference no. 701588
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 22.2
  • 4250
    3000
    8
    4
    701589
    G84 H8A-8-4.25T-GA-PKU-HK-4M
    Reference no. 701589
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 27.9
  • 4250
    3000
    8
    6
    701590
    G84 H8A-8-4.25T-GA-PKU-HK-6M
    Reference no. 701590
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 39.2
  • 6700
    4750
    10
    2
    701591
    G84 H8A-10-6.7T-GA-PKU-HK-2M
    Reference no. 701591
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 27.4
  • 6700
    4750
    10
    3
    701592
    G84 H8A-10-6.7T-GA-PKU-HK-3M
    Reference no. 701592
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 35.8
  • 6700
    4750
    10
    4
    700357
    G84 H8A-10-6.7T-GA-PKU-HK-4M
    Reference no. 700357
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 44.9
  • 6700
    4750
    10
    6
    700976
    G84 H8A-10-6.7T-GA-PKU-HK-6M
    Reference no. 700976
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 62.3
  • 11200
    8000
    13
    2
    701596
    G84 H8A-13-11.2T-GA-PKU-HK-2M
    Reference no. 701596
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 49.7
  • 11200
    8000
    13
    3
    701597
    G84 H8A-13-11.2T-GA-PKU-HK-3M
    Reference no. 701597
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 65.1
  • 11200
    8000
    13
    4
    701598
    G84 H8A-13-11.2T-GA-PKU-HK-4M
    Reference no. 701598
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 79.4
  • 11200
    8000
    13
    6
    701599
    G84 H8A-13-11.2T-GA-PKU-HK-6M
    Reference no. 701599
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 110.2
  • 17000
    11800
    16
    2
    701600
    C84 H8A-16-17T-GA-PKU-HK-2M
    Reference no. 701600
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 77.7
  • 17000
    11800
    16
    3
    701601
    C84 H8A-16-17T-GA-PKU-HK-3M
    Reference no. 701601
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 99.6
  • 17000
    11800
    16
    4
    701602
    C84 H8A-16-17T-GA-PKU-HK-4M
    Reference no. 701602
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 123.7
  • 17000
    11800
    16
    6
    701603
    C84 H8A-16-17T-GA-PKU-HK-6M
    Reference no. 701603
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 169.6
  • 21200
    15000
    18
    2
    701604
    C84 H8A-18-21.2T-GA-PKU-HK-2M
    Reference no. 701604
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 111
  • 21200
    15000
    18
    3
    701605
    C84 H8A-18-21.2T-GA-PKU-HK-3M
    Reference no. 701605
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 139
  • 21200
    15000
    18
    4
    701606
    C84 H8A-18-21.2T-GA-PKU-HK-4M
    Reference no. 701606
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 170.6
  • 21200
    15000
    18
    6
    701607
    C84 H8A-18-21.2T-GA-PKU-HK-6M
    Reference no. 701607
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 226.6
  • 26500
    19000
    20
    2
    492936
    C84 H8A-20-26.5T-GA-PK-U-HK-2M
    Reference no. 492936
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 123.45
  • 26500
    19000
    20
    3
    492937
    C84 H8A-20-26.5T-GA-PK-U-HK-3M
    Reference no. 492937
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 159.45
  • 26500
    19000
    20
    4
    492938
    C84 H8A-20-26.5T-GA-PK-U-HK-4M
    Reference no. 492938
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 195.45
  • 26500
    19000
    20
    6
    492939
    C84 H8A-20-26.5T-GA-PK-U-HK-6M
    Reference no. 492939
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 267.45
  • 31500
    22400
    22
    2
    492940
    C84 H8A-22-31.5T-GA-PK-U-HK-2M
    Reference no. 492940
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 158.831
  • 31500
    22400
    22
    3
    492941
    C84 H8A-22-31.5T-GA-PK-U-HK-3M
    Reference no. 492941
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 202.431
  • 31500
    22400
    22
    4
    492942
    C84 H8A-22-31.5T-GA-PK-U-HK-4M
    Reference no. 492942
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 246.031
  • 31500
    22400
    22
    6
    492943
    C84 H8A-22-31.5T-GA-PK-U-HK-6M
    Reference no. 492943
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 333.231
  • 45000
    31500
    26
    2
    492944
    C84 H8A-26-45T-GA-PK-U-HK-2M
    Reference no. 492944
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 250.264
  • 45000
    31500
    26
    3
    492945
    C84 H8A-26-45T-GA-PK-U-HK-3M
    Reference no. 492945
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 311.064
  • 45000
    31500
    26
    4
    492946
    C84 H8A-26-45T-GA-PK-U-HK-4M
    Reference no. 492946
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 371.864
  • 45000
    31500
    26
    6
    701608
    C84 H8A-26-45T-GA-PKU-HK-6M
    Reference no. 701608
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 494.1
  • 67000
    47500
    32
    2
    493308
    C84 H8A-32-67T-GA-P-H-H-2M
    Reference no. 493308
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 462.338
  • 67000
    47500
    32
    3
    493309
    C84 H8A-32-67T-GA-P-H-H-3M
    Reference no. 493309
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 554.338
  • 67000
    47500
    32
    4
    493310
    C84 H8A-32-67T-GA-P-H-H-4M
    Reference no. 493310
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 646.338
  • 67000
    47500
    32
    6
    493311
    C84 H8A-32-67T-GA-P-H-H-6M
    Reference no. 493311
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 830.338
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701583
  • Details
    G84 H8A-6-2.36T-GA-PKU-HK-2M
    Reference no. 701583
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 9.1
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701584
  • Details
    G84 H8A-6-2.36T-GA-PKU-HK-3M
    Reference no. 701584
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 12.3
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701585
  • Details
    G84 H8A-6-2.36T-GA-PKU-HK-4M
    Reference no. 701585
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 15.6
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701586
  • Details
    G84 H8A-6-2.36T-GA-PKU-HK-6M
    Reference no. 701586
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 21.9
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701587
  • Details
    G84 H8A-8-4.25T-GA-PKU-HK-2M
    Reference no. 701587
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 16.9
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701588
  • Details
    G84 H8A-8-4.25T-GA-PKU-HK-3M
    Reference no. 701588
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 22.2
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701589
  • Details
    G84 H8A-8-4.25T-GA-PKU-HK-4M
    Reference no. 701589
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 27.9
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701590
  • Details
    G84 H8A-8-4.25T-GA-PKU-HK-6M
    Reference no. 701590
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 39.2
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701591
  • Details
    G84 H8A-10-6.7T-GA-PKU-HK-2M
    Reference no. 701591
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 27.4
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701592
  • Details
    G84 H8A-10-6.7T-GA-PKU-HK-3M
    Reference no. 701592
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 35.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 700357
  • Details
    G84 H8A-10-6.7T-GA-PKU-HK-4M
    Reference no. 700357
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 44.9
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 700976
  • Details
    G84 H8A-10-6.7T-GA-PKU-HK-6M
    Reference no. 700976
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 62.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701596
  • Details
    G84 H8A-13-11.2T-GA-PKU-HK-2M
    Reference no. 701596
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 49.7
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701597
  • Details
    G84 H8A-13-11.2T-GA-PKU-HK-3M
    Reference no. 701597
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 65.1
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701598
  • Details
    G84 H8A-13-11.2T-GA-PKU-HK-4M
    Reference no. 701598
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 79.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701599
  • Details
    G84 H8A-13-11.2T-GA-PKU-HK-6M
    Reference no. 701599
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 110.2
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701600
  • Details
    C84 H8A-16-17T-GA-PKU-HK-2M
    Reference no. 701600
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 77.7
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701601
  • Details
    C84 H8A-16-17T-GA-PKU-HK-3M
    Reference no. 701601
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 99.6
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701602
  • Details
    C84 H8A-16-17T-GA-PKU-HK-4M
    Reference no. 701602
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 123.7
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701603
  • Details
    C84 H8A-16-17T-GA-PKU-HK-6M
    Reference no. 701603
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 169.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701604
  • Details
    C84 H8A-18-21.2T-GA-PKU-HK-2M
    Reference no. 701604
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 111
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701605
  • Details
    C84 H8A-18-21.2T-GA-PKU-HK-3M
    Reference no. 701605
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 139
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701606
  • Details
    C84 H8A-18-21.2T-GA-PKU-HK-4M
    Reference no. 701606
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 170.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701607
  • Details
    C84 H8A-18-21.2T-GA-PKU-HK-6M
    Reference no. 701607
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 226.6
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 492936
  • Details
    C84 H8A-20-26.5T-GA-PK-U-HK-2M
    Reference no. 492936
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 123.45
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 492937
  • Details
    C84 H8A-20-26.5T-GA-PK-U-HK-3M
    Reference no. 492937
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 159.45
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 492938
  • Details
    C84 H8A-20-26.5T-GA-PK-U-HK-4M
    Reference no. 492938
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 195.45
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 492939
  • Details
    C84 H8A-20-26.5T-GA-PK-U-HK-6M
    Reference no. 492939
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 267.45
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 492940
  • Details
    C84 H8A-22-31.5T-GA-PK-U-HK-2M
    Reference no. 492940
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 158.831
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 492941
  • Details
    C84 H8A-22-31.5T-GA-PK-U-HK-3M
    Reference no. 492941
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 202.431
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 492942
  • Details
    C84 H8A-22-31.5T-GA-PK-U-HK-4M
    Reference no. 492942
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 246.031
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 492943
  • Details
    C84 H8A-22-31.5T-GA-PK-U-HK-6M
    Reference no. 492943
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 333.231
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 492944
  • Details
    C84 H8A-26-45T-GA-PK-U-HK-2M
    Reference no. 492944
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 250.264
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 492945
  • Details
    C84 H8A-26-45T-GA-PK-U-HK-3M
    Reference no. 492945
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 311.064
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 492946
  • Details
    C84 H8A-26-45T-GA-PK-U-HK-4M
    Reference no. 492946
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 371.864
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 701608
  • Details
    C84 H8A-26-45T-GA-PKU-HK-6M
    Reference no. 701608
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 494.1
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 493308
  • Details
    C84 H8A-32-67T-GA-P-H-H-2M
    Reference no. 493308
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 462.338
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 493309
  • Details
    C84 H8A-32-67T-GA-P-H-H-3M
    Reference no. 493309
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 554.338
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 493310
  • Details
    C84 H8A-32-67T-GA-P-H-H-4M
    Reference no. 493310
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 646.338
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 493311
  • Details
    C84 H8A-32-67T-GA-P-H-H-6M
    Reference no. 493311
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 830.338
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
