HIT chain sling quality grade 8, 4-leg, can be shortened with extra-large suspension link and safety load hook

HIT chain sling quality grade 8, 4-leg, can be shortened with extra-large suspension link and safety load hook

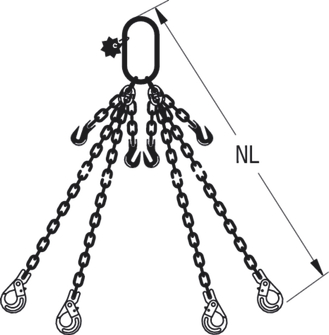

Chain sling with extra-large suspension link, shortener parallel hook and safety load hooks for 4 leg attachment. Ideally suited for all demanding applications with standard crane hooks and for general lifting purposes. The shortener can be used to individually adjust the length of the chain sling for ideal attachment under load. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    2
    493458
    G84 H8A-6-2.36T-RL-PKU-SHK-2M
    Reference no. 493458
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 11.596
  • 2360
    1700
    6
    3
    493459
    G84 H8A-6-2.36T-RL-PKU-SHK-3M
    Reference no. 493459
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.796
  • 2360
    1700
    6
    4
    493460
    G84 H8A-6-2.36T-RL-PKU-SHK-4M
    Reference no. 493460
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.996
  • 2360
    1700
    6
    6
    701671
    G84 H8A-6-2.36T-RL-PKU-SHK-6M
    Reference no. 701671
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 23.9
  • 4250
    3000
    8
    2
    493462
    G84 H8A-8-4.25T-RL-PKU-SHK-2M
    Reference no. 493462
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 21.067
  • 4250
    3000
    8
    3
    493463
    G84 H8A-8-4.25T-RL-PKU-SHK-3M
    Reference no. 493463
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 26.667
  • 4250
    3000
    8
    4
    493464
    G84 H8A-8-4.25T-RL-PKU-SHK-4M
    Reference no. 493464
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 32.267
  • 4250
    3000
    8
    6
    701672
    G84 H8A-8-4.25T-RL-PKU-SHK-6M
    Reference no. 701672
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.2
  • 6700
    4750
    10
    2
    493467
    G84 H8A-10-6.7T-RL-PKU-SHK-2M
    Reference no. 493467
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 31.008
  • 6700
    4750
    10
    3
    493468
    G84 H8A-10-6.7T-RL-PKU-SHK-3M
    Reference no. 493468
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.808
  • 6700
    4750
    10
    4
    493469
    G84 H8A-10-6.7T-RL-PKU-SHK-4M
    Reference no. 493469
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 48.608
  • 6700
    4750
    10
    6
    493470
    G84 H8A-10-6.7T-RL-PKU-SHK-6M
    Reference no. 493470
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 66.208
  • 11200
    8000
    13
    2
    493472
    G84 H8A-13-11.2T-RL-PKU-SHK-2M
    Reference no. 493472
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 58.002
  • 11200
    8000
    13
    3
    493473
    G84 H8A-13-11.2T-RL-PKU-SHK-3M
    Reference no. 493473
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 73.202
  • 11200
    8000
    13
    4
    493474
    G84 H8A-13-11.2T-RL-PKU-SHK-4M
    Reference no. 493474
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 88.402
  • 11200
    8000
    13
    6
    493475
    G84 H8A-13-11.2T-RL-PKU-SHK-6M
    Reference no. 493475
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 118.802
  • 17000
    11800
    16
    2
    493477
    C84 H8A-16-17T-RL-PK-U-SHK-2M
    Reference no. 493477
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 87.554
  • 17000
    11800
    16
    3
    493478
    C84 H8A-16-17T-RL-PK-U-SHK-3M
    Reference no. 493478
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 110.354
  • 17000
    11800
    16
    4
    493479
    C84 H8A-16-17T-RL-PK-U-SHK-4M
    Reference no. 493479
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 133.154
  • 17000
    11800
    16
    6
    493480
    C84 H8A-16-17T-RL-PK-U-SHK-6M
    Reference no. 493480
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 178.754
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 493458
  • Details
    G84 H8A-6-2.36T-RL-PKU-SHK-2M
    Reference no. 493458
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 11.596
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 493459
  • Details
    G84 H8A-6-2.36T-RL-PKU-SHK-3M
    Reference no. 493459
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 14.796
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 493460
  • Details
    G84 H8A-6-2.36T-RL-PKU-SHK-4M
    Reference no. 493460
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 17.996
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701671
  • Details
    G84 H8A-6-2.36T-RL-PKU-SHK-6M
    Reference no. 701671
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 23.9
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 493462
  • Details
    G84 H8A-8-4.25T-RL-PKU-SHK-2M
    Reference no. 493462
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 21.067
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 493463
  • Details
    G84 H8A-8-4.25T-RL-PKU-SHK-3M
    Reference no. 493463
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 26.667
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 493464
  • Details
    G84 H8A-8-4.25T-RL-PKU-SHK-4M
    Reference no. 493464
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 32.267
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701672
  • Details
    G84 H8A-8-4.25T-RL-PKU-SHK-6M
    Reference no. 701672
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 43.2
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 493467
  • Details
    G84 H8A-10-6.7T-RL-PKU-SHK-2M
    Reference no. 493467
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 31.008
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 493468
  • Details
    G84 H8A-10-6.7T-RL-PKU-SHK-3M
    Reference no. 493468
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 39.808
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 493469
  • Details
    G84 H8A-10-6.7T-RL-PKU-SHK-4M
    Reference no. 493469
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 48.608
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 493470
  • Details
    G84 H8A-10-6.7T-RL-PKU-SHK-6M
    Reference no. 493470
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 66.208
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 493472
  • Details
    G84 H8A-13-11.2T-RL-PKU-SHK-2M
    Reference no. 493472
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 58.002
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 493473
  • Details
    G84 H8A-13-11.2T-RL-PKU-SHK-3M
    Reference no. 493473
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 73.202
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 493474
  • Details
    G84 H8A-13-11.2T-RL-PKU-SHK-4M
    Reference no. 493474
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 88.402
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 493475
  • Details
    G84 H8A-13-11.2T-RL-PKU-SHK-6M
    Reference no. 493475
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 118.802
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 493477
  • Details
    C84 H8A-16-17T-RL-PK-U-SHK-2M
    Reference no. 493477
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 87.554
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 493478
  • Details
    C84 H8A-16-17T-RL-PK-U-SHK-3M
    Reference no. 493478
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 110.354
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 493479
  • Details
    C84 H8A-16-17T-RL-PK-U-SHK-4M
    Reference no. 493479
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 133.154
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 493480
  • Details
    C84 H8A-16-17T-RL-PK-U-SHK-6M
    Reference no. 493480
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 178.754
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
