HIT Chain slings in quality grade 8 4 leg with component connector

HIT Chain slings in quality grade 8 4 leg with component connector

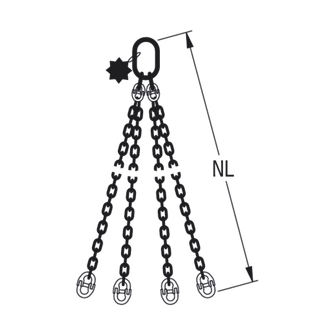

Chain sling with standard suspension link and universal connecting link as end fittings for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    1
    701673
    G84 H8A-6-2.36T-GA-V-1M
    Reference no. 701673
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
  • 2360
    1700
    6
    2
    701674
    G84 H8A-6-2.36T-GA-V-2M
    Reference no. 701674
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 7.7
  • 2360
    1700
    6
    3
    701675
    G84 H8A-6-2.36T-GA-V-3M
    Reference no. 701675
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 10.9
  • 2360
    1700
    6
    4
    701676
    G84 H8A-6-2.36T-GA-V-4M
    Reference no. 701676
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 14
  • 2360
    1700
    6
    6
    701677
    G84 H8A-6-2.36T-GA-V-6M
    Reference no. 701677
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 20.5
  • 4250
    3000
    8
    1
    701678
    G84 H8A-8-4.25T-GA-V-1M
    Reference no. 701678
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 7.7
  • 4250
    3000
    8
    2
    701679
    G84 H8A-8-4.25T-GA-V-2M
    Reference no. 701679
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 13.1
  • 4250
    3000
    8
    3
    701680
    G84 H8A-8-4.25T-GA-V-3M
    Reference no. 701680
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
  • 4250
    3000
    8
    4
    701681
    G84 H8A-8-4.25T-GA-V-4M
    Reference no. 701681
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 24.3
  • 4250
    3000
    8
    6
    701682
    G84 H8A-8-4.25T-GA-V-6M
    Reference no. 701682
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 35.6
  • 6700
    4750
    10
    1
    701683
    G84 H8A-10-6.7T-GA-V-1M
    Reference no. 701683
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 11.6
  • 6700
    4750
    10
    2
    701684
    G84 H8A-10-6.7T-GA-V-2M
    Reference no. 701684
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 20
  • 6700
    4750
    10
    3
    701685
    G84 H8A-10-6.7T-GA-V-3M
    Reference no. 701685
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 29
  • 6700
    4750
    10
    4
    701686
    G84 H8A-10-6.7T-GA-V-4M
    Reference no. 701686
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 38
  • 6700
    4750
    10
    6
    701687
    G84 H8A-10-6.7T-GA-V-6M
    Reference no. 701687
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 55.4
  • 11200
    8000
    13
    1
    701688
    G84 H8A-13-11.2T-GA-V-1M
    Reference no. 701688
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 21.3
  • 11200
    8000
    13
    2
    701689
    G84 H8A-13-11.2T-GA-V-2M
    Reference no. 701689
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 35.5
  • 11200
    8000
    13
    3
    701690
    G84 H8A-13-11.2T-GA-V-3M
    Reference no. 701690
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 51
  • 11200
    8000
    13
    4
    701691
    G84 H8A-13-11.2T-GA-V-4M
    Reference no. 701691
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 66.4
  • 11200
    8000
    13
    6
    701692
    G84 H8A-13-11.2T-GA-V-6M
    Reference no. 701692
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 97.2
  • 17000
    11800
    16
    1
    701693
    C84 H8A-16-17T-GA-V-1M
    Reference no. 701693
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 31
  • 17000
    11800
    16
    2
    701694
    C84 H8A-16-17T-GA-V-2M
    Reference no. 701694
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 52.9
  • 17000
    11800
    16
    3
    701695
    C84 H8A-16-17T-GA-V-3M
    Reference no. 701695
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 77
  • 17000
    11800
    16
    4
    701696
    C84 H8A-16-17T-GA-V-4M
    Reference no. 701696
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 98.9
  • 17000
    11800
    16
    6
    701697
    C84 H8A-16-17T-GA-V-6M
    Reference no. 701697
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 144.8
  • 21200
    15000
    18
    2
    701698
    C84 H8A-18-21.2T-GA-V-2M
    Reference no. 701698
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 75.2
  • 21200
    15000
    18
    3
    701699
    C84 H8A-18-21.2T-GA-V-3M
    Reference no. 701699
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 103.6
  • 21200
    15000
    18
    4
    701700
    C84 H8A-18-21.2T-GA-V-4M
    Reference no. 701700
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 132
  • 21200
    15000
    18
    6
    701701
    C84 H8A-18-21.2T-GA-V-6M
    Reference no. 701701
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 191.9
  • 26500
    19000
    20
    2
    701702
    C84 H8A-20-26.5T-GA-V-2M
    Reference no. 701702
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 85.5
  • 26500
    19000
    20
    3
    701703
    C84 H8A-20-26.5T-GA-V-3M
    Reference no. 701703
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 124.3
  • 26500
    19000
    20
    4
    701704
    C84 H8A-20-26.5T-GA-V-4M
    Reference no. 701704
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 158.9
  • 26500
    19000
    20
    6
    701705
    C84 H8A-20-26.5T-GA-V-6M
    Reference no. 701705
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 232.3
  • 31500
    22400
    22
    2
    701706
    C84 H8A-22-31.5T-GA-V-2M
    Reference no. 701706
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 108.5
  • 31500
    22400
    22
    3
    701707
    C84 H8A-22-31.5T-GA-V-3M
    Reference no. 701707
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 154.5
  • 31500
    22400
    22
    4
    701708
    C84 H8A-22-31.5T-GA-V-4M
    Reference no. 701708
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 194.8
  • 31500
    22400
    22
    6
    701709
    C84 H8A-22-31.5T-GA-V-6M
    Reference no. 701709
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 281.1
  • 45000
    31500
    26
    2
    701710
    C84 H8A-26-45T-GA-V-2M
    Reference no. 701710
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 148
  • 45000
    31500
    26
    3
    701711
    C84 H8A-26-45T-GA-V-3M
    Reference no. 701711
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 214.4
  • 45000
    31500
    26
    4
    701712
    C84 H8A-26-45T-GA-V-4M
    Reference no. 701712
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 271.3
  • 45000
    31500
    26
    6
    701713
    C84 H8A-26-45T-GA-V-6M
    Reference no. 701713
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 394.6
  • 67000
    47500
    32
    2
    701714
    C84 H8A-32-67T-GA-V-2M
    Reference no. 701714
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 242.5
  • 67000
    47500
    32
    3
    701715
    C84 H8A-32-67T-GA-V-3M
    Reference no. 701715
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 330.8
  • 67000
    47500
    32
    4
    701716
    C84 H8A-32-67T-GA-V-4M
    Reference no. 701716
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 419.2
  • 67000
    47500
    32
    6
    701717
    C84 H8A-32-67T-GA-V-6M
    Reference no. 701717
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 613.5
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701673
  • Details
    G84 H8A-6-2.36T-GA-V-1M
    Reference no. 701673
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.5
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701674
  • Details
    G84 H8A-6-2.36T-GA-V-2M
    Reference no. 701674
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 7.7
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701675
  • Details
    G84 H8A-6-2.36T-GA-V-3M
    Reference no. 701675
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 10.9
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701676
  • Details
    G84 H8A-6-2.36T-GA-V-4M
    Reference no. 701676
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 14
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701677
  • Details
    G84 H8A-6-2.36T-GA-V-6M
    Reference no. 701677
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 20.5
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701678
  • Details
    G84 H8A-8-4.25T-GA-V-1M
    Reference no. 701678
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 7.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701679
  • Details
    G84 H8A-8-4.25T-GA-V-2M
    Reference no. 701679
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 13.1
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701680
  • Details
    G84 H8A-8-4.25T-GA-V-3M
    Reference no. 701680
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 18.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701681
  • Details
    G84 H8A-8-4.25T-GA-V-4M
    Reference no. 701681
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 24.3
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701682
  • Details
    G84 H8A-8-4.25T-GA-V-6M
    Reference no. 701682
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 35.6
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701683
  • Details
    G84 H8A-10-6.7T-GA-V-1M
    Reference no. 701683
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 11.6
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701684
  • Details
    G84 H8A-10-6.7T-GA-V-2M
    Reference no. 701684
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 20
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701685
  • Details
    G84 H8A-10-6.7T-GA-V-3M
    Reference no. 701685
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 29
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701686
  • Details
    G84 H8A-10-6.7T-GA-V-4M
    Reference no. 701686
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 38
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701687
  • Details
    G84 H8A-10-6.7T-GA-V-6M
    Reference no. 701687
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 55.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701688
  • Details
    G84 H8A-13-11.2T-GA-V-1M
    Reference no. 701688
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 21.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701689
  • Details
    G84 H8A-13-11.2T-GA-V-2M
    Reference no. 701689
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 35.5
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701690
  • Details
    G84 H8A-13-11.2T-GA-V-3M
    Reference no. 701690
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 51
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701691
  • Details
    G84 H8A-13-11.2T-GA-V-4M
    Reference no. 701691
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 66.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701692
  • Details
    G84 H8A-13-11.2T-GA-V-6M
    Reference no. 701692
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 97.2
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701693
  • Details
    C84 H8A-16-17T-GA-V-1M
    Reference no. 701693
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 31
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701694
  • Details
    C84 H8A-16-17T-GA-V-2M
    Reference no. 701694
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 52.9
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701695
  • Details
    C84 H8A-16-17T-GA-V-3M
    Reference no. 701695
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 77
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701696
  • Details
    C84 H8A-16-17T-GA-V-4M
    Reference no. 701696
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 98.9
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701697
  • Details
    C84 H8A-16-17T-GA-V-6M
    Reference no. 701697
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 144.8
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701698
  • Details
    C84 H8A-18-21.2T-GA-V-2M
    Reference no. 701698
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 75.2
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701699
  • Details
    C84 H8A-18-21.2T-GA-V-3M
    Reference no. 701699
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 103.6
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701700
  • Details
    C84 H8A-18-21.2T-GA-V-4M
    Reference no. 701700
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 132
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701701
  • Details
    C84 H8A-18-21.2T-GA-V-6M
    Reference no. 701701
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 191.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701702
  • Details
    C84 H8A-20-26.5T-GA-V-2M
    Reference no. 701702
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 85.5
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701703
  • Details
    C84 H8A-20-26.5T-GA-V-3M
    Reference no. 701703
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 124.3
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701704
  • Details
    C84 H8A-20-26.5T-GA-V-4M
    Reference no. 701704
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 158.9
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701705
  • Details
    C84 H8A-20-26.5T-GA-V-6M
    Reference no. 701705
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 232.3
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 701706
  • Details
    C84 H8A-22-31.5T-GA-V-2M
    Reference no. 701706
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 108.5
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 701707
  • Details
    C84 H8A-22-31.5T-GA-V-3M
    Reference no. 701707
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 154.5
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 701708
  • Details
    C84 H8A-22-31.5T-GA-V-4M
    Reference no. 701708
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 194.8
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 701709
  • Details
    C84 H8A-22-31.5T-GA-V-6M
    Reference no. 701709
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 281.1
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 701710
  • Details
    C84 H8A-26-45T-GA-V-2M
    Reference no. 701710
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 148
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 701711
  • Details
    C84 H8A-26-45T-GA-V-3M
    Reference no. 701711
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 214.4
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 701712
  • Details
    C84 H8A-26-45T-GA-V-4M
    Reference no. 701712
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 271.3
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 701713
  • Details
    C84 H8A-26-45T-GA-V-6M
    Reference no. 701713
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 394.6
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 701714
  • Details
    C84 H8A-32-67T-GA-V-2M
    Reference no. 701714
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 242.5
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 701715
  • Details
    C84 H8A-32-67T-GA-V-3M
    Reference no. 701715
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 330.8
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 701716
  • Details
    C84 H8A-32-67T-GA-V-4M
    Reference no. 701716
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 419.2
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 701717
  • Details
    C84 H8A-32-67T-GA-V-6M
    Reference no. 701717
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 613.5
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
