HIT Chain slings in quality grade 8 4 leg Standard load hook

HIT Chain slings in quality grade 8 4 leg Standard load hook

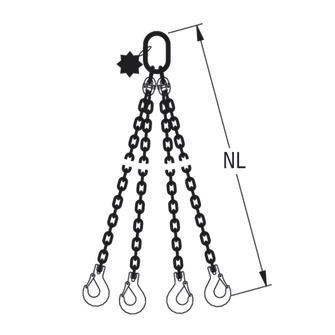

Chain sling with safety load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    1
    701558
    G84 H8A-6-2.36T-GA-HK-1M
    Reference no. 701558
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.9
  • 2360
    1700
    6
    2
    701559
    G84 H8A-6-2.36T-GA-HK-2M
    Reference no. 701559
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 8.1
  • 2360
    1700
    6
    3
    701560
    G84 H8A-6-2.36T-GA-HK-3M
    Reference no. 701560
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 11.3
  • 2360
    1700
    6
    4
    701561
    G84 H8A-6-2.36T-GA-HK-4M
    Reference no. 701561
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 14.5
  • 2360
    1700
    6
    6
    701562
    G84 H8A-6-2.36T-GA-HK-6M
    Reference no. 701562
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 20.9
  • 4250
    3000
    8
    1
    701563
    G84 H8A-8-4.25T-GA-HK-1M
    Reference no. 701563
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.2
  • 4250
    3000
    8
    2
    701564
    G84 H8A-8-4.25T-GA-HK-2M
    Reference no. 701564
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 14.8
  • 4250
    3000
    8
    3
    701565
    G84 H8A-8-4.25T-GA-HK-3M
    Reference no. 701565
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 20.2
  • 4250
    3000
    8
    4
    701566
    G84 H8A-8-4.25T-GA-HK-4M
    Reference no. 701566
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 25.8
  • 4250
    3000
    8
    6
    701567
    G84 H8A-8-4.25T-GA-HK-6M
    Reference no. 701567
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 37.1
  • 6700
    4750
    10
    1
    701568
    G84 H8A-10-6.7T-GA-HK-1M
    Reference no. 701568
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 14.4
  • 6700
    4750
    10
    2
    701569
    G84 H8A-10-6.7T-GA-HK-2M
    Reference no. 701569
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 23.4
  • 6700
    4750
    10
    3
    701570
    G84 H8A-10-6.7T-GA-HK-3M
    Reference no. 701570
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 31.9
  • 6700
    4750
    10
    4
    701571
    G84 H8A-10-6.7T-GA-HK-4M
    Reference no. 701571
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 40.8
  • 6700
    4750
    10
    6
    701572
    G84 H8A-10-6.7T-GA-HK-6M
    Reference no. 701572
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 58.3
  • 11200
    8000
    13
    1
    701573
    G84 H8A-13-11.2T-GA-HK-1M
    Reference no. 701573
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 25.5
  • 11200
    8000
    13
    2
    701574
    G84 H8A-13-11.2T-GA-HK-2M
    Reference no. 701574
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 40.9
  • 11200
    8000
    13
    3
    701575
    G84 H8A-13-11.2T-GA-HK-3M
    Reference no. 701575
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 56.4
  • 11200
    8000
    13
    4
    701576
    G84 H8A-13-11.2T-GA-HK-4M
    Reference no. 701576
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 70.6
  • 11200
    8000
    13
    6
    701577
    G84 H8A-13-11.2T-GA-HK-6M
    Reference no. 701577
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 101.4
  • 17000
    11800
    16
    1
    701578
    C84 H8A-16-17T-GA-HK-1M
    Reference no. 701578
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 40.2
  • 17000
    11800
    16
    2
    701579
    C84 H8A-16-17T-GA-HK-2M
    Reference no. 701579
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 62.1
  • 17000
    11800
    16
    3
    701580
    C84 H8A-16-17T-GA-HK-3M
    Reference no. 701580
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 84
  • 17000
    11800
    16
    4
    701581
    C84 H8A-16-17T-GA-HK-4M
    Reference no. 701581
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 108.1
  • 17000
    11800
    16
    6
    701582
    C84 H8A-16-17T-GA-HK-6M
    Reference no. 701582
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 154.1
  • 21200
    15000
    18
    2
    493312
    C84 H8A-18-21.2T-GA-HK-2M
    Reference no. 493312
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 85.894
  • 21200
    15000
    18
    3
    493313
    C84 H8A-18-21.2T-GA-HK-3M
    Reference no. 493313
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 115.094
  • 21200
    15000
    18
    4
    493314
    C84 H8A-18-21.2T-GA-HK-4M
    Reference no. 493314
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 144.294
  • 21200
    15000
    18
    6
    493315
    C84 H8A-18-21.2T-GA-HK-6M
    Reference no. 493315
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 202.694
  • 26500
    19000
    20
    2
    492819
    C84 H8A-20-26.5T-GA-HK-2M
    Reference no. 492819
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 99.21
  • 26500
    19000
    20
    3
    492820
    C84 H8A-20-26.5T-GA-HK-3M
    Reference no. 492820
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 135.21
  • 26500
    19000
    20
    4
    492821
    C84 H8A-20-26.5T-GA-HK-4M
    Reference no. 492821
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 171.21
  • 26500
    19000
    20
    6
    492822
    C84 H8A-20-26.5T-GA-HK-6M
    Reference no. 492822
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 243.21
  • 31500
    22400
    22
    2
    492823
    C84 H8A-22-31.5T-GA-HK-2M
    Reference no. 492823
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 124.52
  • 31500
    22400
    22
    3
    492824
    C84 H8A-22-31.5T-GA-HK-3M
    Reference no. 492824
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 168.12
  • 31500
    22400
    22
    4
    492825
    C84 H8A-22-31.5T-GA-HK-4M
    Reference no. 492825
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 211.72
  • 31500
    22400
    22
    6
    492826
    C84 H8A-22-31.5T-GA-HK-6M
    Reference no. 492826
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 298.92
  • 45000
    31500
    26
    2
    493316
    C84 H8A-26-45T-GA-HK-2M
    Reference no. 493316
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 177.295
  • 45000
    31500
    26
    3
    493317
    C84 H8A-26-45T-GA-HK-3M
    Reference no. 493317
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 238.095
  • 45000
    31500
    26
    4
    493318
    C84 H8A-26-45T-GA-HK-4M
    Reference no. 493318
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 298.895
  • 45000
    31500
    26
    6
    493319
    C84 H8A-26-45T-GA-HK-6M
    Reference no. 493319
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 420.495
  • 67000
    47500
    32
    2
    493320
    C84 H8A-32-67T-GA-H-2M
    Reference no. 493320
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 322.21
  • 67000
    47500
    32
    3
    493321
    C84 H8A-32-67T-GA-H-3M
    Reference no. 493321
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 414.21
  • 67000
    47500
    32
    4
    493322
    C84 H8A-32-67T-GA-H-4M
    Reference no. 493322
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 506.21
  • 67000
    47500
    32
    6
    493323
    C84 H8A-32-67T-GA-H-6M
    Reference no. 493323
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 690.21
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701558
  • Details
    G84 H8A-6-2.36T-GA-HK-1M
    Reference no. 701558
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 4.9
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701559
  • Details
    G84 H8A-6-2.36T-GA-HK-2M
    Reference no. 701559
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 8.1
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701560
  • Details
    G84 H8A-6-2.36T-GA-HK-3M
    Reference no. 701560
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 11.3
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701561
  • Details
    G84 H8A-6-2.36T-GA-HK-4M
    Reference no. 701561
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 14.5
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701562
  • Details
    G84 H8A-6-2.36T-GA-HK-6M
    Reference no. 701562
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 20.9
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701563
  • Details
    G84 H8A-8-4.25T-GA-HK-1M
    Reference no. 701563
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.2
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701564
  • Details
    G84 H8A-8-4.25T-GA-HK-2M
    Reference no. 701564
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 14.8
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701565
  • Details
    G84 H8A-8-4.25T-GA-HK-3M
    Reference no. 701565
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 20.2
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701566
  • Details
    G84 H8A-8-4.25T-GA-HK-4M
    Reference no. 701566
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 25.8
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701567
  • Details
    G84 H8A-8-4.25T-GA-HK-6M
    Reference no. 701567
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 37.1
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701568
  • Details
    G84 H8A-10-6.7T-GA-HK-1M
    Reference no. 701568
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 14.4
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701569
  • Details
    G84 H8A-10-6.7T-GA-HK-2M
    Reference no. 701569
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 23.4
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701570
  • Details
    G84 H8A-10-6.7T-GA-HK-3M
    Reference no. 701570
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 31.9
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701571
  • Details
    G84 H8A-10-6.7T-GA-HK-4M
    Reference no. 701571
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 40.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701572
  • Details
    G84 H8A-10-6.7T-GA-HK-6M
    Reference no. 701572
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 58.3
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701573
  • Details
    G84 H8A-13-11.2T-GA-HK-1M
    Reference no. 701573
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 25.5
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701574
  • Details
    G84 H8A-13-11.2T-GA-HK-2M
    Reference no. 701574
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 40.9
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701575
  • Details
    G84 H8A-13-11.2T-GA-HK-3M
    Reference no. 701575
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 56.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701576
  • Details
    G84 H8A-13-11.2T-GA-HK-4M
    Reference no. 701576
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 70.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701577
  • Details
    G84 H8A-13-11.2T-GA-HK-6M
    Reference no. 701577
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 101.4
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701578
  • Details
    C84 H8A-16-17T-GA-HK-1M
    Reference no. 701578
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 40.2
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701579
  • Details
    C84 H8A-16-17T-GA-HK-2M
    Reference no. 701579
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 62.1
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701580
  • Details
    C84 H8A-16-17T-GA-HK-3M
    Reference no. 701580
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 84
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701581
  • Details
    C84 H8A-16-17T-GA-HK-4M
    Reference no. 701581
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 108.1
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701582
  • Details
    C84 H8A-16-17T-GA-HK-6M
    Reference no. 701582
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 154.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 493312
  • Details
    C84 H8A-18-21.2T-GA-HK-2M
    Reference no. 493312
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 85.894
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 493313
  • Details
    C84 H8A-18-21.2T-GA-HK-3M
    Reference no. 493313
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 115.094
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 493314
  • Details
    C84 H8A-18-21.2T-GA-HK-4M
    Reference no. 493314
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 144.294
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 493315
  • Details
    C84 H8A-18-21.2T-GA-HK-6M
    Reference no. 493315
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Clear height [mm] 340
    Clearance [mm] 180
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 202.694
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 492819
  • Details
    C84 H8A-20-26.5T-GA-HK-2M
    Reference no. 492819
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 99.21
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 492820
  • Details
    C84 H8A-20-26.5T-GA-HK-3M
    Reference no. 492820
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 135.21
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 492821
  • Details
    C84 H8A-20-26.5T-GA-HK-4M
    Reference no. 492821
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 171.21
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 492822
  • Details
    C84 H8A-20-26.5T-GA-HK-6M
    Reference no. 492822
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 243.21
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 492823
  • Details
    C84 H8A-22-31.5T-GA-HK-2M
    Reference no. 492823
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 124.52
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 492824
  • Details
    C84 H8A-22-31.5T-GA-HK-3M
    Reference no. 492824
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 168.12
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 492825
  • Details
    C84 H8A-22-31.5T-GA-HK-4M
    Reference no. 492825
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 211.72
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 492826
  • Details
    C84 H8A-22-31.5T-GA-HK-6M
    Reference no. 492826
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 298.92
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 2
Reference no. 493316
  • Details
    C84 H8A-26-45T-GA-HK-2M
    Reference no. 493316
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 2
    Weight approx. [kg] 177.295
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 3
Reference no. 493317
  • Details
    C84 H8A-26-45T-GA-HK-3M
    Reference no. 493317
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 3
    Weight approx. [kg] 238.095
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 4
Reference no. 493318
  • Details
    C84 H8A-26-45T-GA-HK-4M
    Reference no. 493318
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 4
    Weight approx. [kg] 298.895
Working load limit 0–45° [kg] 45000
Working load limit 45−60° [kg] 31500
Nominal size of chain [mm] 26
Effective length WLL [m] 6
Reference no. 493319
  • Details
    C84 H8A-26-45T-GA-HK-6M
    Reference no. 493319
    Working load limit 0–45° [kg] 45000
    Working load limit 45−60° [kg] 31500
    Clear height [mm] 400
    Clearance [mm] 200
    Nominal size of chain [mm] 26
    Effective length WLL [m] 6
    Weight approx. [kg] 420.495
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 2
Reference no. 493320
  • Details
    C84 H8A-32-67T-GA-H-2M
    Reference no. 493320
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 2
    Weight approx. [kg] 322.21
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 3
Reference no. 493321
  • Details
    C84 H8A-32-67T-GA-H-3M
    Reference no. 493321
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 3
    Weight approx. [kg] 414.21
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 4
Reference no. 493322
  • Details
    C84 H8A-32-67T-GA-H-4M
    Reference no. 493322
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 4
    Weight approx. [kg] 506.21
Working load limit 0–45° [kg] 67000
Working load limit 45−60° [kg] 47500
Nominal size of chain [mm] 32
Effective length WLL [m] 6
Reference no. 493323
  • Details
    C84 H8A-32-67T-GA-H-6M
    Reference no. 493323
    Working load limit 0–45° [kg] 67000
    Working load limit 45−60° [kg] 47500
    Clear height [mm] 460
    Clearance [mm] 250
    Nominal size of chain [mm] 32
    Effective length WLL [m] 6
    Weight approx. [kg] 690.21
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
