HIT Chain slings in quality grade 8 4 leg Safety load hooks

HIT Chain slings in quality grade 8 4 leg Safety load hooks

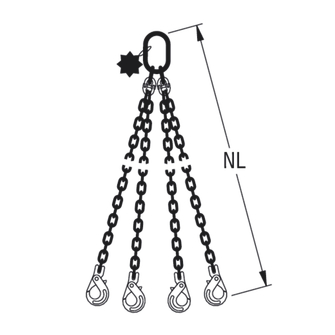

Chain sling with safety load hook for 4-leg attachment. Ideally suited for all applications with standard crane hooks and for general lifting purposes. The coating of the chain and fixtures provides good corrosion protection.
Technical data

Quality grade

  • 8

Legs Quantity

  • 4-leg

Operating temperature

  • –40 °C to +200 °C = 100 % working load limit; +200 °C to +300 °C = 90 % working load limit; +300 °C to +400 °C = 75 % working load limit

Standard

  • Chain following EN 818
  • EN 1677-compliant chain components

Marking

  • Batch number and serial number
  • Quality grade no.
  • Quality grade and working load limit symbol

Safety factor

  • 4

Chain surface

  • coated

Chain colour

  • black

Component surface

  • coated

Component colour

  • red

Shortening

  • cannot be shortened
Product variants
Working load limit 0–45° [kg]
Working load limit 45−60° [kg]
Nominal size of chain [mm]
Effective length WLL [m]
Reference no.
Details
  • 2360
    1700
    6
    1
    701637
    G84 H8A-6-2.36T-GA-SHK-1M
    Reference no. 701637
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
  • 2360
    1700
    6
    2
    701638
    G84 H8A-6-2.36T-GA-SHK-2M
    Reference no. 701638
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 8.7
  • 2360
    1700
    6
    3
    701639
    G84 H8A-6-2.36T-GA-SHK-3M
    Reference no. 701639
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 11.9
  • 2360
    1700
    6
    4
    701640
    G84 H8A-6-2.36T-GA-SHK-4M
    Reference no. 701640
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 15.2
  • 2360
    1700
    6
    6
    701641
    G84 H8A-6-2.36T-GA-SHK-6M
    Reference no. 701641
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 21.6
  • 4250
    3000
    8
    1
    701650
    G84 H8A-8-4.25T-GA-SHK-1M
    Reference no. 701650
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.7
  • 4250
    3000
    8
    2
    701642
    G84 H8A-8-4.25T-GA-SHK-2M
    Reference no. 701642
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 15.3
  • 4250
    3000
    8
    3
    701643
    G84 H8A-8-4.25T-GA-SHK-3M
    Reference no. 701643
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 21
  • 4250
    3000
    8
    4
    701644
    G84 H8A-8-4.25T-GA-SHK-4M
    Reference no. 701644
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 26.6
  • 4250
    3000
    8
    6
    701645
    G84 H8A-8-4.25T-GA-SHK-6M
    Reference no. 701645
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 37.6
  • 6700
    4750
    10
    1
    701651
    G84 H8A-10-6.7T-GA-SHK-1M
    Reference no. 701651
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 15.4
  • 6700
    4750
    10
    2
    701646
    G84 H8A-10-6.7T-GA-SHK-2M
    Reference no. 701646
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 23.8
  • 6700
    4750
    10
    3
    701647
    G84 H8A-10-6.7T-GA-SHK-3M
    Reference no. 701647
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 32.8
  • 6700
    4750
    10
    4
    701648
    G84 H8A-10-6.7T-GA-SHK-4M
    Reference no. 701648
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 41.8
  • 6700
    4750
    10
    6
    701649
    G84 H8A-10-6.7T-GA-SHK-6M
    Reference no. 701649
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 59.2
  • 11200
    8000
    13
    1
    701652
    G84 H8A-13-11.2T-GA-SHK-1M
    Reference no. 701652
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 27.4
  • 11200
    8000
    13
    2
    701653
    G84 H8A-13-11.2T-GA-SHK-2M
    Reference no. 701653
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 42.8
  • 11200
    8000
    13
    3
    701654
    G84 H8A-13-11.2T-GA-SHK-3M
    Reference no. 701654
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 58.2
  • 11200
    8000
    13
    4
    701655
    G84 H8A-13-11.2T-GA-SHK-4M
    Reference no. 701655
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 73.6
  • 11200
    8000
    13
    6
    701656
    G84 H8A-13-11.2T-GA-SHK-6M
    Reference no. 701656
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 103.3
  • 17000
    11800
    16
    1
    701657
    C84 H8A-16-17T-GA-SHK-1M
    Reference no. 701657
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 47.9
  • 17000
    11800
    16
    2
    701658
    C84 H8A-16-17T-GA-SHK-2M
    Reference no. 701658
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 69.7
  • 17000
    11800
    16
    3
    701659
    C84 H8A-16-17T-GA-SHK-3M
    Reference no. 701659
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 93.8
  • 17000
    11800
    16
    4
    701660
    C84 H8A-16-17T-GA-SHK-4M
    Reference no. 701660
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 115.7
  • 17000
    11800
    16
    6
    701661
    C84 H8A-16-17T-GA-SHK-6M
    Reference no. 701661
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 161.7
  • 21200
    15000
    18
    2
    701663
    C84 H8A-18-21.2T-GA-SHK-2M
    Reference no. 701663
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 93.7
  • 21200
    15000
    18
    3
    701664
    C84 H8A-18-21.2T-GA-SHK-3M
    Reference no. 701664
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 122.1
  • 21200
    15000
    18
    4
    701665
    C84 H8A-18-21.2T-GA-SHK-4M
    Reference no. 701665
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 150.4
  • 21200
    15000
    18
    6
    701666
    C84 H8A-18-21.2T-GA-SHK-6M
    Reference no. 701666
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 210.4
  • 26500
    19000
    20
    2
    701667
    C84 H8A-20-26.5T-GA-SHK-2M
    Reference no. 701667
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 107.1
  • 26500
    19000
    20
    3
    701668
    C84 H8A-20-26.5T-GA-SHK-3M
    Reference no. 701668
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 141.6
  • 26500
    19000
    20
    4
    701669
    C84 H8A-20-26.5T-GA-SHK-4M
    Reference no. 701669
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 176.2
  • 26500
    19000
    20
    6
    701670
    C84 H8A-20-26.5T-GA-SHK-6M
    Reference no. 701670
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 249.6
  • 31500
    22400
    22
    2
    493392
    C84 H8A-22-31.5T-GA-SHK-2M
    Reference no. 493392
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 141.165
  • 31500
    22400
    22
    3
    493393
    C84 H8A-22-31.5T-GA-SHK-3M
    Reference no. 493393
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 184.765
  • 31500
    22400
    22
    4
    493394
    C84 H8A-22-31.5T-GA-SHK-4M
    Reference no. 493394
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 228.365
  • 31500
    22400
    22
    6
    493395
    C84 H8A-22-31.5T-GA-SHK-6M
    Reference no. 493395
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 315.565
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 1
Reference no. 701637
  • Details
    G84 H8A-6-2.36T-GA-SHK-1M
    Reference no. 701637
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 1
    Weight approx. [kg] 5.6
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 2
Reference no. 701638
  • Details
    G84 H8A-6-2.36T-GA-SHK-2M
    Reference no. 701638
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 2
    Weight approx. [kg] 8.7
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 3
Reference no. 701639
  • Details
    G84 H8A-6-2.36T-GA-SHK-3M
    Reference no. 701639
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 3
    Weight approx. [kg] 11.9
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 4
Reference no. 701640
  • Details
    G84 H8A-6-2.36T-GA-SHK-4M
    Reference no. 701640
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 4
    Weight approx. [kg] 15.2
Working load limit 0–45° [kg] 2360
Working load limit 45−60° [kg] 1700
Nominal size of chain [mm] 6
Effective length WLL [m] 6
Reference no. 701641
  • Details
    G84 H8A-6-2.36T-GA-SHK-6M
    Reference no. 701641
    Working load limit 0–45° [kg] 2360
    Working load limit 45−60° [kg] 1700
    Nominal size of chain [mm] 6
    Effective length WLL [m] 6
    Weight approx. [kg] 21.6
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 1
Reference no. 701650
  • Details
    G84 H8A-8-4.25T-GA-SHK-1M
    Reference no. 701650
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 1
    Weight approx. [kg] 9.7
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 2
Reference no. 701642
  • Details
    G84 H8A-8-4.25T-GA-SHK-2M
    Reference no. 701642
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 2
    Weight approx. [kg] 15.3
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 3
Reference no. 701643
  • Details
    G84 H8A-8-4.25T-GA-SHK-3M
    Reference no. 701643
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 3
    Weight approx. [kg] 21
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 4
Reference no. 701644
  • Details
    G84 H8A-8-4.25T-GA-SHK-4M
    Reference no. 701644
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 4
    Weight approx. [kg] 26.6
Working load limit 0–45° [kg] 4250
Working load limit 45−60° [kg] 3000
Nominal size of chain [mm] 8
Effective length WLL [m] 6
Reference no. 701645
  • Details
    G84 H8A-8-4.25T-GA-SHK-6M
    Reference no. 701645
    Working load limit 0–45° [kg] 4250
    Working load limit 45−60° [kg] 3000
    Nominal size of chain [mm] 8
    Effective length WLL [m] 6
    Weight approx. [kg] 37.6
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 1
Reference no. 701651
  • Details
    G84 H8A-10-6.7T-GA-SHK-1M
    Reference no. 701651
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 1
    Weight approx. [kg] 15.4
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 2
Reference no. 701646
  • Details
    G84 H8A-10-6.7T-GA-SHK-2M
    Reference no. 701646
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 2
    Weight approx. [kg] 23.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 3
Reference no. 701647
  • Details
    G84 H8A-10-6.7T-GA-SHK-3M
    Reference no. 701647
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 3
    Weight approx. [kg] 32.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 4
Reference no. 701648
  • Details
    G84 H8A-10-6.7T-GA-SHK-4M
    Reference no. 701648
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 4
    Weight approx. [kg] 41.8
Working load limit 0–45° [kg] 6700
Working load limit 45−60° [kg] 4750
Nominal size of chain [mm] 10
Effective length WLL [m] 6
Reference no. 701649
  • Details
    G84 H8A-10-6.7T-GA-SHK-6M
    Reference no. 701649
    Working load limit 0–45° [kg] 6700
    Working load limit 45−60° [kg] 4750
    Nominal size of chain [mm] 10
    Effective length WLL [m] 6
    Weight approx. [kg] 59.2
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 1
Reference no. 701652
  • Details
    G84 H8A-13-11.2T-GA-SHK-1M
    Reference no. 701652
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 1
    Weight approx. [kg] 27.4
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 2
Reference no. 701653
  • Details
    G84 H8A-13-11.2T-GA-SHK-2M
    Reference no. 701653
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 2
    Weight approx. [kg] 42.8
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 3
Reference no. 701654
  • Details
    G84 H8A-13-11.2T-GA-SHK-3M
    Reference no. 701654
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 3
    Weight approx. [kg] 58.2
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 4
Reference no. 701655
  • Details
    G84 H8A-13-11.2T-GA-SHK-4M
    Reference no. 701655
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 4
    Weight approx. [kg] 73.6
Working load limit 0–45° [kg] 11200
Working load limit 45−60° [kg] 8000
Nominal size of chain [mm] 13
Effective length WLL [m] 6
Reference no. 701656
  • Details
    G84 H8A-13-11.2T-GA-SHK-6M
    Reference no. 701656
    Working load limit 0–45° [kg] 11200
    Working load limit 45−60° [kg] 8000
    Nominal size of chain [mm] 13
    Effective length WLL [m] 6
    Weight approx. [kg] 103.3
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 1
Reference no. 701657
  • Details
    C84 H8A-16-17T-GA-SHK-1M
    Reference no. 701657
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 1
    Weight approx. [kg] 47.9
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 2
Reference no. 701658
  • Details
    C84 H8A-16-17T-GA-SHK-2M
    Reference no. 701658
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 2
    Weight approx. [kg] 69.7
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 3
Reference no. 701659
  • Details
    C84 H8A-16-17T-GA-SHK-3M
    Reference no. 701659
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 3
    Weight approx. [kg] 93.8
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 4
Reference no. 701660
  • Details
    C84 H8A-16-17T-GA-SHK-4M
    Reference no. 701660
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 4
    Weight approx. [kg] 115.7
Working load limit 0–45° [kg] 17000
Working load limit 45−60° [kg] 11800
Nominal size of chain [mm] 16
Effective length WLL [m] 6
Reference no. 701661
  • Details
    C84 H8A-16-17T-GA-SHK-6M
    Reference no. 701661
    Working load limit 0–45° [kg] 17000
    Working load limit 45−60° [kg] 11800
    Nominal size of chain [mm] 16
    Effective length WLL [m] 6
    Weight approx. [kg] 161.7
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 2
Reference no. 701663
  • Details
    C84 H8A-18-21.2T-GA-SHK-2M
    Reference no. 701663
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 2
    Weight approx. [kg] 93.7
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 3
Reference no. 701664
  • Details
    C84 H8A-18-21.2T-GA-SHK-3M
    Reference no. 701664
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 3
    Weight approx. [kg] 122.1
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 4
Reference no. 701665
  • Details
    C84 H8A-18-21.2T-GA-SHK-4M
    Reference no. 701665
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 4
    Weight approx. [kg] 150.4
Working load limit 0–45° [kg] 21200
Working load limit 45−60° [kg] 15000
Nominal size of chain [mm] 18
Effective length WLL [m] 6
Reference no. 701666
  • Details
    C84 H8A-18-21.2T-GA-SHK-6M
    Reference no. 701666
    Working load limit 0–45° [kg] 21200
    Working load limit 45−60° [kg] 15000
    Nominal size of chain [mm] 18
    Effective length WLL [m] 6
    Weight approx. [kg] 210.4
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 2
Reference no. 701667
  • Details
    C84 H8A-20-26.5T-GA-SHK-2M
    Reference no. 701667
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 2
    Weight approx. [kg] 107.1
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 3
Reference no. 701668
  • Details
    C84 H8A-20-26.5T-GA-SHK-3M
    Reference no. 701668
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 3
    Weight approx. [kg] 141.6
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 4
Reference no. 701669
  • Details
    C84 H8A-20-26.5T-GA-SHK-4M
    Reference no. 701669
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 4
    Weight approx. [kg] 176.2
Working load limit 0–45° [kg] 26500
Working load limit 45−60° [kg] 19000
Nominal size of chain [mm] 20
Effective length WLL [m] 6
Reference no. 701670
  • Details
    C84 H8A-20-26.5T-GA-SHK-6M
    Reference no. 701670
    Working load limit 0–45° [kg] 26500
    Working load limit 45−60° [kg] 19000
    Nominal size of chain [mm] 20
    Effective length WLL [m] 6
    Weight approx. [kg] 249.6
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 2
Reference no. 493392
  • Details
    C84 H8A-22-31.5T-GA-SHK-2M
    Reference no. 493392
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 2
    Weight approx. [kg] 141.165
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 3
Reference no. 493393
  • Details
    C84 H8A-22-31.5T-GA-SHK-3M
    Reference no. 493393
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 3
    Weight approx. [kg] 184.765
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 4
Reference no. 493394
  • Details
    C84 H8A-22-31.5T-GA-SHK-4M
    Reference no. 493394
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 4
    Weight approx. [kg] 228.365
Working load limit 0–45° [kg] 31500
Working load limit 45−60° [kg] 22400
Nominal size of chain [mm] 22
Effective length WLL [m] 6
Reference no. 493395
  • Details
    C84 H8A-22-31.5T-GA-SHK-6M
    Reference no. 493395
    Working load limit 0–45° [kg] 31500
    Working load limit 45−60° [kg] 22400
    Clear height [mm] 350
    Clearance [mm] 190
    Nominal size of chain [mm] 22
    Effective length WLL [m] 6
    Weight approx. [kg] 315.565
Downloads

Description

Product brochure

Download

Applications

Application table

Download

Original operating manual

Tranlsation of the Original Operating Instruction PFEIFER Chain slings
Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
