Edge protection sleeve Flexoclip

Edge protection sleeve Flexoclip

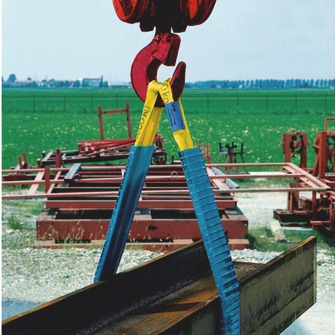

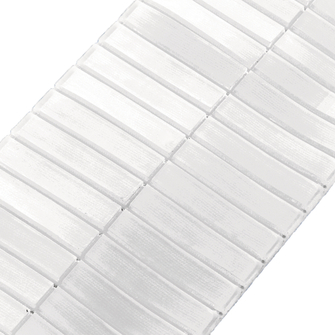

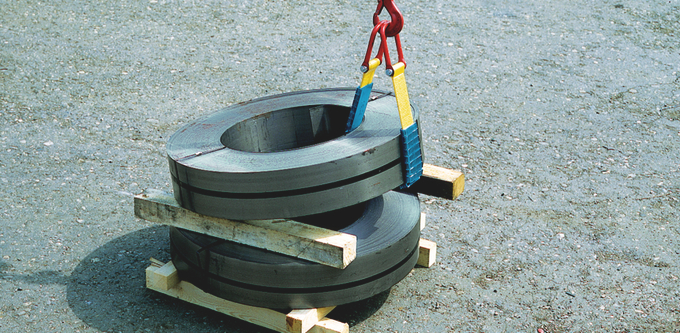

Extremely flexible and durable edge protection tubing. The ribbed structure makes the tubing particularly flexible. The special coating ensures that the tape material glides smoothly. Can be installed later and cut to length.
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Polyester and polyurethane
Options

Options on request

  • Further lengths
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Effective length WLL [m]
Reference no.
Details
  • 1
    30
    0.5
    496058
    KSP PFC-HB30-W32-T11-0.5M
    Reference no. 496058
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30

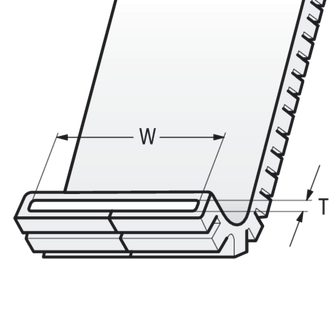

    Clearance W 32
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.355
    verpackungsmenge_dyn_erp 1 St
  • 1
    30
    1
    496059
    KSP PFC-HB30-W32-T11-1M
    Reference no. 496059
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 1
    Weight approx. [kg] 0.71
    verpackungsmenge_dyn_erp 1 St
  • 1
    30
    1.5
    496060
    KSP PFC-HB30-W32-T11-1.5M
    Reference no. 496060
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.065
    verpackungsmenge_dyn_erp 1 St
  • 1
    30
    2
    496061
    KSP PFC-HB30-W32-T11-2M
    Reference no. 496061
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 2
    Weight approx. [kg] 1.42
    verpackungsmenge_dyn_erp 1 St
  • 1
    30
    4
    496062
    KSP PFC-HB30-W32-T11-4M
    Reference no. 496062
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 2.84
    verpackungsmenge_dyn_erp 1 St
  • 1000
    60
    0.5
    496063
    KSP PFC-HB60-RS1T-W62-T11-0.5M
    Reference no. 496063
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.595
    verpackungsmenge_dyn_erp 1 St
  • 1000
    60
    1
    496066
    KSP PFC-HB60-RS1T-W62-T11-1M
    Reference no. 496066
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 1
    Weight approx. [kg] 1.19
    verpackungsmenge_dyn_erp 1 St
  • 1000
    60
    1.5
    496068
    KSP PFC-HB60-RS1T-W62-T11-1.5M
    Reference no. 496068
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.785
    verpackungsmenge_dyn_erp 1 St
  • 1000
    60
    2
    496069
    KSP PFC-HB60-RS1T-W62-T11-2M
    Reference no. 496069
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 2
    Weight approx. [kg] 2.38
    verpackungsmenge_dyn_erp 1 St
  • 1000
    60
    4
    496070
    KSP PFC-HB60-RS1T-W62-T11-4M
    Reference no. 496070
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 4
    Weight approx. [kg] 4.76
    verpackungsmenge_dyn_erp 1 St
  • 3000
    80
    0.5
    496071
    KSP PFC-HB80-RS2T3T-W82-T11-0.5M
    Reference no. 496071
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.72
    verpackungsmenge_dyn_erp 1 St
  • 3000
    80
    1
    496072
    KSP PFC-HB80-RS2T3T-W82-T11-1M
    Reference no. 496072
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 1
    Weight approx. [kg] 1.44
    verpackungsmenge_dyn_erp 1 St
  • 3000
    80
    1.5
    496073
    KSP PFC-HB80-RS2T3T-W82-T11-1.5M
    Reference no. 496073
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.16
    verpackungsmenge_dyn_erp 1 St
  • 3000
    80
    2
    496074
    KSP PFC-HB80-RS2T3T-W82-T11-2M
    Reference no. 496074
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 2
    Weight approx. [kg] 2.88
    verpackungsmenge_dyn_erp 1 St
  • 3000
    80
    4
    504598
    KSP PFC-HB80-RS2T3T-W82-T11-4M
    Reference no. 504598
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 5.76
    verpackungsmenge_dyn_erp 1 St
  • 4000
    100
    0.5
    496075
    KSP PFC-HB100-RS4T-W105-T11-0.5M
    Reference no. 496075
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
  • 4000
    100
    1
    496076
    KSP PFC-HB100-RS4T-W105-T11-1M
    Reference no. 496076
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 1
    Weight approx. [kg] 1.74
    verpackungsmenge_dyn_erp 1 St
  • 4000
    100
    1.5
    496077
    KSP PFC-HB100-RS4T-W105-T11-1.5M
    Reference no. 496077
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.61
    verpackungsmenge_dyn_erp 1 St
  • 4000
    100
    2
    496078
    KSP PFC-HB100-RS4T-W105-T11-2M
    Reference no. 496078
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 2
    Weight approx. [kg] 3.48
    verpackungsmenge_dyn_erp 1 St
  • 4000
    100
    4
    496079
    KSP PFC-HB100-RS4T-W105-T11-4M
    Reference no. 496079
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 4
    Weight approx. [kg] 6.96
    verpackungsmenge_dyn_erp 1 St
  • 5000
    125
    0.5
    496080
    KSP PFC-HB125-RS5T-W130-T11-0.5M
    Reference no. 496080
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 0.5
    Weight approx. [kg] 1.075
    verpackungsmenge_dyn_erp 1 St
  • 5000
    125
    1
    496081
    KSP PFC-HB125-RS5T-W130-T11-1M
    Reference no. 496081
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 1
    Weight approx. [kg] 2.15
    verpackungsmenge_dyn_erp 1 St
  • 5000
    125
    1.5
    496082
    KSP PFC-HB125-RS5T-W130-T11-1.5M
    Reference no. 496082
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.225
    verpackungsmenge_dyn_erp 1 St
  • 5000
    125
    2
    496083
    KSP PFC-HB125-RS5T-W130-T11-2M
    Reference no. 496083
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 2
    Weight approx. [kg] 4.3
    verpackungsmenge_dyn_erp 1 St
  • 5000
    125
    4
    504599
    KSP PFC-HB125-RS5T-W130-T11-4M
    Reference no. 504599
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 8.6
    verpackungsmenge_dyn_erp 1 St
  • 6000
    150
    0.5
    496084
    KSP PFC-HB150-RS6T-W156-T11-0.5M
    Reference no. 496084
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 0.5
    Weight approx. [kg] 1.225
    verpackungsmenge_dyn_erp 1 St
  • 6000
    150
    1
    496085
    KSP PFC-HB150-RS6T-W156-T11-1M
    Reference no. 496085
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 1
    Weight approx. [kg] 2.45
    verpackungsmenge_dyn_erp 1 St
  • 6000
    150
    1.5
    496086
    KSP PFC-HB150-RS6T-W156-T11-1.5M
    Reference no. 496086
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.675
    verpackungsmenge_dyn_erp 1 St
  • 6000
    150
    2
    496087
    KSP PFC-HB150-RS6T-W156-T11-2M
    Reference no. 496087
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 2
    Weight approx. [kg] 4.9
    verpackungsmenge_dyn_erp 1 St
  • 6000
    150
    4
    702106
    KSP PFC-HB150-RS6T-W156-T11-4M
    Reference no. 702106
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 4
    Weight approx. [kg] 11.2
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
for lifting strap width max [mm] 30
Effective length WLL [m] 0.5
Reference no. 496058
  • Details
    KSP PFC-HB30-W32-T11-0.5M
    Reference no. 496058
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.355
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
for lifting strap width max [mm] 30
Effective length WLL [m] 1
Reference no. 496059
  • Details
    KSP PFC-HB30-W32-T11-1M
    Reference no. 496059
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 1
    Weight approx. [kg] 0.71
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
for lifting strap width max [mm] 30
Effective length WLL [m] 1.5
Reference no. 496060
  • Details
    KSP PFC-HB30-W32-T11-1.5M
    Reference no. 496060
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.065
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
for lifting strap width max [mm] 30
Effective length WLL [m] 2
Reference no. 496061
  • Details
    KSP PFC-HB30-W32-T11-2M
    Reference no. 496061
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Effective length WLL [m] 2
    Weight approx. [kg] 1.42
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1
for lifting strap width max [mm] 30
Effective length WLL [m] 4
Reference no. 496062
  • Details
    KSP PFC-HB30-W32-T11-4M
    Reference no. 496062
    for round slings max WLL 1
    for lifting strap width min [mm] 30
    for lifting strap width max [mm] 30
    Clearance W 32
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 2.84
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 60
Effective length WLL [m] 0.5
Reference no. 496063
  • Details
    KSP PFC-HB60-RS1T-W62-T11-0.5M
    Reference no. 496063
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.595
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 60
Effective length WLL [m] 1
Reference no. 496066
  • Details
    KSP PFC-HB60-RS1T-W62-T11-1M
    Reference no. 496066
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 1
    Weight approx. [kg] 1.19
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 60
Effective length WLL [m] 1.5
Reference no. 496068
  • Details
    KSP PFC-HB60-RS1T-W62-T11-1.5M
    Reference no. 496068
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.785
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 60
Effective length WLL [m] 2
Reference no. 496069
  • Details
    KSP PFC-HB60-RS1T-W62-T11-2M
    Reference no. 496069
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 2
    Weight approx. [kg] 2.38
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 1000
for lifting strap width max [mm] 60
Effective length WLL [m] 4
Reference no. 496070
  • Details
    KSP PFC-HB60-RS1T-W62-T11-4M
    Reference no. 496070
    for round slings max WLL 1000
    for lifting strap width min [mm] 50
    for lifting strap width max [mm] 60
    Clearance W 62
    Effective length WLL [m] 4
    Weight approx. [kg] 4.76
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
for lifting strap width max [mm] 80
Effective length WLL [m] 0.5
Reference no. 496071
  • Details
    KSP PFC-HB80-RS2T3T-W82-T11-0.5M
    Reference no. 496071
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.72
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
for lifting strap width max [mm] 80
Effective length WLL [m] 1
Reference no. 496072
  • Details
    KSP PFC-HB80-RS2T3T-W82-T11-1M
    Reference no. 496072
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 1
    Weight approx. [kg] 1.44
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
for lifting strap width max [mm] 80
Effective length WLL [m] 1.5
Reference no. 496073
  • Details
    KSP PFC-HB80-RS2T3T-W82-T11-1.5M
    Reference no. 496073
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.16
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
for lifting strap width max [mm] 80
Effective length WLL [m] 2
Reference no. 496074
  • Details
    KSP PFC-HB80-RS2T3T-W82-T11-2M
    Reference no. 496074
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Effective length WLL [m] 2
    Weight approx. [kg] 2.88
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 3000
for lifting strap width max [mm] 80
Effective length WLL [m] 4
Reference no. 504598
  • Details
    KSP PFC-HB80-RS2T3T-W82-T11-4M
    Reference no. 504598
    for round slings max WLL 3000
    for lifting strap width min [mm] 80
    for lifting strap width max [mm] 80
    Clearance W 82
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 5.76
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 100
Effective length WLL [m] 0.5
Reference no. 496075
  • Details
    KSP PFC-HB100-RS4T-W105-T11-0.5M
    Reference no. 496075
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.87
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 100
Effective length WLL [m] 1
Reference no. 496076
  • Details
    KSP PFC-HB100-RS4T-W105-T11-1M
    Reference no. 496076
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 1
    Weight approx. [kg] 1.74
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 100
Effective length WLL [m] 1.5
Reference no. 496077
  • Details
    KSP PFC-HB100-RS4T-W105-T11-1.5M
    Reference no. 496077
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 1.5
    Weight approx. [kg] 2.61
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 100
Effective length WLL [m] 2
Reference no. 496078
  • Details
    KSP PFC-HB100-RS4T-W105-T11-2M
    Reference no. 496078
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 2
    Weight approx. [kg] 3.48
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 4000
for lifting strap width max [mm] 100
Effective length WLL [m] 4
Reference no. 496079
  • Details
    KSP PFC-HB100-RS4T-W105-T11-4M
    Reference no. 496079
    for round slings max WLL 4000
    for lifting strap width min [mm] 90
    for lifting strap width max [mm] 100
    Clearance W 105
    Effective length WLL [m] 4
    Weight approx. [kg] 6.96
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
for lifting strap width max [mm] 125
Effective length WLL [m] 0.5
Reference no. 496080
  • Details
    KSP PFC-HB125-RS5T-W130-T11-0.5M
    Reference no. 496080
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 0.5
    Weight approx. [kg] 1.075
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
for lifting strap width max [mm] 125
Effective length WLL [m] 1
Reference no. 496081
  • Details
    KSP PFC-HB125-RS5T-W130-T11-1M
    Reference no. 496081
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 1
    Weight approx. [kg] 2.15
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
for lifting strap width max [mm] 125
Effective length WLL [m] 1.5
Reference no. 496082
  • Details
    KSP PFC-HB125-RS5T-W130-T11-1.5M
    Reference no. 496082
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.225
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
for lifting strap width max [mm] 125
Effective length WLL [m] 2
Reference no. 496083
  • Details
    KSP PFC-HB125-RS5T-W130-T11-2M
    Reference no. 496083
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Effective length WLL [m] 2
    Weight approx. [kg] 4.3
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 5000
for lifting strap width max [mm] 125
Effective length WLL [m] 4
Reference no. 504599
  • Details
    KSP PFC-HB125-RS5T-W130-T11-4M
    Reference no. 504599
    for round slings max WLL 5000
    for lifting strap width min [mm] 120
    for lifting strap width max [mm] 125
    Clearance W 130
    Clear height T [mm] 11
    Effective length WLL [m] 4
    Weight approx. [kg] 8.6
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 150
Effective length WLL [m] 0.5
Reference no. 496084
  • Details
    KSP PFC-HB150-RS6T-W156-T11-0.5M
    Reference no. 496084
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 0.5
    Weight approx. [kg] 1.225
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 150
Effective length WLL [m] 1
Reference no. 496085
  • Details
    KSP PFC-HB150-RS6T-W156-T11-1M
    Reference no. 496085
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 1
    Weight approx. [kg] 2.45
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 150
Effective length WLL [m] 1.5
Reference no. 496086
  • Details
    KSP PFC-HB150-RS6T-W156-T11-1.5M
    Reference no. 496086
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 1.5
    Weight approx. [kg] 3.675
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 150
Effective length WLL [m] 2
Reference no. 496087
  • Details
    KSP PFC-HB150-RS6T-W156-T11-2M
    Reference no. 496087
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 2
    Weight approx. [kg] 4.9
    verpackungsmenge_dyn_erp 1 St
for round slings max WLL 6000
for lifting strap width max [mm] 150
Effective length WLL [m] 4
Reference no. 702106
  • Details
    KSP PFC-HB150-RS6T-W156-T11-4M
    Reference no. 702106
    for round slings max WLL 6000
    for lifting strap width min [mm] 150
    for lifting strap width max [mm] 150
    Clearance W 156
    Effective length WLL [m] 4
    Weight approx. [kg] 11.2
    verpackungsmenge_dyn_erp 1 St
Montage

1. cut the Polytex® polyurethane edge protection sleeve Flexoclip at one of the specified interfaces

2. slip the Polytex® polyurethane edge protection sleeve Flexoclip over the lifting gear
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
