Edge protection sleeve for chain and rope

Edge protection sleeve for chain and rope

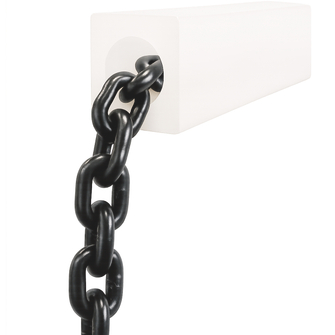

Transparent polyurethane edge protection sleeve with round aperture for protection of textile attachment devices and especially ropes or chains. The edge protection sleeve is rectangular on the outside. This provides a greater contact surface for the load and the force distribution is optimised. This edge protection sleeve is distinguished by high wear resistance, extreme cutting resistance, very good elasticity, good chemical resistance and no ageing. The diameter of the attachment device should always be a few millimetres less than the diameter of the aperture. This guarantees that the attachment device can slide through the edge protection system.
Technical data

Operating temperature

  • 0 °C to 70 °C

Material

  • Polyurethane
Options

Options on request

  • Further lengths
Product variants
for nominal chain thickness [mm]
Effective length WLL [m]
Reference no.
Details
  • 6
    1
    496049
    KSP SKT-6MM-D26-L36-B36-A5-1M
    Reference no. 496049
    for nominal chain thickness [mm] 6

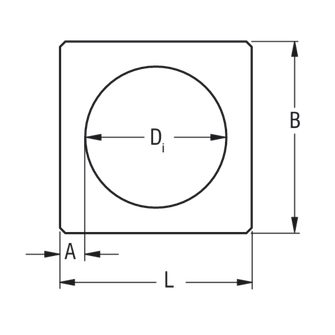

    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 2.4
    verpackungsmenge_dyn_erp 1 St
  • 8
    1
    496048
    KSP SKT-8MM-D32-L42-B42-A5-1M
    Reference no. 496048
    for nominal chain thickness [mm] 8
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
  • 10
    1
    496047
    KSP SKT-10MM-D42-L52-B52-1M
    Reference no. 496047
    for nominal chain thickness [mm] 10
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 4.1
    verpackungsmenge_dyn_erp 1 St
  • 13
    1
    496045
    KSP SKT-13MM-D50-L60-B60-A5-1M
    Reference no. 496045
    for nominal chain thickness [mm] 13
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 5.3
    verpackungsmenge_dyn_erp 1 St
  • 16
    1
    496046
    KSP SKT-16MM-D63-L73-B73-A5-1M
    Reference no. 496046
    for nominal chain thickness [mm] 16
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 6.8
    verpackungsmenge_dyn_erp 1 St
for nominal chain thickness [mm] 6
Effective length WLL [m] 1
Reference no. 496049
  • Details
    KSP SKT-6MM-D26-L36-B36-A5-1M
    Reference no. 496049
    for nominal chain thickness [mm] 6
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 2.4
    verpackungsmenge_dyn_erp 1 St
for nominal chain thickness [mm] 8
Effective length WLL [m] 1
Reference no. 496048
  • Details
    KSP SKT-8MM-D32-L42-B42-A5-1M
    Reference no. 496048
    for nominal chain thickness [mm] 8
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 3
    verpackungsmenge_dyn_erp 1 St
for nominal chain thickness [mm] 10
Effective length WLL [m] 1
Reference no. 496047
  • Details
    KSP SKT-10MM-D42-L52-B52-1M
    Reference no. 496047
    for nominal chain thickness [mm] 10
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 4.1
    verpackungsmenge_dyn_erp 1 St
for nominal chain thickness [mm] 13
Effective length WLL [m] 1
Reference no. 496045
  • Details
    KSP SKT-13MM-D50-L60-B60-A5-1M
    Reference no. 496045
    for nominal chain thickness [mm] 13
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 5.3
    verpackungsmenge_dyn_erp 1 St
for nominal chain thickness [mm] 16
Effective length WLL [m] 1
Reference no. 496046
  • Details
    KSP SKT-16MM-D63-L73-B73-A5-1M
    Reference no. 496046
    for nominal chain thickness [mm] 16
    Wall thickness hose A 5
    Effective length WLL [m] 1
    Weight approx. [kg] 6.8
    verpackungsmenge_dyn_erp 1 St
