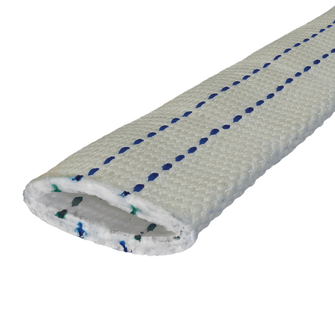

HMPE edge protection sleeve

HMPE edge protection sleeve
Edge protection sleeve made of flexible, lightweight HMPE material for protection of lifting straps, round slings and lashing straps against damage and premature wear. The sleeve offers high edge stability and abrasion resistance and so can be used for many safe lifting procedures.
Technical data

Operating temperature

  • –60 °C to +70 °C

Material

  • HMPE
Options

Options on request

  • Further lengths
Product variants
for round slings max WLL [kg]
for lifting strap width max [mm]
Effective length WLL [m]
Reference no.
Details
  • 2000
    50
    0.5
    504285
    KSH PTP-HMPE-SS-HB50-RS2T-IB60MM-0.5M
    Reference no. 504285
    for round slings max WLL 2000
    for lifting strap width max [mm] 50
    Clearance W 60
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.258
    verpackungsmenge_dyn_erp 1 St
  • 2000
    50
    1
    504286
    KSH PTP-HMPE-SS-HB50-RS2T-IB60MM-1M
    Reference no. 504286
    for round slings max WLL 2000
    for lifting strap width max [mm] 50
    Clearance W 60
    Effective length WLL [m] 1
    Weight approx. [kg] 1.03
    verpackungsmenge_dyn_erp 1 St
  • 2000
    50
    2
    504287
    KSH PTP-HMPE-SS-HB50-RS2T-IB60MM-2M
    Reference no. 504287
    for round slings max WLL 2000
    for lifting strap width max [mm] 50
    Clearance W 60
    Effective length WLL [m] 2
    Weight approx. [kg] 1.03
    verpackungsmenge_dyn_erp 1 St
  • 4000
    60
    0.5
    504282
    KSH PTP-HMPE-SS-HB60-RS4T-IB75MM-0.5M
    Reference no. 504282
    for round slings max WLL 4000
    for lifting strap width max [mm] 60
    Clearance W 75
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.28
    verpackungsmenge_dyn_erp 1 St
  • 4000
    60
    1
    504283
    KSH PTP-HMPE-SS-HB60-RS4T-IB75MM-1M
    Reference no. 504283
    for round slings max WLL 4000
    for lifting strap width max [mm] 60
    Clearance W 75
    Effective length WLL [m] 1
    Weight approx. [kg] 1.12
    verpackungsmenge_dyn_erp 1 St
  • 4000
    60
    2
    504284
    KSH PTP-HMPE-SS-HB60-RS4T-IB75MM-2M
    Reference no. 504284
    for round slings max WLL 4000
    for lifting strap width max [mm] 60
    Clearance W 75
    Effective length WLL [m] 2
    Weight approx. [kg] 1.12
    verpackungsmenge_dyn_erp 1 St
  • 6000
    100
    0.5
    504279
    KSH PTP-HMPE-SS-HB100-RS6T-IB125MM-0.5M
    Reference no. 504279
    for round slings max WLL 6000
    for lifting strap width max [mm] 100
    Clearance W 125
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.425
    verpackungsmenge_dyn_erp 1 St
  • 6000
    100
    1
    504280
    KSH PTP-HMPE-SS-HB100-RS6T-IB115MM-1M
    Reference no. 504280
    for round slings max WLL 6000
    for lifting strap width max [mm] 100
    Clearance W 125
    Effective length WLL [m] 1
    Weight approx. [kg] 0.85
    verpackungsmenge_dyn_erp 1 St
  • 6000
    100
    2
    504281
    KSH PTP-HMPE-SS-HB100-RS6T-IB125MM-2M
    Reference no. 504281
    for round slings max WLL 6000
    for lifting strap width max [mm] 100
    Clearance W 125
    Effective length WLL [m] 2
    Weight approx. [kg] 1.7
    verpackungsmenge_dyn_erp 1 St
  • 10000
    120
    0.5
    504276
    KSH PTP-HMPE-SS-HB120-RS10T-IB125MM-0.5M
    Reference no. 504276
    for round slings max WLL 10000
    for lifting strap width max [mm] 120
    Clearance W 125
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.45
    verpackungsmenge_dyn_erp 1 St
  • 10000
    120
    1
    504277
    KSH PTP-HMPE-SS-HB120-RS10T-IB125MM-1M
    Reference no. 504277
    for round slings max WLL 10000
    for lifting strap width max [mm] 120
    Clearance W 125
    Effective length WLL [m] 1
    Weight approx. [kg] 0.9
    verpackungsmenge_dyn_erp 1 St
  • 10000
    120
    2
    504278
    KSH PTP-HMPE-SS-HB120-RS10T-IB125MM-2M
    Reference no. 504278
    for round slings max WLL 10000
    for lifting strap width max [mm] 120
    Clearance W 125
    Effective length WLL [m] 2
    Weight approx. [kg] 1.8
    verpackungsmenge_dyn_erp 1 St
  • 20000
    150
    1
    504274
    KSH PTP-HMPE-SS-HB150-RS20T-IB180MM-1M
    Reference no. 504274
    for round slings max WLL 20000
    for lifting strap width max [mm] 150
    Clearance W 180
    Effective length WLL [m] 1
    Weight approx. [kg] 1.235
    verpackungsmenge_dyn_erp 1 St
  • 30000
    180
    0.5
    504270
    KSH PTP-HMPE-SS-HB180-RS30T-IB220MM-0.5M
    Reference no. 504270
    for round slings max WLL 30000
    for lifting strap width max [mm] 180
    Clearance W 220
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.724
    verpackungsmenge_dyn_erp 1 St
  • 30000
    180
    1
    504271
    KSH PTP-HMPE-SS-HB180-RS30T-IB220MM-1M
    Reference no. 504271
    for round slings max WLL 30000
    for lifting strap width max [mm] 180
    Clearance W 220
    Effective length WLL [m] 1
    Weight approx. [kg] 1.448
    verpackungsmenge_dyn_erp 1 St
  • 30000
    180
    2
    504272
    KSH PTP-HMPE-SS-HB180-RS30T-IB220MM-2M
    Reference no. 504272
    for round slings max WLL 30000
    for lifting strap width max [mm] 180
    Clearance W 220
    Effective length WLL [m] 2
    Weight approx. [kg] 2.896
    verpackungsmenge_dyn_erp 1 St
  • 40000
    240
    0.5
    504267
    KSH PTP-HMPE-SS-HB240-RS40T-IB280MM-0.5M
    Reference no. 504267
    for round slings max WLL 40000
    for lifting strap width max [mm] 240
    Clearance W 280
    Effective length WLL [m] 0.5
    Weight approx. [kg] 0.953
    verpackungsmenge_dyn_erp 1 St
  • 40000
    240
    1
    504268
    KSH PTP-HMPE-SS-HB240-RS40T-IB280MM-1M
    Reference no. 504268
    for round slings max WLL 40000
    for lifting strap width max [mm] 240
    Clearance W 280
    Effective length WLL [m] 1
    Weight approx. [kg] 1.906
    verpackungsmenge_dyn_erp 1 St
  • 40000
    240
    2
    504269
    KSH PTP-HMPE-SS-HB240-RS40T-IB280MM-2M
    Reference no. 504269
    for round slings max WLL 40000
    for lifting strap width max [mm] 240
    Clearance W 280
    Effective length WLL [m] 2
    Weight approx. [kg] 3.812
    verpackungsmenge_dyn_erp 1 St
  • 50000
    300
    0.5
    504264
    KSH PTP-HMPE-SS-HB300-RS50T-IB340MM-0.5M
    Reference no. 504264
    for round slings max WLL 50000
    for lifting strap width max [mm] 300
    Clearance W 340
    Effective length WLL [m] 0.5
    Weight approx. [kg] 1.158
    verpackungsmenge_dyn_erp 1 St
  • 50000
    300
    1
    504265
    KSH PTP-HMPE-SS-HB300-RS50T-IB340MM-1M
    Reference no. 504265
    for round slings max WLL 50000
    for lifting strap width max [mm] 300
    Clearance W 340
    Effective length WLL [m] 1
    Weight approx. [kg] 2.315
    verpackungsmenge_dyn_erp 1 St
  • 50000
    300
    2
    504266
    KSH PTP-HMPE-SS-HB300-RS50T-IB340MM-2M
    Reference no. 504266
    for round slings max WLL 50000
    for lifting strap width max [mm] 300
    Clearance W 340
    Effective length WLL [m] 2
    Weight approx. [kg] 4.63
    verpackungsmenge_dyn_erp 1 St
