Polytex® disposable lifting strap

Polytex® disposable lifting strap
Disposable lifting strap for transport from the manufacturer to the end consumer. After transport and assembly on the building site, the straps are simply cut off.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • DIN 60005

Safety factor

  • 5

Material

  • polyester

Technical note

  • The straps are integrated into the load-bearing frame of the prefabricated element during manufacture, taking into account the rules of rigging technology.
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]

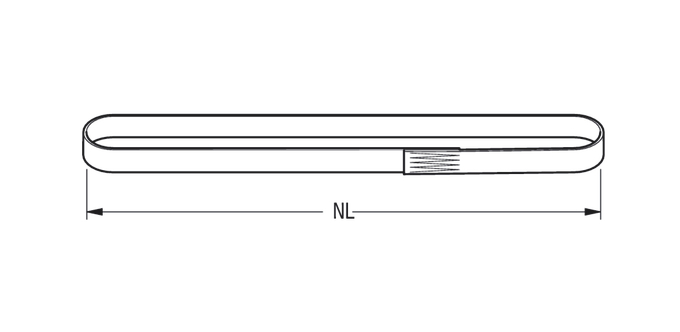

Effective length WLL [m]
Reference no.
Details
  • 750
    600
    0.4
    491555
    HEE-DIN-0.75T-1L-48-0.4M
    Reference no. 491555
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 0.4
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.048
  • 750
    600
    0.5
    491556
    HEE-DIN-0.75T-1L-48-0.5M
    Reference no. 491556
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 0.5
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.06
  • 750
    600
    1
    491557
    HEE-DIN-0.75T-1L-48-1M-WH
    Reference no. 491557
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 1
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.12
  • 750
    600
    1.5
    491558
    HEE-DIN-0.75T-1L-48-1.5M
    Reference no. 491558
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 1.5
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.18
  • 1000
    800
    0.4
    491559
    HEE-DIN-1T-1L-50-0.4M
    Reference no. 491559
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.048
  • 1000
    800
    0.5
    491560
    HEE-DIN-1T-1L-50-0.5M
    Reference no. 491560
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.06
  • 1000
    800
    1
    491561
    HEE-DIN-1T-1L-50-1M
    Reference no. 491561
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.12
  • 1000
    800
    1.5
    491562
    HEE-DIN-1T-1L-50-1.5M
    Reference no. 491562
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.18
  • 1500
    1200
    0.4
    491567
    HEE-DIN-1.5T-1L-50-0.4M
    Reference no. 491567
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.11
  • 1500
    1200
    0.5
    491568
    HEE-DIN-1.5T-1L-50-0.5M
    Reference no. 491568
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.125
  • 1500
    1200
    1
    491569
    HEE-DIN-1.5T-1L-50-1M
    Reference no. 491569
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.2
  • 1500
    1200
    1.5
    491570
    HEE-DIN-1.5T-1L-50-WH-1.5M
    Reference no. 491570
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.26
  • 2000
    1600
    0.4
    491571
    HEE-DIN-2T-1L-50-0.4M
    Reference no. 491571
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.092
  • 2000
    1600
    0.5
    491572
    HEE-DIN-2T-1L-50-0.5M
    Reference no. 491572
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.115
  • 2000
    1600
    1
    491573
    HEE-DIN-2T-1L-50-1M
    Reference no. 491573
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.229
  • 2000
    1600
    1.5
    491574
    HEE-DIN-2T-1L-50-1.5M
    Reference no. 491574
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.344
Working load limit 0° [kg] 750
Working load limit laced [kg] 600
Effective length WLL [m] 0.4
Reference no. 491555
  • Details
    HEE-DIN-0.75T-1L-48-0.4M
    Reference no. 491555
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 0.4
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.048
Working load limit 0° [kg] 750
Working load limit laced [kg] 600
Effective length WLL [m] 0.5
Reference no. 491556
  • Details
    HEE-DIN-0.75T-1L-48-0.5M
    Reference no. 491556
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 0.5
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.06
Working load limit 0° [kg] 750
Working load limit laced [kg] 600
Effective length WLL [m] 1
Reference no. 491557
  • Details
    HEE-DIN-0.75T-1L-48-1M-WH
    Reference no. 491557
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 1
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.12
Working load limit 0° [kg] 750
Working load limit laced [kg] 600
Effective length WLL [m] 1.5
Reference no. 491558
  • Details
    HEE-DIN-0.75T-1L-48-1.5M
    Reference no. 491558
    Working load limit 0° [kg] 750
    Working load limit laced [kg] 600
    Effective length WLL [m] 1.5
    Web width BG [mm] 48
    Web thickness SGB [mm] 1.5
    stueckgewicht 0.18
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Effective length WLL [m] 0.4
Reference no. 491559
  • Details
    HEE-DIN-1T-1L-50-0.4M
    Reference no. 491559
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.048
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Effective length WLL [m] 0.5
Reference no. 491560
  • Details
    HEE-DIN-1T-1L-50-0.5M
    Reference no. 491560
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.06
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Effective length WLL [m] 1
Reference no. 491561
  • Details
    HEE-DIN-1T-1L-50-1M
    Reference no. 491561
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.12
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Effective length WLL [m] 1.5
Reference no. 491562
  • Details
    HEE-DIN-1T-1L-50-1.5M
    Reference no. 491562
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.18
Working load limit 0° [kg] 1500
Working load limit laced [kg] 1200
Effective length WLL [m] 0.4
Reference no. 491567
  • Details
    HEE-DIN-1.5T-1L-50-0.4M
    Reference no. 491567
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.11
Working load limit 0° [kg] 1500
Working load limit laced [kg] 1200
Effective length WLL [m] 0.5
Reference no. 491568
  • Details
    HEE-DIN-1.5T-1L-50-0.5M
    Reference no. 491568
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.125
Working load limit 0° [kg] 1500
Working load limit laced [kg] 1200
Effective length WLL [m] 1
Reference no. 491569
  • Details
    HEE-DIN-1.5T-1L-50-1M
    Reference no. 491569
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.2
Working load limit 0° [kg] 1500
Working load limit laced [kg] 1200
Effective length WLL [m] 1.5
Reference no. 491570
  • Details
    HEE-DIN-1.5T-1L-50-WH-1.5M
    Reference no. 491570
    Working load limit 0° [kg] 1500
    Working load limit laced [kg] 1200
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.26
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Effective length WLL [m] 0.4
Reference no. 491571
  • Details
    HEE-DIN-2T-1L-50-0.4M
    Reference no. 491571
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 0.4
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.092
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Effective length WLL [m] 0.5
Reference no. 491572
  • Details
    HEE-DIN-2T-1L-50-0.5M
    Reference no. 491572
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 0.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.115
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Effective length WLL [m] 1
Reference no. 491573
  • Details
    HEE-DIN-2T-1L-50-1M
    Reference no. 491573
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 1
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.229
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Effective length WLL [m] 1.5
Reference no. 491574
  • Details
    HEE-DIN-2T-1L-50-1.5M
    Reference no. 491574
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Effective length WLL [m] 1.5
    Web width BG [mm] 50
    Web thickness SGB [mm] 3.5
    stueckgewicht 0.344
Please always specify the effective length when ordering.
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
