Polytex® lifting strap 2-layered

Polytex® lifting strap 2-layered
The double layer lifting strap with reinforced end loops tapered to half-width is ideally suited for most applications and for all attachment methods. Exception: the end loops of the 30 mm strap are untapered.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Printed load capacity, woven tonnage strips and label

Safety factor

  • 7

Material

  • high-strength polyester fabric

Material layers

  • two-layer
Options

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]

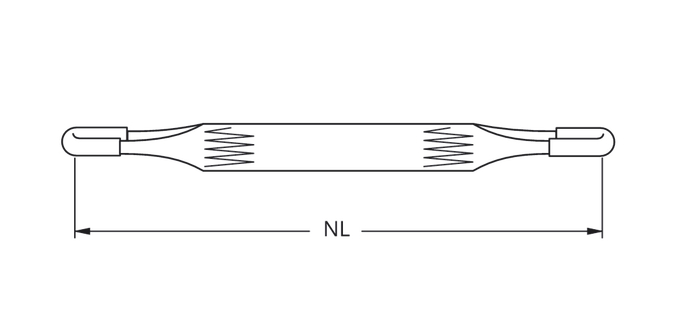

Effective length WLL [m]
Reference no.
Details

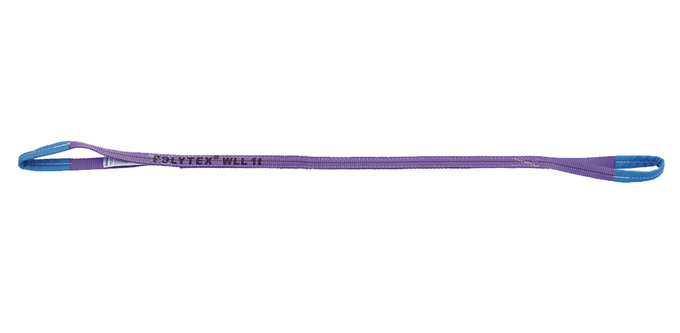

  • 1000
    1
    471355
    HB2-EN-1T-2L-30-1M-I
    Reference no. 471355
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 1
    Weight approx. [kg] 0.23
  • 1000
    1.5
    471356
    HB2-EN-1T-2L-30-1.5M
    Reference no. 471356
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.31
  • 1000
    2
    471357
    HB2-EN-1T-2L-30-2M
    Reference no. 471357
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 2
    Weight approx. [kg] 0.39
  • 1000
    2.5
    710473
    HB2-EN-1T-2L-30-2.5M
    Reference no. 710473
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 2.5
    Weight approx. [kg] 0.387
  • 1000
    3
    471359
    HB2-EN-1T-2L-30-3M
    Reference no. 471359
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 3
    Weight approx. [kg] 0.55
  • 1000
    4
    471360
    HB2-EN-1T-2L-30-4M
    Reference no. 471360
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 4
    Weight approx. [kg] 0.71
  • 1000
    5
    710474
    HB2-EN-1T-2L-30-5M
    Reference no. 710474
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 5
    Weight approx. [kg] 0.728
  • 1000
    6
    515460
    HB2-EN-1T-2L-30-6M
    Reference no. 515460
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 6
    Weight approx. [kg] 1.03
  • 1000
    8
    515461
    HB2-EN-1T-2L-30-8M
    Reference no. 515461
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 8
    Weight approx. [kg] 1.35
  • 1000
    10
    700355
    HB2-EN-1T-2L-30-10M
    Reference no. 700355
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 10
    Weight approx. [kg] 1.6

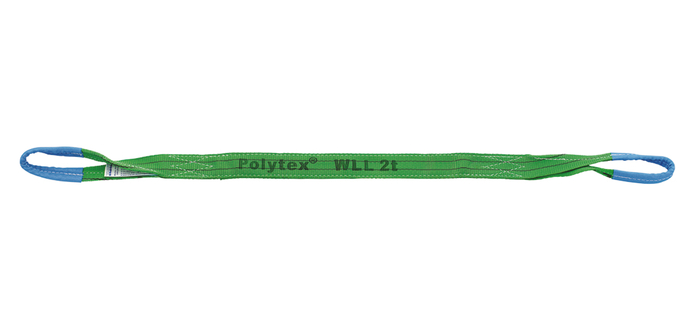

  • 2000
    1
    471362
    HB2-EN-2T-2L-60-1M
    Reference no. 471362
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 0.4
  • 2000
    1.5
    471363
    HB2-EN-2T-2L-60-1.5M
    Reference no. 471363
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.58
  • 2000
    2
    471364
    HB2-EN-2T-2L-60-2M
    Reference no. 471364
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 0.75
  • 2000
    2.5
    471365
    HB2-EN-2T-2L-60-2.5M
    Reference no. 471365
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2.5
    Weight approx. [kg] 0.93
  • 2000
    3
    471366
    HB2-EN-2T-2L-60-3M
    Reference no. 471366
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 1.1
  • 2000
    4
    471367
    HB2-EN-2T-2L-60-4M
    Reference no. 471367
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 1.45
  • 2000
    5
    471368
    HB2-EN-2T-2L-60-5M
    Reference no. 471368
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 1.8
  • 2000
    6
    471369
    HB2-EN-2T-2L-60-6M
    Reference no. 471369
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 2.15
  • 2000
    8
    515462
    HB2-EN-2T-2L-60-8M
    Reference no. 515462
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 8
    Weight approx. [kg] 2.85
  • 2000
    10
    704895
    HB2-EN-2T-2L-60-10M
    Reference no. 704895
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 10
    Weight approx. [kg] 3.4

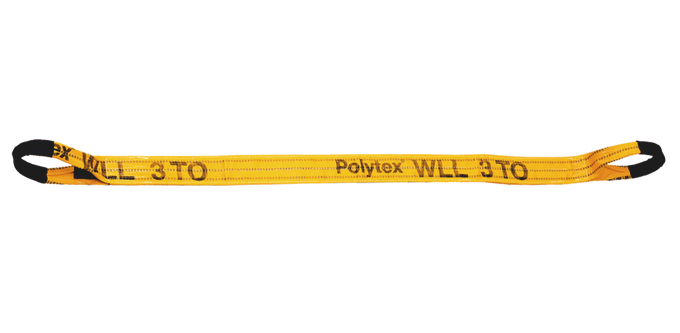

  • 3000
    1
    710475
    HB2-EN-3T-2L-90-1M
    Reference no. 710475
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 1
    Weight approx. [kg] 0.59
  • 3000
    1.5
    710476
    HB2-EN-3T-2L-90-1.5M
    Reference no. 710476
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.02
  • 3000
    2
    471372
    Polytex l. strap w loops -Duplex-3.0t-yellow-2.0m-90mm
    Reference no. 471372
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 1.2
  • 3000
    2.5
    710477
    HB2-EN-3T-2L-90-2.5M
    Reference no. 710477
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2.5
    Weight approx. [kg] 1.45
  • 3000
    3
    471374
    HB2-EN-3T-2L-90-3M
    Reference no. 471374
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 1.7
  • 3000
    4
    471375
    HB2-EN-3T-2L-90-4M
    Reference no. 471375
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 2.2
  • 3000
    5
    471376
    HB2-EN-3T-2L-90-5M
    Reference no. 471376
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 5
    Weight approx. [kg] 2.7
  • 3000
    6
    471377
    HB2-EN-3T-2L-90-6M
    Reference no. 471377
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 3.2
  • 3000
    8
    710478
    HB2-EN-3T-2L-90-8M
    Reference no. 710478
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 8
    Weight approx. [kg] 3.62
  • 3000
    10
    700140
    HB2-EN-3T-2L-90-10M
    Reference no. 700140
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 10
    Weight approx. [kg] 5.1

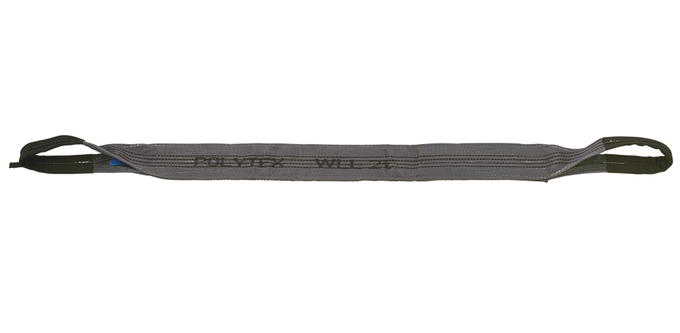

  • 4000
    1.5
    703139
    HB2-EN-4T-2L-120-1.5M
    Reference no. 703139
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.4
  • 4000
    2
    471379
    HB2-EN-4T-2L-120-2M
    Reference no. 471379
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 1.6
  • 4000
    2.5
    708499
    HB2-EN-4T-2L-120-2.5M
    Reference no. 708499
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.1
  • 4000
    3
    471380
    HB2-EN-4T-2L-120-3M
    Reference no. 471380
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 2.3
  • 4000
    4
    471381
    HB2-EN-4T-2L-120-4M
    Reference no. 471381
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 3
  • 4000
    5
    471382
    HB2-EN-4T-2L-120-5M
    Reference no. 471382
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 3.7
  • 4000
    6
    471383
    HB2-EN-4T-2L-120-6M
    Reference no. 471383
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 4.4
  • 4000
    8
    471384
    HB2-EN-4T-2L-120-8M
    Reference no. 471384
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 5.8
  • 4000
    10
    701002
    HB2-EN-4T-2L-120-10M
    Reference no. 701002
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 10
    Weight approx. [kg] 7.6

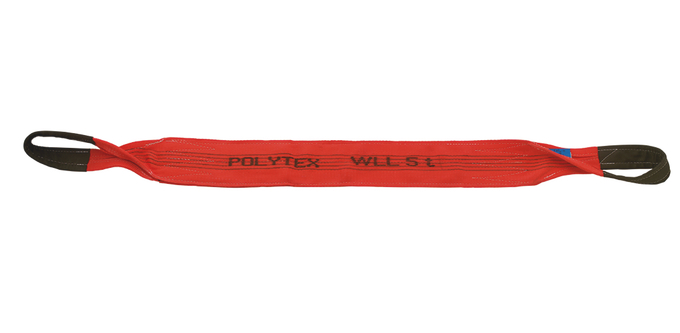

  • 5000
    2
    471385
    HB2-EN-5T-2L-150-2M
    Reference no. 471385
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 2.04
  • 5000
    3
    471386
    HB2-EN-5T-2L-150-3M
    Reference no. 471386
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 2.87
  • 5000
    4
    471387
    HB2-EN-5T-2L-150-4M
    Reference no. 471387
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 3.71
  • 5000
    5
    471388
    HB2-EN-5T-2L-150-5M
    Reference no. 471388
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 5
    Weight approx. [kg] 4.54
  • 5000
    6
    471389
    HB2-EN-5T-2L-150-6M
    Reference no. 471389
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 5.38
  • 5000
    8
    471390
    HB2-EN-5T-2L-150-8M
    Reference no. 471390
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 8
    Weight approx. [kg] 7.05
  • 5000
    10
    700727
    HB2-EN-5T-2L-150-10M
    Reference no. 700727
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 10
    Weight approx. [kg] 8.7

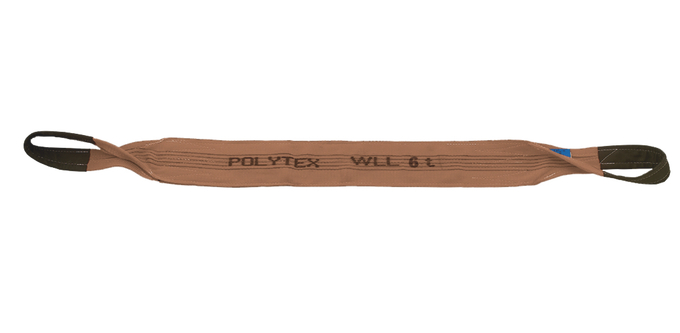

  • 6000
    2
    471391
    HB2-EN-6T-2L-180-2M
    Reference no. 471391
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 2
    Weight approx. [kg] 2.56
  • 6000
    2.5
    711805
    HB2-EN-6T-2L-180-2.5M
    Reference no. 711805
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.1
  • 6000
    3
    471392
    HB2-EN-6T-2L-180-3M
    Reference no. 471392
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 3
    Weight approx. [kg] 3.67
  • 6000
    4
    471393
    HB2-EN-6T-2L-180-4M
    Reference no. 471393
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 4.77
  • 6000
    5
    471394
    HB2-EN-6T-2L-180-5M
    Reference no. 471394
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 5.87
  • 6000
    6
    471395
    HB2-EN-6T-2L-180-6M
    Reference no. 471395
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 6.98
  • 6000
    8
    471396
    HB2-EN-6T-2L-180-8M
    Reference no. 471396
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 9.18
  • 6000
    10
    702568
    HB2-EN-6T-2L-180-10M
    Reference no. 702568
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 10
    Weight approx. [kg] 10.7
  • 8000
    3
    515465
    HB2-EN-8T-2L-240-3M
    Reference no. 515465
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 3
    Weight approx. [kg] 5.89
  • 8000
    4
    471397
    HB2-EN-8T-2L-240-4M
    Reference no. 471397
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 7.54
  • 8000
    5
    471398
    HB2-EN-8T-2L-240-5M
    Reference no. 471398
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 9.19
  • 8000
    6
    471399
    HB2-EN-8T-2L-240-6M
    Reference no. 471399
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 10.85
  • 8000
    8
    471400
    HB2-EN-8T-2L-240-8M
    Reference no. 471400
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 14.15
  • 8000
    10
    471401
    Polytex l. strap w loops -Duplex-8.0t-blue-10.0m-240mm
    Reference no. 471401
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 10
    Weight approx. [kg] 17.45

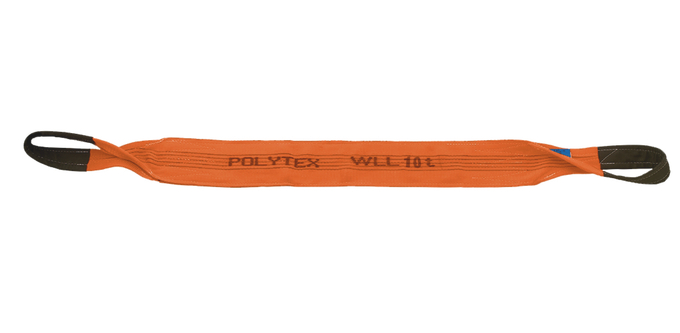

  • 10000
    3
    515466
    HB2-EN-10T-2L-300-3M
    Reference no. 515466
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 3
    Weight approx. [kg] 6.61
  • 10000
    4
    471402
    HB2-EN-10T-2L-300-4M
    Reference no. 471402
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 8.48
  • 10000
    5
    471403
    HB2-EN-10T-2L-300-5M
    Reference no. 471403
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 10.35
  • 10000
    6
    471404
    HB2-EN-10T-2L-300-6M
    Reference no. 471404
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 12.23
  • 10000
    8
    471405
    HB2-EN-10T-2L-300-8M
    Reference no. 471405
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 15.97
  • 10000
    10
    471406
    HB2-EN-10T-2L-300-10M
    Reference no. 471406
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 19.71
  • 5000
    2.5
    712088
    HB2-EN-5T-2L-150-2.5M
    Reference no. 712088
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.4
Working load limit 0° [kg] 1000
Effective length WLL [m] 1
Reference no. 471355
  • Details
    HB2-EN-1T-2L-30-1M-I
    Reference no. 471355
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 1
    Weight approx. [kg] 0.23
Working load limit 0° [kg] 1000
Effective length WLL [m] 1.5
Reference no. 471356
  • Details
    HB2-EN-1T-2L-30-1.5M
    Reference no. 471356
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.31
Working load limit 0° [kg] 1000
Effective length WLL [m] 2
Reference no. 471357
  • Details
    HB2-EN-1T-2L-30-2M
    Reference no. 471357
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 2
    Weight approx. [kg] 0.39
Working load limit 0° [kg] 1000
Effective length WLL [m] 2.5
Reference no. 710473
  • Details
    HB2-EN-1T-2L-30-2.5M
    Reference no. 710473
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 2.5
    Weight approx. [kg] 0.387
Working load limit 0° [kg] 1000
Effective length WLL [m] 3
Reference no. 471359
  • Details
    HB2-EN-1T-2L-30-3M
    Reference no. 471359
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 3
    Weight approx. [kg] 0.55
Working load limit 0° [kg] 1000
Effective length WLL [m] 4
Reference no. 471360
  • Details
    HB2-EN-1T-2L-30-4M
    Reference no. 471360
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 4
    Weight approx. [kg] 0.71
Working load limit 0° [kg] 1000
Effective length WLL [m] 5
Reference no. 710474
  • Details
    HB2-EN-1T-2L-30-5M
    Reference no. 710474
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 5
    Weight approx. [kg] 0.728
Working load limit 0° [kg] 1000
Effective length WLL [m] 6
Reference no. 515460
  • Details
    HB2-EN-1T-2L-30-6M
    Reference no. 515460
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 6
    Weight approx. [kg] 1.03
Working load limit 0° [kg] 1000
Effective length WLL [m] 8
Reference no. 515461
  • Details
    HB2-EN-1T-2L-30-8M
    Reference no. 515461
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 8
    Weight approx. [kg] 1.35
Working load limit 0° [kg] 1000
Effective length WLL [m] 10
Reference no. 700355
  • Details
    HB2-EN-1T-2L-30-10M
    Reference no. 700355
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Loop length LS [mm] 250
    Web width BG [mm] 30
    Web thickness SGB [mm] 7
    Colour violet
    Effective length WLL [m] 10
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 2000
Effective length WLL [m] 1
Reference no. 471362
  • Details
    HB2-EN-2T-2L-60-1M
    Reference no. 471362
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1
    Weight approx. [kg] 0.4
Working load limit 0° [kg] 2000
Effective length WLL [m] 1.5
Reference no. 471363
  • Details
    HB2-EN-2T-2L-60-1.5M
    Reference no. 471363
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 1.5
    Weight approx. [kg] 0.58
Working load limit 0° [kg] 2000
Effective length WLL [m] 2
Reference no. 471364
  • Details
    HB2-EN-2T-2L-60-2M
    Reference no. 471364
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 0.75
Working load limit 0° [kg] 2000
Effective length WLL [m] 2.5
Reference no. 471365
  • Details
    HB2-EN-2T-2L-60-2.5M
    Reference no. 471365
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 2.5
    Weight approx. [kg] 0.93
Working load limit 0° [kg] 2000
Effective length WLL [m] 3
Reference no. 471366
  • Details
    HB2-EN-2T-2L-60-3M
    Reference no. 471366
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 1.1
Working load limit 0° [kg] 2000
Effective length WLL [m] 4
Reference no. 471367
  • Details
    HB2-EN-2T-2L-60-4M
    Reference no. 471367
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 1.45
Working load limit 0° [kg] 2000
Effective length WLL [m] 5
Reference no. 471368
  • Details
    HB2-EN-2T-2L-60-5M
    Reference no. 471368
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 1.8
Working load limit 0° [kg] 2000
Effective length WLL [m] 6
Reference no. 471369
  • Details
    HB2-EN-2T-2L-60-6M
    Reference no. 471369
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 2.15
Working load limit 0° [kg] 2000
Effective length WLL [m] 8
Reference no. 515462
  • Details
    HB2-EN-2T-2L-60-8M
    Reference no. 515462
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 8
    Weight approx. [kg] 2.85
Working load limit 0° [kg] 2000
Effective length WLL [m] 10
Reference no. 704895
  • Details
    HB2-EN-2T-2L-60-10M
    Reference no. 704895
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 7
    Colour green
    Effective length WLL [m] 10
    Weight approx. [kg] 3.4
Working load limit 0° [kg] 3000
Effective length WLL [m] 1
Reference no. 710475
  • Details
    HB2-EN-3T-2L-90-1M
    Reference no. 710475
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 1
    Weight approx. [kg] 0.59
Working load limit 0° [kg] 3000
Effective length WLL [m] 1.5
Reference no. 710476
  • Details
    HB2-EN-3T-2L-90-1.5M
    Reference no. 710476
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.02
Working load limit 0° [kg] 3000
Effective length WLL [m] 2
Reference no. 471372
  • Details
    Polytex l. strap w loops -Duplex-3.0t-yellow-2.0m-90mm
    Reference no. 471372
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2
    Weight approx. [kg] 1.2
Working load limit 0° [kg] 3000
Effective length WLL [m] 2.5
Reference no. 710477
  • Details
    HB2-EN-3T-2L-90-2.5M
    Reference no. 710477
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 2.5
    Weight approx. [kg] 1.45
Working load limit 0° [kg] 3000
Effective length WLL [m] 3
Reference no. 471374
  • Details
    HB2-EN-3T-2L-90-3M
    Reference no. 471374
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 3
    Weight approx. [kg] 1.7
Working load limit 0° [kg] 3000
Effective length WLL [m] 4
Reference no. 471375
  • Details
    HB2-EN-3T-2L-90-4M
    Reference no. 471375
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 4
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 3000
Effective length WLL [m] 5
Reference no. 471376
  • Details
    HB2-EN-3T-2L-90-5M
    Reference no. 471376
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 5
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 3000
Effective length WLL [m] 6
Reference no. 471377
  • Details
    HB2-EN-3T-2L-90-6M
    Reference no. 471377
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 6
    Weight approx. [kg] 3.2
Working load limit 0° [kg] 3000
Effective length WLL [m] 8
Reference no. 710478
  • Details
    HB2-EN-3T-2L-90-8M
    Reference no. 710478
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 8
    Weight approx. [kg] 3.62
Working load limit 0° [kg] 3000
Effective length WLL [m] 10
Reference no. 700140
  • Details
    HB2-EN-3T-2L-90-10M
    Reference no. 700140
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Loop length LS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 7
    Colour yellow
    Effective length WLL [m] 10
    Weight approx. [kg] 5.1
Working load limit 0° [kg] 4000
Effective length WLL [m] 1.5
Reference no. 703139
  • Details
    HB2-EN-4T-2L-120-1.5M
    Reference no. 703139
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 1.5
    Weight approx. [kg] 1.4
Working load limit 0° [kg] 4000
Effective length WLL [m] 2
Reference no. 471379
  • Details
    HB2-EN-4T-2L-120-2M
    Reference no. 471379
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 4000
Effective length WLL [m] 2.5
Reference no. 708499
  • Details
    HB2-EN-4T-2L-120-2.5M
    Reference no. 708499
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.1
Working load limit 0° [kg] 4000
Effective length WLL [m] 3
Reference no. 471380
  • Details
    HB2-EN-4T-2L-120-3M
    Reference no. 471380
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 2.3
Working load limit 0° [kg] 4000
Effective length WLL [m] 4
Reference no. 471381
  • Details
    HB2-EN-4T-2L-120-4M
    Reference no. 471381
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 3
Working load limit 0° [kg] 4000
Effective length WLL [m] 5
Reference no. 471382
  • Details
    HB2-EN-4T-2L-120-5M
    Reference no. 471382
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 3.7
Working load limit 0° [kg] 4000
Effective length WLL [m] 6
Reference no. 471383
  • Details
    HB2-EN-4T-2L-120-6M
    Reference no. 471383
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 4.4
Working load limit 0° [kg] 4000
Effective length WLL [m] 8
Reference no. 471384
  • Details
    HB2-EN-4T-2L-120-8M
    Reference no. 471384
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 5.8
Working load limit 0° [kg] 4000
Effective length WLL [m] 10
Reference no. 701002
  • Details
    HB2-EN-4T-2L-120-10M
    Reference no. 701002
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 8
    Colour grey
    Effective length WLL [m] 10
    Weight approx. [kg] 7.6
Working load limit 0° [kg] 5000
Effective length WLL [m] 2
Reference no. 471385
  • Details
    HB2-EN-5T-2L-150-2M
    Reference no. 471385
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 2
    Weight approx. [kg] 2.04
Working load limit 0° [kg] 5000
Effective length WLL [m] 3
Reference no. 471386
  • Details
    HB2-EN-5T-2L-150-3M
    Reference no. 471386
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 3
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 5000
Effective length WLL [m] 4
Reference no. 471387
  • Details
    HB2-EN-5T-2L-150-4M
    Reference no. 471387
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 4
    Weight approx. [kg] 3.71
Working load limit 0° [kg] 5000
Effective length WLL [m] 5
Reference no. 471388
  • Details
    HB2-EN-5T-2L-150-5M
    Reference no. 471388
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 5
    Weight approx. [kg] 4.54
Working load limit 0° [kg] 5000
Effective length WLL [m] 6
Reference no. 471389
  • Details
    HB2-EN-5T-2L-150-6M
    Reference no. 471389
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 6
    Weight approx. [kg] 5.38
Working load limit 0° [kg] 5000
Effective length WLL [m] 8
Reference no. 471390
  • Details
    HB2-EN-5T-2L-150-8M
    Reference no. 471390
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 8
    Weight approx. [kg] 7.05
Working load limit 0° [kg] 5000
Effective length WLL [m] 10
Reference no. 700727
  • Details
    HB2-EN-5T-2L-150-10M
    Reference no. 700727
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour red
    Effective length WLL [m] 10
    Weight approx. [kg] 8.7
Working load limit 0° [kg] 6000
Effective length WLL [m] 2
Reference no. 471391
  • Details
    HB2-EN-6T-2L-180-2M
    Reference no. 471391
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 2
    Weight approx. [kg] 2.56
Working load limit 0° [kg] 6000
Effective length WLL [m] 2.5
Reference no. 711805
  • Details
    HB2-EN-6T-2L-180-2.5M
    Reference no. 711805
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 2.5
    Weight approx. [kg] 3.1
Working load limit 0° [kg] 6000
Effective length WLL [m] 3
Reference no. 471392
  • Details
    HB2-EN-6T-2L-180-3M
    Reference no. 471392
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 3
    Weight approx. [kg] 3.67
Working load limit 0° [kg] 6000
Effective length WLL [m] 4
Reference no. 471393
  • Details
    HB2-EN-6T-2L-180-4M
    Reference no. 471393
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 4.77
Working load limit 0° [kg] 6000
Effective length WLL [m] 5
Reference no. 471394
  • Details
    HB2-EN-6T-2L-180-5M
    Reference no. 471394
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 5.87
Working load limit 0° [kg] 6000
Effective length WLL [m] 6
Reference no. 471395
  • Details
    HB2-EN-6T-2L-180-6M
    Reference no. 471395
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 6.98
Working load limit 0° [kg] 6000
Effective length WLL [m] 8
Reference no. 471396
  • Details
    HB2-EN-6T-2L-180-8M
    Reference no. 471396
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 9.18
Working load limit 0° [kg] 6000
Effective length WLL [m] 10
Reference no. 702568
  • Details
    HB2-EN-6T-2L-180-10M
    Reference no. 702568
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 8
    Colour brown
    Effective length WLL [m] 10
    Weight approx. [kg] 10.7
Working load limit 0° [kg] 8000
Effective length WLL [m] 3
Reference no. 515465
  • Details
    HB2-EN-8T-2L-240-3M
    Reference no. 515465
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 3
    Weight approx. [kg] 5.89
Working load limit 0° [kg] 8000
Effective length WLL [m] 4
Reference no. 471397
  • Details
    HB2-EN-8T-2L-240-4M
    Reference no. 471397
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 7.54
Working load limit 0° [kg] 8000
Effective length WLL [m] 5
Reference no. 471398
  • Details
    HB2-EN-8T-2L-240-5M
    Reference no. 471398
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 9.19
Working load limit 0° [kg] 8000
Effective length WLL [m] 6
Reference no. 471399
  • Details
    HB2-EN-8T-2L-240-6M
    Reference no. 471399
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 10.85
Working load limit 0° [kg] 8000
Effective length WLL [m] 8
Reference no. 471400
  • Details
    HB2-EN-8T-2L-240-8M
    Reference no. 471400
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 14.15
Working load limit 0° [kg] 8000
Effective length WLL [m] 10
Reference no. 471401
  • Details
    Polytex l. strap w loops -Duplex-8.0t-blue-10.0m-240mm
    Reference no. 471401
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 9
    Colour blue
    Effective length WLL [m] 10
    Weight approx. [kg] 17.45
Working load limit 0° [kg] 10000
Effective length WLL [m] 3
Reference no. 515466
  • Details
    HB2-EN-10T-2L-300-3M
    Reference no. 515466
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 3
    Weight approx. [kg] 6.61
Working load limit 0° [kg] 10000
Effective length WLL [m] 4
Reference no. 471402
  • Details
    HB2-EN-10T-2L-300-4M
    Reference no. 471402
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 8.48
Working load limit 0° [kg] 10000
Effective length WLL [m] 5
Reference no. 471403
  • Details
    HB2-EN-10T-2L-300-5M
    Reference no. 471403
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 10.35
Working load limit 0° [kg] 10000
Effective length WLL [m] 6
Reference no. 471404
  • Details
    HB2-EN-10T-2L-300-6M
    Reference no. 471404
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 12.23
Working load limit 0° [kg] 10000
Effective length WLL [m] 8
Reference no. 471405
  • Details
    HB2-EN-10T-2L-300-8M
    Reference no. 471405
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 15.97
Working load limit 0° [kg] 10000
Effective length WLL [m] 10
Reference no. 471406
  • Details
    HB2-EN-10T-2L-300-10M
    Reference no. 471406
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 9
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 19.71
Working load limit 0° [kg] 5000
Effective length WLL [m] 2.5
Reference no. 712088
  • Details
    HB2-EN-5T-2L-150-2.5M
    Reference no. 712088
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Loop length LS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 8
    Colour orange
    Effective length WLL [m] 2.5
    Weight approx. [kg] 2.4
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
