Polytex® lifting strap 4-layered

Polytex® lifting strap 4-layered
Four-layer heavy-duty lifting strap with reinforced and tapered end loops. For high working load limits with very narrow strap width and minimal contact surface.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Imprinted working load limit

Safety factor

  • 7

Material

  • Polyester fabric

Material layers

  • Four layers

Surface

  • Impregnated polyurethane
Options

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Effective length WLL [m]
Reference no.
Details

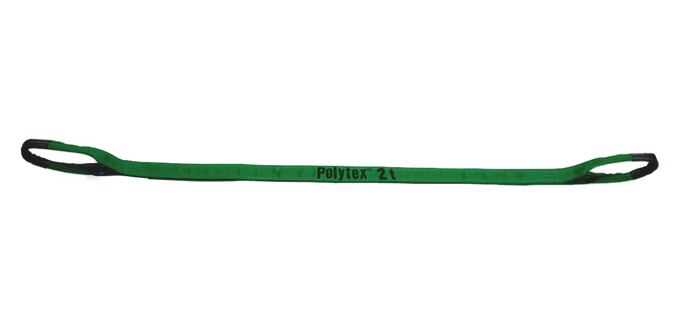

  • 2000
    2
    471303
    HB4-EN-2T-4L-30-2M
    Reference no. 471303
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 0.768
  • 2000
    3
    471304
    HB4-EN-2T-4L-30-3M
    Reference no. 471304
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 1.108
  • 2000
    4
    471305
    HB4-EN-2T-4L-30-4M
    Reference no. 471305
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 1.448
  • 2000
    5
    471306
    HB4-EN-2T-4L-30-5M
    Reference no. 471306
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 1.788
  • 2000
    6
    471307
    HB4-EN-2T-4L-30-6M
    Reference no. 471307
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 2.128

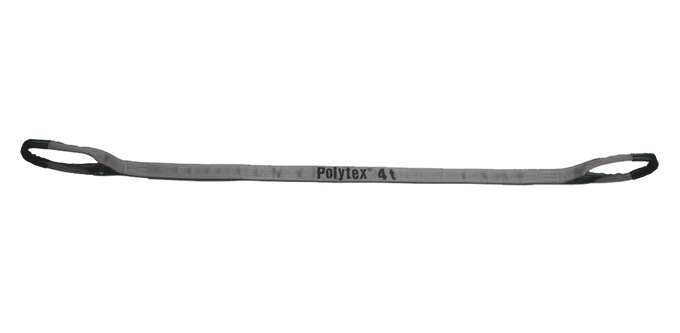

  • 4000
    2
    471308
    HB4-EN-4T-4L-60-2M
    Reference no. 471308
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 1.502
  • 4000
    3
    471309
    HB4-EN-4T-4L-60-3M
    Reference no. 471309
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 2.154
  • 4000
    4
    471310
    HB4-EN-4T-4L-60-4M
    Reference no. 471310
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 2.806
  • 4000
    5
    471311
    HB4-EN-4T-4L-60-5M
    Reference no. 471311
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 3.458
  • 4000
    6
    471312
    HB4-EN-4T-4L-60-6M
    Reference no. 471312
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 4.11
  • 4000
    8
    707142
    HB4-EN-4T-4L-60-8M
    Reference no. 707142
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 0
  • 6000
    2
    471313
    HB4-EN-6T-4L-90-2M
    Reference no. 471313
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 2
    Weight approx. [kg] 2.16
  • 6000
    3
    471314
    HB4-EN-6T-4L-90-3M
    Reference no. 471314
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 3
    Weight approx. [kg] 3.104
  • 6000
    4
    471315
    HB4-EN-6T-4L-90-4M
    Reference no. 471315
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 4.048
  • 6000
    5
    471316
    HB4-EN-6T-4L-90-5M
    Reference no. 471316
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 4.992
  • 6000
    6
    471317
    HB4-EN-6T-4L-90-6M
    Reference no. 471317
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 5.936
  • 6000
    8
    707267
    HB4-EN-6T-4L-90-8M
    Reference no. 707267
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 8.65
  • 8000
    2
    700119
    HB4-EN-8T-4L-120-2.1M
    Reference no. 700119
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 2
    Weight approx. [kg] 3.4
  • 8000
    3
    703643
    HB4-EN-8T-4L-120-3M
    Reference no. 703643
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 3
    Weight approx. [kg] 4.9
  • 8000
    4
    471318
    HB4-EN-8T-4L-120-4M
    Reference no. 471318
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 6.257
  • 8000
    5
    471319
    HB4-EN-8T-4L-120-5M
    Reference no. 471319
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 7.696
  • 8000
    6
    471320
    HB4-EN-8T-4L-120-6M
    Reference no. 471320
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 8.3
  • 8000
    8
    471321
    HB4-EN-8T-4L-120-8M
    Reference no. 471321
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 12.013
  • 8000
    10
    709198
    HB4-EN-8T-4L-120-10M
    Reference no. 709198
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 10
    Weight approx. [kg] 8.8
  • 10000
    4
    471322
    HB4-EN-10T-4L-150-4M
    Reference no. 471322
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 7.14
  • 10000
    5
    471323
    HB4-EN-10T-4L-150-5M
    Reference no. 471323
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 8.808
  • 10000
    6
    471324
    HB4-EN-10T-4L-150-6M
    Reference no. 471324
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 10.476
  • 10000
    8
    471325
    HB4-EN-10T-4L-150-8M
    Reference no. 471325
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 13.812
  • 10000
    10
    708821
    HB4-EN-10T-4L-150-10M
    Reference no. 708821
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 160
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 0
  • 10000
    12
    709875
    HB4-EN-10T-4L-150-12M
    Reference no. 709875
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 160
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 21

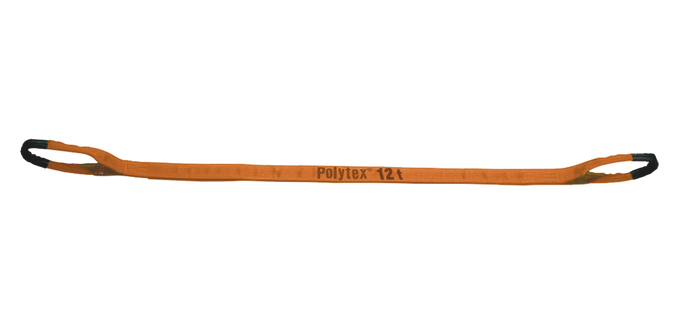

  • 12000
    4
    708555
    HB4-EN-12T-4L-180-4M
    Reference no. 708555
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 0
  • 12000
    5
    710335
    HB4-EN-12T-4L-180-5M
    Reference no. 710335
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 9.51
  • 12000
    6
    471326
    HB4-EN-12T-4L-180-6M
    Reference no. 471326
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 13.67
  • 12000
    8
    471327
    HB4-EN-12T-4L-180-5M
    Reference no. 471327
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 18.082
  • 12000
    10
    471328
    HB4-EN-12T-4L-180-10M
    Reference no. 471328
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 22.494
  • 12000
    12
    471329
    HB4-EN-12T-4L-180-12M
    Reference no. 471329
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 26.906
  • 16000
    5
    703217
    HB4-EN-16T-4L-240-5M
    Reference no. 703217
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 15.4
  • 16000
    6
    471330
    HB4-EN-16T-4L-240-6M
    Reference no. 471330
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 20.95
  • 16000
    8
    471331
    HB4-EN-16T-4L-240-8M
    Reference no. 471331
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 27.55
  • 16000
    10
    471332
    HB4-EN-16T-4L-240-10M
    Reference no. 471332
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 34.15
  • 16000
    12
    471333
    HB4-EN-16T-4L-240-12M
    Reference no. 471333
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 40.75
  • 20000
    5
    707002
    HB4-EN-20T-4L-300-5M
    Reference no. 707002
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 18.8
  • 20000
    6
    471334
    HB4-EN-20T-4L-300-6M
    Reference no. 471334
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 43.2
  • 20000
    8
    471335
    HB4-EN-20T-4L-300-8M
    Reference no. 471335
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 52.8
  • 20000
    10
    471336
    HB4-EN-20T-4L-300-10M
    Reference no. 471336
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 62.4
  • 20000
    12
    471337
    HB4-EN-20T-4L-300-12M
    Reference no. 471337
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 72
Working load limit 0° [kg] 2000
Effective length WLL [m] 2
Reference no. 471303
  • Details
    HB4-EN-2T-4L-30-2M
    Reference no. 471303
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 2
    Weight approx. [kg] 0.768
Working load limit 0° [kg] 2000
Effective length WLL [m] 3
Reference no. 471304
  • Details
    HB4-EN-2T-4L-30-3M
    Reference no. 471304
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 3
    Weight approx. [kg] 1.108
Working load limit 0° [kg] 2000
Effective length WLL [m] 4
Reference no. 471305
  • Details
    HB4-EN-2T-4L-30-4M
    Reference no. 471305
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 4
    Weight approx. [kg] 1.448
Working load limit 0° [kg] 2000
Effective length WLL [m] 5
Reference no. 471306
  • Details
    HB4-EN-2T-4L-30-5M
    Reference no. 471306
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 5
    Weight approx. [kg] 1.788
Working load limit 0° [kg] 2000
Effective length WLL [m] 6
Reference no. 471307
  • Details
    HB4-EN-2T-4L-30-6M
    Reference no. 471307
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Loop length LS [mm] 500
    Web width BG [mm] 30
    Web thickness SGB [mm] 14
    Colour green
    Effective length WLL [m] 6
    Weight approx. [kg] 2.128
Working load limit 0° [kg] 4000
Effective length WLL [m] 2
Reference no. 471308
  • Details
    HB4-EN-4T-4L-60-2M
    Reference no. 471308
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 2
    Weight approx. [kg] 1.502
Working load limit 0° [kg] 4000
Effective length WLL [m] 3
Reference no. 471309
  • Details
    HB4-EN-4T-4L-60-3M
    Reference no. 471309
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 3
    Weight approx. [kg] 2.154
Working load limit 0° [kg] 4000
Effective length WLL [m] 4
Reference no. 471310
  • Details
    HB4-EN-4T-4L-60-4M
    Reference no. 471310
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 4
    Weight approx. [kg] 2.806
Working load limit 0° [kg] 4000
Effective length WLL [m] 5
Reference no. 471311
  • Details
    HB4-EN-4T-4L-60-5M
    Reference no. 471311
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 5
    Weight approx. [kg] 3.458
Working load limit 0° [kg] 4000
Effective length WLL [m] 6
Reference no. 471312
  • Details
    HB4-EN-4T-4L-60-6M
    Reference no. 471312
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 6
    Weight approx. [kg] 4.11
Working load limit 0° [kg] 4000
Effective length WLL [m] 8
Reference no. 707142
  • Details
    HB4-EN-4T-4L-60-8M
    Reference no. 707142
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Loop length LS [mm] 500
    Web width BG [mm] 60
    Web thickness SGB [mm] 14
    Colour grey
    Effective length WLL [m] 8
    Weight approx. [kg] 0
Working load limit 0° [kg] 6000
Effective length WLL [m] 2
Reference no. 471313
  • Details
    HB4-EN-6T-4L-90-2M
    Reference no. 471313
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 2
    Weight approx. [kg] 2.16
Working load limit 0° [kg] 6000
Effective length WLL [m] 3
Reference no. 471314
  • Details
    HB4-EN-6T-4L-90-3M
    Reference no. 471314
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 3
    Weight approx. [kg] 3.104
Working load limit 0° [kg] 6000
Effective length WLL [m] 4
Reference no. 471315
  • Details
    HB4-EN-6T-4L-90-4M
    Reference no. 471315
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 4
    Weight approx. [kg] 4.048
Working load limit 0° [kg] 6000
Effective length WLL [m] 5
Reference no. 471316
  • Details
    HB4-EN-6T-4L-90-5M
    Reference no. 471316
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 5
    Weight approx. [kg] 4.992
Working load limit 0° [kg] 6000
Effective length WLL [m] 6
Reference no. 471317
  • Details
    HB4-EN-6T-4L-90-6M
    Reference no. 471317
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 6
    Weight approx. [kg] 5.936
Working load limit 0° [kg] 6000
Effective length WLL [m] 8
Reference no. 707267
  • Details
    HB4-EN-6T-4L-90-8M
    Reference no. 707267
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Loop length LS [mm] 500
    Web width BG [mm] 90
    Web thickness SGB [mm] 14
    Colour brown
    Effective length WLL [m] 8
    Weight approx. [kg] 8.65
Working load limit 0° [kg] 8000
Effective length WLL [m] 2
Reference no. 700119
  • Details
    HB4-EN-8T-4L-120-2.1M
    Reference no. 700119
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 2
    Weight approx. [kg] 3.4
Working load limit 0° [kg] 8000
Effective length WLL [m] 3
Reference no. 703643
  • Details
    HB4-EN-8T-4L-120-3M
    Reference no. 703643
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 3
    Weight approx. [kg] 4.9
Working load limit 0° [kg] 8000
Effective length WLL [m] 4
Reference no. 471318
  • Details
    HB4-EN-8T-4L-120-4M
    Reference no. 471318
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 4
    Weight approx. [kg] 6.257
Working load limit 0° [kg] 8000
Effective length WLL [m] 5
Reference no. 471319
  • Details
    HB4-EN-8T-4L-120-5M
    Reference no. 471319
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 5
    Weight approx. [kg] 7.696
Working load limit 0° [kg] 8000
Effective length WLL [m] 6
Reference no. 471320
  • Details
    HB4-EN-8T-4L-120-6M
    Reference no. 471320
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 6
    Weight approx. [kg] 8.3
Working load limit 0° [kg] 8000
Effective length WLL [m] 8
Reference no. 471321
  • Details
    HB4-EN-8T-4L-120-8M
    Reference no. 471321
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 8
    Weight approx. [kg] 12.013
Working load limit 0° [kg] 8000
Effective length WLL [m] 10
Reference no. 709198
  • Details
    HB4-EN-8T-4L-120-10M
    Reference no. 709198
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Loop length LS [mm] 550
    Web width BG [mm] 120
    Web thickness SGB [mm] 16
    Colour blue
    Effective length WLL [m] 10
    Weight approx. [kg] 8.8
Working load limit 0° [kg] 10000
Effective length WLL [m] 4
Reference no. 471322
  • Details
    HB4-EN-10T-4L-150-4M
    Reference no. 471322
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 7.14
Working load limit 0° [kg] 10000
Effective length WLL [m] 5
Reference no. 471323
  • Details
    HB4-EN-10T-4L-150-5M
    Reference no. 471323
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 8.808
Working load limit 0° [kg] 10000
Effective length WLL [m] 6
Reference no. 471324
  • Details
    HB4-EN-10T-4L-150-6M
    Reference no. 471324
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 10.476
Working load limit 0° [kg] 10000
Effective length WLL [m] 8
Reference no. 471325
  • Details
    HB4-EN-10T-4L-150-8M
    Reference no. 471325
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 13.812
Working load limit 0° [kg] 10000
Effective length WLL [m] 10
Reference no. 708821
  • Details
    HB4-EN-10T-4L-150-10M
    Reference no. 708821
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 160
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 0
Working load limit 0° [kg] 10000
Effective length WLL [m] 12
Reference no. 709875
  • Details
    HB4-EN-10T-4L-150-12M
    Reference no. 709875
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Loop length LS [mm] 650
    Web width BG [mm] 150
    Web thickness SGB [mm] 160
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 21
Working load limit 0° [kg] 12000
Effective length WLL [m] 4
Reference no. 708555
  • Details
    HB4-EN-12T-4L-180-4M
    Reference no. 708555
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 4
    Weight approx. [kg] 0
Working load limit 0° [kg] 12000
Effective length WLL [m] 5
Reference no. 710335
  • Details
    HB4-EN-12T-4L-180-5M
    Reference no. 710335
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 9.51
Working load limit 0° [kg] 12000
Effective length WLL [m] 6
Reference no. 471326
  • Details
    HB4-EN-12T-4L-180-6M
    Reference no. 471326
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 13.67
Working load limit 0° [kg] 12000
Effective length WLL [m] 8
Reference no. 471327
  • Details
    HB4-EN-12T-4L-180-5M
    Reference no. 471327
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 18.082
Working load limit 0° [kg] 12000
Effective length WLL [m] 10
Reference no. 471328
  • Details
    HB4-EN-12T-4L-180-10M
    Reference no. 471328
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 22.494
Working load limit 0° [kg] 12000
Effective length WLL [m] 12
Reference no. 471329
  • Details
    HB4-EN-12T-4L-180-12M
    Reference no. 471329
    Working load limit 0° [kg] 12000
    Working load limit laced [kg] 9600
    Wrap around working load limit [kg] 24000
    Loop length LS [mm] 700
    Web width BG [mm] 180
    Web thickness SGB [mm] 16
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 26.906
Working load limit 0° [kg] 16000
Effective length WLL [m] 5
Reference no. 703217
  • Details
    HB4-EN-16T-4L-240-5M
    Reference no. 703217
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 15.4
Working load limit 0° [kg] 16000
Effective length WLL [m] 6
Reference no. 471330
  • Details
    HB4-EN-16T-4L-240-6M
    Reference no. 471330
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 20.95
Working load limit 0° [kg] 16000
Effective length WLL [m] 8
Reference no. 471331
  • Details
    HB4-EN-16T-4L-240-8M
    Reference no. 471331
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 27.55
Working load limit 0° [kg] 16000
Effective length WLL [m] 10
Reference no. 471332
  • Details
    HB4-EN-16T-4L-240-10M
    Reference no. 471332
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 34.15
Working load limit 0° [kg] 16000
Effective length WLL [m] 12
Reference no. 471333
  • Details
    HB4-EN-16T-4L-240-12M
    Reference no. 471333
    Working load limit 0° [kg] 16000
    Working load limit laced [kg] 12800
    Wrap around working load limit [kg] 32000
    Loop length LS [mm] 850
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 40.75
Working load limit 0° [kg] 20000
Effective length WLL [m] 5
Reference no. 707002
  • Details
    HB4-EN-20T-4L-300-5M
    Reference no. 707002
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 5
    Weight approx. [kg] 18.8
Working load limit 0° [kg] 20000
Effective length WLL [m] 6
Reference no. 471334
  • Details
    HB4-EN-20T-4L-300-6M
    Reference no. 471334
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 6
    Weight approx. [kg] 43.2
Working load limit 0° [kg] 20000
Effective length WLL [m] 8
Reference no. 471335
  • Details
    HB4-EN-20T-4L-300-8M
    Reference no. 471335
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 8
    Weight approx. [kg] 52.8
Working load limit 0° [kg] 20000
Effective length WLL [m] 10
Reference no. 471336
  • Details
    HB4-EN-20T-4L-300-10M
    Reference no. 471336
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 10
    Weight approx. [kg] 62.4
Working load limit 0° [kg] 20000
Effective length WLL [m] 12
Reference no. 471337
  • Details
    HB4-EN-20T-4L-300-12M
    Reference no. 471337
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Loop length LS [mm] 1100
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Colour orange
    Effective length WLL [m] 12
    Weight approx. [kg] 72
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
