Polytex® lifting strap 2PU-RB

Two-layer lifting strap with double-sided PU coating as well as push-through round steel stirrups. Can also be used in choker hitch: The strap lies evenly in the round steel stirrup. The lifting strap is particularly suited for application on very rough load surfaces because the coating is extremely edge and abrasion-resistant. Can be used directly (without additional edge protection) on sharp edges.

Technical data
Options
Product variants
Downloads
Contact

Technical data

Operating temperature

–40 °C to +100 °C

Standard

EN 1492-1

Marking

Printed load capacity, woven tonnage strips and label

Safety factor

Material

Polyester fabric

Material layers

two-layer

PU coating

on both sides

Options

Options on request

further useful lengths

Product variants

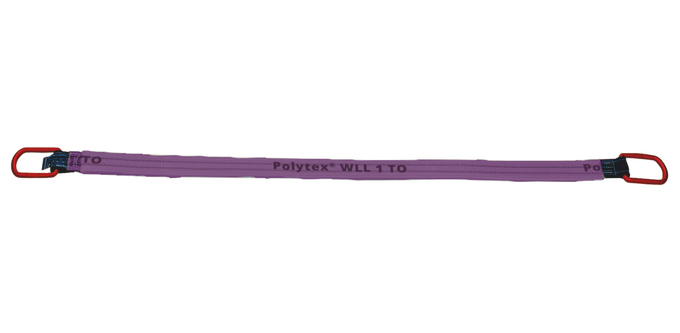

HPB-EN-1T-2L-2PU-30-2M

Reference no.	201176
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000

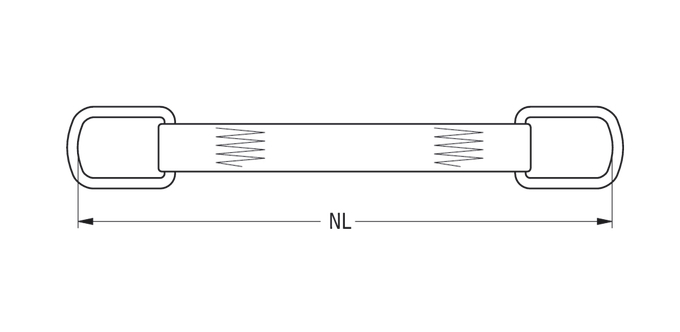

Effective length WLL [m]	2
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-1T-2L-2PU-30-3M

Reference no.	201177
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	3
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-1T-2L-2PU-30-4M

Reference no.	201178
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	4
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-1T-2L-2PU-30-5M

Reference no.	201179
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	5
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-1T-2L-2PU-30-6M

Reference no.	201180
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	6
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-1T-2L-2PU-30-8M

Reference no.	201181
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	8
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

HPB-EN-2T-2L-2PU-60-2M

Reference no.	201182
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	2
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

HPB-EN-2T-2L-2PU-60-3M

Reference no.	201183
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	3
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

HPB-EN-2T-2L-2PU-60-4M

Reference no.	201184
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	4
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

HPB-EN-2T-2L-2PU-60-5M

Reference no.	201185
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	5
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

HPB-EN-2T-2L-2PU-60-6M

Reference no.	201186
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	6
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

HPB-EN-2T-2L-2PU-60-8M

Reference no.	201187
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	8
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

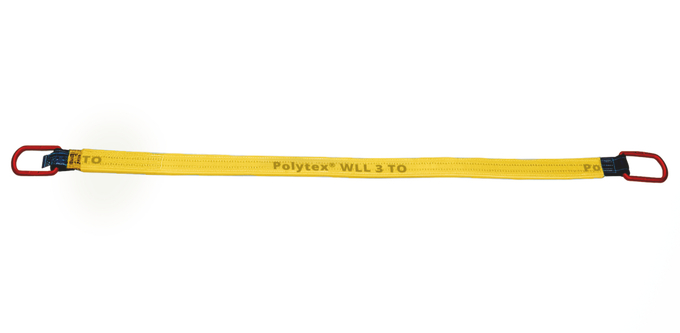

HPB-EN-3T-2L-2PU-90-2M

Reference no.	201188
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	2
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

HPB-EN-3T-2L-2PU-90-3M

Reference no.	201189
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	3
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

HPB-EN-3T-2L-2PU-90-4M

Reference no.	201190
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	4
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

HPB-EN-3T-2L-2PU-90-5M

Reference no.	201191
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	5
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

HPB-EN-3T-2L-2PU-90-6M

Reference no.	201192
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	6
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Polytex-Hebeband-PU-Besch.2-S. -m. Bügeln-3.0t-8.0m-gelb-2LA

Reference no.	201193
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	8
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

HPB-EN-4T-2L-2PU-120-2M

Reference no.	201194
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	2
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

HPB-EN-4T-2L-2PU-120-3M

Reference no.	201195
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	3
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

HPB-EN-4T-2L-2PU-120-4M

Reference no.	201196
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	4
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

HPB-EN-4T-2L-2PU-120-5M

Reference no.	201197
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	5
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

HPB-EN-4T-2L-2PU-120-6M

Reference no.	201198
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	6
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

HPB-EN-4T-2L-2PU-120-8M

Reference no.	201199
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	8
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

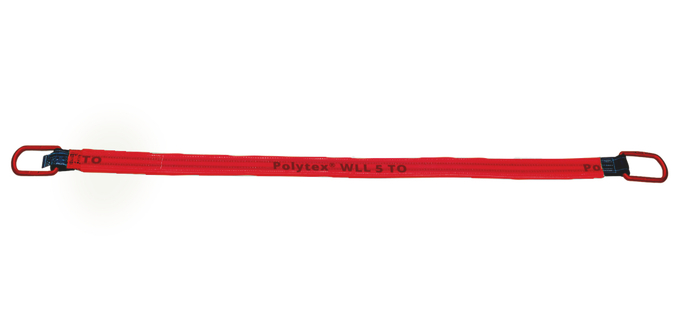

HPB-EN-5T-2L-2PU-150-2M

Reference no.	201200
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	2
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

HPB-EN-5T-2L-2PU-150-3M

Reference no.	201201
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	3
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

HPB-EN-5T-2L-2PU-150-4M

Reference no.	201202
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	4
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	21

HPB-EN-5T-2L-2PU-150-5M

Reference no.	201203
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	5
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

HPB-EN-5T-2L-2PU-150-6M

Reference no.	201204
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	6
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

HPB-EN-5T-2L-2PU-150-8M

Reference no.	201205
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	8
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 2

Reference no. 201176

Details

HPB-EN-1T-2L-2PU-30-2M

Reference no.	201176
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	2
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 3

Reference no. 201177

Details

HPB-EN-1T-2L-2PU-30-3M

Reference no.	201177
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	3
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 4

Reference no. 201178

Details

HPB-EN-1T-2L-2PU-30-4M

Reference no.	201178
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	4
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 5

Reference no. 201179

Details

HPB-EN-1T-2L-2PU-30-5M

Reference no.	201179
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	5
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 6

Reference no. 201180

Details

HPB-EN-1T-2L-2PU-30-6M

Reference no.	201180
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	6
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 1000

Working load limit laced [kg] 800

Wrap around working load limit [kg] 2000

Effective length WLL [m] 8

Reference no. 201181

Details

HPB-EN-1T-2L-2PU-30-8M

Reference no.	201181
Working load limit 0° [kg]	1000
Working load limit laced [kg]	800
Wrap around working load limit [kg]	2000
Effective length WLL [m]	8
Web width BG [mm]	40
Web thickness SGB [mm]	18
Stirrup length LB [mm]	80
Stirrup width H	40
Stirrup section Ø F [mm]	13
Colour	violet
Weight approx. [kg]	0.76

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 2

Reference no. 201182

Details

HPB-EN-2T-2L-2PU-60-2M

Reference no.	201182
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	2
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 3

Reference no. 201183

Details

HPB-EN-2T-2L-2PU-60-3M

Reference no.	201183
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	3
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 4

Reference no. 201184

Details

HPB-EN-2T-2L-2PU-60-4M

Reference no.	201184
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	4
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 5

Reference no. 201185

Details

HPB-EN-2T-2L-2PU-60-5M

Reference no.	201185
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	5
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 6

Reference no. 201186

Details

HPB-EN-2T-2L-2PU-60-6M

Reference no.	201186
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	6
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 2000

Working load limit laced [kg] 1600

Wrap around working load limit [kg] 4000

Effective length WLL [m] 8

Reference no. 201187

Details

HPB-EN-2T-2L-2PU-60-8M

Reference no.	201187
Working load limit 0° [kg]	2000
Working load limit laced [kg]	1600
Wrap around working load limit [kg]	4000
Effective length WLL [m]	8
Web width BG [mm]	70
Web thickness SGB [mm]	18
Stirrup length LB [mm]	125
Stirrup width H	75
Stirrup section Ø F [mm]	16
Colour	green
Weight approx. [kg]	1.686

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 2

Reference no. 201188

Details

HPB-EN-3T-2L-2PU-90-2M

Reference no.	201188
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	2
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 3

Reference no. 201189

Details

HPB-EN-3T-2L-2PU-90-3M

Reference no.	201189
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	3
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 4

Reference no. 201190

Details

HPB-EN-3T-2L-2PU-90-4M

Reference no.	201190
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	4
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 5

Reference no. 201191

Details

HPB-EN-3T-2L-2PU-90-5M

Reference no.	201191
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	5
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 6

Reference no. 201192

Details

HPB-EN-3T-2L-2PU-90-6M

Reference no.	201192
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	6
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 3000

Working load limit laced [kg] 2400

Wrap around working load limit [kg] 6000

Effective length WLL [m] 8

Reference no. 201193

Details

Polytex-Hebeband-PU-Besch.2-S. -m. Bügeln-3.0t-8.0m-gelb-2LA

Reference no.	201193
Working load limit 0° [kg]	3000
Working load limit laced [kg]	2400
Wrap around working load limit [kg]	6000
Effective length WLL [m]	8
Web width BG [mm]	100
Web thickness SGB [mm]	18
Stirrup length LB [mm]	165
Stirrup width H	105
Stirrup section Ø F [mm]	20
Colour	yellow
Weight approx. [kg]	3.532

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 2

Reference no. 201194

Details

HPB-EN-4T-2L-2PU-120-2M

Reference no.	201194
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	2
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 3

Reference no. 201195

Details

HPB-EN-4T-2L-2PU-120-3M

Reference no.	201195
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	3
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 4

Reference no. 201196

Details

HPB-EN-4T-2L-2PU-120-4M

Reference no.	201196
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	4
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 5

Reference no. 201197

Details

HPB-EN-4T-2L-2PU-120-5M

Reference no.	201197
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	5
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 6

Reference no. 201198

Details

HPB-EN-4T-2L-2PU-120-6M

Reference no.	201198
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	6
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 4000

Working load limit laced [kg] 3200

Wrap around working load limit [kg] 8000

Effective length WLL [m] 8

Reference no. 201199

Details

HPB-EN-4T-2L-2PU-120-8M

Reference no.	201199
Working load limit 0° [kg]	4000
Working load limit laced [kg]	3200
Wrap around working load limit [kg]	8000
Effective length WLL [m]	8
Web width BG [mm]	130
Web thickness SGB [mm]	18
Stirrup length LB [mm]	210
Stirrup width H	140
Stirrup section Ø F [mm]	23
Colour	grey
Weight approx. [kg]	5.501

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 2

Reference no. 201200

Details

HPB-EN-5T-2L-2PU-150-2M

Reference no.	201200
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	2
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 3

Reference no. 201201

Details

HPB-EN-5T-2L-2PU-150-3M

Reference no.	201201
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	3
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 4

Reference no. 201202

Details

HPB-EN-5T-2L-2PU-150-4M

Reference no.	201202
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	4
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	21

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 5

Reference no. 201203

Details

HPB-EN-5T-2L-2PU-150-5M

Reference no.	201203
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	5
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 6

Reference no. 201204

Details

HPB-EN-5T-2L-2PU-150-6M

Reference no.	201204
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	6
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Working load limit 0° [kg] 5000

Working load limit laced [kg] 4000

Wrap around working load limit [kg] 10000

Effective length WLL [m] 8

Reference no. 201205

Details

HPB-EN-5T-2L-2PU-150-8M

Reference no.	201205
Working load limit 0° [kg]	5000
Working load limit laced [kg]	4000
Wrap around working load limit [kg]	10000
Effective length WLL [m]	8
Web width BG [mm]	160
Web thickness SGB [mm]	18
Stirrup length LB [mm]	245
Stirrup width H	170
Stirrup section Ø F [mm]	26
Colour	red
Weight approx. [kg]	8.64

Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.

Download

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

Two-layer lifting strap with insertable round steel brackets and PU coating on both sides.
In choker hitching, the strap lies evenly in the stirrup.
Wear reduction in the load-bearing area
Extremely edge and abrasion-resistant coating
Reduced risk of load slipping
Transparent coating enables visual inspection of the strap

Polytex® lifting strap 2PU-RB

Operating temperature

Standard

Marking

Safety factor

Material

Material layers

PU coating

Options on request

Applications

Application table

Original operating manual

Poster

Feel free to contact us

Tel.

E-Mail

Inquiry

Cookie settings

Required cookies

Functional cookies
