Polytex® endless lifting strap

Polytex® endless lifting strap
Single-layer endless lifting strap, enables rapid and easy attachment in choker hitch or when used with cross bars.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Safety factor

  • 7

Material

  • high-strength polyester fabric

Material layers

  • single-layer
Options

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details
  • 1000
    800
    2000
    2
    491459
    HBE-EN-1T-1L-30-2M
    Reference no. 491459
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.28
  • 1000
    800
    2000
    3
    491460
    HBE-EN-1T-1L-30-3M
    Reference no. 491460
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.42
  • 1000
    800
    2000
    4
    491461
    HBE-EN-1T-1L-30-4M
    Reference no. 491461
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.56
  • 1000
    800
    2000
    5
    491462
    HBE-EN-1T-1L-30-5M
    Reference no. 491462
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.7
  • 1000
    800
    2000
    6
    491463
    HBE-EN-1T-1L-30-6M
    Reference no. 491463
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.84
  • 1000
    800
    2000
    8
    491464
    HBE-EN-1T-1L-30-8M
    Reference no. 491464
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 1.12

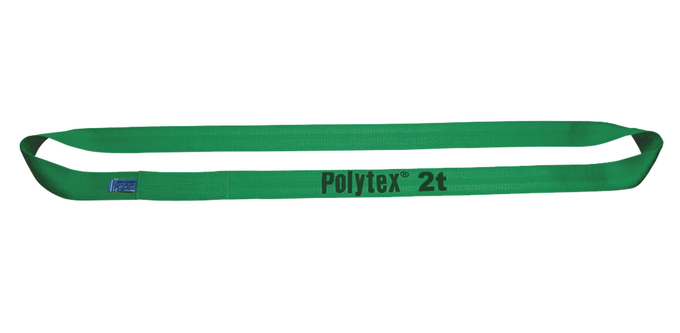

  • 2000
    1600
    4000
    2
    491465
    HBE-EN-2T-1L-60-2M
    Reference no. 491465
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 0.61
  • 2000
    1600
    4000
    3
    491466
    HBE-EN-2T-1L-60-3M
    Reference no. 491466
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 0.9
  • 2000
    1600
    4000
    4
    491467
    HBE-EN-2T-1L-60-4M
    Reference no. 491467
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.19
  • 2000
    1600
    4000
    5
    491468
    HBE-EN-2T-1L-60-5M
    Reference no. 491468
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.48
  • 2000
    1600
    4000
    6
    491469
    HBE-EN-2T-1L-60-6M
    Reference no. 491469
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.77
  • 2000
    1600
    4000
    8
    491470
    HBE-EN-2T-1L-60-8M
    Reference no. 491470
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 2.35

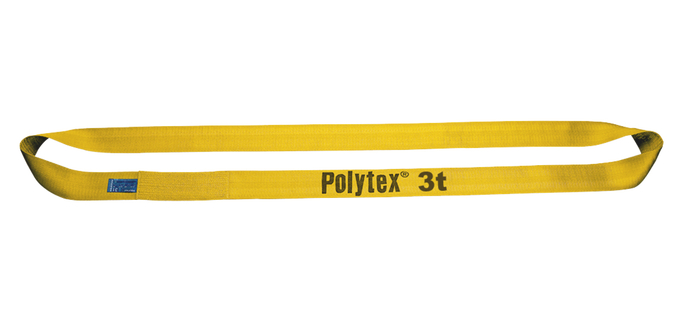

  • 3000
    2400
    6000
    2
    491471
    HBE-EN-3T-1L-90-2M
    Reference no. 491471
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 1.11
  • 3000
    2400
    6000
    3
    491472
    HBE-EN-3T-1L-90-3M
    Reference no. 491472
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 1.61
  • 3000
    2400
    6000
    4
    491473
    HBE-EN-3T-1L-90-4M
    Reference no. 491473
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 2.11
  • 3000
    2400
    6000
    5
    491474
    HBE-EN-3T-1L-90-5M
    Reference no. 491474
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 2.61
  • 3000
    2400
    6000
    6
    491475
    HBE-EN-3T-1L-90-6M
    Reference no. 491475
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 3.11
  • 3000
    2400
    6000
    8
    491476
    HBE-EN-3T-1L-90-8M
    Reference no. 491476
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 4.11

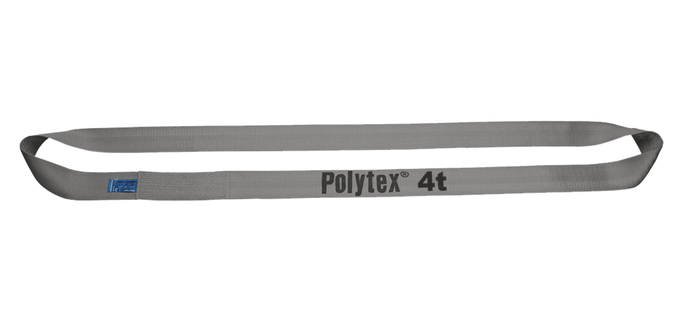

  • 4000
    3200
    8000
    2
    491477
    HBE-EN-4T-1L-120-2M
    Reference no. 491477
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 1.48
  • 4000
    3200
    8000
    3
    491478
    HBE-EN-4T-1L-120-3M
    Reference no. 491478
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 2.2
  • 4000
    3200
    8000
    4
    491479
    HBE-EN-4T-1L-120-4M
    Reference no. 491479
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 2.92
  • 4000
    3200
    8000
    5
    491480
    HBE-EN-4T-1L-120-5M
    Reference no. 491480
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 3.64
  • 4000
    3200
    8000
    6
    491481
    HBE-EN-4T-1L-120-6M
    Reference no. 491481
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 4.36
  • 4000
    3200
    8000
    8
    491482
    HBE-EN-4T-1L-120-8M
    Reference no. 491482
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 5.8

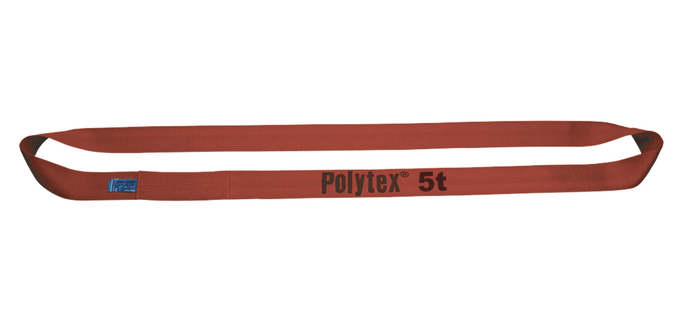

  • 5000
    4000
    10000
    2
    491483
    HBE-EN-5T-1L-150-2M
    Reference no. 491483
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 1.86
  • 5000
    4000
    10000
    3
    491484
    HBE-EN-5T-1L-150-3M
    Reference no. 491484
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 2.69
  • 5000
    4000
    10000
    4
    491485
    HBE-EN-5T-1L-150-4M
    Reference no. 491485
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 3.525
  • 5000
    4000
    10000
    5
    491486
    HBE-EN-5T-1L-150-5M
    Reference no. 491486
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 4.359
  • 5000
    4000
    10000
    6
    491487
    HBE-EN-5T-1L-150-6M
    Reference no. 491487
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 5.19
  • 5000
    4000
    10000
    8
    491488
    HBE-EN-5T-1L-150-8M
    Reference no. 491488
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 6.86
  • 6000
    4800
    12000
    2
    491489
    HBE-EN-6T-1L-180-2M
    Reference no. 491489
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 2.449
  • 6000
    4800
    12000
    3
    491490
    HBE-EN-6T-1L-180-3M
    Reference no. 491490
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 3.55
  • 6000
    4800
    12000
    4
    491491
    HBE-EN-6T-1L-180-4M
    Reference no. 491491
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 4.66
  • 6000
    4800
    12000
    5
    491492
    HBE-EN-6T-1L-180-5M
    Reference no. 491492
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 5.76
  • 6000
    4800
    12000
    6
    491493
    HBE-EN-6T-1L-180-6M
    Reference no. 491493
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 6.861
  • 6000
    4800
    12000
    8
    491494
    HBE-EN-6T-1L-180-8M
    Reference no. 491494
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 9.07
  • 8000
    6400
    16000
    2
    491495

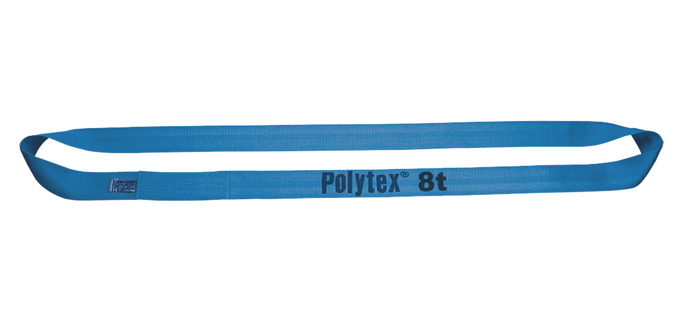

    HBE-EN-8T-1L-240-2M
    Reference no. 491495
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 3.647
  • 8000
    6400
    16000
    3
    491496
    HBE-EN-8T-1L-240-3M
    Reference no. 491496
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 5.299
  • 8000
    6400
    16000
    4
    491497
    HBE-EN-8T-1L-240-4M
    Reference no. 491497
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 6.951
  • 8000
    6400
    16000
    5
    491498
    HBE-EN-8T-1L-240-5M
    Reference no. 491498
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 8.6
  • 8000
    6400
    16000
    6
    491499
    HBE-EN-8T-1L-240-6M
    Reference no. 491499
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 10.3
  • 8000
    6400
    16000
    8
    491500
    HBE-EN-8T-1L-240-8M
    Reference no. 491500
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 13.6
  • 10000
    8000
    20000
    2
    491501

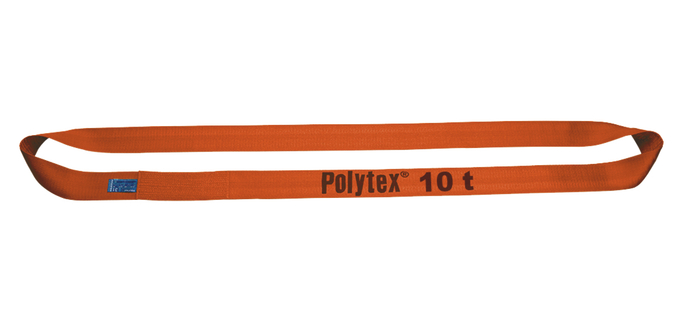

    HBE-EN-10T-1L-300-2M
    Reference no. 491501
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 4.128
  • 10000
    8000
    20000
    3
    491502
    HBE-EN-10T-1L-300-3M
    Reference no. 491502
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 6
  • 10000
    8000
    20000
    4
    491503
    HBE-EN-10T-1L-300-4M
    Reference no. 491503
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 7.87
  • 10000
    8000
    20000
    5
    491504
    HBE-EN-10T-1L-300-5M
    Reference no. 491504
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 9.74
  • 10000
    8000
    20000
    6
    491505
    HBE-EN-10T-1L-300-6M
    Reference no. 491505
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 11.6
  • 10000
    8000
    20000
    8
    491506
    HBE-EN-10T-1L-300-8M
    Reference no. 491506
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 15.4
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2
Reference no. 491459
  • Details
    HBE-EN-1T-1L-30-2M
    Reference no. 491459
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.28
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 3
Reference no. 491460
  • Details
    HBE-EN-1T-1L-30-3M
    Reference no. 491460
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.42
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 4
Reference no. 491461
  • Details
    HBE-EN-1T-1L-30-4M
    Reference no. 491461
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.56
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 5
Reference no. 491462
  • Details
    HBE-EN-1T-1L-30-5M
    Reference no. 491462
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.7
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 6
Reference no. 491463
  • Details
    HBE-EN-1T-1L-30-6M
    Reference no. 491463
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 0.84
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 8
Reference no. 491464
  • Details
    HBE-EN-1T-1L-30-8M
    Reference no. 491464
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Web width BG [mm] 30
    Web thickness SGB [mm] 3
    Colour violet
    stueckgewicht 1.12
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 491465
  • Details
    HBE-EN-2T-1L-60-2M
    Reference no. 491465
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 0.61
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 491466
  • Details
    HBE-EN-2T-1L-60-3M
    Reference no. 491466
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 0.9
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 491467
  • Details
    HBE-EN-2T-1L-60-4M
    Reference no. 491467
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.19
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 491468
  • Details
    HBE-EN-2T-1L-60-5M
    Reference no. 491468
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.48
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 491469
  • Details
    HBE-EN-2T-1L-60-6M
    Reference no. 491469
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 1.77
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 8
Reference no. 491470
  • Details
    HBE-EN-2T-1L-60-8M
    Reference no. 491470
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Web width BG [mm] 60
    Web thickness SGB [mm] 3
    Colour green
    stueckgewicht 2.35
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 491471
  • Details
    HBE-EN-3T-1L-90-2M
    Reference no. 491471
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 1.11
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 491472
  • Details
    HBE-EN-3T-1L-90-3M
    Reference no. 491472
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 1.61
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 491473
  • Details
    HBE-EN-3T-1L-90-4M
    Reference no. 491473
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 2.11
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 491474
  • Details
    HBE-EN-3T-1L-90-5M
    Reference no. 491474
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 2.61
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 491475
  • Details
    HBE-EN-3T-1L-90-6M
    Reference no. 491475
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 3.11
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 8
Reference no. 491476
  • Details
    HBE-EN-3T-1L-90-8M
    Reference no. 491476
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Web width BG [mm] 90
    Web thickness SGB [mm] 3
    Colour yellow
    stueckgewicht 4.11
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 491477
  • Details
    HBE-EN-4T-1L-120-2M
    Reference no. 491477
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 1.48
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 491478
  • Details
    HBE-EN-4T-1L-120-3M
    Reference no. 491478
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 2.2
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 491479
  • Details
    HBE-EN-4T-1L-120-4M
    Reference no. 491479
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 2.92
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 491480
  • Details
    HBE-EN-4T-1L-120-5M
    Reference no. 491480
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 3.64
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 491481
  • Details
    HBE-EN-4T-1L-120-6M
    Reference no. 491481
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 4.36
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 8
Reference no. 491482
  • Details
    HBE-EN-4T-1L-120-8M
    Reference no. 491482
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Web width BG [mm] 120
    Web thickness SGB [mm] 4
    Colour grey
    stueckgewicht 5.8
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 491483
  • Details
    HBE-EN-5T-1L-150-2M
    Reference no. 491483
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 1.86
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 491484
  • Details
    HBE-EN-5T-1L-150-3M
    Reference no. 491484
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 2.69
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 491485
  • Details
    HBE-EN-5T-1L-150-4M
    Reference no. 491485
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 3.525
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 491486
  • Details
    HBE-EN-5T-1L-150-5M
    Reference no. 491486
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 4.359
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 491487
  • Details
    HBE-EN-5T-1L-150-6M
    Reference no. 491487
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 5.19
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 8
Reference no. 491488
  • Details
    HBE-EN-5T-1L-150-8M
    Reference no. 491488
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Web width BG [mm] 150
    Web thickness SGB [mm] 4
    Colour red
    stueckgewicht 6.86
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 491489
  • Details
    HBE-EN-6T-1L-180-2M
    Reference no. 491489
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 2.449
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 491490
  • Details
    HBE-EN-6T-1L-180-3M
    Reference no. 491490
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 3.55
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 491491
  • Details
    HBE-EN-6T-1L-180-4M
    Reference no. 491491
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 4.66
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 491492
  • Details
    HBE-EN-6T-1L-180-5M
    Reference no. 491492
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 5.76
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 491493
  • Details
    HBE-EN-6T-1L-180-6M
    Reference no. 491493
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 6.861
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 8
Reference no. 491494
  • Details
    HBE-EN-6T-1L-180-8M
    Reference no. 491494
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Web width BG [mm] 180
    Web thickness SGB [mm] 4
    Colour brown
    stueckgewicht 9.07
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 2
Reference no. 491495
  • Details
    HBE-EN-8T-1L-240-2M
    Reference no. 491495
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 3.647
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 491496
  • Details
    HBE-EN-8T-1L-240-3M
    Reference no. 491496
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 5.299
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 491497
  • Details
    HBE-EN-8T-1L-240-4M
    Reference no. 491497
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 6.951
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 491498
  • Details
    HBE-EN-8T-1L-240-5M
    Reference no. 491498
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 8.6
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 491499
  • Details
    HBE-EN-8T-1L-240-6M
    Reference no. 491499
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 10.3
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 8
Reference no. 491500
  • Details
    HBE-EN-8T-1L-240-8M
    Reference no. 491500
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Web width BG [mm] 240
    Web thickness SGB [mm] 5
    Colour blue
    stueckgewicht 13.6
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 2
Reference no. 491501
  • Details
    HBE-EN-10T-1L-300-2M
    Reference no. 491501
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 4.128
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 491502
  • Details
    HBE-EN-10T-1L-300-3M
    Reference no. 491502
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 6
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 491503
  • Details
    HBE-EN-10T-1L-300-4M
    Reference no. 491503
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 7.87
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 491504
  • Details
    HBE-EN-10T-1L-300-5M
    Reference no. 491504
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 9.74
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 491505
  • Details
    HBE-EN-10T-1L-300-6M
    Reference no. 491505
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 11.6
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 8
Reference no. 491506
  • Details
    HBE-EN-10T-1L-300-8M
    Reference no. 491506
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Web width BG [mm] 300
    Web thickness SGB [mm] 5
    Colour orange
    stueckgewicht 15.4
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
