Polytex® lifting strap Two-sided PU coating

Polytex® lifting strap Two-sided PU coating

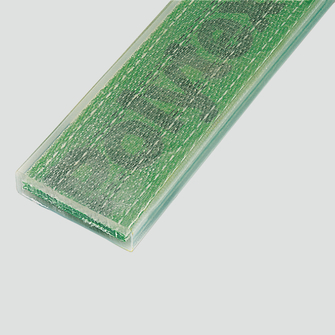

Two-layer lifting strap with PU coating on both sides and reinforced end loops tapered to approximately half their width for demanding lifting operations Exception: the end loops of the 40 mm strap are untapered. The lifting strap is particularly suited for application on very rough load surfaces because the coating is extremely edge and abrasion-resistant. Can be used directly (without additional edge protection) on sharp edges.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Printed load capacity, woven tonnage strips and label

Safety factor

  • 7

Material

  • Polyester fabric

Material layers

  • two-layer

PU coating

  • on both sides
Options

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details

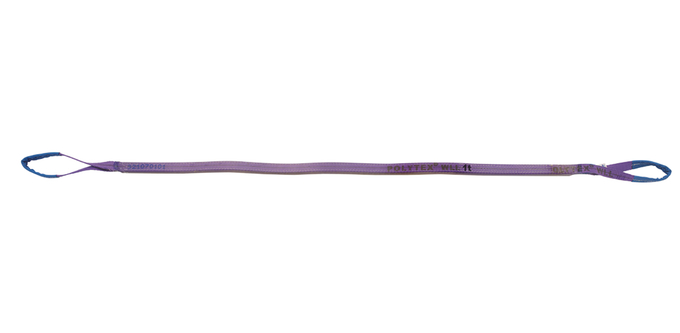

  • 1000
    2000
    2
    201127
    HPS-EN-1T-2L-2PU-30-2M
    Reference no. 201127
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
  • 1000
    2000
    3
    201128
    HPS-EN-1T-2L-2PU-30-3M
    Reference no. 201128
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
  • 1000
    2000
    4
    201129
    HPS-EN-1T-2L-2PU-30-4M
    Reference no. 201129
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
  • 1000
    2000
    5
    201130
    HPS-EN-1T-2L-2PU-30-5M
    Reference no. 201130
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
  • 1000
    2000
    6
    201131
    HPS-EN-1T-2L-2PU-30-6M
    Reference no. 201131
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
  • 1000
    2000
    8
    201132
    HPS-EN-1T-2L-2PU-30-8M
    Reference no. 201132
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 5.5

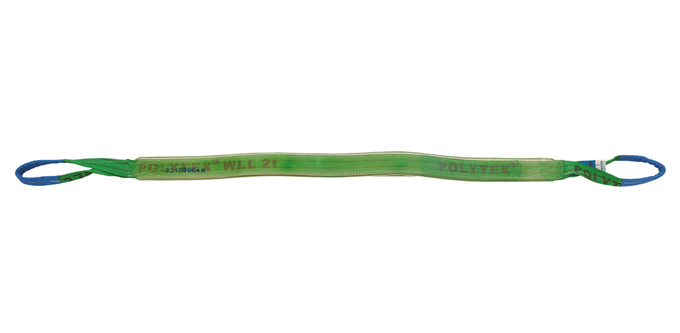

  • 2000
    4000
    2
    201133
    HPS-EN-2T-2L-2PU-60-2M
    Reference no. 201133
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    3
    201134
    HPS-EN-2T-2L-2PU-60-3M
    Reference no. 201134
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    4
    201135
    HPS-EN-2T-2L-2PU-60-4M
    Reference no. 201135
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    5
    201136
    HPS-EN-2T-2L-2PU-60-5M
    Reference no. 201136
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    6
    201137
    HPS-EN-2T-2L-2PU-60-6M
    Reference no. 201137
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    8
    201138
    HPS-EN-2T-2L-2PU-60-8M
    Reference no. 201138
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 2.85

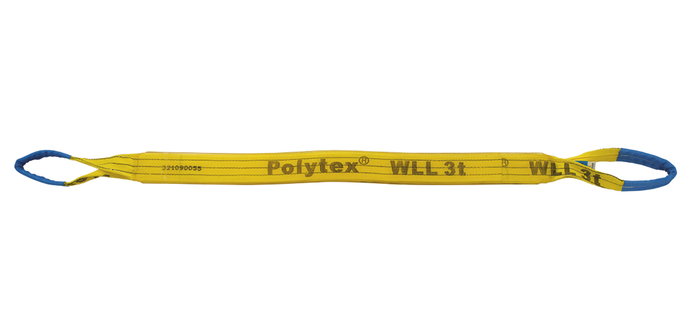

  • 3000
    6000
    2
    201139
    HPS-EN-3T-2L-2PU-90-2M
    Reference no. 201139
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    3
    201140
    HPS-EN-3T-2L-2PU-90-3M
    Reference no. 201140
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 2.4
  • 3000
    6000
    4
    201141
    HPS-EN-3T-2L-2PU-90-4M
    Reference no. 201141
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    5
    201142
    HPS-EN-3T-2L-2PU-90-5M
    Reference no. 201142
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 4.4
  • 3000
    6000
    6
    201143
    HPS-EN-3T-2L-2PU-90-6M
    Reference no. 201143
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    8
    201144
    HPS-EN-3T-2L-2PU-90-8M
    Reference no. 201144
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64

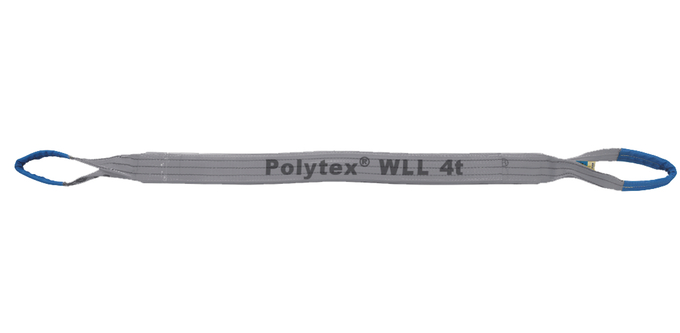

  • 4000
    8000
    2
    201145
    HPS-EN-4T-2L-2PU-120-2M
    Reference no. 201145
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    3
    201146
    HPS-EN-4T-2L-2PU-120-3M
    Reference no. 201146
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 6.7
  • 4000
    8000
    4
    201147
    HPS-EN-4T-2L-2PU-120-4M
    Reference no. 201147
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    5
    201148
    HPS-EN-4T-2L-2PU-120-5M
    Reference no. 201148
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    6
    201149
    HPS-EN-4T-2L-2PU-120-6M
    Reference no. 201149
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 6.3
  • 4000
    8000
    8
    201150
    HPS-EN-4T-2L-2PU-120-8M
    Reference no. 201150
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 18

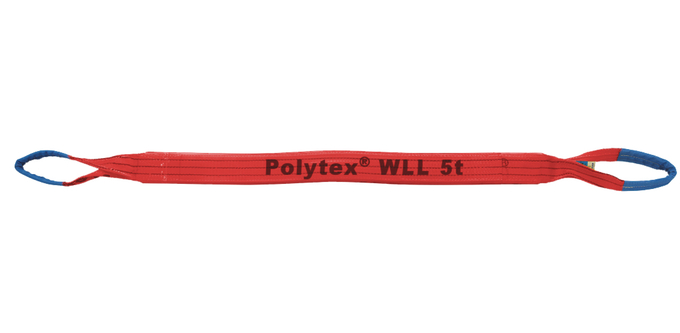

  • 5000
    10000
    2
    201151
    HPS-EN-5T-2L-2PU-150-2M
    Reference no. 201151
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    3
    201152
    HPS-EN-5T-2L-2PU-150-3M
    Reference no. 201152
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    4
    201153
    HPS-EN-5T-2L-2PU-150-4M
    Reference no. 201153
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    5
    201154
    HPS-EN-5T-2L-2PU-150-5M
    Reference no. 201154
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    6
    201155
    HPS-EN-5T-2L-2PU-150-6M
    Reference no. 201155
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 18
  • 5000
    10000
    8
    201156
    HPS-EN-5T-2L-2PU-150-8M
    Reference no. 201156
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
  • 6000
    12000
    2
    201157
    HPS-EN-6T-2L-2PU-180-2M
    Reference no. 201157
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    3
    201158
    HPS-EN-6T-2L-2PU-180-3M
    Reference no. 201158
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    4
    201159
    HPS-EN-6T-2L-2PU-180-4M
    Reference no. 201159
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    5
    201160
    HPS-EN-6T-2L-2PU-180-5M
    Reference no. 201160
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    6
    201161
    HPS-EN-6T-2L-2PU-180-6M
    Reference no. 201161
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 21
  • 6000
    12000
    8
    201162
    HPS-EN-6T-2L-2PU-180-8M
    Reference no. 201162
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
  • 8000
    16000
    3
    201164
    HPS-EN-8T-2L-2PU-240-3M
    Reference no. 201164
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    4
    201165
    HPS-EN-8T-2L-2PU-240-4M
    Reference no. 201165
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    5
    201166
    HPS-EN-8T-2L-2PU-240-5M
    Reference no. 201166
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    6
    201167
    HPS-EN-8T-2L-2PU-240-6M
    Reference no. 201167
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    8
    201168
    HPS-EN-8T-2L-2PU-240-8M
    Reference no. 201168
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
  • 10000
    20000
    3
    201170
    HPS-EN-10T-2L-2PU-300-3M
    Reference no. 201170
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    4
    201171
    HPS-EN-10T-2L-2PU-300-4M
    Reference no. 201171
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    5
    201172
    HPS-EN-10T-2L-2PU-300-5M
    Reference no. 201172
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    6
    201173
    HPS-EN-10T-2L-2PU-300-6M
    Reference no. 201173
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 35.4
  • 10000
    20000
    8
    201174
    HPS-EN-10T-2L-2PU-300-8M
    Reference no. 201174
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2
Reference no. 201127
  • Details
    HPS-EN-1T-2L-2PU-30-2M
    Reference no. 201127
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 3
Reference no. 201128
  • Details
    HPS-EN-1T-2L-2PU-30-3M
    Reference no. 201128
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 4
Reference no. 201129
  • Details
    HPS-EN-1T-2L-2PU-30-4M
    Reference no. 201129
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 5
Reference no. 201130
  • Details
    HPS-EN-1T-2L-2PU-30-5M
    Reference no. 201130
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 6
Reference no. 201131
  • Details
    HPS-EN-1T-2L-2PU-30-6M
    Reference no. 201131
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 0.25
Working load limit 0° [kg] 1000
Wrap around working load limit [kg] 2000
Effective length WLL [m] 8
Reference no. 201132
  • Details
    HPS-EN-1T-2L-2PU-30-8M
    Reference no. 201132
    Working load limit 0° [kg] 1000
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 40
    Web thickness SGB [mm] 18
    Colour violet
    Weight approx. [kg] 5.5
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 201133
  • Details
    HPS-EN-2T-2L-2PU-60-2M
    Reference no. 201133
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 201134
  • Details
    HPS-EN-2T-2L-2PU-60-3M
    Reference no. 201134
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 201135
  • Details
    HPS-EN-2T-2L-2PU-60-4M
    Reference no. 201135
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 201136
  • Details
    HPS-EN-2T-2L-2PU-60-5M
    Reference no. 201136
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 201137
  • Details
    HPS-EN-2T-2L-2PU-60-6M
    Reference no. 201137
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 8
Reference no. 201138
  • Details
    HPS-EN-2T-2L-2PU-60-8M
    Reference no. 201138
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 70
    Web thickness SGB [mm] 18
    Colour green
    Weight approx. [kg] 2.85
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 201139
  • Details
    HPS-EN-3T-2L-2PU-90-2M
    Reference no. 201139
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 201140
  • Details
    HPS-EN-3T-2L-2PU-90-3M
    Reference no. 201140
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 2.4
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 201141
  • Details
    HPS-EN-3T-2L-2PU-90-4M
    Reference no. 201141
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 201142
  • Details
    HPS-EN-3T-2L-2PU-90-5M
    Reference no. 201142
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 4.4
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 201143
  • Details
    HPS-EN-3T-2L-2PU-90-6M
    Reference no. 201143
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 8
Reference no. 201144
  • Details
    HPS-EN-3T-2L-2PU-90-8M
    Reference no. 201144
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Loop Width BS [mm] 300
    Web width BG [mm] 100
    Web thickness SGB [mm] 18
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 201145
  • Details
    HPS-EN-4T-2L-2PU-120-2M
    Reference no. 201145
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 201146
  • Details
    HPS-EN-4T-2L-2PU-120-3M
    Reference no. 201146
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 6.7
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 201147
  • Details
    HPS-EN-4T-2L-2PU-120-4M
    Reference no. 201147
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 201148
  • Details
    HPS-EN-4T-2L-2PU-120-5M
    Reference no. 201148
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 201149
  • Details
    HPS-EN-4T-2L-2PU-120-6M
    Reference no. 201149
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 6.3
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 8
Reference no. 201150
  • Details
    HPS-EN-4T-2L-2PU-120-8M
    Reference no. 201150
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Loop Width BS [mm] 400
    Web width BG [mm] 130
    Web thickness SGB [mm] 18
    Colour grey
    Weight approx. [kg] 18
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 201151
  • Details
    HPS-EN-5T-2L-2PU-150-2M
    Reference no. 201151
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 201152
  • Details
    HPS-EN-5T-2L-2PU-150-3M
    Reference no. 201152
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 201153
  • Details
    HPS-EN-5T-2L-2PU-150-4M
    Reference no. 201153
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 201154
  • Details
    HPS-EN-5T-2L-2PU-150-5M
    Reference no. 201154
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 201155
  • Details
    HPS-EN-5T-2L-2PU-150-6M
    Reference no. 201155
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 18
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 8
Reference no. 201156
  • Details
    HPS-EN-5T-2L-2PU-150-8M
    Reference no. 201156
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Loop Width BS [mm] 450
    Web width BG [mm] 160
    Web thickness SGB [mm] 18
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 201157
  • Details
    HPS-EN-6T-2L-2PU-180-2M
    Reference no. 201157
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 201158
  • Details
    HPS-EN-6T-2L-2PU-180-3M
    Reference no. 201158
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 201159
  • Details
    HPS-EN-6T-2L-2PU-180-4M
    Reference no. 201159
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 201160
  • Details
    HPS-EN-6T-2L-2PU-180-5M
    Reference no. 201160
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 201161
  • Details
    HPS-EN-6T-2L-2PU-180-6M
    Reference no. 201161
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 21
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 8
Reference no. 201162
  • Details
    HPS-EN-6T-2L-2PU-180-8M
    Reference no. 201162
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Loop Width BS [mm] 600
    Web width BG [mm] 190
    Web thickness SGB [mm] 18
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 201164
  • Details
    HPS-EN-8T-2L-2PU-240-3M
    Reference no. 201164
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 201165
  • Details
    HPS-EN-8T-2L-2PU-240-4M
    Reference no. 201165
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 201166
  • Details
    HPS-EN-8T-2L-2PU-240-5M
    Reference no. 201166
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 201167
  • Details
    HPS-EN-8T-2L-2PU-240-6M
    Reference no. 201167
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 8
Reference no. 201168
  • Details
    HPS-EN-8T-2L-2PU-240-8M
    Reference no. 201168
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Loop Width BS [mm] 750
    Web width BG [mm] 250
    Web thickness SGB [mm] 18
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 201170
  • Details

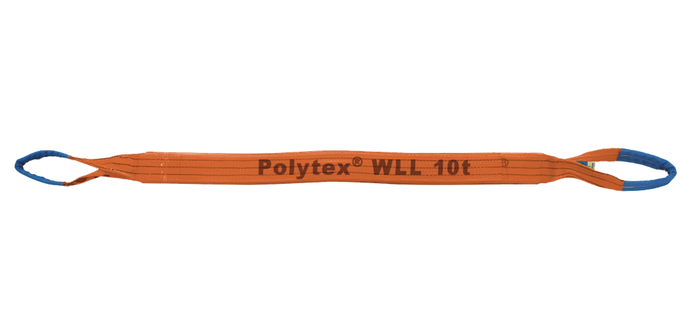

    HPS-EN-10T-2L-2PU-300-3M
    Reference no. 201170
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 201171
  • Details
    HPS-EN-10T-2L-2PU-300-4M
    Reference no. 201171
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 201172
  • Details
    HPS-EN-10T-2L-2PU-300-5M
    Reference no. 201172
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 201173
  • Details
    HPS-EN-10T-2L-2PU-300-6M
    Reference no. 201173
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 35.4
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 8
Reference no. 201174
  • Details
    HPS-EN-10T-2L-2PU-300-8M
    Reference no. 201174
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Loop Width BS [mm] 850
    Web width BG [mm] 310
    Web thickness SGB [mm] 18
    Colour orange
    Weight approx. [kg] 2.87
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
