Polytex® lifting strap Single-sided PU coating

Polytex® lifting strap Single-sided PU coating
Double layer lifting strap with PU coating on one side with back bulge and reinforced end loops tapered to around half the width for demanding lifting procedures. The lifting strap is particularly suited for application on very rough load surfaces because the coating is extremely edge and abrasion-resistant. Can be used directly (without additional edge protection) on sharp edges.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-1

Marking

  • Printed load capacity, woven tonnage strips and label

Safety factor

  • 7

Material

  • Polyester fabric

Material layers

  • two-layer

PU coating

  • on one side
Options

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details

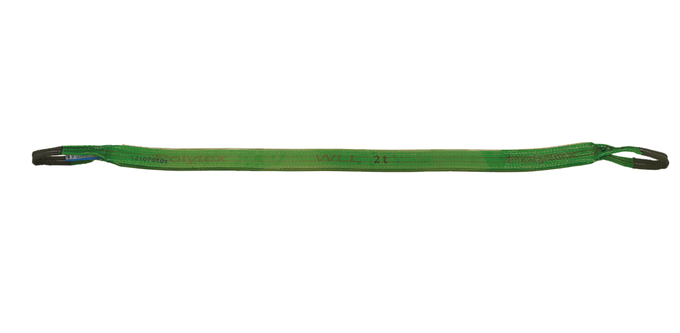

  • 2000
    4000
    2
    201054
    HPS-EN-2T-2L-1PU-R-60-2M
    Reference no. 201054
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 1.8
  • 2000
    4000
    3
    201055
    HPS-EN-2T-2L-1PU-R-60-3M
    Reference no. 201055
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    4
    201056
    HPS-EN-2T-2L-1PU-R-60-4M
    Reference no. 201056
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    5
    201057
    HPS-EN-2T-2L-1PU-R-60-5M
    Reference no. 201057
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 5
  • 2000
    4000
    6
    201058
    HPS-EN-2T-2L-1PU-R-60-6M
    Reference no. 201058
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
  • 2000
    4000
    8
    201059
    HPS-EN-2T-2L-1PU-R-60-8M
    Reference no. 201059
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
  • 3000
    6000
    2
    201060
    HPS-EN-3T-2L-1PU-R-90-2M
    Reference no. 201060
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    3
    201061
    HPS-EN-3T-2L-1PU-R-90-3M
    Reference no. 201061
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    4
    201062
    HPS-EN-3T-2L-1PU-R-90-4M
    Reference no. 201062
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 2
  • 3000
    6000
    5
    201063
    HPS-EN-3T-2L-1PU-R-90-5M
    Reference no. 201063
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    6
    201064
    HPS-EN-3T-2L-1PU-R-90-6M
    Reference no. 201064
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
  • 3000
    6000
    8
    201065
    HPS-EN-3T-2L-1PU-R-90-8M
    Reference no. 201065
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64

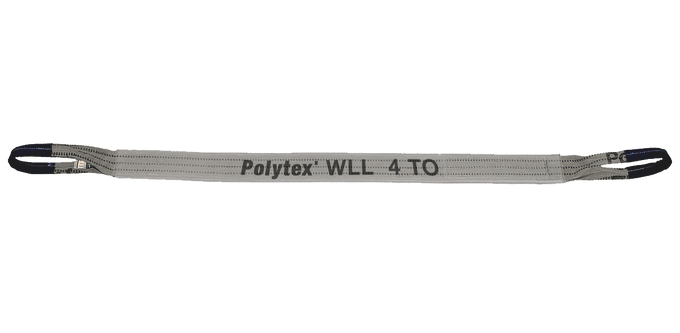

  • 4000
    8000
    2
    201066
    HPS-EN-4T-2L-1PU-R-120-2M
    Reference no. 201066
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    3
    201067
    HPS-EN-4T-2L-1PU-R-120-3M
    Reference no. 201067
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    4
    201068
    HPS-EN-4T-2L-1PU-R-120-4M
    Reference no. 201068
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    5
    201069
    HPS-EN-4T-2L-1PU-R-120-5M
    Reference no. 201069
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    6
    201070
    HPS-EN-4T-2L-1PU-R-120-6M
    Reference no. 201070
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
  • 4000
    8000
    8
    201071
    HPS-EN-4T-2L-1PU-R-120-8M
    Reference no. 201071
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955

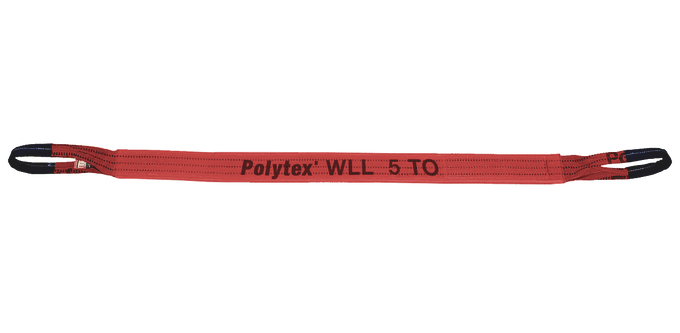

  • 5000
    10000
    2
    201072
    HPS-EN-5T-2L-1PU-R-150-2M
    Reference no. 201072
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    3
    201073
    HPS-EN-5T-2L-1PU-R-150-3M
    Reference no. 201073
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    4
    201074
    HPS-EN-5T-2L-1PU-R-150-4M
    Reference no. 201074
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    5
    201075
    HPS-EN-5T-2L-1PU-R-150-5M
    Reference no. 201075
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    6
    201076
    HPS-EN-5T-2L-1PU-R-150-6M
    Reference no. 201076
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
  • 5000
    10000
    8
    201077
    HPS-EN-5T-2L-1PU-R-150-8M
    Reference no. 201077
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155

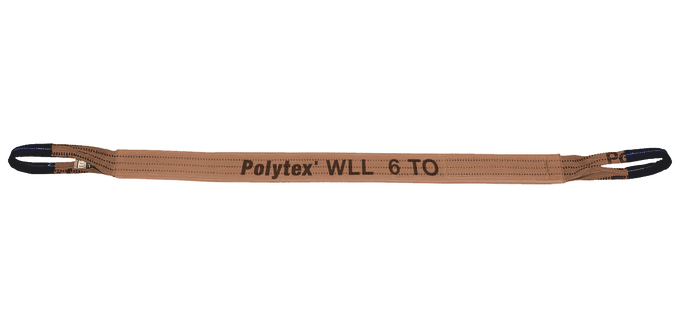

  • 6000
    12000
    2
    201079
    HPS-EN-6T-2L-1PU-R-180-2M
    Reference no. 201079
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    3
    201080
    HPS-EN-6T-2L-1PU-R-180-3M
    Reference no. 201080
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    4
    201081
    HPS-EN-6T-2L-1PU-R-180-4M
    Reference no. 201081
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    5
    201082
    HPS-EN-6T-2L-1PU-R-180-5M
    Reference no. 201082
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
  • 6000
    12000
    6
    201083
    HPS-EN-6T-2L-1PU-R-180-6M
    Reference no. 201083
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 15.5
  • 6000
    12000
    8
    201084
    HPS-EN-6T-2L-1PU-R-180-8M
    Reference no. 201084
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
  • 8000
    16000
    3
    201086
    HPS-EN-8T-2L-1PU-R-240-3M
    Reference no. 201086
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    4
    201087
    HPS-EN-8T-2L-1PU-R-240-4M
    Reference no. 201087
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    5
    201088
    HPS-EN-8T-2L-1PU-R-240-5M
    Reference no. 201088
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    6
    201089
    HPS-EN-8T-2L-1PU-R-240-6M
    Reference no. 201089
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
  • 8000
    16000
    8
    201090
    HPS-EN-8T-2L-1PU-R-240-8M
    Reference no. 201090
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
  • 10000
    20000
    3
    201092
    HPS-EN-10T-2L-1PU-R-300-3M
    Reference no. 201092
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    4
    201093
    HPS-EN-10T-2L-1PU-R-300-4M
    Reference no. 201093
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    5
    201094
    HPS-EN-10T-2L-1PU-R-300-5M
    Reference no. 201094
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    6
    201095
    HPS-EN-10T-2L-1PU-R-300-6M
    Reference no. 201095
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
  • 10000
    20000
    8
    201096
    HPS-EN-10T-2L-1PU-R-300-8M
    Reference no. 201096
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 201054
  • Details
    HPS-EN-2T-2L-1PU-R-60-2M
    Reference no. 201054
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 1.8
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 201055
  • Details
    HPS-EN-2T-2L-1PU-R-60-3M
    Reference no. 201055
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 201056
  • Details
    HPS-EN-2T-2L-1PU-R-60-4M
    Reference no. 201056
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 201057
  • Details
    HPS-EN-2T-2L-1PU-R-60-5M
    Reference no. 201057
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 5
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 201058
  • Details
    HPS-EN-2T-2L-1PU-R-60-6M
    Reference no. 201058
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 2000
Wrap around working load limit [kg] 4000
Effective length WLL [m] 8
Reference no. 201059
  • Details
    HPS-EN-2T-2L-1PU-R-60-8M
    Reference no. 201059
    Working load limit 0° [kg] 2000
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 8
    Loop Width BS [mm] 250
    Web width BG [mm] 60
    Web thickness SGB [mm] 18
    Overall width B [mm] 70
    Colour green
    Weight approx. [kg] 0.457
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 201060
  • Details
    HPS-EN-3T-2L-1PU-R-90-2M
    Reference no. 201060
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 201061
  • Details
    HPS-EN-3T-2L-1PU-R-90-3M
    Reference no. 201061
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 201062
  • Details
    HPS-EN-3T-2L-1PU-R-90-4M
    Reference no. 201062
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 2
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 201063
  • Details
    HPS-EN-3T-2L-1PU-R-90-5M
    Reference no. 201063
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 201064
  • Details
    HPS-EN-3T-2L-1PU-R-90-6M
    Reference no. 201064
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 3000
Wrap around working load limit [kg] 6000
Effective length WLL [m] 8
Reference no. 201065
  • Details
    HPS-EN-3T-2L-1PU-R-90-8M
    Reference no. 201065
    Working load limit 0° [kg] 3000
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 8
    Loop Width BS [mm] 300
    Web width BG [mm] 90
    Web thickness SGB [mm] 18
    Overall width B [mm] 100
    Colour yellow
    Weight approx. [kg] 0.64
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 201066
  • Details
    HPS-EN-4T-2L-1PU-R-120-2M
    Reference no. 201066
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 201067
  • Details
    HPS-EN-4T-2L-1PU-R-120-3M
    Reference no. 201067
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 201068
  • Details
    HPS-EN-4T-2L-1PU-R-120-4M
    Reference no. 201068
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 201069
  • Details
    HPS-EN-4T-2L-1PU-R-120-5M
    Reference no. 201069
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 201070
  • Details
    HPS-EN-4T-2L-1PU-R-120-6M
    Reference no. 201070
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 4000
Wrap around working load limit [kg] 8000
Effective length WLL [m] 8
Reference no. 201071
  • Details
    HPS-EN-4T-2L-1PU-R-120-8M
    Reference no. 201071
    Working load limit 0° [kg] 4000
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 8
    Loop Width BS [mm] 400
    Web width BG [mm] 120
    Web thickness SGB [mm] 18
    Overall width B [mm] 130
    Colour grey
    Weight approx. [kg] 0.955
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 201072
  • Details
    HPS-EN-5T-2L-1PU-R-150-2M
    Reference no. 201072
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 201073
  • Details
    HPS-EN-5T-2L-1PU-R-150-3M
    Reference no. 201073
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 201074
  • Details
    HPS-EN-5T-2L-1PU-R-150-4M
    Reference no. 201074
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 201075
  • Details
    HPS-EN-5T-2L-1PU-R-150-5M
    Reference no. 201075
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 201076
  • Details
    HPS-EN-5T-2L-1PU-R-150-6M
    Reference no. 201076
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 5000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 8
Reference no. 201077
  • Details
    HPS-EN-5T-2L-1PU-R-150-8M
    Reference no. 201077
    Working load limit 0° [kg] 5000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 8
    Loop Width BS [mm] 450
    Web width BG [mm] 150
    Web thickness SGB [mm] 18
    Overall width B [mm] 160
    Colour red
    Weight approx. [kg] 1.155
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 201079
  • Details
    HPS-EN-6T-2L-1PU-R-180-2M
    Reference no. 201079
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 201080
  • Details
    HPS-EN-6T-2L-1PU-R-180-3M
    Reference no. 201080
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 201081
  • Details
    HPS-EN-6T-2L-1PU-R-180-4M
    Reference no. 201081
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 201082
  • Details
    HPS-EN-6T-2L-1PU-R-180-5M
    Reference no. 201082
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 201083
  • Details
    HPS-EN-6T-2L-1PU-R-180-6M
    Reference no. 201083
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 15.5
Working load limit 0° [kg] 6000
Wrap around working load limit [kg] 12000
Effective length WLL [m] 8
Reference no. 201084
  • Details
    HPS-EN-6T-2L-1PU-R-180-8M
    Reference no. 201084
    Working load limit 0° [kg] 6000
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 8
    Loop Width BS [mm] 600
    Web width BG [mm] 180
    Web thickness SGB [mm] 18
    Overall width B [mm] 190
    Colour brown
    Weight approx. [kg] 1.461
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 201086
  • Details
    HPS-EN-8T-2L-1PU-R-240-3M
    Reference no. 201086
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 201087
  • Details
    HPS-EN-8T-2L-1PU-R-240-4M
    Reference no. 201087
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 201088
  • Details
    HPS-EN-8T-2L-1PU-R-240-5M
    Reference no. 201088
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 201089
  • Details
    HPS-EN-8T-2L-1PU-R-240-6M
    Reference no. 201089
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585
Working load limit 0° [kg] 8000
Wrap around working load limit [kg] 16000
Effective length WLL [m] 8
Reference no. 201090
  • Details
    HPS-EN-8T-2L-1PU-R-240-8M
    Reference no. 201090
    Working load limit 0° [kg] 8000
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 8
    Loop Width BS [mm] 750
    Web width BG [mm] 240
    Web thickness SGB [mm] 18
    Overall width B [mm] 250
    Colour blue
    Weight approx. [kg] 2.585

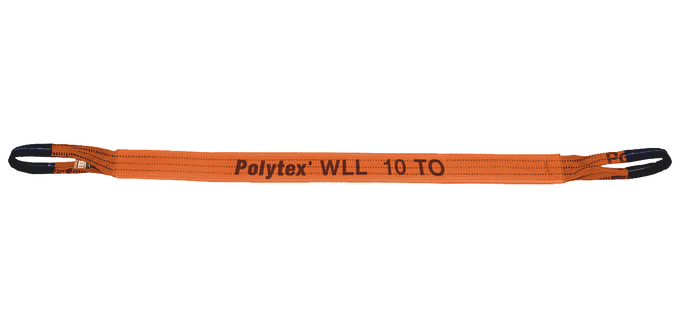

Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 201092
  • Details
    HPS-EN-10T-2L-1PU-R-300-3M
    Reference no. 201092
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 201093
  • Details
    HPS-EN-10T-2L-1PU-R-300-4M
    Reference no. 201093
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 201094
  • Details
    HPS-EN-10T-2L-1PU-R-300-5M
    Reference no. 201094
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 201095
  • Details
    HPS-EN-10T-2L-1PU-R-300-6M
    Reference no. 201095
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Working load limit 0° [kg] 10000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 8
Reference no. 201096
  • Details
    HPS-EN-10T-2L-1PU-R-300-8M
    Reference no. 201096
    Working load limit 0° [kg] 10000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 8
    Loop Width BS [mm] 850
    Web width BG [mm] 300
    Web thickness SGB [mm] 18
    Overall width B [mm] 310
    Colour orange
    Weight approx. [kg] 2.87
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
