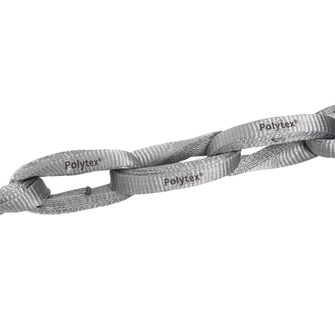

Polytex® Xtreme meter

Polytex® Xtreme meter
Ideally qualified for all applications in the field of ERGONOMIC lifting and securing. Easy to supplement with, for example, shackles or other components for your application.
Technical data

Safety factor

  • 4

Chain Material

  • 100% original Dyneema®
Product variants
Working load limit 0° [kg]
Effective length WLL [m]
Reference no.
Details
  • 2500
    2
    707639
    BTK PTX-KET-2.5T-50KN-100X20X8-2M
    Reference no. 707639
    Working load limit 0° [kg] 2500

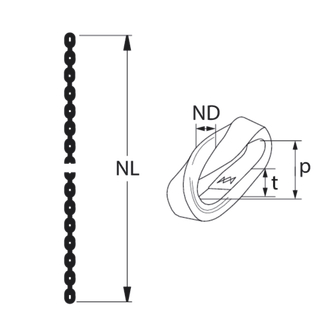

    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 2
    Weight approx. [kg] 0.65
  • 2500
    4
    707640
    BTK PTX-KET-2.5T-50KN-100X20X8-4M
    Reference no. 707640
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 4
    Weight approx. [kg] 1.3
  • 2500
    6
    707641
    BTK PTX-KET-2.5T-50KN-100X20X8-6M
    Reference no. 707641
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 6
    Weight approx. [kg] 1.95
  • 2500
    8
    707642
    BTK PTX-KET-2.5T-50KN-100X20X8-8M
    Reference no. 707642
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 8
    Weight approx. [kg] 2.6
  • 2500
    10
    707643
    BTK PTX-KET-2.5T-50KN-100X20X8-10M
    Reference no. 707643
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 10
    Weight approx. [kg] 3.25
  • 2500
    20
    707644
    BTK PTX-KET-2.5T-50KN-100X20X8-20M
    Reference no. 707644
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 20
    Weight approx. [kg] 6.5
  • 2500
    50
    707645
    BTK PTX-KET-2.5T-50KN-100X20X8-50M
    Reference no. 707645
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 50
    Weight approx. [kg] 16.25
  • 3750
    2
    707646
    BTK PTX-KET-3.75T-75KN-100X20X12-2M
    Reference no. 707646
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 2
    Weight approx. [kg] 0.95
  • 3750
    4
    707647
    BTK PTX-KET-3.75T-75KN-100X20X12-4M
    Reference no. 707647
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 4
    Weight approx. [kg] 1.9
  • 3750
    6
    707648
    BTK PTX-KET-3.75T-75KN-100X20X12-6M
    Reference no. 707648
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 6
    Weight approx. [kg] 2.85
  • 3750
    8
    707649
    BTK PTX-KET-3.75T-75KN-100X20X12-8M
    Reference no. 707649
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 8
    Weight approx. [kg] 3.8
  • 3750
    10
    707650
    BTK PTX-KET-3.75T-75KN-100X20X12-10M
    Reference no. 707650
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 10
    Weight approx. [kg] 4.75
  • 3750
    20
    707651
    BTK PTX-KET-3.75T-75KN-100X20X12-20M
    Reference no. 707651
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 20
    Weight approx. [kg] 9.5
  • 3750
    50
    707652
    BTK PTX-KET-3.75T-75KN-100X20X12-50M
    Reference no. 707652
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 50
    Weight approx. [kg] 23.75
  • 5000
    2
    707653
    BTK PTX-KET-5.0T-100KN-100X20X16-2M
    Reference no. 707653
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 2
    Weight approx. [kg] 1.25
  • 5000
    4
    707654
    BTK PTX-KET-5.0T-100KN-100X20X16-4M
    Reference no. 707654
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 4
    Weight approx. [kg] 2.5
  • 5000
    6
    707655
    BTK PTX-KET-5.0T-100KN-100X20X16-6M
    Reference no. 707655
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 6
    Weight approx. [kg] 3.75
  • 5000
    8
    707656
    BTK PTX-KET-5.0T-100KN-100X20X16-8M
    Reference no. 707656
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 8
    Weight approx. [kg] 5
  • 5000
    10
    707657
    BTK PTX-KET-5.0T-100KN-100X20X16-10M
    Reference no. 707657
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 10
    Weight approx. [kg] 6.25
  • 5000
    20
    707658
    BTK PTX-KET-5.0T-100KN-100X20X16-20M
    Reference no. 707658
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 20
    Weight approx. [kg] 12.5
  • 5000
    50
    707659
    BTK PTX-KET-5.0T-100KN-100X20X16-50M
    Reference no. 707659
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 50
    Weight approx. [kg] 31.25
  • 8000
    2
    707660
    BTK PTX-KET-8.0T-160KN-125X30X16-2M
    Reference no. 707660
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 2
    Weight approx. [kg] 1.88
  • 8000
    4
    707661
    BTK PTX-KET-8.0T-160KN-125X30X16-4M
    Reference no. 707661
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 4
    Weight approx. [kg] 3.76
  • 8000
    6
    707662
    BTK PTX-KET-8.0T-160KN-125X30X16-6M
    Reference no. 707662
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 6
    Weight approx. [kg] 5.64
  • 8000
    8
    707663
    BTK-PTX-KET-8.0T-160KN-125X30X16-8M
    Reference no. 707663
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 8
    Weight approx. [kg] 7.52
  • 8000
    10
    707664
    BTK PTX-KET-8.0T-160KN-125X30X16-10M
    Reference no. 707664
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 10
    Weight approx. [kg] 9.4
  • 8000
    20
    707665
    BTK PTX-KET-8.0T-160KN-125X30X16-20M
    Reference no. 707665
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 20
    Weight approx. [kg] 18.8
  • 8000
    50
    707666
    BTK PTX-KET-8.0T-160KN-125X30X16-50M
    Reference no. 707666
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 50
    Weight approx. [kg] 47
  • 10500
    2
    707667
    BTK PTX-KET-10.5T-210KN-150X30X20-2.1M
    Reference no. 707667
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 2
    Weight approx. [kg] 2.1
  • 10500
    4
    707668
    BTK PTX-KET-10.5T-210KN-150X30X20-4M
    Reference no. 707668
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 4
    Weight approx. [kg] 4.2
  • 10500
    6
    707669
    BTK PTX-KET-10.5T-210KN-150X30X20-6M
    Reference no. 707669
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 6
    Weight approx. [kg] 6.3
  • 10500
    8
    707670
    BTK PTX-KET-10.5T-210KN-150X30X20-8M
    Reference no. 707670
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 8
    Weight approx. [kg] 8.4
  • 10500
    10
    707671
    BTK PTX-KET-10.5T-210KN-150X30X20-10M
    Reference no. 707671
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 10
    Weight approx. [kg] 10.5
  • 10500
    20
    707672
    BTK PTX-KET-10.5T-210KN-150X30X20-20.1M
    Reference no. 707672
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 20
    Weight approx. [kg] 21
  • 10500
    50
    707673
    BTK PTX-KET-10.5T-210KN-150X30X20-50.1M
    Reference no. 707673
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 50
    Weight approx. [kg] 52.5
  • 12500
    2
    707674
    BTK PTX-KET-12.5T-150KN-150X30X26-2.1M
    Reference no. 707674
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 2
    Weight approx. [kg] 2.54
  • 12500
    4
    707675
    BTK PTX-KET-12.5T-250KN-150X30X26-4M
    Reference no. 707675
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 4
    Weight approx. [kg] 5.07
  • 12500
    6
    707676
    BTK PTX-KET-12.5T-250KN-150X30X26-6M
    Reference no. 707676
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 6
    Weight approx. [kg] 7.61
  • 12500
    8
    707677
    BTK PTX-KET-12.5T-250KN-150X30X26-8.1M
    Reference no. 707677
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 8
    Weight approx. [kg] 10.14
  • 12500
    10
    707678
    BTK PTX-KET-12.5T-250KN-150X30X26-10M
    Reference no. 707678
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 10
    Weight approx. [kg] 12.68
  • 12500
    20
    707679
    BTK PTX-KET-12.5T-250KN-150X30X26-20.1M
    Reference no. 707679
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 20
    Weight approx. [kg] 25.36
  • 12500
    50
    707680
    BTK PTX-KET-12.5T-250KN-150X30X26-50.1M
    Reference no. 707680
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 50
    Weight approx. [kg] 63.4
Working load limit 0° [kg] 2500
Effective length WLL [m] 2
Reference no. 707639
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-2M
    Reference no. 707639
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 2
    Weight approx. [kg] 0.65
Working load limit 0° [kg] 2500
Effective length WLL [m] 4
Reference no. 707640
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-4M
    Reference no. 707640
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 4
    Weight approx. [kg] 1.3
Working load limit 0° [kg] 2500
Effective length WLL [m] 6
Reference no. 707641
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-6M
    Reference no. 707641
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 6
    Weight approx. [kg] 1.95
Working load limit 0° [kg] 2500
Effective length WLL [m] 8
Reference no. 707642
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-8M
    Reference no. 707642
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 8
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 2500
Effective length WLL [m] 10
Reference no. 707643
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-10M
    Reference no. 707643
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 10
    Weight approx. [kg] 3.25
Working load limit 0° [kg] 2500
Effective length WLL [m] 20
Reference no. 707644
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-20M
    Reference no. 707644
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 20
    Weight approx. [kg] 6.5
Working load limit 0° [kg] 2500
Effective length WLL [m] 50
Reference no. 707645
  • Details
    BTK PTX-KET-2.5T-50KN-100X20X8-50M
    Reference no. 707645
    Working load limit 0° [kg] 2500
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 8
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 5000
    Effective length WLL [m] 50
    Weight approx. [kg] 16.25
Working load limit 0° [kg] 3750
Effective length WLL [m] 2
Reference no. 707646
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-2M
    Reference no. 707646
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 2
    Weight approx. [kg] 0.95
Working load limit 0° [kg] 3750
Effective length WLL [m] 4
Reference no. 707647
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-4M
    Reference no. 707647
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 4
    Weight approx. [kg] 1.9
Working load limit 0° [kg] 3750
Effective length WLL [m] 6
Reference no. 707648
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-6M
    Reference no. 707648
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 6
    Weight approx. [kg] 2.85
Working load limit 0° [kg] 3750
Effective length WLL [m] 8
Reference no. 707649
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-8M
    Reference no. 707649
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 8
    Weight approx. [kg] 3.8
Working load limit 0° [kg] 3750
Effective length WLL [m] 10
Reference no. 707650
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-10M
    Reference no. 707650
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 10
    Weight approx. [kg] 4.75
Working load limit 0° [kg] 3750
Effective length WLL [m] 20
Reference no. 707651
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-20M
    Reference no. 707651
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 20
    Weight approx. [kg] 9.5
Working load limit 0° [kg] 3750
Effective length WLL [m] 50
Reference no. 707652
  • Details
    BTK PTX-KET-3.75T-75KN-100X20X12-50M
    Reference no. 707652
    Working load limit 0° [kg] 3750
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 12
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 7500
    Effective length WLL [m] 50
    Weight approx. [kg] 23.75
Working load limit 0° [kg] 5000
Effective length WLL [m] 2
Reference no. 707653
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-2M
    Reference no. 707653
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 2
    Weight approx. [kg] 1.25
Working load limit 0° [kg] 5000
Effective length WLL [m] 4
Reference no. 707654
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-4M
    Reference no. 707654
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 4
    Weight approx. [kg] 2.5
Working load limit 0° [kg] 5000
Effective length WLL [m] 6
Reference no. 707655
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-6M
    Reference no. 707655
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 6
    Weight approx. [kg] 3.75
Working load limit 0° [kg] 5000
Effective length WLL [m] 8
Reference no. 707656
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-8M
    Reference no. 707656
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 8
    Weight approx. [kg] 5
Working load limit 0° [kg] 5000
Effective length WLL [m] 10
Reference no. 707657
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-10M
    Reference no. 707657
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 10
    Weight approx. [kg] 6.25
Working load limit 0° [kg] 5000
Effective length WLL [m] 20
Reference no. 707658
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-20M
    Reference no. 707658
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 20
    Weight approx. [kg] 12.5
Working load limit 0° [kg] 5000
Effective length WLL [m] 50
Reference no. 707659
  • Details
    BTK PTX-KET-5.0T-100KN-100X20X16-50M
    Reference no. 707659
    Working load limit 0° [kg] 5000
    Chain link interior length [mm] 100
    Chain link thickness [mm] 20
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 10
    Lashing capacity direct pull LC 10000
    Effective length WLL [m] 50
    Weight approx. [kg] 31.25
Working load limit 0° [kg] 8000
Effective length WLL [m] 2
Reference no. 707660
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-2M
    Reference no. 707660
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 2
    Weight approx. [kg] 1.88
Working load limit 0° [kg] 8000
Effective length WLL [m] 4
Reference no. 707661
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-4M
    Reference no. 707661
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 4
    Weight approx. [kg] 3.76
Working load limit 0° [kg] 8000
Effective length WLL [m] 6
Reference no. 707662
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-6M
    Reference no. 707662
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 6
    Weight approx. [kg] 5.64
Working load limit 0° [kg] 8000
Effective length WLL [m] 8
Reference no. 707663
  • Details
    BTK-PTX-KET-8.0T-160KN-125X30X16-8M
    Reference no. 707663
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 8
    Weight approx. [kg] 7.52
Working load limit 0° [kg] 8000
Effective length WLL [m] 10
Reference no. 707664
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-10M
    Reference no. 707664
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 10
    Weight approx. [kg] 9.4
Working load limit 0° [kg] 8000
Effective length WLL [m] 20
Reference no. 707665
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-20M
    Reference no. 707665
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 20
    Weight approx. [kg] 18.8
Working load limit 0° [kg] 8000
Effective length WLL [m] 50
Reference no. 707666
  • Details
    BTK PTX-KET-8.0T-160KN-125X30X16-50M
    Reference no. 707666
    Working load limit 0° [kg] 8000
    Chain link interior length [mm] 125
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 16
    Number of chain links per meter [St] 8
    Lashing capacity direct pull LC 16000
    Effective length WLL [m] 50
    Weight approx. [kg] 47
Working load limit 0° [kg] 10500
Effective length WLL [m] 2
Reference no. 707667
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-2.1M
    Reference no. 707667
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 2
    Weight approx. [kg] 2.1
Working load limit 0° [kg] 10500
Effective length WLL [m] 4
Reference no. 707668
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-4M
    Reference no. 707668
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 4
    Weight approx. [kg] 4.2
Working load limit 0° [kg] 10500
Effective length WLL [m] 6
Reference no. 707669
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-6M
    Reference no. 707669
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 6
    Weight approx. [kg] 6.3
Working load limit 0° [kg] 10500
Effective length WLL [m] 8
Reference no. 707670
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-8M
    Reference no. 707670
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 8
    Weight approx. [kg] 8.4
Working load limit 0° [kg] 10500
Effective length WLL [m] 10
Reference no. 707671
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-10M
    Reference no. 707671
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 10
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 10500
Effective length WLL [m] 20
Reference no. 707672
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-20.1M
    Reference no. 707672
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 20
    Weight approx. [kg] 21
Working load limit 0° [kg] 10500
Effective length WLL [m] 50
Reference no. 707673
  • Details
    BTK PTX-KET-10.5T-210KN-150X30X20-50.1M
    Reference no. 707673
    Working load limit 0° [kg] 10500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 20
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 21000
    Effective length WLL [m] 50
    Weight approx. [kg] 52.5
Working load limit 0° [kg] 12500
Effective length WLL [m] 2
Reference no. 707674
  • Details
    BTK PTX-KET-12.5T-150KN-150X30X26-2.1M
    Reference no. 707674
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 2
    Weight approx. [kg] 2.54
Working load limit 0° [kg] 12500
Effective length WLL [m] 4
Reference no. 707675
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-4M
    Reference no. 707675
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 4
    Weight approx. [kg] 5.07
Working load limit 0° [kg] 12500
Effective length WLL [m] 6
Reference no. 707676
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-6M
    Reference no. 707676
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 6
    Weight approx. [kg] 7.61
Working load limit 0° [kg] 12500
Effective length WLL [m] 8
Reference no. 707677
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-8.1M
    Reference no. 707677
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 8
    Weight approx. [kg] 10.14
Working load limit 0° [kg] 12500
Effective length WLL [m] 10
Reference no. 707678
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-10M
    Reference no. 707678
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 10
    Weight approx. [kg] 12.68
Working load limit 0° [kg] 12500
Effective length WLL [m] 20
Reference no. 707679
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-20.1M
    Reference no. 707679
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 20
    Weight approx. [kg] 25.36
Working load limit 0° [kg] 12500
Effective length WLL [m] 50
Reference no. 707680
  • Details
    BTK PTX-KET-12.5T-250KN-150X30X26-50.1M
    Reference no. 707680
    Working load limit 0° [kg] 12500
    Chain link interior length [mm] 150
    Chain link thickness [mm] 30
    Chain link Material thickness [mm] 26
    Number of chain links per meter [St] 7
    Lashing capacity direct pull LC 25000
    Effective length WLL [m] 50
    Weight approx. [kg] 63.4
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
