Polytex® round sling XXL-Compact

Compact, lightweight heavy duty round sling with high-performance HMPE - fibre core for high working load limits. Design with special sheathing with closed surface to prevent penetration of objects into the load-bearing core fibres.

Technical data
Options
Product variants
Downloads
Contact

Technical data

Operating temperature

–40 °C to +70 °C

Standard

similar to EN 1492-2

Marking

Imprinted working load limit

Protective sleeve

Wear resistant with a continuous surface in raised ribbed structure

Safety factor

Material

High performance fibres made of HMPE

Options

A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

further useful lengths and further working load limits

Product variants

RSH XCP-10T-2M-OR

Reference no.	702604
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	2
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	1.4

RSH XCP-10T-3M-OR

Reference no.	494577
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	3
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2.1

RSH XCP-10T-4M-OR

Reference no.	494578
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	4
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2.8

RSH XCP-10T-6M-OR

Reference no.	494579
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	6
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	4.2

RSH XCP-10T-8M-OR

Reference no.	494580
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	8
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	5.6

RSH XCP-10T-10M-OR

Reference no.	494581
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	10
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	7

RSH XCP-10T-12M-OR

Reference no.	494582
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	12
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	8.4

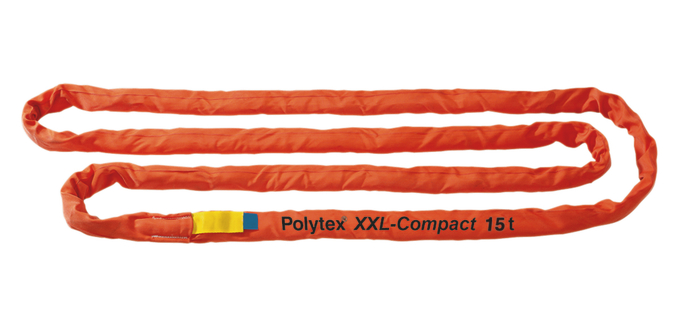

RSH XCP-15T-2M-OR

Reference no.	705477
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	2
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2

RSH XCP-15T-3M-OR

Reference no.	709446
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	3
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	4

RSH XCP-15T-4M-OR

Reference no.	494584
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	4
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	3.6

RSH XCP-15T-6M-OR

Reference no.	494585
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	6
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	5.4

RSH XCP-15T-8M-OR

Reference no.	494586
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	8
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	7.2

RSH XCP-15T-10M-OR

Reference no.	711966
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	10
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	12.8

RSH XCP-15T-12M-OR

Reference no.	707434
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	12
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	16

RSH XCP-20T-2M-OR

Reference no.	712019
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	2
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	2.4

RSH XCP-20T-3M-OR

Reference no.	494588
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	3
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	3.6

RSH XCP-20T-4M-OR

Reference no.	494589
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	4
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	4.8

RSH XCP-20T-6M-OR

Reference no.	494590
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	6
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	14.4

RSH XCP-20T-8M-OR

Reference no.	700909
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	8
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	9.6

RSH XCP-20T-10M-OR

Reference no.	712020
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	10
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	12

RSH XCP-20T-12M-OR

Reference no.	705952
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	12
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	18.4

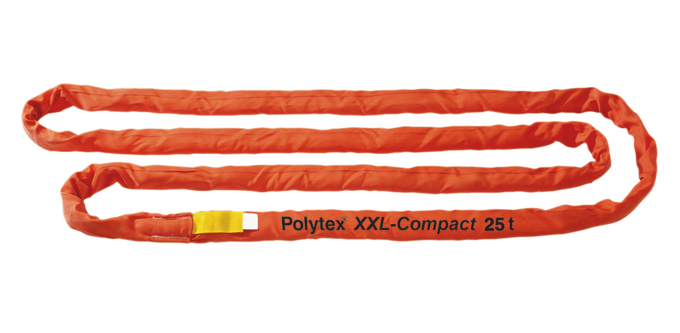

RSH XCP-25T-2M-OR

Reference no.	712021
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	2
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	3.6

RSH XCP-25T-3M-OR

Reference no.	712022
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	3
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	5.4

RSH XCP-25T-4M-OR

Reference no.	494592
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	4
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	7.2

RSH XCP-25T-6M-OR

Reference no.	494593
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	6
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	10.8

RSH XCP-25T-8M-OR

Reference no.	702131
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	8
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	14.4

RSH XCP-25T-10M-OR

Reference no.	712023
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	10
Contact width under load [mm]	25
Textile thickness at optimum support surface approx. [mm]	103
Colour	orange
Weight approx. [kg]	18

RSH XCP-25T-12M-OR

Reference no.	707359
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	12
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	22.6

RSH XCP-30T-2M-OR

Reference no.	712024
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	2
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	4

RSH XCP-30T-3M-OR

Reference no.	494594
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	3
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	6

RSH XCP-30T-4M-OR

Reference no.	494595
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	4
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	8

RSH XCP-30T-6M-OR

Reference no.	494596
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	6
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	12

RSH XCP-30T-8M-OR

Reference no.	494597
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	8
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	16

RSH XCP-30T-10M-OR

Reference no.	494598
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	10
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	20

RSH XCP-30T-12M-OR

Reference no.	494599
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	12
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	24

RSH XCP-40T-2M-OR

Reference no.	515918
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	2
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	5

RSH XCP-40T-3M-OR

Reference no.	709007
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	3
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	8.1

RSH XCP-40T-4M-OR

Reference no.	494601
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	4
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	10

RSH XCP-40T-6M-OR

Reference no.	712025
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	6
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	15

RSH XCP-40T-8M-OR

Reference no.	494602
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	8
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	20

RSH XCP-40T-10M-OR

Reference no.	712026
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	10
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	25

RSH XCP-40T-12M-OR

Reference no.	712027
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	12
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	30

RSH XCP-50T-4M-OR

Reference no.	494603
Working load limit 0° [kg]	50000
Working load limit laced [kg]	40000
Wrap around working load limit [kg]	100000
Effective length WLL [m]	4
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	34
Colour	orange
Weight approx. [kg]	15.6

RSH XCP-50T-8M-OR

Reference no.	494604
Working load limit 0° [kg]	50000
Working load limit laced [kg]	40000
Wrap around working load limit [kg]	100000
Effective length WLL [m]	8
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	34
Colour	orange
Weight approx. [kg]	31.2

RSH XCP-60T-4M-OR

Reference no.	494605
Working load limit 0° [kg]	60000
Working load limit laced [kg]	48000
Wrap around working load limit [kg]	120000
Effective length WLL [m]	4
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	37
Colour	orange
Weight approx. [kg]	17.6

RSH XCP-60T-8M-OR

Reference no.	494606
Working load limit 0° [kg]	60000
Working load limit laced [kg]	48000
Wrap around working load limit [kg]	120000
Effective length WLL [m]	8
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	37
Colour	orange
Weight approx. [kg]	35.2

RSH XCP-70T-4M-OR

Reference no.	494607
Working load limit 0° [kg]	70000
Working load limit laced [kg]	56000
Wrap around working load limit [kg]	140000
Effective length WLL [m]	4
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	47
Colour	orange
Weight approx. [kg]	22.8

RSH XCP-70T-8M-OR

Reference no.	494608
Working load limit 0° [kg]	70000
Working load limit laced [kg]	56000
Wrap around working load limit [kg]	140000
Effective length WLL [m]	8
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	47
Colour	orange
Weight approx. [kg]	45.6

RSH XCP-80T-4M-OR

Reference no.	494609
Working load limit 0° [kg]	80000
Working load limit laced [kg]	64000
Wrap around working load limit [kg]	160000
Effective length WLL [m]	4
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	50
Colour	orange
Weight approx. [kg]	24.4

RSH XCP-80T-8M-OR

Reference no.	494610
Working load limit 0° [kg]	80000
Working load limit laced [kg]	64000
Wrap around working load limit [kg]	160000
Effective length WLL [m]	8
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	50
Colour	orange
Weight approx. [kg]	48.8

RSH XCP-90T-4M-OR

Reference no.	494611
Working load limit 0° [kg]	90000
Working load limit laced [kg]	72000
Wrap around working load limit [kg]	180000
Effective length WLL [m]	4
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	40
Colour	orange
Weight approx. [kg]	26.8

RSH XCP-90T-8M-OR

Reference no.	494612
Working load limit 0° [kg]	90000
Working load limit laced [kg]	72000
Wrap around working load limit [kg]	180000
Effective length WLL [m]	8
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	40
Colour	orange
Weight approx. [kg]	53.6

RSH XCP-100T-4M-OR

Reference no.	494613
Working load limit 0° [kg]	100000
Working load limit laced [kg]	80000
Wrap around working load limit [kg]	200000
Effective length WLL [m]	4
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	55
Colour	orange
Weight approx. [kg]	32.14

RSH XCP-100T-8M-OR

Reference no.	494614
Working load limit 0° [kg]	100000
Working load limit laced [kg]	80000
Wrap around working load limit [kg]	200000
Effective length WLL [m]	8
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	55
Colour	orange
Weight approx. [kg]	64.8

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 2

Reference no. 702604

Details

RSH XCP-10T-2M-OR

Reference no.	702604
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	2
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	1.4

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 3

Reference no. 494577

Details

RSH XCP-10T-3M-OR

Reference no.	494577
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	3
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2.1

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 4

Reference no. 494578

Details

RSH XCP-10T-4M-OR

Reference no.	494578
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	4
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2.8

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 6

Reference no. 494579

Details

RSH XCP-10T-6M-OR

Reference no.	494579
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	6
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	4.2

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 8

Reference no. 494580

Details

RSH XCP-10T-8M-OR

Reference no.	494580
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	8
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	5.6

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 10

Reference no. 494581

Details

RSH XCP-10T-10M-OR

Reference no.	494581
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	10
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	7

Working load limit 0° [kg] 10000

Working load limit laced [kg] 8000

Wrap around working load limit [kg] 20000

Effective length WLL [m] 12

Reference no. 494582

Details

RSH XCP-10T-12M-OR

Reference no.	494582
Working load limit 0° [kg]	10000
Working load limit laced [kg]	8000
Wrap around working load limit [kg]	20000
Effective length WLL [m]	12
Contact width under load [mm]	68
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	8.4

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 2

Reference no. 705477

Details

RSH XCP-15T-2M-OR

Reference no.	705477
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	2
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	2

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 3

Reference no. 709446

Details

RSH XCP-15T-3M-OR

Reference no.	709446
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	3
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	4

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 4

Reference no. 494584

Details

RSH XCP-15T-4M-OR

Reference no.	494584
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	4
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	3.6

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 6

Reference no. 494585

Details

RSH XCP-15T-6M-OR

Reference no.	494585
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	6
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	5.4

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 8

Reference no. 494586

Details

RSH XCP-15T-8M-OR

Reference no.	494586
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	8
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	7.2

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 10

Reference no. 711966

Details

RSH XCP-15T-10M-OR

Reference no.	711966
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	10
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	12.8

Working load limit 0° [kg] 15000

Working load limit laced [kg] 12000

Wrap around working load limit [kg] 30000

Effective length WLL [m] 12

Reference no. 707434

Details

RSH XCP-15T-12M-OR

Reference no.	707434
Working load limit 0° [kg]	15000
Working load limit laced [kg]	12000
Wrap around working load limit [kg]	30000
Effective length WLL [m]	12
Contact width under load [mm]	88
Textile thickness at optimum support surface approx. [mm]	13
Colour	orange
Weight approx. [kg]	16

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 2

Reference no. 712019

Details

RSH XCP-20T-2M-OR

Reference no.	712019
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	2
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	2.4

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 3

Reference no. 494588

Details

RSH XCP-20T-3M-OR

Reference no.	494588
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	3
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	3.6

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 4

Reference no. 494589

Details

RSH XCP-20T-4M-OR

Reference no.	494589
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	4
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	4.8

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 6

Reference no. 494590

Details

RSH XCP-20T-6M-OR

Reference no.	494590
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	6
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	14.4

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 8

Reference no. 700909

Details

RSH XCP-20T-8M-OR

Reference no.	700909
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	8
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	9.6

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 10

Reference no. 712020

Details

RSH XCP-20T-10M-OR

Reference no.	712020
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	10
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	12

Working load limit 0° [kg] 20000

Working load limit laced [kg] 16000

Wrap around working load limit [kg] 40000

Effective length WLL [m] 12

Reference no. 705952

Details

RSH XCP-20T-12M-OR

Reference no.	705952
Working load limit 0° [kg]	20000
Working load limit laced [kg]	16000
Wrap around working load limit [kg]	40000
Effective length WLL [m]	12
Contact width under load [mm]	85
Textile thickness at optimum support surface approx. [mm]	16
Colour	orange
Weight approx. [kg]	18.4

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 2

Reference no. 712021

Details

RSH XCP-25T-2M-OR

Reference no.	712021
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	2
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	3.6

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 3

Reference no. 712022

Details

RSH XCP-25T-3M-OR

Reference no.	712022
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	3
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	5.4

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 4

Reference no. 494592

Details

RSH XCP-25T-4M-OR

Reference no.	494592
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	4
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	7.2

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 6

Reference no. 494593

Details

RSH XCP-25T-6M-OR

Reference no.	494593
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	6
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	10.8

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 8

Reference no. 702131

Details

RSH XCP-25T-8M-OR

Reference no.	702131
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	8
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	14.4

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 10

Reference no. 712023

Details

RSH XCP-25T-10M-OR

Reference no.	712023
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	10
Contact width under load [mm]	25
Textile thickness at optimum support surface approx. [mm]	103
Colour	orange
Weight approx. [kg]	18

Working load limit 0° [kg] 25000

Working load limit laced [kg] 20000

Wrap around working load limit [kg] 50000

Effective length WLL [m] 12

Reference no. 707359

Details

RSH XCP-25T-12M-OR

Reference no.	707359
Working load limit 0° [kg]	25000
Working load limit laced [kg]	20000
Wrap around working load limit [kg]	50000
Effective length WLL [m]	12
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	25
Colour	orange
Weight approx. [kg]	22.6

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 2

Reference no. 712024

Details

RSH XCP-30T-2M-OR

Reference no.	712024
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	2
Contact width under load [mm]	103
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	4

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 3

Reference no. 494594

Details

RSH XCP-30T-3M-OR

Reference no.	494594
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	3
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	6

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 4

Reference no. 494595

Details

RSH XCP-30T-4M-OR

Reference no.	494595
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	4
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	8

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 6

Reference no. 494596

Details

RSH XCP-30T-6M-OR

Reference no.	494596
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	6
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	12

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 8

Reference no. 494597

Details

RSH XCP-30T-8M-OR

Reference no.	494597
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	8
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	16

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 10

Reference no. 494598

Details

RSH XCP-30T-10M-OR

Reference no.	494598
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	10
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	20

Working load limit 0° [kg] 30000

Working load limit laced [kg] 24000

Wrap around working load limit [kg] 60000

Effective length WLL [m] 12

Reference no. 494599

Details

RSH XCP-30T-12M-OR

Reference no.	494599
Working load limit 0° [kg]	30000
Working load limit laced [kg]	24000
Wrap around working load limit [kg]	60000
Effective length WLL [m]	12
Contact width under load [mm]	100
Textile thickness at optimum support surface approx. [mm]	27
Colour	orange
Weight approx. [kg]	24

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 2

Reference no. 515918

Details

RSH XCP-40T-2M-OR

Reference no.	515918
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	2
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	5

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 3

Reference no. 709007

Details

RSH XCP-40T-3M-OR

Reference no.	709007
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	3
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	8.1

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 4

Reference no. 494601

Details

RSH XCP-40T-4M-OR

Reference no.	494601
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	4
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	10

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 6

Reference no. 712025

Details

RSH XCP-40T-6M-OR

Reference no.	712025
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	6
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	15

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 8

Reference no. 494602

Details

RSH XCP-40T-8M-OR

Reference no.	494602
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	8
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	20

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 10

Reference no. 712026

Details

RSH XCP-40T-10M-OR

Reference no.	712026
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	10
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	25

Working load limit 0° [kg] 40000

Working load limit laced [kg] 32000

Wrap around working load limit [kg] 80000

Effective length WLL [m] 12

Reference no. 712027

Details

RSH XCP-40T-12M-OR

Reference no.	712027
Working load limit 0° [kg]	40000
Working load limit laced [kg]	32000
Wrap around working load limit [kg]	80000
Effective length WLL [m]	12
Contact width under load [mm]	125
Textile thickness at optimum support surface approx. [mm]	20
Colour	orange
Weight approx. [kg]	30

Working load limit 0° [kg] 50000

Working load limit laced [kg] 40000

Wrap around working load limit [kg] 100000

Effective length WLL [m] 4

Reference no. 494603

Details

RSH XCP-50T-4M-OR

Reference no.	494603
Working load limit 0° [kg]	50000
Working load limit laced [kg]	40000
Wrap around working load limit [kg]	100000
Effective length WLL [m]	4
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	34
Colour	orange
Weight approx. [kg]	15.6

Working load limit 0° [kg] 50000

Working load limit laced [kg] 40000

Wrap around working load limit [kg] 100000

Effective length WLL [m] 8

Reference no. 494604

Details

RSH XCP-50T-8M-OR

Reference no.	494604
Working load limit 0° [kg]	50000
Working load limit laced [kg]	40000
Wrap around working load limit [kg]	100000
Effective length WLL [m]	8
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	34
Colour	orange
Weight approx. [kg]	31.2

Working load limit 0° [kg] 60000

Working load limit laced [kg] 48000

Wrap around working load limit [kg] 120000

Effective length WLL [m] 4

Reference no. 494605

Details

RSH XCP-60T-4M-OR

Reference no.	494605
Working load limit 0° [kg]	60000
Working load limit laced [kg]	48000
Wrap around working load limit [kg]	120000
Effective length WLL [m]	4
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	37
Colour	orange
Weight approx. [kg]	17.6

Working load limit 0° [kg] 60000

Working load limit laced [kg] 48000

Wrap around working load limit [kg] 120000

Effective length WLL [m] 8

Reference no. 494606

Details

RSH XCP-60T-8M-OR

Reference no.	494606
Working load limit 0° [kg]	60000
Working load limit laced [kg]	48000
Wrap around working load limit [kg]	120000
Effective length WLL [m]	8
Contact width under load [mm]	140
Textile thickness at optimum support surface approx. [mm]	37
Colour	orange
Weight approx. [kg]	35.2

Working load limit 0° [kg] 70000

Working load limit laced [kg] 56000

Wrap around working load limit [kg] 140000

Effective length WLL [m] 4

Reference no. 494607

Details

RSH XCP-70T-4M-OR

Reference no.	494607
Working load limit 0° [kg]	70000
Working load limit laced [kg]	56000
Wrap around working load limit [kg]	140000
Effective length WLL [m]	4
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	47
Colour	orange
Weight approx. [kg]	22.8

Working load limit 0° [kg] 70000

Working load limit laced [kg] 56000

Wrap around working load limit [kg] 140000

Effective length WLL [m] 8

Reference no. 494608

Details

RSH XCP-70T-8M-OR

Reference no.	494608
Working load limit 0° [kg]	70000
Working load limit laced [kg]	56000
Wrap around working load limit [kg]	140000
Effective length WLL [m]	8
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	47
Colour	orange
Weight approx. [kg]	45.6

Working load limit 0° [kg] 80000

Working load limit laced [kg] 64000

Wrap around working load limit [kg] 160000

Effective length WLL [m] 4

Reference no. 494609

Details

RSH XCP-80T-4M-OR

Reference no.	494609
Working load limit 0° [kg]	80000
Working load limit laced [kg]	64000
Wrap around working load limit [kg]	160000
Effective length WLL [m]	4
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	50
Colour	orange
Weight approx. [kg]	24.4

Working load limit 0° [kg] 80000

Working load limit laced [kg] 64000

Wrap around working load limit [kg] 160000

Effective length WLL [m] 8

Reference no. 494610

Details

RSH XCP-80T-8M-OR

Reference no.	494610
Working load limit 0° [kg]	80000
Working load limit laced [kg]	64000
Wrap around working load limit [kg]	160000
Effective length WLL [m]	8
Contact width under load [mm]	150
Textile thickness at optimum support surface approx. [mm]	50
Colour	orange
Weight approx. [kg]	48.8

Working load limit 0° [kg] 90000

Working load limit laced [kg] 72000

Wrap around working load limit [kg] 180000

Effective length WLL [m] 4

Reference no. 494611

Details

RSH XCP-90T-4M-OR

Reference no.	494611
Working load limit 0° [kg]	90000
Working load limit laced [kg]	72000
Wrap around working load limit [kg]	180000
Effective length WLL [m]	4
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	40
Colour	orange
Weight approx. [kg]	26.8

Working load limit 0° [kg] 90000

Working load limit laced [kg] 72000

Wrap around working load limit [kg] 180000

Effective length WLL [m] 8

Reference no. 494612

Details

RSH XCP-90T-8M-OR

Reference no.	494612
Working load limit 0° [kg]	90000
Working load limit laced [kg]	72000
Wrap around working load limit [kg]	180000
Effective length WLL [m]	8
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	40
Colour	orange
Weight approx. [kg]	53.6

Working load limit 0° [kg] 100000

Working load limit laced [kg] 80000

Wrap around working load limit [kg] 200000

Effective length WLL [m] 4

Reference no. 494613

Details

RSH XCP-100T-4M-OR

Reference no.	494613
Working load limit 0° [kg]	100000
Working load limit laced [kg]	80000
Wrap around working load limit [kg]	200000
Effective length WLL [m]	4
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	55
Colour	orange
Weight approx. [kg]	32.14

Working load limit 0° [kg] 100000

Working load limit laced [kg] 80000

Wrap around working load limit [kg] 200000

Effective length WLL [m] 8

Reference no. 494614

Details

RSH XCP-100T-8M-OR

Reference no.	494614
Working load limit 0° [kg]	100000
Working load limit laced [kg]	80000
Wrap around working load limit [kg]	200000
Effective length WLL [m]	8
Contact width under load [mm]	195
Textile thickness at optimum support surface approx. [mm]	55
Colour	orange
Weight approx. [kg]	64.8

Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.

Download

Contact

Market	Contact	Location type
All other markets	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Tel. +49 8331 937-9623 Fax +49 8331 937-380 E-Mail verkauf-azs@pfeifer.de Web www.pfeifer.info	Parent company/Head office
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Straße 66 DE-87700 Memmingen Mobile Services Tel. +49 800 7237244 Fax +49 8331 937-198 E-Mail pruefservice-azs@pfeifer.de Web www.pfeifer.info	Service centre
Germany	PFEIFER Seil- und Hebetechnik GmbH Dr.-Karl-Lenz-Strasse 66 DE-87700 Memmingen Academy Tel. +49 8331 937-462 E-Mail academy@pfeifer.de Web www.pfeifer.info	Service centre
Austria	PFEIFER Seil- und Hebetechnik GmbH Harterfeldweg 2 AT-4481 Asten Tel. +43 7224 662 24-0 Fax +43 7224 662 24-13 E-Mail info@pfeifer-austria.at Web www.pfeifer-austria.at	Sales subsidiary
France	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +33 676 54 42 68 / +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Luxemburg	PFEIFER SOGEQUIP S.à.r.l. Zone Ind. Schifflange-Foetz LU-3844 Schifflange Tel. +352 57 42-42 Fax +352 57 42-62 E-Mail info@pfeifer-sogequip.lu Web www.pfeifer-sogequip.lu	Sales subsidiary
Poland	PFEIFER Technika Linowa i Dźwigowa Sp. z o.o. ul. Wrocławska 68 55-330 Krępice k/Wrocławia Tel. +48 71 30 23 700 E-Mail info@pfeifer.pl Web www.pfeifer.pl	Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

E-Mail

verkauf-azs@pfeifer.de

Inquiry

please leave empty!

Mr Mrs

* Required fields

Send me a copy.

I consent to my data being processed in accordance with the data protection declaration.

heavy load round sling
Lighter than conventional XXL round slings
Core made of high-performance HMPE fibres
particularly resistant thanks to special coating
Protected label
Extremely long service life

Polytex® round sling XXL-Compact

Operating temperature

Standard

Marking

Protective sleeve

Safety factor

Material

Options on request

Applications

Application table

Original operating manual

Poster

Feel free to contact us

Tel.

E-Mail

Inquiry

Cookie settings

Required cookies

Functional cookies
