Polytex® round sling Hi-Tex

Polytex® round sling Hi-Tex
Round sling with impregnated premium polyester sleeve in herringbone weave for maximum stresses. As soon as the woven-in, coloured wear indicator on the surface of the protective sleeve is exposed, it is necessary to intensify monitoring of the damaged zones for the discarding time of the round sling.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Imprinted working load limit
  • woven tonnage stripes
  • Protected label

Protective sleeve

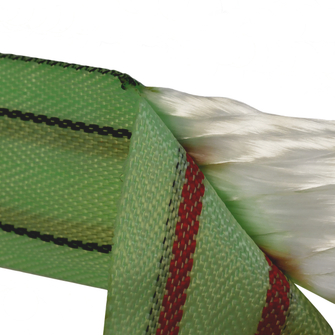

  • Impregnated premium polyester coat, low wear with closed surface thanks to herringbone weave for maximum durability

Safety factor

  • 7

Material

  • High-tensile polyester fibres
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details
  • 1000
    800
    2000
    1
    473573

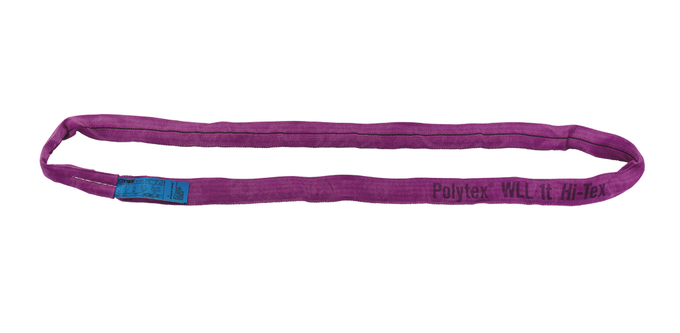

    RSL HTX-1T-1M-VI
    Reference no. 473573
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.34
  • 1000
    800
    2000
    1.5
    473574
    RSL HTX-1T-1.5M-VI
    Reference no. 473574
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.51
  • 1000
    800
    2000
    2
    473575
    RSL HTX-1T-2M-VI
    Reference no. 473575
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.68
  • 1000
    800
    2000
    3
    473576
    RSL HTX-1T-3M-VI
    Reference no. 473576
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.02
  • 1000
    800
    2000
    4
    515379
    RSL HTX-1T-4M-VI
    Reference no. 515379
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.36
  • 1000
    800
    2000
    5
    701225
    RSL HTX-1T-5M-VI
    Reference no. 701225
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.7
  • 1000
    800
    2000
    6
    701228
    RSL HTX-1T-6M-VI
    Reference no. 701228
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 2.04
  • 2000
    1600
    4000
    1
    473577

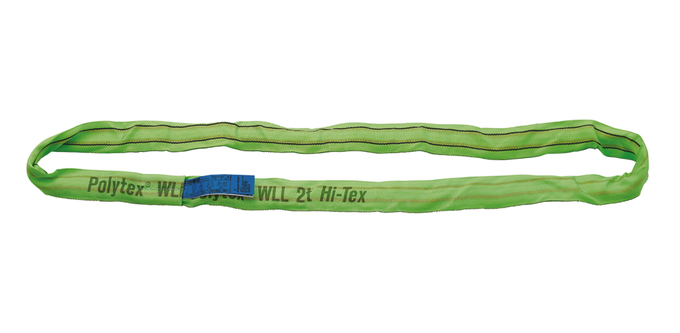

    RSL HTX-2T-1M-GN
    Reference no. 473577
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.55
  • 2000
    1600
    4000
    1.5
    473578
    RSL HTX-2T-1.5M-GN
    Reference no. 473578
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.825
  • 2000
    1600
    4000
    2
    473579
    RSL HTX-2T-2M-GN
    Reference no. 473579
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.1
  • 2000
    1600
    4000
    3
    473580
    RSL HTX-2T-3M-GN
    Reference no. 473580
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.65
  • 2000
    1600
    4000
    4
    473581
    RSL HTX-2T-4M-GN
    Reference no. 473581
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.2
  • 2000
    1600
    4000
    5
    515382
    RSL HTX-2T-5M-GN
    Reference no. 515382
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.75
  • 2000
    1600
    4000
    6
    701230
    RSL HTX-2T-6M-GN
    Reference no. 701230
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 3.3
  • 3000
    2400
    6000
    1
    473582
    RSL HTX-3T-1M-YE
    Reference no. 473582
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.8
  • 3000
    2400
    6000
    1.5
    473583
    RSL HTX-3T-1.5M-YE
    Reference no. 473583
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.2
  • 3000
    2400
    6000
    2
    473584
    RSL HTX-3T-2M-YE
    Reference no. 473584
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.6
  • 3000
    2400
    6000
    3
    473585
    RSL HTX-3T-3M-YE
    Reference no. 473585
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 2.4
  • 3000
    2400
    6000
    4
    473586
    RSL HTX-3T-4M-YE
    Reference no. 473586
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3.2
  • 3000
    2400
    6000
    5
    515388
    RSL HTX-3T-5M-YE
    Reference no. 515388
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 4
  • 3000
    2400
    6000
    6
    515389
    RSL HTX-3T-6M-YE
    Reference no. 515389
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 4.8
  • 4000
    3200
    8000
    1
    515390

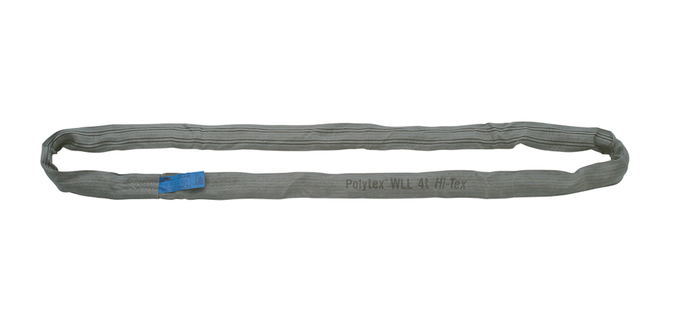

    RSL HTX-4T-1M-GR
    Reference no. 515390
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 1.04
  • 4000
    3200
    8000
    1.5
    473587
    RSL HTX-4T-1.5M-GR
    Reference no. 473587
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 1.56
  • 4000
    3200
    8000
    2
    473588
    RSL HTX-4T-2M-GR
    Reference no. 473588
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 2.08
  • 4000
    3200
    8000
    3
    473589
    RSL HTX-4T-3M-GR
    Reference no. 473589
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 3.12
  • 4000
    3200
    8000
    4
    473590
    RSL HTX-4T-4M-GR
    Reference no. 473590
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 4.16
  • 4000
    3200
    8000
    5
    515392
    RSL HTX-4T-5M-GR
    Reference no. 515392
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 5.2
  • 4000
    3200
    8000
    6
    515393
    RSL HTX-4T-6M-GR
    Reference no. 515393
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 6.24
  • 5000
    4000
    10000
    1
    515394

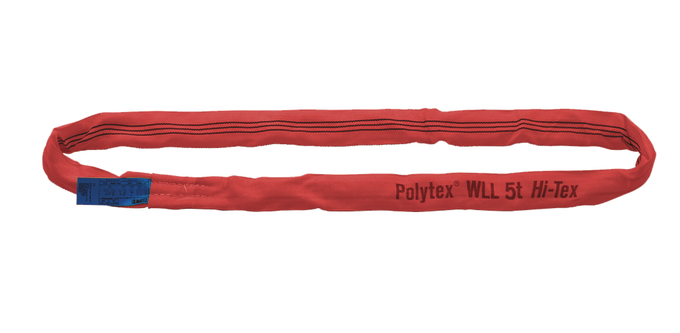

    RSL HTX-5T-1M-RD
    Reference no. 515394
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 1.3
  • 5000
    4000
    10000
    1.5
    515395
    RSL HTX-5T-1.5M-RD
    Reference no. 515395
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 1.95
  • 5000
    4000
    10000
    2
    515396
    RSL HTX-5T-2M-RD
    Reference no. 515396
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 2.6
  • 5000
    4000
    10000
    3
    515397
    RSL HTX-5T-3M-RD
    Reference no. 515397
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 3.9
  • 5000
    4000
    10000
    4
    473591
    RSL HTX-5T-4M-RD
    Reference no. 473591
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 5.2
  • 5000
    4000
    10000
    5
    515398
    RSL HTX-5T-5M-RD
    Reference no. 515398
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 6.5
  • 5000
    4000
    10000
    6
    515399
    RSL HTX-5T-6M-RD
    Reference no. 515399
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour orange
    Weight approx. [kg] 7.8
  • 6000
    4800
    12000
    1
    515400

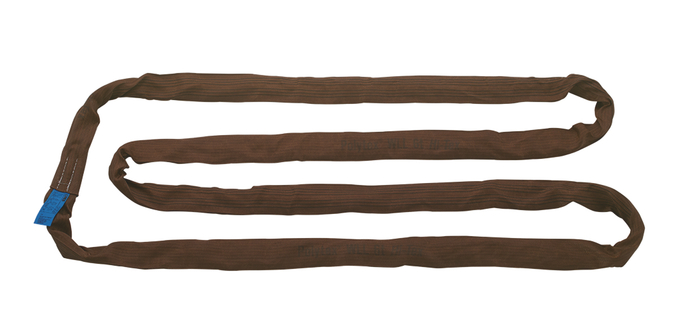

    RSL HTX-6T-1M-BR
    Reference no. 515400
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 1.5
  • 6000
    4800
    12000
    1.5
    701234
    RSL HTX-6T-1.5M
    Reference no. 701234
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 2.25
  • 6000
    4800
    12000
    2
    515402
    RSL HTX-6T-2M-BR
    Reference no. 515402
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 3
  • 6000
    4800
    12000
    3
    485094
    RSL HTX-6T-3M-BR
    Reference no. 485094
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 4.5
  • 6000
    4800
    12000
    4
    485095
    RSL HTX-6T-4M-BR
    Reference no. 485095
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 6
  • 6000
    4800
    12000
    5
    515404
    RSL HTX-6T-5M-BR
    Reference no. 515404
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 7.5
  • 6000
    4800
    12000
    6
    485096
    RSL HTX-6T-6M-BR
    Reference no. 485096
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 9
  • 8000
    6400
    16000
    1
    701237

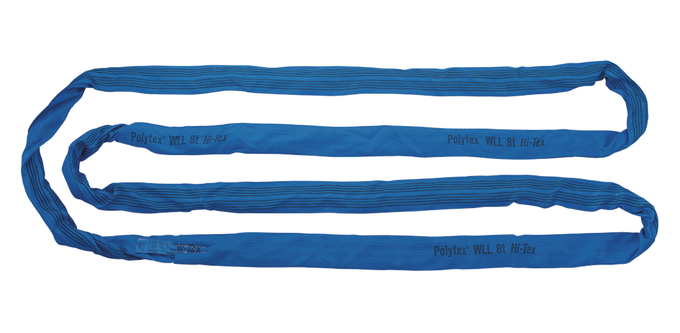

    RSL HTX-8T-1M-BL
    Reference no. 701237
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 2.1
  • 8000
    6400
    16000
    1.5
    515405
    RSL HTX-8T-1.5M-BL
    Reference no. 515405
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 3.15
  • 8000
    6400
    16000
    2
    515406
    RSL HTX-8T-2M-BL
    Reference no. 515406
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 4.2
  • 8000
    6400
    16000
    3
    516152
    RSL HTX-8T-3M-BL
    Reference no. 516152
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 6.3
  • 8000
    6400
    16000
    4
    473592
    RSL HTX-8T-4M-BL
    Reference no. 473592
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 8.4
  • 8000
    6400
    16000
    5
    515407
    RSL HTX-8T-5M-BL
    Reference no. 515407
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 10.5
  • 8000
    6400
    16000
    6
    473593
    RSL HTX-8T-6M-BL
    Reference no. 473593
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 12.6
  • 10000
    8000
    20000
    1
    701243

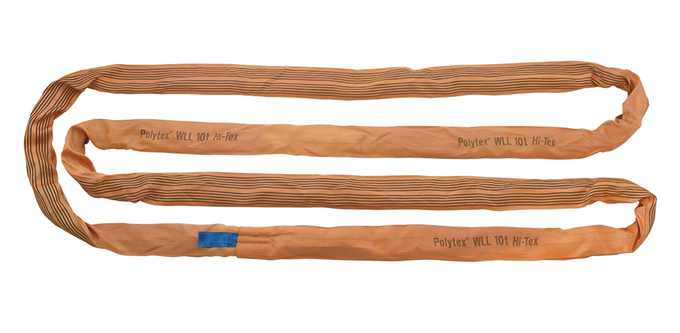

    RSL HTX-10T-1M
    Reference no. 701243
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 2.7
  • 10000
    8000
    20000
    1.5
    515409
    RSL HTX-10T-1.5M-OR
    Reference no. 515409
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 4.05
  • 10000
    8000
    20000
    2
    515410
    RSL HTX-10T-2M-OR
    Reference no. 515410
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 5.4
  • 10000
    8000
    20000
    3
    515411
    RSL HTX-10T-3M-OR
    Reference no. 515411
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 6.445
  • 10000
    8000
    20000
    4
    473594
    RSL HTX-10T-4M-OR
    Reference no. 473594
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 10.8
  • 10000
    8000
    20000
    5
    515412
    RSL HTX-10T-5M-OR
    Reference no. 515412
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 13.5
  • 10000
    8000
    20000
    6
    515413
    RSL HTX-10T-6M-OR
    Reference no. 515413
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 16.2
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1
Reference no. 473573
  • Details
    RSL HTX-1T-1M-VI
    Reference no. 473573
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.34
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 1.5
Reference no. 473574
  • Details
    RSL HTX-1T-1.5M-VI
    Reference no. 473574
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.51
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 2
Reference no. 473575
  • Details
    RSL HTX-1T-2M-VI
    Reference no. 473575
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 2
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 0.68
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 3
Reference no. 473576
  • Details
    RSL HTX-1T-3M-VI
    Reference no. 473576
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 3
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.02
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 4
Reference no. 515379
  • Details
    RSL HTX-1T-4M-VI
    Reference no. 515379
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 4
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.36
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 5
Reference no. 701225
  • Details
    RSL HTX-1T-5M-VI
    Reference no. 701225
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 5
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 1.7
Working load limit 0° [kg] 1000
Working load limit laced [kg] 800
Wrap around working load limit [kg] 2000
Effective length WLL [m] 6
Reference no. 701228
  • Details
    RSL HTX-1T-6M-VI
    Reference no. 701228
    Working load limit 0° [kg] 1000
    Working load limit laced [kg] 800
    Wrap around working load limit [kg] 2000
    Effective length WLL [m] 6
    Contact width under load [mm] 40
    Textile thickness at optimum support surface approx. [mm] 4
    Colour violet
    Weight approx. [kg] 2.04
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1
Reference no. 473577
  • Details
    RSL HTX-2T-1M-GN
    Reference no. 473577
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.55
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 1.5
Reference no. 473578
  • Details
    RSL HTX-2T-1.5M-GN
    Reference no. 473578
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 0.825
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 2
Reference no. 473579
  • Details
    RSL HTX-2T-2M-GN
    Reference no. 473579
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 2
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.1
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 3
Reference no. 473580
  • Details
    RSL HTX-2T-3M-GN
    Reference no. 473580
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 3
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 1.65
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 4
Reference no. 473581
  • Details
    RSL HTX-2T-4M-GN
    Reference no. 473581
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 4
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.2
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 5
Reference no. 515382
  • Details
    RSL HTX-2T-5M-GN
    Reference no. 515382
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 5
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 2.75
Working load limit 0° [kg] 2000
Working load limit laced [kg] 1600
Wrap around working load limit [kg] 4000
Effective length WLL [m] 6
Reference no. 701230
  • Details
    RSL HTX-2T-6M-GN
    Reference no. 701230
    Working load limit 0° [kg] 2000
    Working load limit laced [kg] 1600
    Wrap around working load limit [kg] 4000
    Effective length WLL [m] 6
    Contact width under load [mm] 45
    Textile thickness at optimum support surface approx. [mm] 5
    Colour green
    Weight approx. [kg] 3.3
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1
Reference no. 473582
  • Details
    RSL HTX-3T-1M-YE
    Reference no. 473582
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 0.8
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 1.5
Reference no. 473583
  • Details
    RSL HTX-3T-1.5M-YE
    Reference no. 473583
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.2
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 2
Reference no. 473584
  • Details
    RSL HTX-3T-2M-YE
    Reference no. 473584
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 2
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 1.6
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 3
Reference no. 473585
  • Details
    RSL HTX-3T-3M-YE
    Reference no. 473585
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 3
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 2.4
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 4
Reference no. 473586
  • Details
    RSL HTX-3T-4M-YE
    Reference no. 473586
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 4
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 3.2
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 5
Reference no. 515388
  • Details
    RSL HTX-3T-5M-YE
    Reference no. 515388
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 5
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 4
Working load limit 0° [kg] 3000
Working load limit laced [kg] 2400
Wrap around working load limit [kg] 6000
Effective length WLL [m] 6
Reference no. 515389
  • Details
    RSL HTX-3T-6M-YE
    Reference no. 515389
    Working load limit 0° [kg] 3000
    Working load limit laced [kg] 2400
    Wrap around working load limit [kg] 6000
    Effective length WLL [m] 6
    Contact width under load [mm] 60
    Textile thickness at optimum support surface approx. [mm] 7
    Colour yellow
    Weight approx. [kg] 4.8
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1
Reference no. 515390
  • Details
    RSL HTX-4T-1M-GR
    Reference no. 515390
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 1.04
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 1.5
Reference no. 473587
  • Details
    RSL HTX-4T-1.5M-GR
    Reference no. 473587
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 1.56
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 2
Reference no. 473588
  • Details
    RSL HTX-4T-2M-GR
    Reference no. 473588
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 2
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 2.08
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 3
Reference no. 473589
  • Details
    RSL HTX-4T-3M-GR
    Reference no. 473589
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 3
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 3.12
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 4
Reference no. 473590
  • Details
    RSL HTX-4T-4M-GR
    Reference no. 473590
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 4
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 4.16
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 5
Reference no. 515392
  • Details
    RSL HTX-4T-5M-GR
    Reference no. 515392
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 5
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 5.2
Working load limit 0° [kg] 4000
Working load limit laced [kg] 3200
Wrap around working load limit [kg] 8000
Effective length WLL [m] 6
Reference no. 515393
  • Details
    RSL HTX-4T-6M-GR
    Reference no. 515393
    Working load limit 0° [kg] 4000
    Working load limit laced [kg] 3200
    Wrap around working load limit [kg] 8000
    Effective length WLL [m] 6
    Contact width under load [mm] 65
    Textile thickness at optimum support surface approx. [mm] 7
    Colour grey
    Weight approx. [kg] 6.24
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1
Reference no. 515394
  • Details
    RSL HTX-5T-1M-RD
    Reference no. 515394
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 1.3
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 1.5
Reference no. 515395
  • Details
    RSL HTX-5T-1.5M-RD
    Reference no. 515395
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 1.95
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 2
Reference no. 515396
  • Details
    RSL HTX-5T-2M-RD
    Reference no. 515396
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 2
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 2.6
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 3
Reference no. 515397
  • Details
    RSL HTX-5T-3M-RD
    Reference no. 515397
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 3
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 3.9
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 4
Reference no. 473591
  • Details
    RSL HTX-5T-4M-RD
    Reference no. 473591
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 4
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 5.2
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 5
Reference no. 515398
  • Details
    RSL HTX-5T-5M-RD
    Reference no. 515398
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 5
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour red
    Weight approx. [kg] 6.5
Working load limit 0° [kg] 5000
Working load limit laced [kg] 4000
Wrap around working load limit [kg] 10000
Effective length WLL [m] 6
Reference no. 515399
  • Details
    RSL HTX-5T-6M-RD
    Reference no. 515399
    Working load limit 0° [kg] 5000
    Working load limit laced [kg] 4000
    Wrap around working load limit [kg] 10000
    Effective length WLL [m] 6
    Contact width under load [mm] 70
    Textile thickness at optimum support surface approx. [mm] 8
    Colour orange
    Weight approx. [kg] 7.8
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 1
Reference no. 515400
  • Details
    RSL HTX-6T-1M-BR
    Reference no. 515400
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 1.5
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 1.5
Reference no. 701234
  • Details
    RSL HTX-6T-1.5M
    Reference no. 701234
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 2.25
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 2
Reference no. 515402
  • Details
    RSL HTX-6T-2M-BR
    Reference no. 515402
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 2
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 3
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 3
Reference no. 485094
  • Details
    RSL HTX-6T-3M-BR
    Reference no. 485094
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 3
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 4.5
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 4
Reference no. 485095
  • Details
    RSL HTX-6T-4M-BR
    Reference no. 485095
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 4
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 6
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 5
Reference no. 515404
  • Details
    RSL HTX-6T-5M-BR
    Reference no. 515404
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 5
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 7.5
Working load limit 0° [kg] 6000
Working load limit laced [kg] 4800
Wrap around working load limit [kg] 12000
Effective length WLL [m] 6
Reference no. 485096
  • Details
    RSL HTX-6T-6M-BR
    Reference no. 485096
    Working load limit 0° [kg] 6000
    Working load limit laced [kg] 4800
    Wrap around working load limit [kg] 12000
    Effective length WLL [m] 6
    Contact width under load [mm] 75
    Textile thickness at optimum support surface approx. [mm] 9
    Colour brown
    Weight approx. [kg] 9
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 1
Reference no. 701237
  • Details
    RSL HTX-8T-1M-BL
    Reference no. 701237
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 2.1
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 1.5
Reference no. 515405
  • Details
    RSL HTX-8T-1.5M-BL
    Reference no. 515405
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 3.15
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 2
Reference no. 515406
  • Details
    RSL HTX-8T-2M-BL
    Reference no. 515406
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 2
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 4.2
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 3
Reference no. 516152
  • Details
    RSL HTX-8T-3M-BL
    Reference no. 516152
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 3
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 6.3
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 4
Reference no. 473592
  • Details
    RSL HTX-8T-4M-BL
    Reference no. 473592
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 4
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 8.4
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 5
Reference no. 515407
  • Details
    RSL HTX-8T-5M-BL
    Reference no. 515407
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 5
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 10.5
Working load limit 0° [kg] 8000
Working load limit laced [kg] 6400
Wrap around working load limit [kg] 16000
Effective length WLL [m] 6
Reference no. 473593
  • Details
    RSL HTX-8T-6M-BL
    Reference no. 473593
    Working load limit 0° [kg] 8000
    Working load limit laced [kg] 6400
    Wrap around working load limit [kg] 16000
    Effective length WLL [m] 6
    Contact width under load [mm] 95
    Textile thickness at optimum support surface approx. [mm] 11
    Colour blue
    Weight approx. [kg] 12.6
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 1
Reference no. 701243
  • Details
    RSL HTX-10T-1M
    Reference no. 701243
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 2.7
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 1.5
Reference no. 515409
  • Details
    RSL HTX-10T-1.5M-OR
    Reference no. 515409
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 1.5
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 4.05
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 2
Reference no. 515410
  • Details
    RSL HTX-10T-2M-OR
    Reference no. 515410
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 2
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 5.4
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 3
Reference no. 515411
  • Details
    RSL HTX-10T-3M-OR
    Reference no. 515411
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 3
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 6.445
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 4
Reference no. 473594
  • Details
    RSL HTX-10T-4M-OR
    Reference no. 473594
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 4
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 10.8
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 5
Reference no. 515412
  • Details
    RSL HTX-10T-5M-OR
    Reference no. 515412
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 5
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 13.5
Working load limit 0° [kg] 10000
Working load limit laced [kg] 8000
Wrap around working load limit [kg] 20000
Effective length WLL [m] 6
Reference no. 515413
  • Details
    RSL HTX-10T-6M-OR
    Reference no. 515413
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit [kg] 20000
    Effective length WLL [m] 6
    Contact width under load [mm] 116
    Textile thickness at optimum support surface approx. [mm] 12
    Colour orange
    Weight approx. [kg] 16.2
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
