Polytex® round sling XXL

Polytex® round sling XXL
High-performance heavy load round sling with impregnated, particularly resistant protective sleeve with raised rib structure.
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Imprinted working load limit
  • Protected label

Protective sleeve

  • Premium impregnated polyester coat with specially woven rib structure

Safety factor

  • 7

Material

  • High-tensile polyester fibres
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit [kg]
Effective length WLL [m]
Reference no.
Details
  • 15000
    12000
    30000
    2
    494466

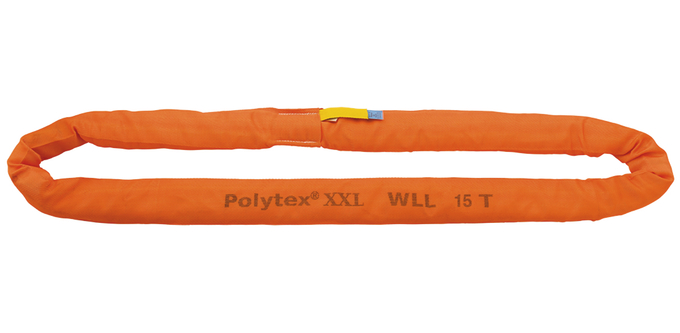

    RSL XXL-15T-2M-OR
    Reference no. 494466
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 2
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 7
  • 15000
    12000
    30000
    3
    494467
    RSL XXL-15T-3M-OR
    Reference no. 494467
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 3
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 10.4
  • 15000
    12000
    30000
    4
    494468
    RSL XXL-15T-4M-OR
    Reference no. 494468
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 4
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 13.8
  • 15000
    12000
    30000
    5
    515592
    RSL XXL-15T-5M-OR
    Reference no. 515592
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 17.2
  • 15000
    12000
    30000
    6
    494469
    RSL XXL-15T-6M-OR
    Reference no. 494469
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 6
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 20.6
  • 15000
    12000
    30000
    8
    494470
    RSL XXL-15T-8M-OR
    Reference no. 494470
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 8
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 27.4
  • 15000
    12000
    30000
    10
    494471
    RSL XXL-15T-10M-OR
    Reference no. 494471
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 10
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 34.2
  • 15000
    12000
    30000
    12
    494472
    RSL XXL-15T-12M-OR
    Reference no. 494472
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 12
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 41
  • 20000
    16000
    40000
    2
    494473
    RSL XXL-20T-2M-OR
    Reference no. 494473
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 2
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 9
  • 20000
    16000
    40000
    3
    494474
    RSL XXL-20T-3M-OR
    Reference no. 494474
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 3
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 13.4
  • 20000
    16000
    40000
    4
    494475
    RSL XXL-20T-4M-OR
    Reference no. 494475
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 4
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 17.8
  • 20000
    16000
    40000
    5
    515594
    RSL XXL-20T-5M-OR
    Reference no. 515594
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 5
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 22.2
  • 20000
    16000
    40000
    6
    494476
    RSL XXL-20T-6M-OR
    Reference no. 494476
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 6
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 26.6
  • 20000
    16000
    40000
    8
    494477
    RSL XXL-20T-8M-OR
    Reference no. 494477
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 8
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 35.4
  • 20000
    16000
    40000
    10
    494478
    RSL XXL-20T-10M-OR
    Reference no. 494478
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 10
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 44.2
  • 20000
    16000
    40000
    12
    494479
    RSL XXL-20T-12M-OR
    Reference no. 494479
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 12
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 53
  • 25000
    20000
    50000
    2
    494480

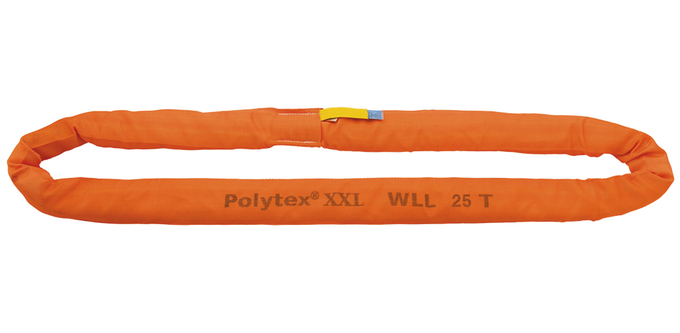

    RSL XXL-25T-2M-OR
    Reference no. 494480
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 2
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 11.8
  • 25000
    20000
    50000
    3
    494481
    RSL XXL-25T-3M-OR
    Reference no. 494481
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 3
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 17.6
  • 25000
    20000
    50000
    4
    494482
    RSL XXL-25T-4M-OR
    Reference no. 494482
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 4
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 23.4
  • 25000
    20000
    50000
    5
    702553
    RSL XXL-25T-5M-OR
    Reference no. 702553
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 5
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Weight approx. [kg] 29.25
  • 25000
    20000
    50000
    6
    494483
    RSL XXL-25T-6M-OR
    Reference no. 494483
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 6
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 35
  • 25000
    20000
    50000
    8
    494484
    RSL XXL-25T-8M-OR
    Reference no. 494484
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 8
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 46.6
  • 25000
    20000
    50000
    10
    494485
    RSL XXL-25T-10M-OR
    Reference no. 494485
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 10
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 58.2
  • 25000
    20000
    50000
    12
    494486
    RSL XXL-25T-12M-OR
    Reference no. 494486
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 12
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 69.8
  • 30000
    24000
    60000
    2
    494487
    RSL XXL-30T-2M-OR
    Reference no. 494487
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 2
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 12.8
  • 30000
    24000
    60000
    3
    494488
    RSL XXL-30T-3M-OR
    Reference no. 494488
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 3
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 19.1
  • 30000
    24000
    60000
    4
    494489
    RSL XXL-30T-4M-OR
    Reference no. 494489
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 4
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 25.4
  • 30000
    24000
    60000
    5
    515598
    RSL XXL-30T-5M-OR
    Reference no. 515598
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 5
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 31.7
  • 30000
    24000
    60000
    6
    494490
    RSL XXL-30T-6M-OR
    Reference no. 494490
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 6
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 38
  • 30000
    24000
    60000
    8
    494491
    RSL XXL-30T-8M-OR
    Reference no. 494491
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 8
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 50.6
  • 30000
    24000
    60000
    10
    494492
    RSL XXL-30T-10M-OR
    Reference no. 494492
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 10
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 63.2
  • 30000
    24000
    60000
    12
    494493
    RSL XXL-30T-12M-OR
    Reference no. 494493
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 12
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 75.8
  • 40000
    32000
    80000
    2
    494494
    RSL XXL-40T-2M-OR
    Reference no. 494494
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 2
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 17.1
  • 40000
    32000
    80000
    3
    494495
    RSL XXL-40T-3M-OR
    Reference no. 494495
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 3
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 25.5
  • 40000
    32000
    80000
    4
    494496
    RSL XXL-40T-4M-OR
    Reference no. 494496
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 4
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 33.9
  • 40000
    32000
    80000
    5
    706025
    RSL XXL-40T-5M-OR
    Reference no. 706025
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 5
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Weight approx. [kg] 42.3
  • 40000
    32000
    80000
    6
    494497
    RSL XXL-40T-6M-OR
    Reference no. 494497
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 6
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 50.7
  • 40000
    32000
    80000
    8
    494498
    RSL XXL-40T-8M-OR
    Reference no. 494498
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 8
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 67.5
  • 40000
    32000
    80000
    10
    494499
    RSL XXL-40T-10M-OR
    Reference no. 494499
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 10
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 84.3
  • 40000
    32000
    80000
    12
    494500
    RSL XXL-40T-12M-OR
    Reference no. 494500
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 12
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 101.1
  • 50000
    40000
    100000
    2
    494501
    RSL XXL-50T-2M-OR
    Reference no. 494501
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 2
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 22.6
  • 50000
    40000
    100000
    3
    494502
    RSL XXL-50T-3M-OR
    Reference no. 494502
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 3
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 33.7
  • 50000
    40000
    100000
    4
    494503
    RSL XXL-50T-4M-OR
    Reference no. 494503
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 4
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 44.8
  • 50000
    40000
    100000
    5
    707871
    RSL XXL-50T-5M-OR
    Reference no. 707871
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 5
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Weight approx. [kg] 28
  • 50000
    40000
    100000
    6
    494504
    RSL XXL-50T-6M-OR
    Reference no. 494504
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 6
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 67
  • 50000
    40000
    100000
    8
    494505
    RSL XXL-50T-8M-OR
    Reference no. 494505
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 8
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 89.2
  • 50000
    40000
    100000
    10
    494506
    RSL XXL-50T-10M-OR
    Reference no. 494506
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 10
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 111.4
  • 50000
    40000
    100000
    12
    494507
    RSL XXL-50T-12M-OR
    Reference no. 494507
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 12
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 133.6
  • 60000
    48000
    120000
    2
    494564
    RSL XXL-60T-2M-OR
    Reference no. 494564
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 2
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 27
  • 60000
    48000
    120000
    3
    494565
    RSL XXL-60T-3M-OR
    Reference no. 494565
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 3
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 40.3
  • 60000
    48000
    120000
    4
    494566
    RSL XXL-60T-4M-OR
    Reference no. 494566
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 4
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 53.6
  • 60000
    48000
    120000
    5
    709822
    RSL XXL-60T-5M-OR-I
    Reference no. 709822
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 5
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 67.9
  • 60000
    48000
    120000
    6
    712018
    RSL XXL-60T-6M-OR
    Reference no. 712018
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 6
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 80
  • 60000
    48000
    120000
    8
    494567
    RSL XXL-60T-8M-OR
    Reference no. 494567
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 8
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 106.8
  • 60000
    48000
    120000
    10
    494568
    RSL XXL-60T-10M-OR
    Reference no. 494568
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 10
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 133.4
  • 60000
    48000
    120000
    12
    494569
    RSL XXL-60T-12M-OR
    Reference no. 494569
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 12
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 160
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 2
Reference no. 494466
  • Details
    RSL XXL-15T-2M-OR
    Reference no. 494466
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 2
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 7
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 3
Reference no. 494467
  • Details
    RSL XXL-15T-3M-OR
    Reference no. 494467
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 3
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 10.4
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 4
Reference no. 494468
  • Details
    RSL XXL-15T-4M-OR
    Reference no. 494468
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 4
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 13.8
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 5
Reference no. 515592
  • Details
    RSL XXL-15T-5M-OR
    Reference no. 515592
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 5
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 17.2
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 6
Reference no. 494469
  • Details
    RSL XXL-15T-6M-OR
    Reference no. 494469
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 6
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 20.6
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 8
Reference no. 494470
  • Details
    RSL XXL-15T-8M-OR
    Reference no. 494470
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 8
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 27.4
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 10
Reference no. 494471
  • Details
    RSL XXL-15T-10M-OR
    Reference no. 494471
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 10
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 34.2
Working load limit 0° [kg] 15000
Working load limit laced [kg] 12000
Wrap around working load limit [kg] 30000
Effective length WLL [m] 12
Reference no. 494472
  • Details
    RSL XXL-15T-12M-OR
    Reference no. 494472
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit [kg] 30000
    Effective length WLL [m] 12
    Contact width under load [mm] 90
    Textile thickness at optimum support surface approx. [mm] 20
    Colour orange
    Weight approx. [kg] 41
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 2
Reference no. 494473
  • Details
    RSL XXL-20T-2M-OR
    Reference no. 494473
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 2
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 9
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 3
Reference no. 494474
  • Details
    RSL XXL-20T-3M-OR
    Reference no. 494474
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 3
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 13.4
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 4
Reference no. 494475
  • Details
    RSL XXL-20T-4M-OR
    Reference no. 494475
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 4
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 17.8
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 5
Reference no. 515594
  • Details
    RSL XXL-20T-5M-OR
    Reference no. 515594
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 5
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 22.2
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 6
Reference no. 494476
  • Details
    RSL XXL-20T-6M-OR
    Reference no. 494476
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 6
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 26.6
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 8
Reference no. 494477
  • Details
    RSL XXL-20T-8M-OR
    Reference no. 494477
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 8
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 35.4
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 10
Reference no. 494478
  • Details
    RSL XXL-20T-10M-OR
    Reference no. 494478
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 10
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 44.2
Working load limit 0° [kg] 20000
Working load limit laced [kg] 16000
Wrap around working load limit [kg] 40000
Effective length WLL [m] 12
Reference no. 494479
  • Details
    RSL XXL-20T-12M-OR
    Reference no. 494479
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit [kg] 40000
    Effective length WLL [m] 12
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 23
    Colour orange
    Weight approx. [kg] 53
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 2
Reference no. 494480
  • Details
    RSL XXL-25T-2M-OR
    Reference no. 494480
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 2
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 11.8
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 3
Reference no. 494481
  • Details
    RSL XXL-25T-3M-OR
    Reference no. 494481
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 3
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 17.6
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 4
Reference no. 494482
  • Details
    RSL XXL-25T-4M-OR
    Reference no. 494482
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 4
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 23.4
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 5
Reference no. 702553
  • Details
    RSL XXL-25T-5M-OR
    Reference no. 702553
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 5
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Weight approx. [kg] 29.25
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 6
Reference no. 494483
  • Details
    RSL XXL-25T-6M-OR
    Reference no. 494483
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 6
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 35
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 8
Reference no. 494484
  • Details
    RSL XXL-25T-8M-OR
    Reference no. 494484
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 8
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 46.6
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 10
Reference no. 494485
  • Details
    RSL XXL-25T-10M-OR
    Reference no. 494485
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 10
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 58.2
Working load limit 0° [kg] 25000
Working load limit laced [kg] 20000
Wrap around working load limit [kg] 50000
Effective length WLL [m] 12
Reference no. 494486
  • Details
    RSL XXL-25T-12M-OR
    Reference no. 494486
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit [kg] 50000
    Effective length WLL [m] 12
    Contact width under load [mm] 120
    Textile thickness at optimum support surface approx. [mm] 30
    Colour orange
    Weight approx. [kg] 69.8
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 2
Reference no. 494487
  • Details
    RSL XXL-30T-2M-OR
    Reference no. 494487
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 2
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 12.8
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 3
Reference no. 494488
  • Details
    RSL XXL-30T-3M-OR
    Reference no. 494488
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 3
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 19.1
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 4
Reference no. 494489
  • Details
    RSL XXL-30T-4M-OR
    Reference no. 494489
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 4
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 25.4
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 5
Reference no. 515598
  • Details
    RSL XXL-30T-5M-OR
    Reference no. 515598
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 5
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 31.7
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 6
Reference no. 494490
  • Details
    RSL XXL-30T-6M-OR
    Reference no. 494490
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 6
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 38
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 8
Reference no. 494491
  • Details
    RSL XXL-30T-8M-OR
    Reference no. 494491
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 8
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 50.6
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 10
Reference no. 494492
  • Details
    RSL XXL-30T-10M-OR
    Reference no. 494492
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 10
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 63.2
Working load limit 0° [kg] 30000
Working load limit laced [kg] 24000
Wrap around working load limit [kg] 60000
Effective length WLL [m] 12
Reference no. 494493
  • Details
    RSL XXL-30T-12M-OR
    Reference no. 494493
    Working load limit 0° [kg] 30000
    Working load limit laced [kg] 24000
    Wrap around working load limit [kg] 60000
    Effective length WLL [m] 12
    Contact width under load [mm] 135
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 75.8
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 2
Reference no. 494494
  • Details
    RSL XXL-40T-2M-OR
    Reference no. 494494
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 2
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 17.1
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 3
Reference no. 494495
  • Details
    RSL XXL-40T-3M-OR
    Reference no. 494495
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 3
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 25.5
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 4
Reference no. 494496
  • Details
    RSL XXL-40T-4M-OR
    Reference no. 494496
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 4
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 33.9
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 5
Reference no. 706025
  • Details
    RSL XXL-40T-5M-OR
    Reference no. 706025
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 5
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Weight approx. [kg] 42.3
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 6
Reference no. 494497
  • Details
    RSL XXL-40T-6M-OR
    Reference no. 494497
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 6
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 50.7
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 8
Reference no. 494498
  • Details
    RSL XXL-40T-8M-OR
    Reference no. 494498
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 8
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 67.5
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 10
Reference no. 494499
  • Details
    RSL XXL-40T-10M-OR
    Reference no. 494499
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 10
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 84.3
Working load limit 0° [kg] 40000
Working load limit laced [kg] 32000
Wrap around working load limit [kg] 80000
Effective length WLL [m] 12
Reference no. 494500
  • Details
    RSL XXL-40T-12M-OR
    Reference no. 494500
    Working load limit 0° [kg] 40000
    Working load limit laced [kg] 32000
    Wrap around working load limit [kg] 80000
    Effective length WLL [m] 12
    Contact width under load [mm] 140
    Textile thickness at optimum support surface approx. [mm] 35
    Colour orange
    Weight approx. [kg] 101.1
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 2
Reference no. 494501
  • Details
    RSL XXL-50T-2M-OR
    Reference no. 494501
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 2
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 22.6
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 3
Reference no. 494502
  • Details
    RSL XXL-50T-3M-OR
    Reference no. 494502
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 3
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 33.7
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 4
Reference no. 494503
  • Details
    RSL XXL-50T-4M-OR
    Reference no. 494503
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 4
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 44.8
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 5
Reference no. 707871
  • Details
    RSL XXL-50T-5M-OR
    Reference no. 707871
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 5
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Weight approx. [kg] 28
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 6
Reference no. 494504
  • Details
    RSL XXL-50T-6M-OR
    Reference no. 494504
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 6
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 67
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 8
Reference no. 494505
  • Details
    RSL XXL-50T-8M-OR
    Reference no. 494505
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 8
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 89.2
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 10
Reference no. 494506
  • Details
    RSL XXL-50T-10M-OR
    Reference no. 494506
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 10
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 111.4
Working load limit 0° [kg] 50000
Working load limit laced [kg] 40000
Wrap around working load limit [kg] 100000
Effective length WLL [m] 12
Reference no. 494507
  • Details
    RSL XXL-50T-12M-OR
    Reference no. 494507
    Working load limit 0° [kg] 50000
    Working load limit laced [kg] 40000
    Wrap around working load limit [kg] 100000
    Effective length WLL [m] 12
    Contact width under load [mm] 145
    Textile thickness at optimum support surface approx. [mm] 45
    Colour orange
    Weight approx. [kg] 133.6
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 2
Reference no. 494564
  • Details
    RSL XXL-60T-2M-OR
    Reference no. 494564
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 2
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 27
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 3
Reference no. 494565
  • Details
    RSL XXL-60T-3M-OR
    Reference no. 494565
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 3
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 40.3
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 4
Reference no. 494566
  • Details
    RSL XXL-60T-4M-OR
    Reference no. 494566
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 4
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 53.6
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 5
Reference no. 709822
  • Details
    RSL XXL-60T-5M-OR-I
    Reference no. 709822
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 5
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 67.9
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 6
Reference no. 712018
  • Details
    RSL XXL-60T-6M-OR
    Reference no. 712018
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 6
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 80
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 8
Reference no. 494567
  • Details
    RSL XXL-60T-8M-OR
    Reference no. 494567
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 8
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 106.8
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 10
Reference no. 494568
  • Details
    RSL XXL-60T-10M-OR
    Reference no. 494568
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 10
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 133.4
Working load limit 0° [kg] 60000
Working load limit laced [kg] 48000
Wrap around working load limit [kg] 120000
Effective length WLL [m] 12
Reference no. 494569
  • Details
    RSL XXL-60T-12M-OR
    Reference no. 494569
    Working load limit 0° [kg] 60000
    Working load limit laced [kg] 48000
    Wrap around working load limit [kg] 120000
    Effective length WLL [m] 12
    Contact width under load [mm] 175
    Textile thickness at optimum support surface approx. [mm] 43
    Colour orange
    Weight approx. [kg] 160
Downloads

Applications

Application table

Download

Original operating manual

Download

Poster

"Poster ""Discarding time criteria""" Overview of the discarding time criteria for wire rope slings, lifting straps, round slings and chain slings.
Download
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
