Polytex® round sling Eco-Tex XL

Polytex® round sling Eco-Tex XL
All-round round sling with single-layer protective cover for loads up to 200 t
Technical data

Operating temperature

  • –40 °C to +100 °C

Standard

  • EN 1492-2

Marking

  • Imprinted working load limit
  • Standard label

Protective sleeve

  • single-layer, impregnated polyester sleeve

Safety factor

  • 7

Material

  • High-tensile polyester fibres
Options
  • A selection of the options available on request can be found below. Please contact us for your individual offer!

Options on request

  • further useful lengths and further working load limits
Product variants
Working load limit 0° [kg]
Working load limit laced [kg]
Wrap around working load limit 0–45° [kg]
Effective length WLL [m]
Reference no.
Details

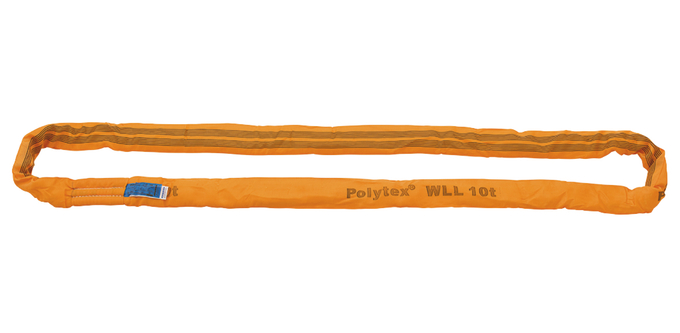

  • 10000
    8000
    20000
    2
    473696
    RSL ETX-10T-2M-OR
    Reference no. 473696
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit 0–45° [kg] 20000
    Effective length WLL [m] 2
    Colour orange
    Weight approx. [kg] 4.04
  • 10000
    8000
    20000
    4
    473697
    RSL ETX-10T-4M-OR
    Reference no. 473697
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit 0–45° [kg] 20000
    Effective length WLL [m] 4
    Colour orange
    Weight approx. [kg] 8.04
  • 10000
    8000
    20000
    6
    375130
    RSL ETX-10T-6M-OR
    Reference no. 375130
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit 0–45° [kg] 20000
    Effective length WLL [m] 6
    Colour orange
    Weight approx. [kg] 12.04
  • 10000
    8000
    20000
    8
    473698
    RSL ETX-10T-8M-OR
    Reference no. 473698
    Working load limit 0° [kg] 10000
    Working load limit laced [kg] 8000
    Wrap around working load limit 0–45° [kg] 20000
    Effective length WLL [m] 8
    Colour orange
    Weight approx. [kg] 16.03

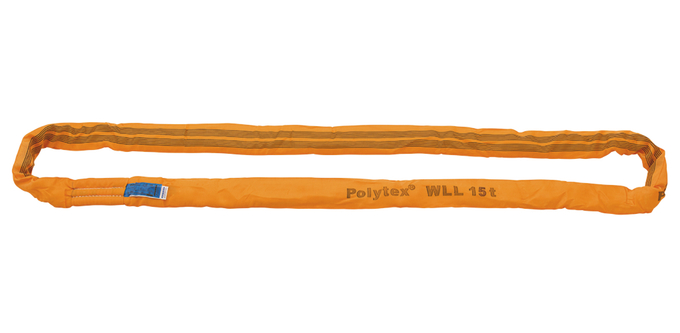

  • 15000
    12000
    30000
    2
    473699
    RSL ETX-15T-2M-OR
    Reference no. 473699
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit 0–45° [kg] 30000
    Effective length WLL [m] 2
    Colour orange
    Weight approx. [kg] 5.75
  • 15000
    12000
    30000
    4
    473700
    RSL ETX-15T-4M-OR
    Reference no. 473700
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit 0–45° [kg] 30000
    Effective length WLL [m] 4
    Colour orange
    Weight approx. [kg] 11.45
  • 15000
    12000
    30000
    6
    376636
    RSL ETX-15T-6M-OR
    Reference no. 376636
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit 0–45° [kg] 30000
    Effective length WLL [m] 6
    Colour orange
    Weight approx. [kg] 17.14
  • 15000
    12000
    30000
    8
    473701
    RSL ETX-15T-8M-OR
    Reference no. 473701
    Working load limit 0° [kg] 15000
    Working load limit laced [kg] 12000
    Wrap around working load limit 0–45° [kg] 30000
    Effective length WLL [m] 8
    Colour orange
    Weight approx. [kg] 22.85

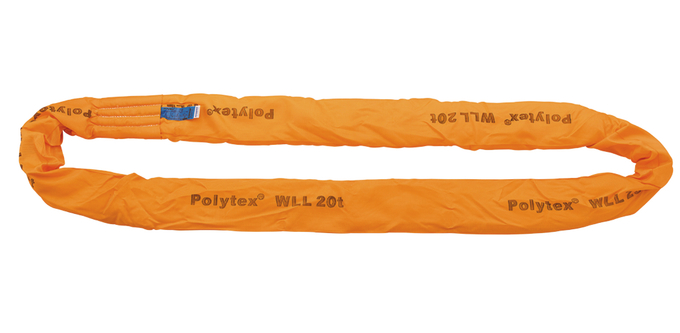

  • 20000
    16000
    40000
    2
    473702
    RSL ETX-20T-2M-OR
    Reference no. 473702
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit 0–45° [kg] 40000
    Effective length WLL [m] 2
    Colour orange
    Weight approx. [kg] 7.8
  • 20000
    16000
    40000
    4
    473703
    RSL ETX-20T-4M-OR
    Reference no. 473703
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit 0–45° [kg] 40000
    Effective length WLL [m] 4
    Colour orange
    Weight approx. [kg] 15.54
  • 20000
    16000
    40000
    6
    473704
    RSL ETX-20T-6M-OR
    Reference no. 473704
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit 0–45° [kg] 40000
    Effective length WLL [m] 6
    Colour orange
    Weight approx. [kg] 23.27
  • 20000
    16000
    40000
    8
    473705
    RSL ETX-20T-8M-OR
    Reference no. 473705
    Working load limit 0° [kg] 20000
    Working load limit laced [kg] 16000
    Wrap around working load limit 0–45° [kg] 40000
    Effective length WLL [m] 8
    Colour orange
    Weight approx. [kg] 31.01

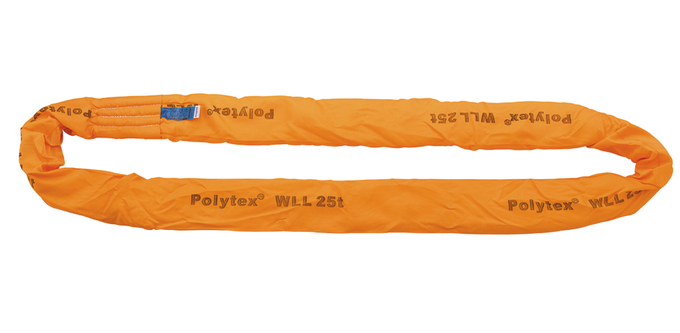

  • 25000
    20000
    50000
    2
    473706
    RSL ETX-25T-2M-OR
    Reference no. 473706
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit 0–45° [kg] 50000
    Effective length WLL [m] 2
    Colour orange
    Weight approx. [kg] 10.46
  • 25000
    20000
    50000
    4
    473707
    Polytex Round Sling Eco-Tex XL -25.0to-orange L=4.0m
    Reference no. 473707
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit 0–45° [kg] 50000
    Effective length WLL [m] 4
    Colour orange
    Weight approx. [kg] 20.86
  • 25000
    20000
    50000
    6
    473708
    RSL ETX-25T-6M-OR
    Reference no. 473708
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit 0–45° [kg] 50000
    Effective length WLL [m] 6
    Colour orange
    Weight approx. [kg] 31.24
  • 25000
    20000
    50000
    8
    473709
    RSL ETX-25T-8M-OR
    Reference no. 473709
    Working load limit 0° [kg] 25000
    Working load limit laced [kg] 20000
    Wrap around working load limit 0–45° [kg] 50000
    Effective length WLL [m] 8
    Colour orange
    Weight approx. [kg] 41.63
