Updraft® CustomSling

Updraft® CustomSling
Updraft® CustomSlings easily hook even the heaviest loads, are made exactly to measure and meet precision standards beyond all norms. They are technically far superior to conventional polyester slings and offer everything heavy and hard steel wire rope slings can, while remaining light and flexible. Updraft® CustomSlings provide textile handling-characteristics which means far less risk of injury. In most cases they can be handled without auxiliary equipment.
Advantages
  • Minimal weight: ultra-light and flexible for outstandingly fast handling with a minimised risk of injury. Optimum utilisation of the crane carrying capacity
  • Optimum utilisation of the crane carrying capacity
  • Maximum safety: Certified on the basis of DIN EN 1492-4, CG3 certificate from the DNV GL, extremely abrasion-resistant and non-corroding. Targeted protection in the contact area
  • Targeted protection in the contact area
  • Made precisely to measure: manufactured for the individual customer in a 100% reproducible process from the DynaOne® textile wire rope substitute. Length tolerance ½ rope diameter
  • Length tolerance ½ rope diameter
Technical data

Operating temperature

  • –40 °C to +70 °C

Standard

  • Based on EN 1492-4

Safety factor

  • 7

Material

  • Dyneema®

Manufacturing tolerance

  • ½ rope diameter in the length

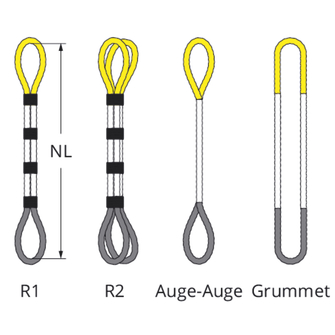

Product variants
Working load limit direct [kg]
Type
Reference no.
Details
  • 10000
    R1
    505192
    Updraft CustomSling R1 20.00mm 10000kg L=2.0m
    Reference no. 505192
    Working load limit direct [kg] 10000
    Rope diameter ds [mm] 20
    Effective length WLL [m] 2
    Type R1
    Weight per first metre [kg] 2.4
  • 20000
    R1
    505194
    Updraft CustomSling R1 32.00mm 20000kg L=3.0m
    Reference no. 505194
    Working load limit direct [kg] 20000
    Rope diameter ds [mm] 32
    Effective length WLL [m] 3
    Type R1
    Weight per first metre [kg] 8.3
  • 30000
    R1
    505196
    Updraft CustomSling R1 38.00mm 30000kg L=3.0m
    Reference no. 505196
    Working load limit direct [kg] 30000
    Rope diameter ds [mm] 38
    Effective length WLL [m] 3
    Type R1
    Weight per first metre [kg] 13.1
  • 40000
    R1
    505197
    Updraft CustomSling R1 44.00mm 40000kg L=4.0m
    Reference no. 505197
    Working load limit direct [kg] 40000
    Rope diameter ds [mm] 44
    Effective length WLL [m] 4
    Type R1
    Weight per first metre [kg] 24
  • 50000
    R1
    505198
    Updraft CustomSling R1 52.00mm 50000kg L=4.0m
    Reference no. 505198
    Working load limit direct [kg] 50000
    Rope diameter ds [mm] 52
    Effective length WLL [m] 4
    Type R1
    Weight per first metre [kg] 33.6
  • 60000
    R1
    505199
    Updraft CustomSling R1 56.00mm 60000kg L=5.0m
    Reference no. 505199
    Working load limit direct [kg] 60000
    Rope diameter ds [mm] 56
    Effective length WLL [m] 5
    Type R1
    Weight per first metre [kg] 46.1
  • 70000
    R1
    505200
    Updraft CustomSling R1 64.00mm 70000kg L=5.0m
    Reference no. 505200
    Working load limit direct [kg] 70000
    Rope diameter ds [mm] 64
    Effective length WLL [m] 5
    Type R1
    Weight per first metre [kg] 59.7
  • 80000
    R1
    505201
    Updraft CustomSling R1 76.00mm 80000kg L=6.0m
    Reference no. 505201
    Working load limit direct [kg] 80000
    Rope diameter ds [mm] 76
    Effective length WLL [m] 6
    Type R1
    Weight per first metre [kg] 85.8
  • 90000
    R1
    505202
    Updraft CustomSling R1 84.00mm 90000kg L=7.0m
    Reference no. 505202
    Working load limit direct [kg] 90000
    Rope diameter ds [mm] 84
    Effective length WLL [m] 7
    Type R1
    Weight per first metre [kg] 118.2
  • 100000
    R1
    505203
    Updraft CustomSling R1 88.00mm 100000kg L=7.0m
    Reference no. 505203
    Working load limit direct [kg] 100000
    Rope diameter ds [mm] 88
    Effective length WLL [m] 7
    Type R1
    Weight per first metre [kg] 135.7
  • 10000
    Eye-eye
    505204
    Updraft CustomSling Eye/eye 28.00mm 10000kg L=3.0m
    Reference no. 505204
    Working load limit direct [kg] 10000
    Rope diameter ds [mm] 28
    Effective length WLL [m] 3
    Type Eye-eye
    Weight per first metre [kg] 4
  • 20000
    Eye-eye
    505205
    Updraft CustomSling Eye/eye 40.00mm 20000kg L=3.0m
    Reference no. 505205
    Working load limit direct [kg] 20000
    Rope diameter ds [mm] 40
    Effective length WLL [m] 3
    Type Eye-eye
    Weight per first metre [kg] 10.1
  • 30000
    Eye-eye
    505207
    Updraft CustomSling Eye/eye 52.00mm 30000kg L=4.0m
    Reference no. 505207
    Working load limit direct [kg] 30000
    Rope diameter ds [mm] 52
    Effective length WLL [m] 4
    Type Eye-eye
    Weight per first metre [kg] 22.2
  • 40000
    Eye-eye
    505208
    Updraft CustomSling Eye/eye 60.00mm 40000kg L=5.0m
    Reference no. 505208
    Working load limit direct [kg] 40000
    Rope diameter ds [mm] 60
    Effective length WLL [m] 5
    Type Eye-eye
    Weight per first metre [kg] 34
  • 50000
    Eye-eye
    505209
    Updraft CustomSling Eye/eye 76.00mm 50000kg L=6.0m
    Reference no. 505209
    Working load limit direct [kg] 50000
    Rope diameter ds [mm] 76
    Effective length WLL [m] 6
    Type Eye-eye
    Weight per first metre [kg] 55.7
  • 60000
    Eye-eye
    505210
    Updraft CustomSling Eye/eye 84.00mm 60000kg L=7.0m
    Reference no. 505210
    Working load limit direct [kg] 60000
    Rope diameter ds [mm] 84
    Effective length WLL [m] 7
    Type Eye-eye
    Weight per first metre [kg] 76
  • 70000
    Eye-eye
    505212
    Updraft CustomSling Eye/eye 92.00mm 70000kg L=7.0m
    Reference no. 505212
    Working load limit direct [kg] 70000
    Rope diameter ds [mm] 92
    Effective length WLL [m] 7
    Type Eye-eye
    Weight per first metre [kg] 97.1
  • 80000
    Eye-eye
    505214
    Updraft CustomSling Eye/eye 100.00mm 80000kg L=8.0m
    Reference no. 505214
    Working load limit direct [kg] 80000
    Rope diameter ds [mm] 100
    Effective length WLL [m] 8
    Type Eye-eye
    Weight per first metre [kg] 128.9
  • 90000
    Eye-eye
    505215
    Updraft CustomSling Eye/eye 104.00mm 90000kg L=8.0m
    Reference no. 505215
    Working load limit direct [kg] 90000
    Rope diameter ds [mm] 104
    Effective length WLL [m] 8
    Type Eye-eye
    Weight per first metre [kg] 140.1
  • 100000
    Eye-eye
    505216
    Updraft CustomSling Eye/eye 112.00mm 100000kg L=9.0m
    Reference no. 505216
    Working load limit direct [kg] 100000
    Rope diameter ds [mm] 112
    Effective length WLL [m] 9
    Type Eye-eye
    Weight per first metre [kg] 180.2
