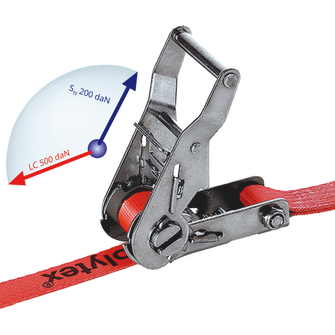

Polytex® lashing strap system RS-25 MULTI

Polytex® lashing strap system RS-25 MULTI
Multi-purpose system with push-ratchet for lighter loads such as in-plant transport securing or pallet strapping.
Technical data

Ratchet prestressing force

  • 200 daN

Colour harness strap

  • red

Width harness strap

  • 25 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • Multi-purpose system

Type of ratchet

  • standard push-ratchet

Number of teeth on ratchet

  • 11 pcs

Lever length

  • 100 mm

Handle length

  • 130 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants

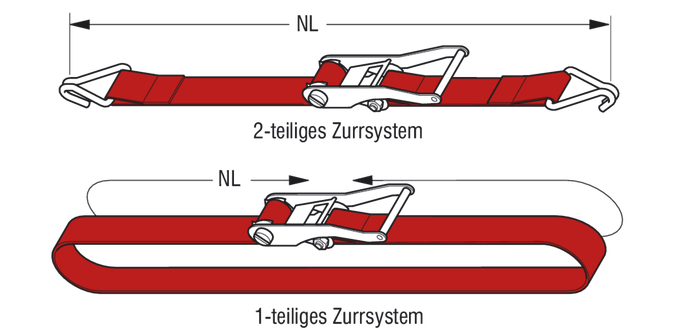

Effective length WLL [m]
Lashing capacity direct pull LC
Hook type
Reference no.
Details
  • 4
    without hook
    473807
    Z12 RMU-1000-4M
    Reference no. 473807
    Effective length WLL [m] 4
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.48
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 130
    produkt_laenge_hebel_met_td 100
  • 6
    without hook
    473808
    Z12 RMU-1000-6M-DRD
    Reference no. 473808
    Effective length WLL [m] 6
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.55
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 130
    produkt_laenge_hebel_met_td 100
  • 4
    500 [daN]
    Wire claw hook
    473809
    Z22 RMU-500-KDH_KDH-4M
    Reference no. 473809
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 500 [daN]
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.58
    produkt_laenge_griff_met_td 130
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 100
  • 6
    500 [daN]
    Wire claw hook
    473810
    Z22 RMU-500-KDH_KDH-6M
    Reference no. 473810
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 500 [daN]
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 1.75
    produkt_laenge_griff_met_td 130
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 100
Effective length WLL [m] 4
Hook type without hook
Reference no. 473807
  • Details
    Z12 RMU-1000-4M
    Reference no. 473807
    Effective length WLL [m] 4
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.48
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 130
    produkt_laenge_hebel_met_td 100
Effective length WLL [m] 6
Hook type without hook
Reference no. 473808
  • Details
    Z12 RMU-1000-6M-DRD
    Reference no. 473808
    Effective length WLL [m] 6
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.55
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 130
    produkt_laenge_hebel_met_td 100
Effective length WLL [m] 4
Lashing capacity direct pull LC 500 [daN]
Hook type Wire claw hook
Reference no. 473809
  • Details
    Z22 RMU-500-KDH_KDH-4M
    Reference no. 473809
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 500 [daN]
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 0.58
    produkt_laenge_griff_met_td 130
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 100
Effective length WLL [m] 6
Lashing capacity direct pull LC 500 [daN]
Hook type Wire claw hook
Reference no. 473810
  • Details
    Z22 RMU-500-KDH_KDH-6M
    Reference no. 473810
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 500 [daN]
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 200
    Weight approx. [kg] 1.75
    produkt_laenge_griff_met_td 130
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 100
