Polytex® ECO lashing strap system loose end

Polytex® ECO lashing strap system loose end

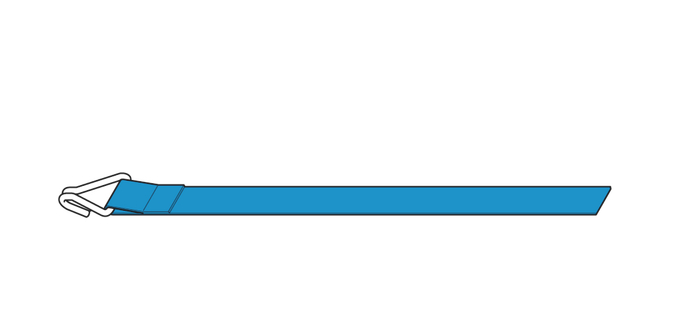

The adjustable release end with a claw-type wire hook allows for quick and easy attachment to the lashing point.
Technical data

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • blue

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • Standard system
Product variants

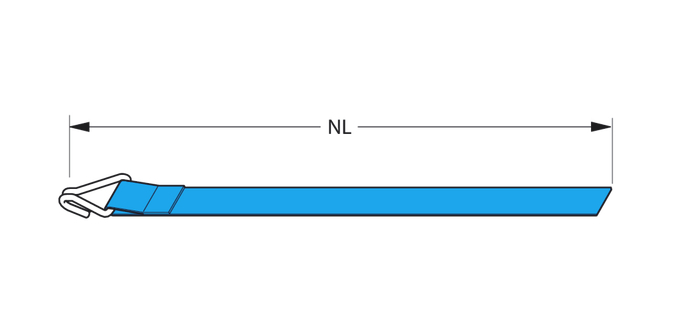

Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Reference no.
Details
  • 5.5
    2500 [daN]
    5000
    709443
    EL5 UNI-2500-KDH-5.5M-BL
    Reference no. 709443
    Effective length WLL [m] 5.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 1
  • 7.5
    2500 [daN]
    5000
    709444
    EL5 UNI-2500-KDH-7.5M-BL
    Reference no. 709444
    Effective length WLL [m] 7.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 1.3
  • 9.5
    2500 [daN]
    5000
    709445
    EL5 UNI-2500-KDH-9.5M-BL
    Reference no. 709445
    Effective length WLL [m] 9.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 2.4
Effective length WLL [m] 5.5
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Reference no. 709443
  • Details
    EL5 UNI-2500-KDH-5.5M-BL
    Reference no. 709443
    Effective length WLL [m] 5.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 1
Effective length WLL [m] 7.5
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Reference no. 709444
  • Details
    EL5 UNI-2500-KDH-7.5M-BL
    Reference no. 709444
    Effective length WLL [m] 7.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 1.3
Effective length WLL [m] 9.5
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Reference no. 709445
  • Details
    EL5 UNI-2500-KDH-9.5M-BL
    Reference no. 709445
    Effective length WLL [m] 9.5
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Weight approx. [kg] 2.4
Packing unit 24 pieces Packing unit 20 pieces Packing unit 16 pieces
