Polytex® ECO lashing strap system

Polytex® ECO lashing strap system

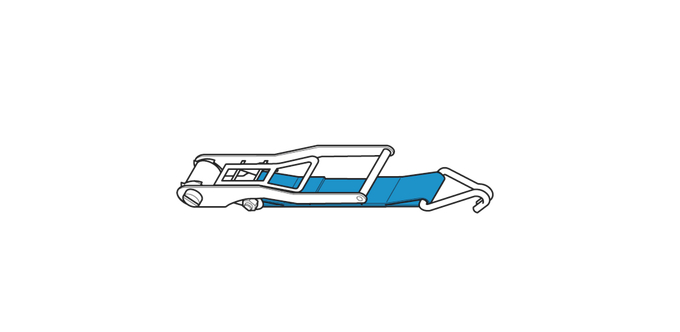

The locking mechanism on the Polytex® ECO LH-ERGO tension ratchet with a long lever is activated by pulling rather than pushing. This makes it particularly easy and ergonomic to apply the required preload force of 500 daN—and noticeably reduces strain on the user’s back.
Technical data

Ratchet prestressing force

  • 500 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • blue

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Breaking force harness strap

  • 7500 daN

Marking

  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Manual force

  • 50 daN

Type of ratchet

  • LH-ERGO pull-ratchet with long lever and transport securing device

Number of teeth on ratchet

  • 20 pcs

Lever length

  • 285 mm

Handle length

  • 325 mm

Version Strap

  • Lashing strap system with ratchet
Product variants
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Reference no.
Details
  • 2500 [daN]
    5000
    711709
    EF5 LHE-2500-KDH-0.5M-BL-STF500
    Reference no. 711709
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000

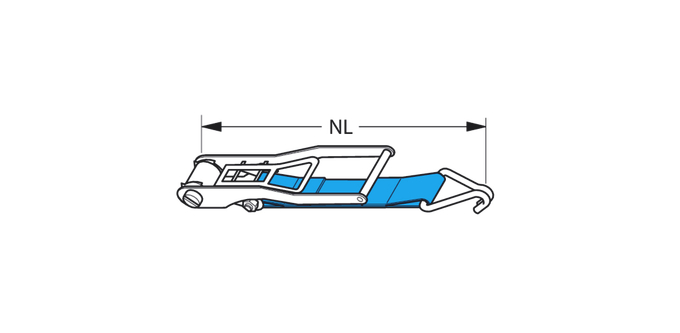

    Length fixed end [m] 0.5
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 1.8
    produkt_laenge_griff_met_td 325
    produkt_handkraft_td 50
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Reference no. 711709
  • Details
    EF5 LHE-2500-KDH-0.5M-BL-STF500
    Reference no. 711709
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 1.8
    produkt_laenge_griff_met_td 325
    produkt_handkraft_td 50
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
Packing unit 16 pieces
