Polytex® lashing strap system LH-ERGO NZ

Polytex® lashing strap system LH-ERGO NZ

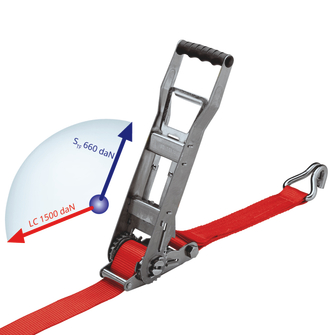

Lashing strap system designed for lashing down with pull-ratchet and special lashing strap for a prestressing force of 660 daN and a lashing capacity of 1500 daN. The LH-ERGO PLUS pull ratchet with long lever is operated by pulling instead of pushing, making it easier to apply the pre-tensioning force and thus protecting the user's back.
Technical data

Ratchet prestressing force

  • 660 daN

Lashing capacity strapping

  • 3000 daN

Colour harness strap

  • red

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Manual force

  • 50 daN

Performance class

  • Lashing strap system designed for lashing down

Type of ratchet

  • LH-ERGO PLUS pull-down-ratchet with extra-long lever and transport securing device

Number of teeth on ratchet

  • 20 pcs

Lever length

  • 335 mm

Handle length

  • 375 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants

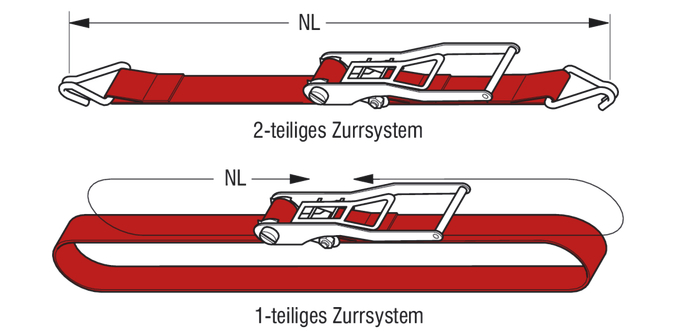

Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 8
    1500 [daN]
    3000

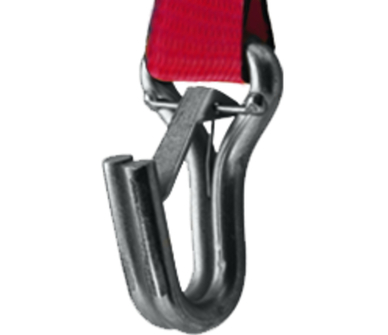

    Wire claw hook
    473752
    Z25 LEN-1500-KDHN_KDHN-8M
    Reference no. 473752
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 2.84
    produkt_handkraft_td 50
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
  • 8
    1500 [daN]
    3000
    Wire claw hook with safety latch
    473754
    Z25 LEN-1500-KDHS_KDHS-8M
    Reference no. 473754
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 2.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_handkraft_td 50
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
  • 10
    1500 [daN]
    3000
    Wire claw hook with safety latch
    473755
    Z25 LEN-1500-KDHS_KDHS-10M
    Reference no. 473755
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 3.05
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
    produkt_handkraft_td 50
  • 10
    1500 [daN]
    3000
    Wire claw hook
    710548
    Z25 LEN-1500-KDHN_KDHN-10M
    Reference no. 710548
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 3
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_handkraft_td 50
Effective length WLL [m] 8
Lashing capacity direct pull LC 1500 [daN]
Lashing capacity strapping LC [daN] 3000
Hook type Wire claw hook
Reference no. 473752
  • Details
    Z25 LEN-1500-KDHN_KDHN-8M
    Reference no. 473752
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 2.84
    produkt_handkraft_td 50
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
Effective length WLL [m] 8
Lashing capacity direct pull LC 1500 [daN]
Lashing capacity strapping LC [daN] 3000
Hook type Wire claw hook with safety latch
Reference no. 473754
  • Details
    Z25 LEN-1500-KDHS_KDHS-8M
    Reference no. 473754
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 2.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_handkraft_td 50
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
Effective length WLL [m] 10
Lashing capacity direct pull LC 1500 [daN]
Lashing capacity strapping LC [daN] 3000
Hook type Wire claw hook with safety latch
Reference no. 473755
  • Details
    Z25 LEN-1500-KDHS_KDHS-10M
    Reference no. 473755
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 3.05
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
    produkt_handkraft_td 50
Effective length WLL [m] 10
Lashing capacity direct pull LC 1500 [daN]
Lashing capacity strapping LC [daN] 3000
Hook type Wire claw hook
Reference no. 710548
  • Details
    Z25 LEN-1500-KDHN_KDHN-10M
    Reference no. 710548
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 1500 [daN]
    Lashing capacity strapping LC [daN] 3000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 660
    Weight approx. [kg] 3
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_handkraft_td 50
