Polytex® lashing strap system LH-ERGO PLUS

Polytex® lashing strap system LH-ERGO PLUS
High-performance lashing strap system with pull-ratchet for 550 daN pre-tensioning force for efficient lashing. The LH-ERGO PLUS pull ratchet with long lever is operated by pulling instead of pushing, making it easier to apply the pre-tensioning force and thus protecting the user's back.
Technical data

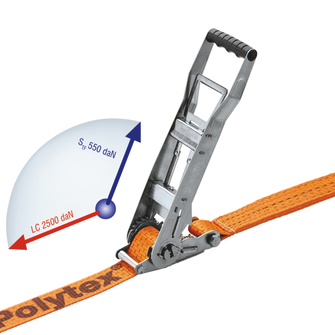

Ratchet prestressing force

  • 550 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • orange

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo

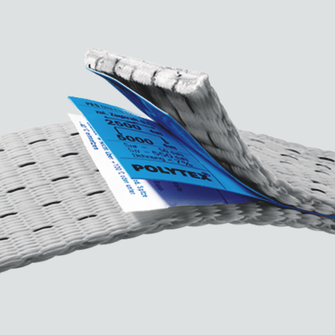

  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • High-performance all-round system

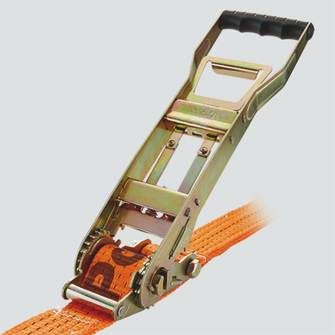

Type of ratchet

  • LH-ERGO PLUS pull-down-ratchet with extra-long lever and transport securing device

Number of teeth on ratchet

  • 20 pcs

Lever length

  • 335 mm

Handle length

  • 375 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 8
    5000
    without hook
    704695
    Z15-5000DAN-EN-LHEP-8M
    Reference no. 704695
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook

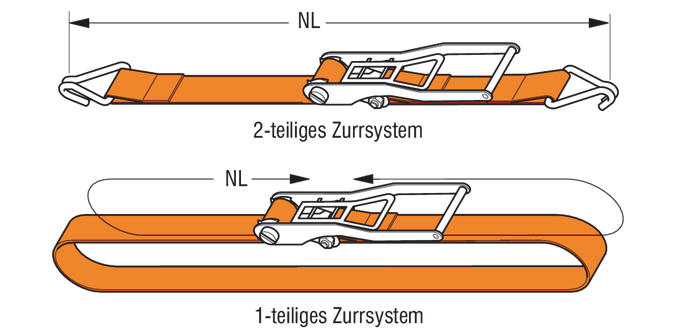

    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 2.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
  • 8
    2500 [daN]
    5000
    Wire claw hook
    473732
    Z25 LEP-2500-KDH_KDH-8M
    Reference no. 473732
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.48
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
  • 10
    2500 [daN]
    5000
    Wire claw hook
    473733
    Z25 LEP-2500-KDH_KDH-10M
    Reference no. 473733
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.74
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
  • 10
    5000
    without hook
    712201
    Z15 LEP-5000-10M
    Reference no. 712201
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.2
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
  • 8
    2500 [daN]
    5000
    Wire claw hook with safety latch
    473736
    Z25 LEP-2500-KDGS_KDGS-8M
    Reference no. 473736
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.42
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
  • 10
    2500 [daN]
    5000
    Wire claw hook with safety latch
    702245
    Z25 LEP-2500-KDGS_KDGS-10M
    Reference no. 702245
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 4.1
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
  • 8
    2500 [daN]
    5000
    J-hook
    473738
    Z25 LEP-2500-KSH_KSH-8M
    Reference no. 473738
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
  • 10
    2500 [daN]
    5000
    J-hook
    709820
    Z25 LEP-2500-KSH_KSH-10M
    Reference no. 709820
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 4.2
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
Effective length WLL [m] 8
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 704695
  • Details
    Z15-5000DAN-EN-LHEP-8M
    Reference no. 704695
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 2.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473732
  • Details
    Z25 LEP-2500-KDH_KDH-8M
    Reference no. 473732
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.48
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473733
  • Details
    Z25 LEP-2500-KDH_KDH-10M
    Reference no. 473733
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.74
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
Effective length WLL [m] 10
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 712201
  • Details
    Z15 LEP-5000-10M
    Reference no. 712201
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.2
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch
Reference no. 473736
  • Details
    Z25 LEP-2500-KDGS_KDGS-8M
    Reference no. 473736
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.42
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch
Reference no. 702245
  • Details
    Z25 LEP-2500-KDGS_KDGS-10M
    Reference no. 702245
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 4.1
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 335
    produkt_laenge_griff_met_td 375
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 473738
  • Details
    Z25 LEP-2500-KSH_KSH-8M
    Reference no. 473738
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 3.9
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
    produkt_laenge_hebel_met_td 335
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 709820
  • Details
    Z25 LEP-2500-KSH_KSH-10M
    Reference no. 709820
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 550
    Weight approx. [kg] 4.2
    produkt_laenge_hebel_met_td 335
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 375
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
