Polytex® lashing strap system LH-ERGO

Polytex® lashing strap system LH-ERGO
High-performance lashing strap system with pull-ratchet and transport lock for 400 daN pre-tensioning force and 2500 daN lashing force. The LH-ERGO PLUS pull-down ratchet with a long lever is actuated by pulling instead of pushing, which makes the prestressing force easier to apply and thus protects the user's back.
Technical data

Ratchet prestressing force

  • 500 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • orange

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • High-performance all-round system

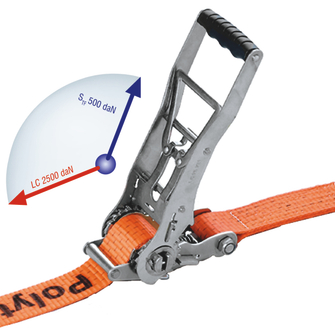

Type of ratchet

  • LH-ERGO pull-ratchet with long lever and transport securing device

Number of teeth on ratchet

  • 20 pcs

Lever length

  • 285 mm

Handle length

  • 325 mm

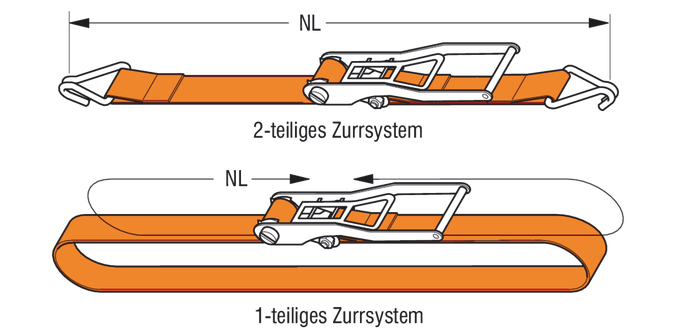

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 8
    5000
    without hook
    473741
    Z15 LHE-5000-8M
    Reference no. 473741
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.43
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
  • 10
    5000
    without hook
    473742
    Z15 LHE-5000-10M
    Reference no. 473742
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.69
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
  • 8
    2500 [daN]
    5000
    Wire claw hook
    473745
    Z25 LHE-2500-KDH_KDH-8M
    Reference no. 473745
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.99
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
  • 10
    2500 [daN]
    5000
    Wire claw hook
    473746
    Z25 LHE-2500-KDH_KDH-10M
    Reference no. 473746
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.25
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
  • 8
    2500 [daN]
    5000
    Wire claw hook with safety latch and large aperture
    473748
    Z25 LHE-2500-KDGS_KDGS-8M
    Reference no. 473748
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch and large aperture
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.93
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
  • 8
    2500 [daN]
    5000
    J-hook
    473749
    Z25 LHE-2500-KSH_KSH-8M
    Reference no. 473749
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.41
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
  • 8
    2500 [daN]
    5000

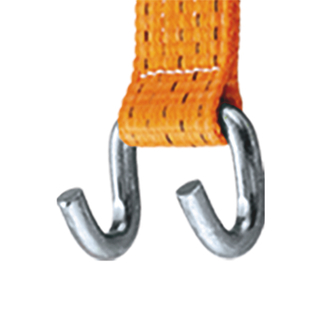

    Claw hook
    515775
    Z25 LHE-2500-KH_KH-8M
    Reference no. 515775
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.85
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
    produkt_anzahl_zaehne_ratsche_td 20
  • 10
    2500 [daN]
    5000
    Claw hook
    515774
    Z25 LHE-2500-KH_KH-10M
    Reference no. 515774
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.72
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
  • 10
    2500 [daN]
    5000
    J-hook
    700364
    Z25 LHE-2500-KSH_KSH-10M
    Reference no. 700364
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.7
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
  • 10
    2500 [daN]
    5000
    Wire claw hook with safety latch and large aperture
    701047
    Z25 LHE-2500-KDGS_KDGS-10M
    Reference no. 701047
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch and large aperture
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.6
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
Effective length WLL [m] 8
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473741
  • Details
    Z15 LHE-5000-8M
    Reference no. 473741
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.43
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
Effective length WLL [m] 10
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473742
  • Details
    Z15 LHE-5000-10M
    Reference no. 473742
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.69
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473745
  • Details
    Z25 LHE-2500-KDH_KDH-8M
    Reference no. 473745
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.99
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473746
  • Details
    Z25 LHE-2500-KDH_KDH-10M
    Reference no. 473746
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.25
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch and large aperture
Reference no. 473748
  • Details
    Z25 LHE-2500-KDGS_KDGS-8M
    Reference no. 473748
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch and large aperture
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.93
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 473749
  • Details
    Z25 LHE-2500-KSH_KSH-8M
    Reference no. 473749
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.41
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Claw hook
Reference no. 515775
  • Details
    Z25 LHE-2500-KH_KH-8M
    Reference no. 515775
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.85
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
    produkt_anzahl_zaehne_ratsche_td 20
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Claw hook
Reference no. 515774
  • Details
    Z25 LHE-2500-KH_KH-10M
    Reference no. 515774
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 2.72
    produkt_laenge_hebel_met_td 285
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 700364
  • Details
    Z25 LHE-2500-KSH_KSH-10M
    Reference no. 700364
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.7
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_hebel_met_td 285
    produkt_laenge_griff_met_td 325
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch and large aperture
Reference no. 701047
  • Details
    Z25 LHE-2500-KDGS_KDGS-10M
    Reference no. 701047
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch and large aperture
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 500
    Weight approx. [kg] 3.6
    produkt_anzahl_zaehne_ratsche_td 20
    produkt_laenge_griff_met_td 325
    produkt_laenge_hebel_met_td 285
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
