Polytex® lashing strap system LH-50 STEP

Polytex® lashing strap system LH-50 STEP
High-performance lashing strap system with push-ratchet. For additional safety when unloading unstable loads that may tip or slide, the tension can be released gradually.
Technical data

Ratchet prestressing force

  • 400 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • orange

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Type of ratchet

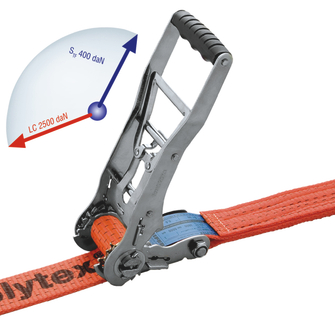

  • LH-STEP push-ratchet with step-by-step tension release and transport securing device

Number of teeth on ratchet

  • 18 pcs

Lever length

  • 260 mm

Handle length

  • 310 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants

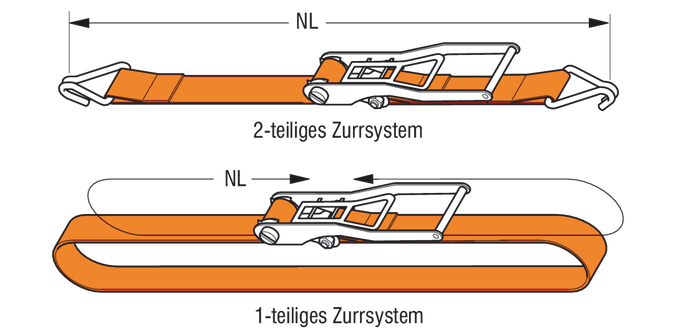

Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 8
    5000
    without hook
    473765
    Z15 LHS-5000-8M
    Reference no. 473765
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 2.53
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
  • 10
    5000
    without hook
    473766
    Z15 LHS-5000-10M
    Reference no. 473766
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 2.79
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
  • 8
    2500 [daN]
    5000

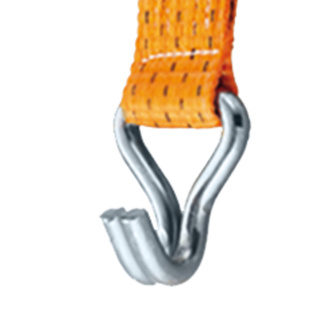

    Wire claw hook
    473767
    Z25 LHS-2500-KDH_KDH-8M
    Reference no. 473767
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 3.09
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
  • 10
    2500 [daN]
    5000
    Wire claw hook
    473768
    Z25 LHS-2500-KDH_KDH-10M
    Reference no. 473768
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 3.35
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_hebel_met_td 260
    produkt_laenge_griff_met_td 310
Effective length WLL [m] 8
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473765
  • Details
    Z15 LHS-5000-8M
    Reference no. 473765
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 2.53
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
Effective length WLL [m] 10
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473766
  • Details
    Z15 LHS-5000-10M
    Reference no. 473766
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 2.79
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473767
  • Details
    Z25 LHS-2500-KDH_KDH-8M
    Reference no. 473767
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 3.09
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_griff_met_td 310
    produkt_laenge_hebel_met_td 260
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473768
  • Details
    Z25 LHS-2500-KDH_KDH-10M
    Reference no. 473768
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 400
    Weight approx. [kg] 3.35
    produkt_anzahl_zaehne_ratsche_td 18
    produkt_laenge_hebel_met_td 260
    produkt_laenge_griff_met_td 310
