Polytex® lashing strap system RS-50

Polytex® lashing strap system RS-50
Lashing strap system suitable for solving ever-changing standard transport tasks.
Technical data

Ratchet prestressing force

  • 300 daN

Lashing capacity strapping

  • 5000 daN

Colour harness strap

  • orange

Width harness strap

  • 50 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • DIN EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • Standard system

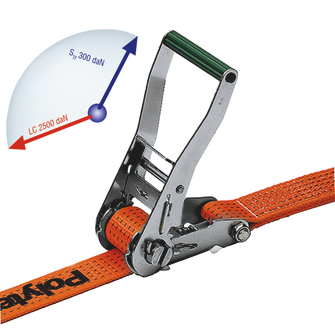

Type of ratchet

  • Quality push-ratchet with transport securing device

Number of teeth on ratchet

  • 11 pcs

Lever length

  • 190 mm

Handle length

  • 230 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
  • further hook types
Product variants

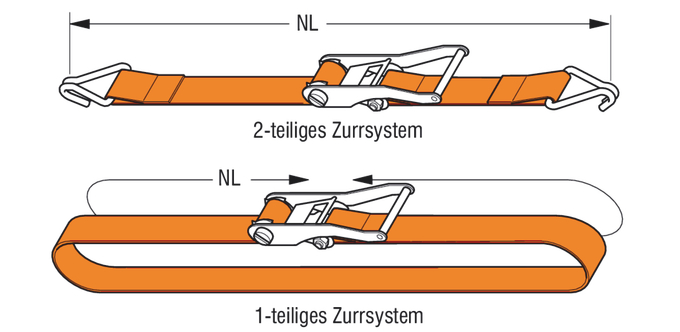

Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 8
    5000
    without hook
    473773
    Z15 RST-5000-8M
    Reference no. 473773
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.04
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
  • 10
    5000
    without hook
    473774
    Z15 RST-5000-10M
    Reference no. 473774
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.3
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
  • 8
    2500 [daN]
    5000
    Wire claw hook
    473780
    Z25 RST-2500-KDH_KDH-8M
    Reference no. 473780
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.6
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
  • 10
    2500 [daN]
    5000
    Wire claw hook
    473781
    Z25 RST-2500-KDH_KDH-10M
    Reference no. 473781
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.86
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
  • 8
    2500 [daN]
    5000

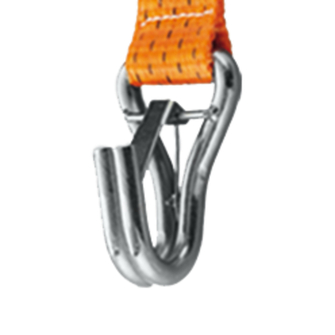

    Wire claw hook with safety latch
    473783
    Z25 RST-2500-KDGS_KDGS-8M
    Reference no. 473783
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.54
    produkt_laenge_griff_met_td 230
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
  • 8
    2500 [daN]
    5000

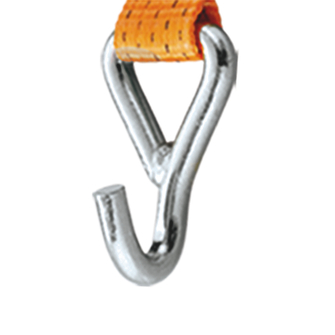

    J-hook
    473786
    Z25 RST-2500-KSH_KSH-8M
    Reference no. 473786
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.02
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
  • 10
    2500 [daN]
    5000
    J-hook
    473787
    Z25 RST-2500-KSH_KSH-10M
    Reference no. 473787
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.28
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
  • 8
    2500 [daN]
    5000
    Triangular hook
    482815
    Z25 RST-2500-TA_TA-8M
    Reference no. 482815
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.04
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
  • 10
    2500 [daN]
    5000
    Triangular hook
    515484
    Z25 RST-2500-TA_TA-10M
    Reference no. 515484
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.3
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
  • 10
    2500 [daN]
    5000
    Wire claw hook with safety latch
    706122
    Z25 RST-2500-KDGS_KDGS-10M
    Reference no. 706122
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.2
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 8
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473773
  • Details
    Z15 RST-5000-8M
    Reference no. 473773
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.04
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
Effective length WLL [m] 10
Lashing capacity strapping LC [daN] 5000
Hook type without hook
Reference no. 473774
  • Details
    Z15 RST-5000-10M
    Reference no. 473774
    Effective length WLL [m] 10
    Lashing capacity strapping LC [daN] 5000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.3
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473780
  • Details
    Z25 RST-2500-KDH_KDH-8M
    Reference no. 473780
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.6
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook
Reference no. 473781
  • Details
    Z25 RST-2500-KDH_KDH-10M
    Reference no. 473781
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.86
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch
Reference no. 473783
  • Details
    Z25 RST-2500-KDGS_KDGS-8M
    Reference no. 473783
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 2.54
    produkt_laenge_griff_met_td 230
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 473786
  • Details
    Z25 RST-2500-KSH_KSH-8M
    Reference no. 473786
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.02
    produkt_laenge_griff_met_td 230
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type J-hook
Reference no. 473787
  • Details
    Z25 RST-2500-KSH_KSH-10M
    Reference no. 473787
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type J-hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.28
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 8
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Triangular hook
Reference no. 482815
  • Details
    Z25 RST-2500-TA_TA-8M
    Reference no. 482815
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.04
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Triangular hook
Reference no. 515484
  • Details
    Z25 RST-2500-TA_TA-10M
    Reference no. 515484
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.3
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_hebel_met_td 190
    produkt_laenge_griff_met_td 230
Effective length WLL [m] 10
Lashing capacity direct pull LC 2500 [daN]
Lashing capacity strapping LC [daN] 5000
Hook type Wire claw hook with safety latch
Reference no. 706122
  • Details
    Z25 RST-2500-KDGS_KDGS-10M
    Reference no. 706122
    Effective length WLL [m] 10
    Lashing capacity direct pull LC 2500 [daN]
    Lashing capacity strapping LC [daN] 5000
    Length fixed end [m] 0.5
    Hook type Wire claw hook with safety latch
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 300
    Weight approx. [kg] 3.2
    produkt_laenge_hebel_met_td 190
    produkt_anzahl_zaehne_ratsche_td 11
    produkt_laenge_griff_met_td 230
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
