Polytex® lashing strap system RS-75 XL

Polytex® lashing strap system RS-75 XL
Heavy-duty lashing system with push-ratchet and lashing capacity of 10000 daN for the highest requirements in the diagonal lashing, for example, of construction machines.
Technical data

Colour harness strap

  • yellow

Width harness strap

  • 75 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • similar to EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • Heavy-duty lashing system for diagonal lashing

Type of ratchet

  • heavy-duty push-ratchet

Number of teeth on ratchet

  • 16 pcs

Lever length

  • 310 mm

Handle length

  • 355 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Hook type
Reference no.
Details
  • 4
    10000 [daN]
    Eye load hook
    473717
    Z27 RXL-10000-H10D_H10D-4M
    Reference no. 473717

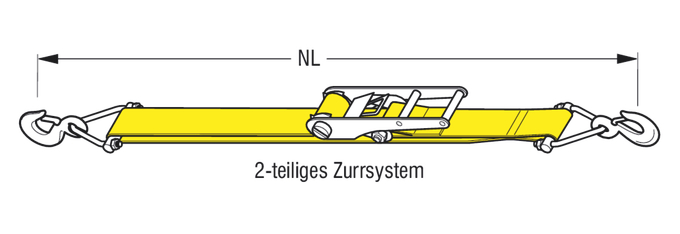

    Effective length WLL [m] 4
    Lashing capacity direct pull LC 10000 [daN]
    Length fixed end [m] 0.5

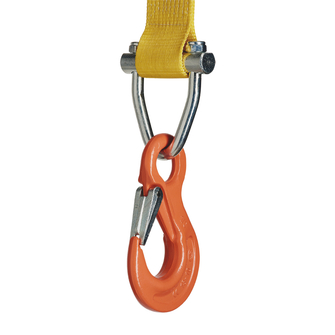

    Hook type Eye load hook
    System parts Quantity two-piece
    Weight approx. [kg] 10.73
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
    produkt_anzahl_zaehne_ratsche_td 16
  • 8
    10000 [daN]
    Eye load hook
    473718
    Z27 RXL-10000-H10D_H10D-8M
    Reference no. 473718
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 10000 [daN]
    Length fixed end [m] 0.5
    Hook type Eye load hook
    System parts Quantity two-piece
    Weight approx. [kg] 11.87
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
Effective length WLL [m] 4
Lashing capacity direct pull LC 10000 [daN]
Hook type Eye load hook
Reference no. 473717
  • Details
    Z27 RXL-10000-H10D_H10D-4M
    Reference no. 473717
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 10000 [daN]
    Length fixed end [m] 0.5
    Hook type Eye load hook
    System parts Quantity two-piece
    Weight approx. [kg] 10.73
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
    produkt_anzahl_zaehne_ratsche_td 16
Effective length WLL [m] 8
Lashing capacity direct pull LC 10000 [daN]
Hook type Eye load hook
Reference no. 473718
  • Details
    Z27 RXL-10000-H10D_H10D-8M
    Reference no. 473718
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 10000 [daN]
    Length fixed end [m] 0.5
    Hook type Eye load hook
    System parts Quantity two-piece
    Weight approx. [kg] 11.87
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
