Polytex® lashing strap system RS-75

Polytex® lashing strap system RS-75
Heavy-duty lashing system with push-ratchet and a lashing capacity of 5000 daN for high requirements in diagonal lashing, e.g. of construction machines.
Technical data

Ratchet prestressing force

  • 450 daN

Lashing capacity strapping

  • 10000 daN

Colour harness strap

  • yellow

Width harness strap

  • 75 mm

Material harness strap

  • polyester

Marking

  • Polytex® logo
  • Polytex® Flip Label

Standard

  • similar to EN 12195-2

Operating temperature

  • –40 °C to +100 °C

Performance class

  • Heavy-duty lashing system for diagonal lashing

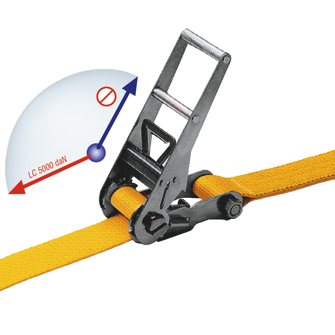

Type of ratchet

  • heavy-duty push-ratchet

Number of teeth on ratchet

  • 16 pcs

Lever length

  • 310 mm

Handle length

  • 355 mm

Version Strap

  • Lashing strap system with ratchet
Options

Options on request

  • with individual imprint
  • further useful lengths
Product variants
Effective length WLL [m]
Lashing capacity direct pull LC
Lashing capacity strapping LC [daN]
Hook type
Reference no.
Details
  • 4
    10000
    without hook
    515468
    Z17 RST-10000-4M
    Reference no. 515468
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 10000
    Hook type without hook

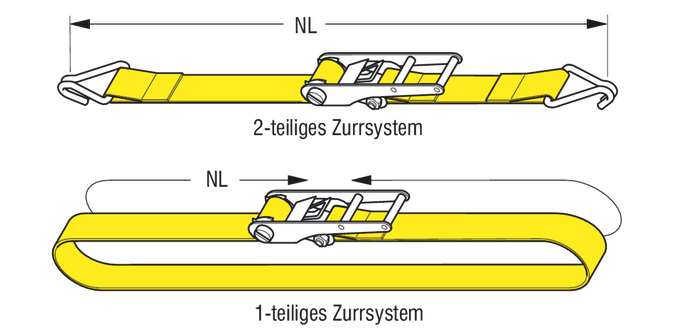

    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 4.39
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
  • 8
    10000
    without hook
    473720
    Z17 RST-10000-8M
    Reference no. 473720
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 10000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 5.53
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
  • 4
    5000 [daN]
    10000
    Wire claw hook
    473722
    Z27 RST-5000-KDH_KDH-4M
    Reference no. 473722
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 4.57
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
  • 8
    5000 [daN]
    10000
    Wire claw hook
    473723
    Z27 RST-5000-KDH_KDH-8M
    Reference no. 473723
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 5.71
    produkt_laenge_hebel_met_td 310
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
  • 4
    5000 [daN]
    10000

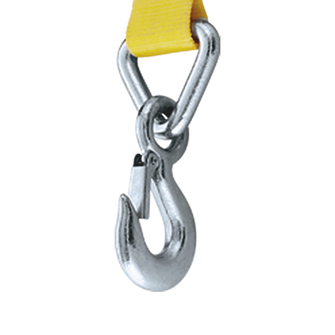

    Triangular hook
    473725
    Z27 RST-5000-TA_TA-4M
    Reference no. 473725
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 7.67
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
    produkt_anzahl_zaehne_ratsche_td 16
  • 6
    5000 [daN]
    10000
    Triangular hook
    704651
    Z27-5000DAN-SEN-TA-TA-RS-6M
    Reference no. 704651
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 8.2
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
  • 8
    5000 [daN]
    10000
    Triangular hook
    473726
    Z27 RST-5000-TA_TA-8M
    Reference no. 473726
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 8.81
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
Effective length WLL [m] 4
Lashing capacity strapping LC [daN] 10000
Hook type without hook
Reference no. 515468
  • Details
    Z17 RST-10000-4M
    Reference no. 515468
    Effective length WLL [m] 4
    Lashing capacity strapping LC [daN] 10000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 4.39
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
Effective length WLL [m] 8
Lashing capacity strapping LC [daN] 10000
Hook type without hook
Reference no. 473720
  • Details
    Z17 RST-10000-8M
    Reference no. 473720
    Effective length WLL [m] 8
    Lashing capacity strapping LC [daN] 10000
    Hook type without hook
    System parts Quantity one-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 5.53
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
Effective length WLL [m] 4
Lashing capacity direct pull LC 5000 [daN]
Lashing capacity strapping LC [daN] 10000
Hook type Wire claw hook
Reference no. 473722
  • Details
    Z27 RST-5000-KDH_KDH-4M
    Reference no. 473722
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 4.57
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
Effective length WLL [m] 8
Lashing capacity direct pull LC 5000 [daN]
Lashing capacity strapping LC [daN] 10000
Hook type Wire claw hook
Reference no. 473723
  • Details
    Z27 RST-5000-KDH_KDH-8M
    Reference no. 473723
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Wire claw hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 5.71
    produkt_laenge_hebel_met_td 310
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
Effective length WLL [m] 4
Lashing capacity direct pull LC 5000 [daN]
Lashing capacity strapping LC [daN] 10000
Hook type Triangular hook
Reference no. 473725
  • Details
    Z27 RST-5000-TA_TA-4M
    Reference no. 473725
    Effective length WLL [m] 4
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 7.67
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
    produkt_anzahl_zaehne_ratsche_td 16
Effective length WLL [m] 6
Lashing capacity direct pull LC 5000 [daN]
Lashing capacity strapping LC [daN] 10000
Hook type Triangular hook
Reference no. 704651
  • Details
    Z27-5000DAN-SEN-TA-TA-RS-6M
    Reference no. 704651
    Effective length WLL [m] 6
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 8.2
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_hebel_met_td 310
    produkt_laenge_griff_met_td 355
Effective length WLL [m] 8
Lashing capacity direct pull LC 5000 [daN]
Lashing capacity strapping LC [daN] 10000
Hook type Triangular hook
Reference no. 473726
  • Details
    Z27 RST-5000-TA_TA-8M
    Reference no. 473726
    Effective length WLL [m] 8
    Lashing capacity direct pull LC 5000 [daN]
    Lashing capacity strapping LC [daN] 10000
    Length fixed end [m] 0.5
    Hook type Triangular hook
    System parts Quantity two-piece
    Ratchet prestressing force STF [daN] 450
    Weight approx. [kg] 8.81
    produkt_anzahl_zaehne_ratsche_td 16
    produkt_laenge_griff_met_td 355
    produkt_laenge_hebel_met_td 310
