CX-ALU mini pulley block

CX-ALU mini pulley block

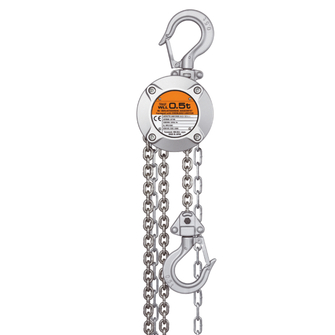

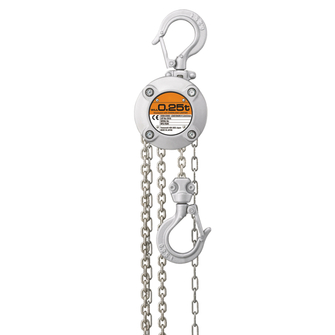

Pulley block with aluminium housing for smaller applications, e.g. for replacing defective machine parts or for platform construction. The little companion at work thanks to its practical dimensions and extremely light dead weight – ideal to carry along at all times. Due to the closed chain path, the lever hoist not susceptible to moisture and dust. The standard length of the hand chain is 2 m (type 250 kg) or 2.5 m (type 500 kg).
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –40 °C to +60 °C

Chain surface

  • galvanized

Housing material

  • Aluminum

Overload protection

  • Friction coupling
Options

Options on request

  • in further lifting heights
Safety instruction
  • Note the minimum load for achieving the full brake function
  • No parallel shear pull! Positioning of the device always centrally underneath the suspension gear.
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Reference no.
Details
  • 250
    308272
    KFZ CXA-0.25T-ST1-LIFT-3M
    Reference no. 308272
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 29.6
    Manual force at full load* 14.7
    Body length V [mm] 88
    Body width B 84
    Spacing body left to central suspension point S1 37
    Spacing body right to suspension point N 53
    Distance suspension point min Emin [mm] 217
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 3
    stueckgewicht 2.6
  • 500
    308273
    KFZ CXA-0.5T-ST1-LIFT-3M
    Reference no. 308273
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 23.4
    Manual force at full load* 18.7
    Body length V [mm] 101
    Body width B 102
    Spacing body left to central suspension point S1 43.5
    Spacing body right to suspension point N 66
    Distance suspension point min Emin [mm] 260
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 3
    stueckgewicht 4.95
Working load limit [kg] 250
Reference no. 308272
  • Details
    KFZ CXA-0.25T-ST1-LIFT-3M
    Reference no. 308272
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 29.6
    Manual force at full load* 14.7
    Body length V [mm] 88
    Body width B 84
    Spacing body left to central suspension point S1 37
    Spacing body right to suspension point N 53
    Distance suspension point min Emin [mm] 217
    Load hook Thickness A 11
    Clear span load hook W 32
    Hook opening width G [mm] 21
    Chain link length 9
    Chain link width 3.2
    Lifting height max Hmax 3
    stueckgewicht 2.6
Working load limit [kg] 500
Reference no. 308273
  • Details
    KFZ CXA-0.5T-ST1-LIFT-3M
    Reference no. 308273
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 23.4
    Manual force at full load* 18.7
    Body length V [mm] 101
    Body width B 102
    Spacing body left to central suspension point S1 43.5
    Spacing body right to suspension point N 66
    Distance suspension point min Emin [mm] 260
    Load hook Thickness A 12
    Clear span load hook W 35.5
    Hook opening width G [mm] 24.5
    Chain link length 12
    Chain link width 4.3
    Lifting height max Hmax 3
    stueckgewicht 4.95
