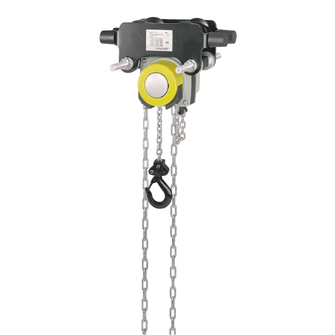

Pulley block 360° with space-saving roller running gear

Pulley block 360° with space-saving roller running gear
Pulley block with sheet steel housing for occasional to frequent use in all locations and from all positions at a safe distance from the load – even in confined spaces thanks to innovative 360° rotating hand chain guide. Due to the closed chain path, the lever hoist not susceptible to moisture and dust.

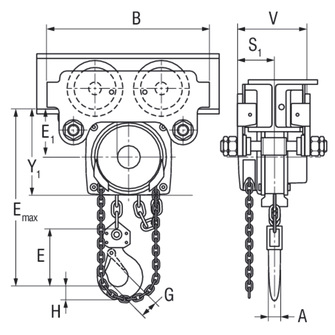

Technical data

Standard

  • EN 13157

Safety factor

  • 4

Operating temperature

  • –25 °C to +50 °C

Chain surface

  • galvanised and chromated yellow

Housing material

  • Powder-coated sheet steel
Options

Options on request

  • in further lifting heights
  • with friction coupling
  • with chain store
  • in corrosion-protected finish
  • explosion-protected design
  • without buffer – optionally available
Safety instruction
  • Note the minimum load for achieving the full brake function
  • No shear pull – positioning of the device always centrally underneath the suspension gear
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Reference no.
Details
  • 500
    161263
    KFZ 36R-0.5T-50-180MM-LIFT-3M
    Reference no. 161263
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 20.6
    Distance suspension point min Emin [mm] 245
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 20
  • 500
    238997
    KFZ 36R-0.5T-50-180MM-LIFT-6M
    Reference no. 238997
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 20.6
    Distance suspension point min Emin [mm] 245
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 23
  • 1000
    161264
    KFZ 36R-1.0T-50-180MM-LIFT-3M
    Reference no. 161264
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 29.4
    Distance suspension point min Emin [mm] 272
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 27
  • 1000
    238998
    KFZ 36R-1.0T-50-180MM-LIFT-6M
    Reference no. 238998
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 29.4
    Distance suspension point min Emin [mm] 272
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 30
  • 2000
    161265
    KFZ 36R-2.0T-58-180MM-LIFT-3M
    Reference no. 161265
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14
    Manual force at full load* 31.4
    Distance suspension point min Emin [mm] 323
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Beam flange width min [mm] 58
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 44
  • 2000
    238999
    KFZ 36R-2.0T-58-180MM-LIFT-6M
    Reference no. 238999
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14
    Manual force at full load* 34.1
    Distance suspension point min Emin [mm] 323
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Beam flange width min [mm] 58
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 48
  • 3000
    161266
    KFZ 36R-3.0T-74-180MM-LIFT-3M
    Reference no. 161266
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 37.3
    Distance suspension point min Emin [mm] 382
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Beam flange width min [mm] 74
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 77
  • 3000
    239000
    KFZ 36R-3.0T-74-180MM-LIFT-6M
    Reference no. 239000
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 37.3
    Distance suspension point min Emin [mm] 382
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Beam flange width min [mm] 74
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 82
  • 5000
    161267
    KFZ 36R-5.0T-98-180MM-LIFT-3M
    Reference no. 161267
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 33.3
    Distance suspension point min Emin [mm] 550
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Beam flange width min [mm] 98
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 125
  • 5000
    239001
    Flaschenzug m. Rollfahrwerk -5,0t-98-180mm-Hub6,0m
    Reference no. 239001
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 33.3
    Distance suspension point min Emin [mm] 550
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Beam flange width min [mm] 98
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 133
Working load limit [kg] 500
Reference no. 161263
  • Details
    KFZ 36R-0.5T-50-180MM-LIFT-3M
    Reference no. 161263
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 20.6
    Distance suspension point min Emin [mm] 245
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 20
Working load limit [kg] 500
Reference no. 238997
  • Details
    KFZ 36R-0.5T-50-180MM-LIFT-6M
    Reference no. 238997
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 20.6
    Distance suspension point min Emin [mm] 245
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 23
Working load limit [kg] 1000
Reference no. 161264
  • Details
    KFZ 36R-1.0T-50-180MM-LIFT-3M
    Reference no. 161264
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 29.4
    Distance suspension point min Emin [mm] 272
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 27
Working load limit [kg] 1000
Reference no. 238998
  • Details
    KFZ 36R-1.0T-50-180MM-LIFT-6M
    Reference no. 238998
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 29.4
    Distance suspension point min Emin [mm] 272
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Beam flange width min [mm] 50
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 30
Working load limit [kg] 2000
Reference no. 161265
  • Details
    KFZ 36R-2.0T-58-180MM-LIFT-3M
    Reference no. 161265
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14
    Manual force at full load* 31.4
    Distance suspension point min Emin [mm] 323
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Beam flange width min [mm] 58
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 44
Working load limit [kg] 2000
Reference no. 238999
  • Details
    KFZ 36R-2.0T-58-180MM-LIFT-6M
    Reference no. 238999
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14
    Manual force at full load* 34.1
    Distance suspension point min Emin [mm] 323
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Beam flange width min [mm] 58
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 48
Working load limit [kg] 3000
Reference no. 161266
  • Details
    KFZ 36R-3.0T-74-180MM-LIFT-3M
    Reference no. 161266
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 37.3
    Distance suspension point min Emin [mm] 382
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Beam flange width min [mm] 74
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 77
Working load limit [kg] 3000
Reference no. 239000
  • Details
    KFZ 36R-3.0T-74-180MM-LIFT-6M
    Reference no. 239000
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 37.3
    Distance suspension point min Emin [mm] 382
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Beam flange width min [mm] 74
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 82
Working load limit [kg] 5000
Reference no. 161267
  • Details
    KFZ 36R-5.0T-98-180MM-LIFT-3M
    Reference no. 161267
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 33.3
    Distance suspension point min Emin [mm] 550
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Beam flange width min [mm] 98
    Beam flange width max [mm] 180
    Lifting height max Hmax 3
    stueckgewicht 125
Working load limit [kg] 5000
Reference no. 239001
  • Details
    Flaschenzug m. Rollfahrwerk -5,0t-98-180mm-Hub6,0m
    Reference no. 239001
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 33.3
    Distance suspension point min Emin [mm] 550
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Beam flange width min [mm] 98
    Beam flange width max [mm] 180
    Lifting height max Hmax 6
    stueckgewicht 133
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
