RHINO pulley block

RHINO pulley block
Particularly smooth-running pulley block with sheet steel housing for moderate frequency of use. Solid quality with a top price-performance ratio – 100% tested functionality by PFEIFER. The powder-coated housing and the coated intermediate plates provide conditional protection against corrosion. The standard length of the hand chain is equivalent to the lifting height.
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –25 °C to +40 °C

Chain surface

  • galvanized

Housing material

  • Powder-coated sheet steel
Options

Options on request

  • in further lifting heights
Safety instruction
  • Note the minimum load for achieving the full brake function
  • No parallel shear pull! Positioning of the device always centrally underneath the suspension gear.
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Reference no.
Details
  • 250
    261107
    KFZ RFZ-0.25T-ST1-HUB-3M
    Reference no. 261107
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 35.4
    Manual force at full load* 19

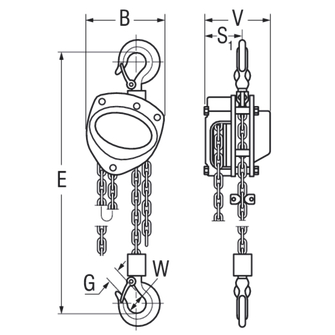

    Body length V [mm] 106
    Body width B 108
    Spacing body left to central suspension point S1 68
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 3
    stueckgewicht 3.87
  • 250
    261116
    KFZ RFZ-0.25T-ST1-HUB-6M
    Reference no. 261116
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 35.4
    Manual force at full load* 19
    Body length V [mm] 106
    Body width B 108
    Spacing body left to central suspension point S1 68
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 6
    stueckgewicht 7.67
  • 500
    261108
    KFZ RFZ-0.5T-ST1-HUB-3M
    Reference no. 261108
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33
    Manual force at full load* 21
    Body length V [mm] 128
    Body width B 130
    Spacing body left to central suspension point S1 75
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 3
    stueckgewicht 9.16
  • 500
    261117
    KFZ RFZ-0.5T-ST1-HUB-6M
    Reference no. 261117
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33
    Manual force at full load* 21
    Body length V [mm] 128
    Body width B 130
    Spacing body left to central suspension point S1 75
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 6
    stueckgewicht 10.7
  • 1000
    261109
    KFZ RFZ-1T-ST1-HUB-3M
    Reference no. 261109
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 22.5
    Manual force at full load* 28.5
    Body length V [mm] 142
    Body width B 150
    Spacing body left to central suspension point S1 76
    Distance suspension point min Emin [mm] 330
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Chain link length 19.1
    Chain link width 6.3
    Weight load chain 0.87
    Lifting height max Hmax 3
    stueckgewicht 9.63
  • 1000
    261118
    KFZ RFZ-1T-ST1-HUB-6M
    Reference no. 261118
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 22.5
    Manual force at full load* 28.5
    Body length V [mm] 142
    Body width B 150
    Spacing body left to central suspension point S1 76
    Distance suspension point min Emin [mm] 330
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Chain link length 19.1
    Chain link width 6.3
    Weight load chain 0.87
    Lifting height max Hmax 6
    stueckgewicht 15.05
  • 1500
    261110
    KFZ RFZ-1.5T-ST1-HUB-3M
    Reference no. 261110
    Working load limit [kg] 1500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 17.2
    Manual force at full load* 32.5
    Body length V [mm] 158
    Body width B 170
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 360
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    stueckgewicht 12.78
  • 1500
    261119
    KFZ RFZ-1.5T-ST1-HUB-6M
    Reference no. 261119
    Working load limit [kg] 1500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 17.2
    Manual force at full load* 32.5
    Body length V [mm] 158
    Body width B 170
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 360
    Clear span load hook W 36
    Hook opening width G [mm] 29
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 6
    stueckgewicht 18.8
  • 2000
    261111
    KFZ RFZ-2T-ST1-HUB-3M
    Reference no. 261111
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.1
    Manual force at full load* 35.5
    Body length V [mm] 175
    Body width B 185
    Spacing body left to central suspension point S1 88
    Distance suspension point min Emin [mm] 385
    Clear span load hook W 33
    Hook opening width G [mm] 35
    Chain link length 24
    Chain link width 8
    Weight load chain 1.4
    Lifting height max Hmax 3
    stueckgewicht 16.95
  • 2000
    261120
    KFZ RFZ-2T-ST1-HUB-6M
    Reference no. 261120
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.1
    Manual force at full load* 35.5
    Body length V [mm] 175
    Body width B 185
    Spacing body left to central suspension point S1 88
    Distance suspension point min Emin [mm] 385
    Clear span load hook W 33
    Hook opening width G [mm] 35
    Chain link length 24
    Chain link width 8
    Weight load chain 1.4
    Lifting height max Hmax 6
    stueckgewicht 23.87
  • 3000
    261112
    KFZ RFZ-3T-ST2-HUB-3M
    Reference no. 261112
    Working load limit [kg] 3000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 8.59
    Manual force at full load* 40.5
    Body length V [mm] 158
    Body width B 220
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 510
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    stueckgewicht 20.14
  • 3000
    261121
    KFZ RFZ-3T-ST2-HUB-6M
    Reference no. 261121
    Working load limit [kg] 3000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 8.59
    Manual force at full load* 40.5
    Body length V [mm] 158
    Body width B 220
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 510
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 6
    stueckgewicht 29.3
  • 5000
    261113
    KFZ RFZ-5T-ST2-HUB-3M
    Reference no. 261113
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.28
    Manual force at full load* 40
    Body length V [mm] 183
    Body width B 255
    Spacing body left to central suspension point S1 90
    Distance suspension point min Emin [mm] 615
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Chain link length 27
    Chain link width 9
    Weight load chain 1.77
    Lifting height max Hmax 3
    stueckgewicht 33.38
  • 5000
    261122
    KFZ RFZ-5.00T-ST2-LIFT-6M
    Reference no. 261122
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.28
    Manual force at full load* 40
    Body length V [mm] 183
    Body width B 255
    Spacing body left to central suspension point S1 90
    Distance suspension point min Emin [mm] 615
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Chain link length 27
    Chain link width 9
    Weight load chain 1.77
    Lifting height max Hmax 6
    stueckgewicht 46.16
Working load limit [kg] 250
Reference no. 261107
  • Details
    KFZ RFZ-0.25T-ST1-HUB-3M
    Reference no. 261107
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 35.4
    Manual force at full load* 19
    Body length V [mm] 106
    Body width B 108
    Spacing body left to central suspension point S1 68
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 3
    stueckgewicht 3.87
Working load limit [kg] 250
Reference no. 261116
  • Details
    KFZ RFZ-0.25T-ST1-HUB-6M
    Reference no. 261116
    Working load limit [kg] 250
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 35.4
    Manual force at full load* 19
    Body length V [mm] 106
    Body width B 108
    Spacing body left to central suspension point S1 68
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 6
    stueckgewicht 7.67
Working load limit [kg] 500
Reference no. 261108
  • Details
    KFZ RFZ-0.5T-ST1-HUB-3M
    Reference no. 261108
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33
    Manual force at full load* 21
    Body length V [mm] 128
    Body width B 130
    Spacing body left to central suspension point S1 75
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 3
    stueckgewicht 9.16
Working load limit [kg] 500
Reference no. 261117
  • Details
    KFZ RFZ-0.5T-ST1-HUB-6M
    Reference no. 261117
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33
    Manual force at full load* 21
    Body length V [mm] 128
    Body width B 130
    Spacing body left to central suspension point S1 75
    Distance suspension point min Emin [mm] 280
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 6
    stueckgewicht 10.7
Working load limit [kg] 1000
Reference no. 261109
  • Details
    KFZ RFZ-1T-ST1-HUB-3M
    Reference no. 261109
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 22.5
    Manual force at full load* 28.5
    Body length V [mm] 142
    Body width B 150
    Spacing body left to central suspension point S1 76
    Distance suspension point min Emin [mm] 330
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Chain link length 19.1
    Chain link width 6.3
    Weight load chain 0.87
    Lifting height max Hmax 3
    stueckgewicht 9.63
Working load limit [kg] 1000
Reference no. 261118
  • Details
    KFZ RFZ-1T-ST1-HUB-6M
    Reference no. 261118
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 22.5
    Manual force at full load* 28.5
    Body length V [mm] 142
    Body width B 150
    Spacing body left to central suspension point S1 76
    Distance suspension point min Emin [mm] 330
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Chain link length 19.1
    Chain link width 6.3
    Weight load chain 0.87
    Lifting height max Hmax 6
    stueckgewicht 15.05
Working load limit [kg] 1500
Reference no. 261110
  • Details
    KFZ RFZ-1.5T-ST1-HUB-3M
    Reference no. 261110
    Working load limit [kg] 1500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 17.2
    Manual force at full load* 32.5
    Body length V [mm] 158
    Body width B 170
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 360
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    stueckgewicht 12.78
Working load limit [kg] 1500
Reference no. 261119
  • Details
    KFZ RFZ-1.5T-ST1-HUB-6M
    Reference no. 261119
    Working load limit [kg] 1500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 17.2
    Manual force at full load* 32.5
    Body length V [mm] 158
    Body width B 170
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 360
    Clear span load hook W 36
    Hook opening width G [mm] 29
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 6
    stueckgewicht 18.8
Working load limit [kg] 2000
Reference no. 261111
  • Details
    KFZ RFZ-2T-ST1-HUB-3M
    Reference no. 261111
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.1
    Manual force at full load* 35.5
    Body length V [mm] 175
    Body width B 185
    Spacing body left to central suspension point S1 88
    Distance suspension point min Emin [mm] 385
    Clear span load hook W 33
    Hook opening width G [mm] 35
    Chain link length 24
    Chain link width 8
    Weight load chain 1.4
    Lifting height max Hmax 3
    stueckgewicht 16.95
Working load limit [kg] 2000
Reference no. 261120
  • Details
    KFZ RFZ-2T-ST1-HUB-6M
    Reference no. 261120
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.1
    Manual force at full load* 35.5
    Body length V [mm] 175
    Body width B 185
    Spacing body left to central suspension point S1 88
    Distance suspension point min Emin [mm] 385
    Clear span load hook W 33
    Hook opening width G [mm] 35
    Chain link length 24
    Chain link width 8
    Weight load chain 1.4
    Lifting height max Hmax 6
    stueckgewicht 23.87
Working load limit [kg] 3000
Reference no. 261112
  • Details
    KFZ RFZ-3T-ST2-HUB-3M
    Reference no. 261112
    Working load limit [kg] 3000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 8.59
    Manual force at full load* 40.5
    Body length V [mm] 158
    Body width B 220
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 510
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    stueckgewicht 20.14
Working load limit [kg] 3000
Reference no. 261121
  • Details
    KFZ RFZ-3T-ST2-HUB-6M
    Reference no. 261121
    Working load limit [kg] 3000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 8.59
    Manual force at full load* 40.5
    Body length V [mm] 158
    Body width B 220
    Spacing body left to central suspension point S1 80
    Distance suspension point min Emin [mm] 510
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 6
    stueckgewicht 29.3
Working load limit [kg] 5000
Reference no. 261113
  • Details
    KFZ RFZ-5T-ST2-HUB-3M
    Reference no. 261113
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.28
    Manual force at full load* 40
    Body length V [mm] 183
    Body width B 255
    Spacing body left to central suspension point S1 90
    Distance suspension point min Emin [mm] 615
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Chain link length 27
    Chain link width 9
    Weight load chain 1.77
    Lifting height max Hmax 3
    stueckgewicht 33.38
Working load limit [kg] 5000
Reference no. 261122
  • Details
    KFZ RFZ-5.00T-ST2-LIFT-6M
    Reference no. 261122
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.28
    Manual force at full load* 40
    Body length V [mm] 183
    Body width B 255
    Spacing body left to central suspension point S1 90
    Distance suspension point min Emin [mm] 615
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Chain link length 27
    Chain link width 9
    Weight load chain 1.77
    Lifting height max Hmax 6
    stueckgewicht 46.16
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
