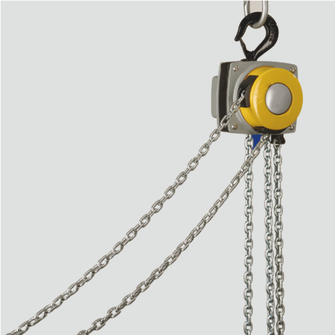

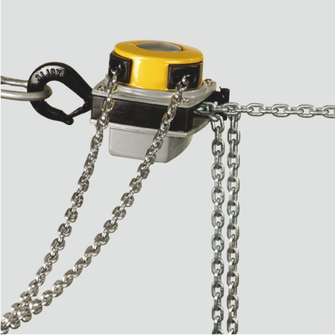

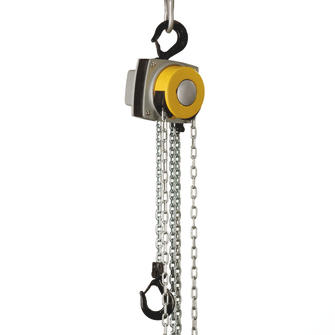

Pulley block 360° with rotating hand chain

Pulley block 360° with rotating hand chain
Pulley block with sheet steel housing for occasional to frequent use in all locations and from all positions at a safe distance from the load – even in confined spaces thanks to innovative 360° rotating hand chain guide. Due to the closed chain path, the lever hoist not susceptible to moisture and dust.
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –25 °C to +50 °C

Chain surface

  • galvanised and chromated yellow

Housing material

  • Powder-coated sheet steel
Options

Options on request

  • in further lifting heights
  • with friction coupling
  • with chain store
  • in corrosion-protected finish
  • explosion-protected design
Safety instruction
  • Note the minimum load for achieving the full brake function
  • No parallel shear pull! Positioning of the device always centrally underneath the suspension gear.
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.

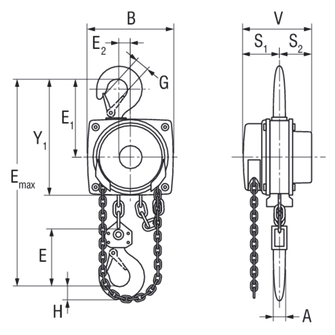

Product variants
Working load limit [kg]
Reference no.
Details
  • 500
    169228
    KFZ 360-0.5T-LIFT-3M
    Reference no. 169228
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 21
    Body length V [mm] 139
    Body width B 148
    Spacing body to suspension point Y1 206
    Spacing body left to central suspension point S1 61
    Distance suspension point max Emax [mm] 300
    Distance suspension point E [mm] 110
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Spacing winch pivot point to suspension point 1 E1 139
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 3
    stueckgewicht 8.7
  • 500
    238991
    KFZ 360-0.5T-ST1-LIFT-6M
    Reference no. 238991
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 21
    Body length V [mm] 139
    Body width B 148
    Spacing body to suspension point Y1 206
    Spacing body left to central suspension point S1 61
    Distance suspension point max Emax [mm] 300
    Distance suspension point E [mm] 110
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Spacing winch pivot point to suspension point 1 E1 139
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 6
    stueckgewicht 8.7
  • 1000
    169229
    KFZ 360-1.0T-LIFT-3M
    Reference no. 169229
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 30
    Body length V [mm] 167
    Body width B 175
    Spacing body to suspension point Y1 242
    Spacing body left to central suspension point S1 70
    Distance suspension point max Emax [mm] 335
    Distance suspension point E [mm] 125
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Spacing winch pivot point to suspension point 1 E1 164
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 3
    stueckgewicht 10.6
  • 1000
    238992
    KFZ 360-1.0T-ST1-LIFT-6M
    Reference no. 238992
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 30
    Body length V [mm] 167
    Body width B 175
    Spacing body to suspension point Y1 242
    Spacing body left to central suspension point S1 70
    Distance suspension point max Emax [mm] 335
    Distance suspension point E [mm] 125
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Spacing winch pivot point to suspension point 1 E1 164
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 6
    stueckgewicht 10.6
  • 2000
    169230
    KFZ 360-2.0T-LIFT-3M
    Reference no. 169230
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.09
    Manual force at full load* 32
    Body length V [mm] 194
    Body width B 203
    Spacing body to suspension point Y1 283
    Spacing body left to central suspension point S1 83
    Distance suspension point max Emax [mm] 395
    Distance suspension point E [mm] 156
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Spacing winch pivot point to suspension point 1 E1 192
    Spacing winch pivot point to suspension point 2 E2 31
    Lifting height max Hmax 3
    stueckgewicht 15
  • 2000
    238993
    KFZ 360-2.0T-ST1-LIFT-6M
    Reference no. 238993
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.09
    Manual force at full load* 32
    Body length V [mm] 194
    Body width B 203
    Spacing body to suspension point Y1 283
    Spacing body left to central suspension point S1 83
    Distance suspension point max Emax [mm] 395
    Distance suspension point E [mm] 156
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Spacing winch pivot point to suspension point 1 E1 192
    Spacing winch pivot point to suspension point 2 E2 31
    Lifting height max Hmax 6
    stueckgewicht 15
  • 3000
    169231
    KFZ 360-3.0T-LIFT-3M
    Reference no. 169231
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 38
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 335
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 520
    Distance suspension point E [mm] 178
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Spacing winch pivot point to suspension point 1 E1 225
    Spacing winch pivot point to suspension point 2 E2 34
    Lifting height max Hmax 3
    stueckgewicht 23.4
  • 3000
    238994
    KFZ 360-3.0T-ST1-LIFT-6M
    Reference no. 238994
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 38
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 335
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 520
    Distance suspension point E [mm] 178
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Spacing winch pivot point to suspension point 1 E1 225
    Spacing winch pivot point to suspension point 2 E2 34
    Lifting height max Hmax 6
    stueckgewicht 40
  • 5000
    169232
    KFZ 360-5.0T-LIFT-3M
    Reference no. 169232
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 34
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 352
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 640
    Distance suspension point E [mm] 285
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Spacing winch pivot point to suspension point 1 E1 242
    Spacing winch pivot point to suspension point 2 E2 21
    Lifting height max Hmax 3
    stueckgewicht 37.5
  • 5000
    238995
    KFZ 360-5.0T-ST2-LIFT-6M
    Reference no. 238995
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 34
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 352
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 640
    Distance suspension point E [mm] 285
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Spacing winch pivot point to suspension point 1 E1 242
    Spacing winch pivot point to suspension point 2 E2 21
    Lifting height max Hmax 6
    stueckgewicht 55.5
Working load limit [kg] 500
Reference no. 169228
  • Details
    KFZ 360-0.5T-LIFT-3M
    Reference no. 169228
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 21
    Body length V [mm] 139
    Body width B 148
    Spacing body to suspension point Y1 206
    Spacing body left to central suspension point S1 61
    Distance suspension point max Emax [mm] 300
    Distance suspension point E [mm] 110
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Spacing winch pivot point to suspension point 1 E1 139
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 3
    stueckgewicht 8.7
Working load limit [kg] 500
Reference no. 238991
  • Details
    KFZ 360-0.5T-ST1-LIFT-6M
    Reference no. 238991
    Working load limit [kg] 500
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 33.33
    Manual force at full load* 21
    Body length V [mm] 139
    Body width B 148
    Spacing body to suspension point Y1 206
    Spacing body left to central suspension point S1 61
    Distance suspension point max Emax [mm] 300
    Distance suspension point E [mm] 110
    Load hook Thickness A 14
    Hook opening width G [mm] 24
    hook base height W [mm] 17
    Spacing winch pivot point to suspension point 1 E1 139
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 6
    stueckgewicht 8.7
Working load limit [kg] 1000
Reference no. 169229
  • Details
    KFZ 360-1.0T-LIFT-3M
    Reference no. 169229
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 30
    Body length V [mm] 167
    Body width B 175
    Spacing body to suspension point Y1 242
    Spacing body left to central suspension point S1 70
    Distance suspension point max Emax [mm] 335
    Distance suspension point E [mm] 125
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Spacing winch pivot point to suspension point 1 E1 164
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 3
    stueckgewicht 10.6
Working load limit [kg] 1000
Reference no. 238992
  • Details
    KFZ 360-1.0T-ST1-LIFT-6M
    Reference no. 238992
    Working load limit [kg] 1000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 20.41
    Manual force at full load* 30
    Body length V [mm] 167
    Body width B 175
    Spacing body to suspension point Y1 242
    Spacing body left to central suspension point S1 70
    Distance suspension point max Emax [mm] 335
    Distance suspension point E [mm] 125
    Load hook Thickness A 19
    Hook opening width G [mm] 29
    hook base height W [mm] 22
    Spacing winch pivot point to suspension point 1 E1 164
    Spacing winch pivot point to suspension point 2 E2 24
    Lifting height max Hmax 6
    stueckgewicht 10.6
Working load limit [kg] 2000
Reference no. 169230
  • Details
    KFZ 360-2.0T-LIFT-3M
    Reference no. 169230
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.09
    Manual force at full load* 32
    Body length V [mm] 194
    Body width B 203
    Spacing body to suspension point Y1 283
    Spacing body left to central suspension point S1 83
    Distance suspension point max Emax [mm] 395
    Distance suspension point E [mm] 156
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Spacing winch pivot point to suspension point 1 E1 192
    Spacing winch pivot point to suspension point 2 E2 31
    Lifting height max Hmax 3
    stueckgewicht 15
Working load limit [kg] 2000
Reference no. 238993
  • Details
    KFZ 360-2.0T-ST1-LIFT-6M
    Reference no. 238993
    Working load limit [kg] 2000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 14.09
    Manual force at full load* 32
    Body length V [mm] 194
    Body width B 203
    Spacing body to suspension point Y1 283
    Spacing body left to central suspension point S1 83
    Distance suspension point max Emax [mm] 395
    Distance suspension point E [mm] 156
    Load hook Thickness A 22
    Hook opening width G [mm] 35
    hook base height W [mm] 30
    Spacing winch pivot point to suspension point 1 E1 192
    Spacing winch pivot point to suspension point 2 E2 31
    Lifting height max Hmax 6
    stueckgewicht 15
Working load limit [kg] 3000
Reference no. 169231
  • Details
    KFZ 360-3.0T-LIFT-3M
    Reference no. 169231
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 38
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 335
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 520
    Distance suspension point E [mm] 178
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Spacing winch pivot point to suspension point 1 E1 225
    Spacing winch pivot point to suspension point 2 E2 34
    Lifting height max Hmax 3
    stueckgewicht 23.4
Working load limit [kg] 3000
Reference no. 238994
  • Details
    KFZ 360-3.0T-ST1-LIFT-6M
    Reference no. 238994
    Working load limit [kg] 3000
    Number of legs AS 1
    Stroke per 1 metre Uncoiling hand chain 11.49
    Manual force at full load* 38
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 335
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 520
    Distance suspension point E [mm] 178
    Load hook Thickness A 30
    Hook opening width G [mm] 40
    hook base height W [mm] 38
    Spacing winch pivot point to suspension point 1 E1 225
    Spacing winch pivot point to suspension point 2 E2 34
    Lifting height max Hmax 6
    stueckgewicht 40
Working load limit [kg] 5000
Reference no. 169232
  • Details
    KFZ 360-5.0T-LIFT-3M
    Reference no. 169232
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 34
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 352
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 640
    Distance suspension point E [mm] 285
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Spacing winch pivot point to suspension point 1 E1 242
    Spacing winch pivot point to suspension point 2 E2 21
    Lifting height max Hmax 3
    stueckgewicht 37.5
Working load limit [kg] 5000
Reference no. 238995
  • Details
    KFZ 360-5.0T-ST2-LIFT-6M
    Reference no. 238995
    Working load limit [kg] 5000
    Number of legs AS 2
    Stroke per 1 metre Uncoiling hand chain 5.75
    Manual force at full load* 34
    Body length V [mm] 219
    Body width B 250
    Spacing body to suspension point Y1 352
    Spacing body left to central suspension point S1 95
    Distance suspension point max Emax [mm] 640
    Distance suspension point E [mm] 285
    Load hook Thickness A 37
    Hook opening width G [mm] 47
    hook base height W [mm] 45
    Spacing winch pivot point to suspension point 1 E1 242
    Spacing winch pivot point to suspension point 2 E2 21
    Lifting height max Hmax 6
    stueckgewicht 55.5
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
