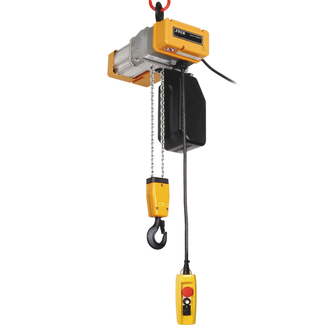

Electric chain hoist P-Star

Electric chain hoist P-Star
Plug in and off you go with the plug & play version from 0.25 t to 2.0 t. Design of the electric chain hoist according to the latest technical standards. Extremely reliable even in tropical temperatures.
Technical data

Operating temperature

  • –20 °C to +40 °C

Power supply

  • Including 1 m mains cable with plug

Operating voltage

  • 230 V AC/50 Hz

Overload protection

  • Friction coupling

Chain stores

  • including

Protection class

  • IP55 / Insulation class F

Lifting method

  • Main stroke

Controller

  • Directly controlled

Suspension

  • hook suspension gear
Options

Options on request

  • in further lifting heights
  • in other driving speeds
  • with radio control
Safety instruction
  • Lubricate the load chain prior to commissioning and at regular intervals.
  • No parallel shear pull! Positioning of the device always centrally underneath the suspension gear.
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Reference no.
Details
  • 250
    218129
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub3,0m
    Reference no. 218129
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 20 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 250
    218133
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub6,0m
    Reference no. 218133
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 21 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 250
    218137
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub10,0m
    Reference no. 218137
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 24 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 500
    218130
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub3,0m
    Reference no. 218130
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 22 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 500
    218134
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub6,0m
    Reference no. 218134
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 25 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 500
    218138
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub10,0m
    Reference no. 218138
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 28 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
  • 1000
    218131
    Star E-Zug m. Hakenaufhängung -1000kg-2-4-Hub3,0m
    Reference no. 218131
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 35 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
  • 1000
    218135
    Star E-Ch.Hoist w. Hook susp. -1000kg-2-4-Hub6.0m
    Reference no. 218135
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 40 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
  • 1000
    218139
    Star E-Zug m. Hakenaufhängung -1000kg-2-4-Hub10,0m
    Reference no. 218139
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 45 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
  • 2000
    218132
    KEH STH-2000KG-2-3-LIFT-3M
    Reference no. 218132
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 42 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
  • 2000
    218136
    Star E-Zug m. Hakenaufhängung -2000kg-2-3-Hub6,0m
    Reference no. 218136
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 50 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
  • 2000
    218140
    Star E-Zug m. Hakenaufhängung -2000kg-2-3-Hub10,0m
    Reference no. 218140
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 60 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 250
Reference no. 218129
  • Details
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub3,0m
    Reference no. 218129
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 20 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 250
Reference no. 218133
  • Details
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub6,0m
    Reference no. 218133
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 21 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 250
Reference no. 218137
  • Details
    Star E-Zug m. Hakenaufhängung -250kg-1-8-Hub10,0m
    Reference no. 218137
    Working load limit [kg] 250
    Type 020/01|250/1-8
    Number of legs AS 1
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 8
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 24 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 500
Reference no. 218130
  • Details
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub3,0m
    Reference no. 218130
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 22 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 500
Reference no. 218134
  • Details
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub6,0m
    Reference no. 218134
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 25 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 500
Reference no. 218138
  • Details
    Star E-Zug m. Hakenaufhängung -500kg-2-4-Hub10,0m
    Reference no. 218138
    Working load limit [kg] 500
    Type 020/01|500/2-4
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.25
    Number of switching operations per hour max [St/h] 240
    Chain link length 12
    Chain link width 4
    Weight approx. [kg] 28 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 2 m
Working load limit [kg] 1000
Reference no. 218131
  • Details
    Star E-Zug m. Hakenaufhängung -1000kg-2-4-Hub3,0m
    Reference no. 218131
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 35 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 1000
Reference no. 218135
  • Details
    Star E-Ch.Hoist w. Hook susp. -1000kg-2-4-Hub6.0m
    Reference no. 218135
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 40 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 1000
Reference no. 218139
  • Details
    Star E-Zug m. Hakenaufhängung -1000kg-2-4-Hub10,0m
    Reference no. 218139
    Working load limit [kg] 1000
    Type 050/02|1000/2-4
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 4
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 0.55
    Number of switching operations per hour max [St/h] 240
    Chain link length 15
    Chain link width 5.2
    Weight approx. [kg] 45 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 2000
Reference no. 218132
  • Details
    KEH STH-2000KG-2-3-LIFT-3M
    Reference no. 218132
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 3
    Control line length [m] 1.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 42 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 2000
Reference no. 218136
  • Details
    Star E-Zug m. Hakenaufhängung -2000kg-2-3-Hub6,0m
    Reference no. 218136
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 6
    Control line length [m] 4.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 50 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Working load limit [kg] 2000
Reference no. 218140
  • Details
    Star E-Zug m. Hakenaufhängung -2000kg-2-3-Hub10,0m
    Reference no. 218140
    Working load limit [kg] 2000
    Type 070/01|2000/2-3
    Number of legs AS 2
    Lifting height max Hmax 10
    Control line length [m] 8.5
    Main stroke speed [m/min] 3
    Duty cycle, main stroke [%] 40
    Main stroke Lifting motor rating 230 V 50 Hz [kW] 1.1
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Weight approx. [kg] 60 [kg]
    variante_triebwerksgruppe_lastkette_sel_desc 1Bm
    variante_triebwerksgruppe_sel_desc 1Am
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
