Star-Speedline electric chain hoist with eye suspension

Star-Speedline electric chain hoist with eye suspension

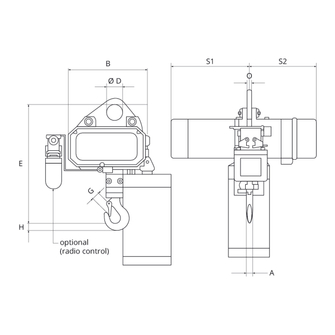

Electric chain hoist with eye suspension and standard end position cut-off (at 24 V AC) suitable for all standard applications. The final assembly is done by the customer on site. The power is supplied from the factory.
Technical data

Operating temperature

  • –20 °C to +40 °C

Overheating protection

  • Temperature monitor for lifting motor

Control line

  • 3 m chain length = 1.7 m; 6 m chain length = 4,5 m;10 m chain length = 8,5 m

Impact protector

  • Limit position switch-off for limiting the highest and lowest load position

Operating voltage

  • 400 V, 3 ph, 50 Hz

Insulation class

  • F

Overload protection

  • Friction coupling

Chain stores

  • including

Protection class

  • IP 55

Lifting method

  • Main and fine stroke

Controller

  • Contactor control 24V AC
Options

Options on request

  • Radio remote control incl. travel limit switch
  • in further lifting heights
Product variants
Working load limit [kg]
Chain length LK [m]
Reference no.
Details
  • 125
    3
    495917
    KEO STO-125KG-W-EYE-ATTACHM-3M
    Reference no. 495917
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 26 [kg]
  • 125
    6
    495918
    KEO STO-125KG-W-EYE-ATTACHM-6M
    Reference no. 495918
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 29 [kg]
  • 125
    10
    495919
    KEO STO-125KG-W-EYE-ATTACHM-10M
    Reference no. 495919
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 33 [kg]
  • 250
    3
    495920
    KEO STO-250KG-W-EYE-ATTACHM-3M
    Reference no. 495920
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 26 [kg]
  • 250
    6
    495921
    KEO STO-250KG-W-EYE-ATTACHM-6M
    Reference no. 495921
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 29 [kg]
  • 250
    10
    495922
    KEO STO-250KG-W-EYE-ATTACHM-10M
    Reference no. 495922
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 33 [kg]
  • 500
    3
    495923
    KEO STO-500KG-W-EYE-ATTACHM-3M
    Reference no. 495923
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 29.2 [kg]
  • 500
    6
    495924
    KEO STO-500KG-W-EYE-ATTACHM-6M
    Reference no. 495924
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 34 [kg]
  • 500
    10
    495925
    KEO STO-500KG-W-EYE-ATTACHM-10M
    Reference no. 495925
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 40.4 [kg]
  • 500
    3
    495926
    KEO STO-500KG-W-EYE-ATTACHM-3M
    Reference no. 495926
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 43 [kg]
  • 500
    6
    495927
    KEO STO-500KG-W-EYE-ATTACHM-6M
    Reference no. 495927
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 47.5 [kg]
  • 500
    10
    495928
    KEO STO-500KG-W-EYE-ATTACHM-10M
    Reference no. 495928
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 53.5 [kg]
  • 1000
    3
    495929
    KEO STO-1000KG-W-EYE-ATTACHM-3M
    Reference no. 495929
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 43 [kg]
  • 1000
    6
    495930
    KEO STO-1000KG-W-EYE-ATTACHM-6M
    Reference no. 495930
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 47.5 [kg]
  • 1000
    10
    495931
    KEO STO-1000KG-W-EYE-ATTACHM-10M
    Reference no. 495931
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 53.5 [kg]
  • 1600
    3
    495932
    KEO STO-1600KG-W-EYE-ATTACHM-3M
    Reference no. 495932
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 89.4 [kg]
  • 1600
    6
    495933
    KEO STO-1600KG-W-EYE-ATTACHM-6M
    Reference no. 495933
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 96 [kg]
  • 1600
    10
    495934
    KEO STO-1600KG-W-EYE-ATTACHM-10M
    Reference no. 495934
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 104.8 [kg]
  • 2000
    3
    495935
    KEO STO-2000KG-W-EYE-ATTACHM-3M
    Reference no. 495935
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 52.2 [kg]
  • 2000
    6
    495936
    KEO STO-2000KG-W-EYE-ATTACHM-6M
    Reference no. 495936
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 60 [kg]
  • 2000
    10
    495937
    KEO STO-2000KG-W-EYE-ATTACHM-10M
    Reference no. 495937
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 70.4 [kg]
  • 2500
    3
    495938
    KEO STO-2500KG-W-EYE-ATTACHM-3M
    Reference no. 495938
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 107.4 [kg]
  • 2500
    6
    495939
    KEO STO-2500KG-W-EYE-ATTACHM-6M
    Reference no. 495939
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 117 [kg]
  • 2500
    10
    495940
    KEO STO-2500KG-W-EYE-ATTACHM-10M
    Reference no. 495940
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 129.8 [kg]
  • 3200
    3
    495941
    KEO STO-3200KG-W-EYE-ATTACHM-3M
    Reference no. 495941
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 103 [kg]
  • 3200
    6
    495942
    KEO STO-3200KG-W-EYE-ATTACHM-6M
    Reference no. 495942
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 115 [kg]
  • 3200
    10
    495943
    KEO STO-3200KG-W-EYE-ATTACHM-10M
    Reference no. 495943
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 131 [kg]
  • 5000
    3
    495944
    KEO STO-5000KG-W-EYE-ATTACHM-3M
    Reference no. 495944
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 132 [kg]
  • 5000
    6
    495945
    KEO STO-5000KG-W-EYE-ATTACHM-6M
    Reference no. 495945
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 150 [kg]
  • 5000
    10
    495946
    KEO STO-5000KG-W-EYE-ATTACHM-10M
    Reference no. 495946
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 174 [kg]
Working load limit [kg] 125
Chain length LK [m] 3
Reference no. 495917
  • Details
    KEO STO-125KG-W-EYE-ATTACHM-3M
    Reference no. 495917
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 26 [kg]
Working load limit [kg] 125
Chain length LK [m] 6
Reference no. 495918
  • Details
    KEO STO-125KG-W-EYE-ATTACHM-6M
    Reference no. 495918
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 29 [kg]
Working load limit [kg] 125
Chain length LK [m] 10
Reference no. 495919
  • Details
    KEO STO-125KG-W-EYE-ATTACHM-10M
    Reference no. 495919
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 33 [kg]
Working load limit [kg] 250
Chain length LK [m] 3
Reference no. 495920
  • Details
    KEO STO-250KG-W-EYE-ATTACHM-3M
    Reference no. 495920
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 26 [kg]
Working load limit [kg] 250
Chain length LK [m] 6
Reference no. 495921
  • Details
    KEO STO-250KG-W-EYE-ATTACHM-6M
    Reference no. 495921
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 29 [kg]
Working load limit [kg] 250
Chain length LK [m] 10
Reference no. 495922
  • Details
    KEO STO-250KG-W-EYE-ATTACHM-10M
    Reference no. 495922
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 33 [kg]
Working load limit [kg] 500
Chain length LK [m] 3
Reference no. 495923
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-3M
    Reference no. 495923
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 29.2 [kg]
Working load limit [kg] 500
Chain length LK [m] 6
Reference no. 495924
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-6M
    Reference no. 495924
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 34 [kg]
Working load limit [kg] 500
Chain length LK [m] 10
Reference no. 495925
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-10M
    Reference no. 495925
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 40.4 [kg]
Working load limit [kg] 500
Chain length LK [m] 3
Reference no. 495926
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-3M
    Reference no. 495926
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 43 [kg]
Working load limit [kg] 500
Chain length LK [m] 6
Reference no. 495927
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-6M
    Reference no. 495927
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 47.5 [kg]
Working load limit [kg] 500
Chain length LK [m] 10
Reference no. 495928
  • Details
    KEO STO-500KG-W-EYE-ATTACHM-10M
    Reference no. 495928
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 53.5 [kg]
Working load limit [kg] 1000
Chain length LK [m] 3
Reference no. 495929
  • Details
    KEO STO-1000KG-W-EYE-ATTACHM-3M
    Reference no. 495929
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 43 [kg]
Working load limit [kg] 1000
Chain length LK [m] 6
Reference no. 495930
  • Details
    KEO STO-1000KG-W-EYE-ATTACHM-6M
    Reference no. 495930
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 47.5 [kg]
Working load limit [kg] 1000
Chain length LK [m] 10
Reference no. 495931
  • Details
    KEO STO-1000KG-W-EYE-ATTACHM-10M
    Reference no. 495931
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 53.5 [kg]
Working load limit [kg] 1600
Chain length LK [m] 3
Reference no. 495932
  • Details
    KEO STO-1600KG-W-EYE-ATTACHM-3M
    Reference no. 495932
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 89.4 [kg]
Working load limit [kg] 1600
Chain length LK [m] 6
Reference no. 495933
  • Details
    KEO STO-1600KG-W-EYE-ATTACHM-6M
    Reference no. 495933
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 96 [kg]
Working load limit [kg] 1600
Chain length LK [m] 10
Reference no. 495934
  • Details
    KEO STO-1600KG-W-EYE-ATTACHM-10M
    Reference no. 495934
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 104.8 [kg]
Working load limit [kg] 2000
Chain length LK [m] 3
Reference no. 495935
  • Details
    KEO STO-2000KG-W-EYE-ATTACHM-3M
    Reference no. 495935
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 52.2 [kg]
Working load limit [kg] 2000
Chain length LK [m] 6
Reference no. 495936
  • Details
    KEO STO-2000KG-W-EYE-ATTACHM-6M
    Reference no. 495936
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 60 [kg]
Working load limit [kg] 2000
Chain length LK [m] 10
Reference no. 495937
  • Details
    KEO STO-2000KG-W-EYE-ATTACHM-10M
    Reference no. 495937
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 70.4 [kg]
Working load limit [kg] 2500
Chain length LK [m] 3
Reference no. 495938
  • Details
    KEO STO-2500KG-W-EYE-ATTACHM-3M
    Reference no. 495938
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 107.4 [kg]
Working load limit [kg] 2500
Chain length LK [m] 6
Reference no. 495939
  • Details
    KEO STO-2500KG-W-EYE-ATTACHM-6M
    Reference no. 495939
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 117 [kg]
Working load limit [kg] 2500
Chain length LK [m] 10
Reference no. 495940
  • Details
    KEO STO-2500KG-W-EYE-ATTACHM-10M
    Reference no. 495940
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 129.8 [kg]
Working load limit [kg] 3200
Chain length LK [m] 3
Reference no. 495941
  • Details
    KEO STO-3200KG-W-EYE-ATTACHM-3M
    Reference no. 495941
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 103 [kg]
Working load limit [kg] 3200
Chain length LK [m] 6
Reference no. 495942
  • Details
    KEO STO-3200KG-W-EYE-ATTACHM-6M
    Reference no. 495942
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 115 [kg]
Working load limit [kg] 3200
Chain length LK [m] 10
Reference no. 495943
  • Details
    KEO STO-3200KG-W-EYE-ATTACHM-10M
    Reference no. 495943
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 131 [kg]
Working load limit [kg] 5000
Chain length LK [m] 3
Reference no. 495944
  • Details
    KEO STO-5000KG-W-EYE-ATTACHM-3M
    Reference no. 495944
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 132 [kg]
Working load limit [kg] 5000
Chain length LK [m] 6
Reference no. 495945
  • Details
    KEO STO-5000KG-W-EYE-ATTACHM-6M
    Reference no. 495945
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 150 [kg]
Working load limit [kg] 5000
Chain length LK [m] 10
Reference no. 495946
  • Details
    KEO STO-5000KG-W-EYE-ATTACHM-10M
    Reference no. 495946
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 174 [kg]
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
