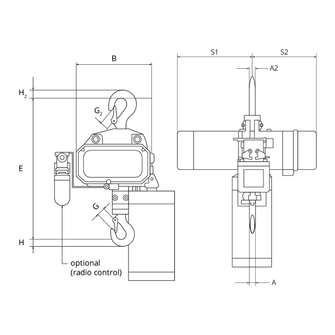

Star-Speedline electric chain hoist with hook suspension

Star-Speedline electric chain hoist with hook suspension
Electric chain hoist with non-rotating hook suspension and standard end position cut-off (at 24 V AC) suitable for all standard applications. The final assembly is done by the customer on site. The power is supplied from the factory.
Technical data

Operating temperature

  • –20 °C to +40 °C

Power supply

  • Without mains cable

Overheating protection

  • Temperature monitor for lifting motor

Control line

  • 3 m chain length = 1.7 m; 6 m chain length = 4,5 m;10 m chain length = 8,5 m

Impact protector

  • Limit position switch-off for limiting the highest and lowest load position

Operating voltage

  • 400 V, 3 ph, 50 Hz

Insulation class

  • F

Overload protection

  • Friction coupling

Chain stores

  • including

Protection class

  • IP 55

Lifting method

  • Main and fine stroke

Controller

  • Contactor control 24V AC
Options

Options on request

  • Radio remote control incl. travel limit switch
  • in further lifting heights
Product variants
Working load limit [kg]
Chain length LK [m]
Reference no.
Details
  • 125
    3
    495947
    KEH STH-125KG-3M
    Reference no. 495947
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 28 [kg]
  • 125
    6
    495948
    KEH STH-125KG-6M
    Reference no. 495948
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 31 [kg]
  • 125
    10
    495949
    KEH STH-125KG-10M
    Reference no. 495949
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 35 [kg]
  • 250
    3
    495950
    KEH STH-250KG-3M
    Reference no. 495950
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 28 [kg]
  • 250
    6
    495951
    KEH STH-250KG-6M
    Reference no. 495951
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 31 [kg]
  • 250
    10
    495952
    KEH STH-250KG-10M
    Reference no. 495952
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 35 [kg]
  • 500
    3
    495953
    KEH STH-500KG-3M
    Reference no. 495953
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 31.2 [kg]
  • 500
    6
    495954
    KEH STH-500KG-6M
    Reference no. 495954
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 36 [kg]
  • 500
    10
    495955
    KEH STH-500KG-10M
    Reference no. 495955
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 42.4 [kg]
  • 500
    3
    495956
    KEH STH-500KG-3M
    Reference no. 495956
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 46 [kg]
  • 500
    6
    495957
    KEH STH-500KG-6M
    Reference no. 495957
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 50.5 [kg]
  • 500
    10
    495958
    KEH STH-500KG-10M
    Reference no. 495958
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 56.5 [kg]
  • 1000
    3
    495959
    KEH STH-1000KG-3M
    Reference no. 495959
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 46 [kg]
  • 1000
    6
    495960
    KEH STH-1000KG-6M
    Reference no. 495960
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 50.5 [kg]
  • 1000
    10
    495961
    KEH STH-1000KG-400V-10M
    Reference no. 495961
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 56.5 [kg]
  • 1600
    3
    495962
    KEH STH-1600KG-3M
    Reference no. 495962
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 96.4 [kg]
  • 1600
    6
    495963
    KEH STH-1600KG-6M
    Reference no. 495963
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 103 [kg]
  • 1600
    10
    495964
    KEH STH-1600KG-10M
    Reference no. 495964
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 111.8 [kg]
  • 2000
    3
    495965
    KEH STH-2000KG-3M
    Reference no. 495965
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 55.2 [kg]
  • 2000
    6
    495966
    KEH STH-2000KG-6M
    Reference no. 495966
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 63 [kg]
  • 2000
    10
    495967
    KEH STH-2000KG-10M
    Reference no. 495967
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 73.4 [kg]
  • 2500
    3
    495968
    KEH STH-2500KG-3M
    Reference no. 495968
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 117.4 [kg]
  • 2500
    6
    495969
    KEH STH-2500KG-6M
    Reference no. 495969
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 127 [kg]
  • 2500
    10
    495970
    KEH STH-2500KG-10M
    Reference no. 495970
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 139.8 [kg]
  • 3200
    3
    495971
    KEH STH-3200KG-3M
    Reference no. 495971
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 110 [kg]
  • 3200
    6
    495972
    KEH STH-3200KG-6M
    Reference no. 495972
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 122 [kg]
  • 3200
    10
    495973
    KEH STH-3200KG-10M
    Reference no. 495973
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 138 [kg]
  • 5000
    3
    495974
    KEH STH-5000KG-3M
    Reference no. 495974
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 142 [kg]
  • 5000
    6
    495975
    KEH STH-5000KG-6M
    Reference no. 495975
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 160 [kg]
  • 5000
    10
    495976
    KEH STH-5000KG-10M
    Reference no. 495976
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 184 [kg]
Working load limit [kg] 125
Chain length LK [m] 3
Reference no. 495947
  • Details
    KEH STH-125KG-3M
    Reference no. 495947
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 28 [kg]
Working load limit [kg] 125
Chain length LK [m] 6
Reference no. 495948
  • Details
    KEH STH-125KG-6M
    Reference no. 495948
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 31 [kg]
Working load limit [kg] 125
Chain length LK [m] 10
Reference no. 495949
  • Details
    KEH STH-125KG-10M
    Reference no. 495949
    Working load limit [kg] 125
    Type 125/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 40
    Number of switching operations per hour max [St/h] 360
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 35 [kg]
Working load limit [kg] 250
Chain length LK [m] 3
Reference no. 495950
  • Details
    KEH STH-250KG-3M
    Reference no. 495950
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 28 [kg]
Working load limit [kg] 250
Chain length LK [m] 6
Reference no. 495951
  • Details
    KEH STH-250KG-6M
    Reference no. 495951
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 31 [kg]
Working load limit [kg] 250
Chain length LK [m] 10
Reference no. 495952
  • Details
    KEH STH-250KG-10M
    Reference no. 495952
    Working load limit [kg] 250
    Type 250/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 25
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 35 [kg]
Working load limit [kg] 500
Chain length LK [m] 3
Reference no. 495953
  • Details
    KEH STH-500KG-3M
    Reference no. 495953
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 3
    Weight approx. [kg] 31.2 [kg]
Working load limit [kg] 500
Chain length LK [m] 6
Reference no. 495954
  • Details
    KEH STH-500KG-6M
    Reference no. 495954
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 6
    Weight approx. [kg] 36 [kg]
Working load limit [kg] 500
Chain length LK [m] 10
Reference no. 495955
  • Details
    KEH STH-500KG-10M
    Reference no. 495955
    Working load limit [kg] 500
    Type 500/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 12.5
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 50
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 300
    Chain link length 15
    Chain link width 5.2
    Chain length LK [m] 10
    Weight approx. [kg] 42.4 [kg]
Working load limit [kg] 500
Chain length LK [m] 3
Reference no. 495956
  • Details
    KEH STH-500KG-3M
    Reference no. 495956
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 46 [kg]
Working load limit [kg] 500
Chain length LK [m] 6
Reference no. 495957
  • Details
    KEH STH-500KG-6M
    Reference no. 495957
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 50.5 [kg]
Working load limit [kg] 500
Chain length LK [m] 10
Reference no. 495958
  • Details
    KEH STH-500KG-10M
    Reference no. 495958
    Working load limit [kg] 500
    Type 500/1-8/2
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 2
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 56.5 [kg]
Working load limit [kg] 1000
Chain length LK [m] 3
Reference no. 495959
  • Details
    KEH STH-1000KG-3M
    Reference no. 495959
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 46 [kg]
Working load limit [kg] 1000
Chain length LK [m] 6
Reference no. 495960
  • Details
    KEH STH-1000KG-6M
    Reference no. 495960
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 50.5 [kg]
Working load limit [kg] 1000
Chain length LK [m] 10
Reference no. 495961
  • Details
    KEH STH-1000KG-400V-10M
    Reference no. 495961
    Working load limit [kg] 1000
    Type 1000/1-6/1.5
    Number of legs AS 1
    Lifting height max Hmax 24
    Main stroke speed [m/min] 6
    Fine stroke speed [m/min] 1.5
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 56.5 [kg]
Working load limit [kg] 1600
Chain length LK [m] 3
Reference no. 495962
  • Details
    KEH STH-1600KG-3M
    Reference no. 495962
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 96.4 [kg]
Working load limit [kg] 1600
Chain length LK [m] 6
Reference no. 495963
  • Details
    KEH STH-1600KG-6M
    Reference no. 495963
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 103 [kg]
Working load limit [kg] 1600
Chain length LK [m] 10
Reference no. 495964
  • Details
    KEH STH-1600KG-10M
    Reference no. 495964
    Working load limit [kg] 1600
    Type 1600/1-8/1
    Number of legs AS 1
    Lifting height max Hmax 30
    Main stroke speed [m/min] 8
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 111.8 [kg]
Working load limit [kg] 2000
Chain length LK [m] 3
Reference no. 495965
  • Details
    KEH STH-2000KG-3M
    Reference no. 495965
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 3
    Weight approx. [kg] 55.2 [kg]
Working load limit [kg] 2000
Chain length LK [m] 6
Reference no. 495966
  • Details
    KEH STH-2000KG-6M
    Reference no. 495966
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 6
    Weight approx. [kg] 63 [kg]
Working load limit [kg] 2000
Chain length LK [m] 10
Reference no. 495967
  • Details
    KEH STH-2000KG-10M
    Reference no. 495967
    Working load limit [kg] 2000
    Type 2000/2-3/0.75
    Number of legs AS 2
    Lifting height max Hmax 12
    Main stroke speed [m/min] 3
    Fine stroke speed [m/min] 0.75
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 21
    Chain link width 7.2
    Chain length LK [m] 10
    Weight approx. [kg] 73.4 [kg]
Working load limit [kg] 2500
Chain length LK [m] 3
Reference no. 495968
  • Details
    KEH STH-2500KG-3M
    Reference no. 495968
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 117.4 [kg]
Working load limit [kg] 2500
Chain length LK [m] 6
Reference no. 495969
  • Details
    KEH STH-2500KG-6M
    Reference no. 495969
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 127 [kg]
Working load limit [kg] 2500
Chain length LK [m] 10
Reference no. 495970
  • Details
    KEH STH-2500KG-10M
    Reference no. 495970
    Working load limit [kg] 2500
    Type 2500/1-10/2.5
    Number of legs AS 1
    Lifting height max Hmax 20
    Main stroke speed [m/min] 10
    Fine stroke speed [m/min] 2.5
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 139.8 [kg]
Working load limit [kg] 3200
Chain length LK [m] 3
Reference no. 495971
  • Details
    KEH STH-3200KG-3M
    Reference no. 495971
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 3
    Weight approx. [kg] 110 [kg]
Working load limit [kg] 3200
Chain length LK [m] 6
Reference no. 495972
  • Details
    KEH STH-3200KG-6M
    Reference no. 495972
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 6
    Weight approx. [kg] 122 [kg]
Working load limit [kg] 3200
Chain length LK [m] 10
Reference no. 495973
  • Details
    KEH STH-3200KG-10M
    Reference no. 495973
    Working load limit [kg] 3200
    Type 3200/2-4/1
    Number of legs AS 2
    Lifting height max Hmax 15
    Main stroke speed [m/min] 4
    Fine stroke speed [m/min] 1
    Duty cycle, main stroke [%] 60
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 240
    Chain link length 27
    Chain link width 9
    Chain length LK [m] 10
    Weight approx. [kg] 138 [kg]
Working load limit [kg] 5000
Chain length LK [m] 3
Reference no. 495974
  • Details
    KEH STH-5000KG-3M
    Reference no. 495974
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 3
    Weight approx. [kg] 142 [kg]
Working load limit [kg] 5000
Chain length LK [m] 6
Reference no. 495975
  • Details
    KEH STH-5000KG-6M
    Reference no. 495975
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 6
    Weight approx. [kg] 160 [kg]
Working load limit [kg] 5000
Chain length LK [m] 10
Reference no. 495976
  • Details
    KEH STH-5000KG-10M
    Reference no. 495976
    Working load limit [kg] 5000
    Type 5000/2-5/1.25
    Number of legs AS 2
    Lifting height max Hmax 10
    Main stroke speed [m/min] 5
    Fine stroke speed [m/min] 1.25
    Duty cycle, main stroke [%] 40
    Duty cycle, fine stroke [%] 25
    Number of switching operations per hour max [St/h] 150
    Chain link length 31
    Chain link width 11.3
    Chain length LK [m] 10
    Weight approx. [kg] 184 [kg]
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
