Lever hoist ERGO 360

Lever hoist ERGO 360
The ERGO 360 lever hoist has a revolutionary hand lever with integrated folding handle, which is ideal for working efficiently at any angle, both in lifting and pulling applications. Thanks to the ergonomic and safety-enhancing design, the operator can work up to 12 times faster while using up to 30 % less lifting force.
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –10 °C to +50 °C

Housing material

  • Aluminum

Suitability for application

  • Attachment technology
  • Cargo Lashing Equipment
Options

Options on request

  • in further lifting heights
  • with friction coupling
  • with lashing hook
Safety instruction
  • Approved for lifting, pulling, tensioning and lashing (EN 12195)
  • Note the minimum load for achieving the full brake function
  • No shear pull – positioning of the device always centrally underneath the suspension gear
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Lifting height max Hmax [m]
Reference no.
Details
  • 750
    1.5
    286739
    KHZ EGS-ERGO-SPEED-0.75T-ST-1-LIFT-1.5M
    Reference no. 286739
    Working load limit [kg] 750
    Number of legs AS 1
    Lifting height per crank revolution 27.2
    Lever pressure under full load 21 [daN]

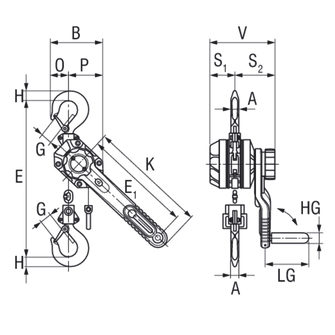

    Body length V [mm] 161
    Body width B 121
    Spacing body left to central suspension point S1 56
    Spacing body right to central suspension point S2 105
    Spacing body left to suspension point O 40
    Spacing body right to suspension point N 81
    Distance suspension point min Emin [mm] 320
    Load hook Thickness A 18
    Hook opening width G [mm] 27
    hook base height H [mm] 20
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 17
    Chain link width 5.6
    Weight load chain 0.7
    Lifting height max Hmax 1.5
    Weight approx. [kg] 6.6 [kg]
  • 750
    3
    286742
    KHZ EGS-ERGO-SPEED-0.75T-ST-1-LIFT-3M
    Reference no. 286742
    Working load limit [kg] 750
    Number of legs AS 1
    Lifting height per crank revolution 27.2
    Lever pressure under full load 21 [daN]
    Body length V [mm] 161
    Body width B 121
    Spacing body left to central suspension point S1 56
    Spacing body right to central suspension point S2 105
    Spacing body left to suspension point O 40
    Spacing body right to suspension point N 81
    Distance suspension point min Emin [mm] 320
    Load hook Thickness A 18
    Hook opening width G [mm] 27
    hook base height H [mm] 20
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 17
    Chain link width 5.6
    Weight load chain 0.7
    Lifting height max Hmax 3
    Weight approx. [kg] 7.65 [kg]
  • 1500
    1.5
    286740
    KHZ EGS-ERGO-SPEED-1.5T-ST-1-LIFT-1.5M
    Reference no. 286740
    Working load limit [kg] 1500
    Number of legs AS 1
    Lifting height per crank revolution 21.7
    Lever pressure under full load 26 [daN]
    Body length V [mm] 179
    Body width B 147
    Spacing body left to central suspension point S1 69
    Spacing body right to central suspension point S2 110
    Spacing body left to suspension point O 51
    Spacing body right to suspension point N 96
    Distance suspension point min Emin [mm] 375
    Load hook Thickness A 21
    Hook opening width G [mm] 31
    hook base height H [mm] 26
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 21
    Chain link width 7.1
    Weight load chain 0.9
    Lifting height max Hmax 1.5
    Weight approx. [kg] 9.5 [kg]
  • 1500
    3
    286743
    KHZ EGS-ERGO-SPEED-1.5T-ST-1-LIFT-3M
    Reference no. 286743
    Working load limit [kg] 1500
    Number of legs AS 1
    Lifting height per crank revolution 21.7
    Lever pressure under full load 26 [daN]
    Body length V [mm] 179
    Body width B 147
    Spacing body left to central suspension point S1 69
    Spacing body right to central suspension point S2 110
    Spacing body left to suspension point O 51
    Spacing body right to suspension point N 96
    Distance suspension point min Emin [mm] 375
    Load hook Thickness A 21
    Hook opening width G [mm] 31
    hook base height H [mm] 26
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 21
    Chain link width 7.1
    Weight load chain 0.9
    Lifting height max Hmax 3
    Weight approx. [kg] 10.85 [kg]
  • 3000
    1.5
    286741
    KHZ EGS-ERGO-SPEED-3.0T-ST-1-LIFT-1.5M
    Reference no. 286741
    Working load limit [kg] 3000
    Number of legs AS 1
    Lifting height per crank revolution 20.1
    Lever pressure under full load 40 [daN]
    Body length V [mm] 207
    Body width B 180
    Spacing body left to central suspension point S1 86
    Spacing body right to central suspension point S2 121
    Spacing body left to suspension point O 57
    Spacing body right to suspension point N 123
    Distance suspension point min Emin [mm] 445
    Load hook Thickness A 28
    Hook opening width G [mm] 40
    hook base height H [mm] 37
    Lever length K 377
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 350
    Chain link length 28
    Chain link width 10
    Weight load chain 1.4
    Lifting height max Hmax 1.5
    Weight approx. [kg] 16.8 [kg]
  • 3000
    3
    286744
    KHZ EGS-ERGO-SPEED-3.0T-ST-1-LIFT-3M
    Reference no. 286744
    Working load limit [kg] 3000
    Number of legs AS 1
    Lifting height per crank revolution 20.1
    Lever pressure under full load 40 [daN]
    Body length V [mm] 207
    Body width B 180
    Spacing body left to central suspension point S1 86
    Spacing body right to central suspension point S2 121
    Spacing body left to suspension point O 57
    Spacing body right to suspension point N 123
    Distance suspension point min Emin [mm] 445
    Load hook Thickness A 28
    Hook opening width G [mm] 40
    hook base height H [mm] 37
    Lever length K 377
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 350
    Chain link length 28
    Chain link width 10
    Weight load chain 1.4
    Lifting height max Hmax 3
    Weight approx. [kg] 18.9 [kg]
Working load limit [kg] 750
Lifting height max Hmax 1.5
Reference no. 286739
  • Details
    KHZ EGS-ERGO-SPEED-0.75T-ST-1-LIFT-1.5M
    Reference no. 286739
    Working load limit [kg] 750
    Number of legs AS 1
    Lifting height per crank revolution 27.2
    Lever pressure under full load 21 [daN]
    Body length V [mm] 161
    Body width B 121
    Spacing body left to central suspension point S1 56
    Spacing body right to central suspension point S2 105
    Spacing body left to suspension point O 40
    Spacing body right to suspension point N 81
    Distance suspension point min Emin [mm] 320
    Load hook Thickness A 18
    Hook opening width G [mm] 27
    hook base height H [mm] 20
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 17
    Chain link width 5.6
    Weight load chain 0.7
    Lifting height max Hmax 1.5
    Weight approx. [kg] 6.6 [kg]
Working load limit [kg] 750
Lifting height max Hmax 3
Reference no. 286742
  • Details
    KHZ EGS-ERGO-SPEED-0.75T-ST-1-LIFT-3M
    Reference no. 286742
    Working load limit [kg] 750
    Number of legs AS 1
    Lifting height per crank revolution 27.2
    Lever pressure under full load 21 [daN]
    Body length V [mm] 161
    Body width B 121
    Spacing body left to central suspension point S1 56
    Spacing body right to central suspension point S2 105
    Spacing body left to suspension point O 40
    Spacing body right to suspension point N 81
    Distance suspension point min Emin [mm] 320
    Load hook Thickness A 18
    Hook opening width G [mm] 27
    hook base height H [mm] 20
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 17
    Chain link width 5.6
    Weight load chain 0.7
    Lifting height max Hmax 3
    Weight approx. [kg] 7.65 [kg]
Working load limit [kg] 1500
Lifting height max Hmax 1.5
Reference no. 286740
  • Details
    KHZ EGS-ERGO-SPEED-1.5T-ST-1-LIFT-1.5M
    Reference no. 286740
    Working load limit [kg] 1500
    Number of legs AS 1
    Lifting height per crank revolution 21.7
    Lever pressure under full load 26 [daN]
    Body length V [mm] 179
    Body width B 147
    Spacing body left to central suspension point S1 69
    Spacing body right to central suspension point S2 110
    Spacing body left to suspension point O 51
    Spacing body right to suspension point N 96
    Distance suspension point min Emin [mm] 375
    Load hook Thickness A 21
    Hook opening width G [mm] 31
    hook base height H [mm] 26
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 21
    Chain link width 7.1
    Weight load chain 0.9
    Lifting height max Hmax 1.5
    Weight approx. [kg] 9.5 [kg]
Working load limit [kg] 1500
Lifting height max Hmax 3
Reference no. 286743
  • Details
    KHZ EGS-ERGO-SPEED-1.5T-ST-1-LIFT-3M
    Reference no. 286743
    Working load limit [kg] 1500
    Number of legs AS 1
    Lifting height per crank revolution 21.7
    Lever pressure under full load 26 [daN]
    Body length V [mm] 179
    Body width B 147
    Spacing body left to central suspension point S1 69
    Spacing body right to central suspension point S2 110
    Spacing body left to suspension point O 51
    Spacing body right to suspension point N 96
    Distance suspension point min Emin [mm] 375
    Load hook Thickness A 21
    Hook opening width G [mm] 31
    hook base height H [mm] 26
    Lever length K 327
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 300
    Chain link length 21
    Chain link width 7.1
    Weight load chain 0.9
    Lifting height max Hmax 3
    Weight approx. [kg] 10.85 [kg]
Working load limit [kg] 3000
Lifting height max Hmax 1.5
Reference no. 286741
  • Details
    KHZ EGS-ERGO-SPEED-3.0T-ST-1-LIFT-1.5M
    Reference no. 286741
    Working load limit [kg] 3000
    Number of legs AS 1
    Lifting height per crank revolution 20.1
    Lever pressure under full load 40 [daN]
    Body length V [mm] 207
    Body width B 180
    Spacing body left to central suspension point S1 86
    Spacing body right to central suspension point S2 121
    Spacing body left to suspension point O 57
    Spacing body right to suspension point N 123
    Distance suspension point min Emin [mm] 445
    Load hook Thickness A 28
    Hook opening width G [mm] 40
    hook base height H [mm] 37
    Lever length K 377
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 350
    Chain link length 28
    Chain link width 10
    Weight load chain 1.4
    Lifting height max Hmax 1.5
    Weight approx. [kg] 16.8 [kg]
Working load limit [kg] 3000
Lifting height max Hmax 3
Reference no. 286744
  • Details
    KHZ EGS-ERGO-SPEED-3.0T-ST-1-LIFT-3M
    Reference no. 286744
    Working load limit [kg] 3000
    Number of legs AS 1
    Lifting height per crank revolution 20.1
    Lever pressure under full load 40 [daN]
    Body length V [mm] 207
    Body width B 180
    Spacing body left to central suspension point S1 86
    Spacing body right to central suspension point S2 121
    Spacing body left to suspension point O 57
    Spacing body right to suspension point N 123
    Distance suspension point min Emin [mm] 445
    Load hook Thickness A 28
    Hook opening width G [mm] 40
    hook base height H [mm] 37
    Lever length K 377
    Handle length LG 120
    Handle Ø HG 30
    Spacing pivot point E1 350
    Chain link length 28
    Chain link width 10
    Weight load chain 1.4
    Lifting height max Hmax 3
    Weight approx. [kg] 18.9 [kg]
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
