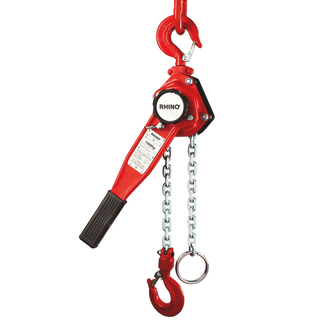

RHINO lever hoist

RHINO lever hoist
Lever hoist with sheet steel housing for moderate frequency of use. Reliable quality - 100 % tested functionality by PFEIFER. The lever hoist can also be used in load securing for lashing.
Technical data

Standard

  • Hoist: EN 13157
  • Chain: EN 818-7

Safety factor

  • 4

Operating temperature

  • –10 °C to +50 °C
  • reduced carrying capacities outside this range

Housing material

  • Powder-coated sheet steel

Suitability for application

  • Attachment technology
  • Cargo Lashing Equipment
Options

Options on request

  • in further lifting heights
Safety instruction
  • Approved for lifting, pulling, tensioning and lashing (EN 12195)
  • Note the minimum load for achieving the full brake function
  • No shear pull – positioning of the device always centrally underneath the suspension gear
  • Hooks may not be loaded at the hook tip.
  • Load chain may not be used a chain sling.
Product variants
Working load limit [kg]
Lifting height max Hmax [m]
Reference no.
Details
  • 250
    1.5
    303020
    KHZ RHH-0.25T-ST1-LIFT-1.5M
    Reference no. 303020
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 12 [daN]
    Body length V [mm] 100
    Body width B 86
    Spacing body right to central suspension point S2 71
    Distance suspension point min Emin [mm] 235
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Lever length K 168
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 1.5
    Weight approx. [kg] 2.53 [kg]
  • 500
    1.5
    261143
    KHZ RHH-0.5T-ST1-LIFT-1.5M
    Reference no. 261143
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 25 [daN]
    Body length V [mm] 150
    Body width B 118
    Spacing body right to central suspension point S2 90
    Distance suspension point min Emin [mm] 310
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Lever length K 253
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 1.5
    Weight approx. [kg] 5.45 [kg]
  • 1000
    1.5
    261145
    KHZ RHH-1.0T-ST1-LIFT-1.5M
    Reference no. 261145
    Working load limit [kg] 1000
    Number of legs AS 1
    Lever pressure under full load 27 [daN]
    Body length V [mm] 165
    Body width B 138
    Spacing body right to central suspension point S2 100
    Distance suspension point min Emin [mm] 350
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Lever length K 273
    Chain link length 18
    Chain link width 6
    Weight load chain 0.78
    Lifting height max Hmax 1.5
    Weight approx. [kg] 7.5 [kg]
  • 1500
    1.5
    261146
    KHZ RHH-1.5T-ST1-LIFT-1.5M
    Reference no. 261146
    Working load limit [kg] 1500
    Number of legs AS 1
    Lever pressure under full load 30 [daN]
    Body length V [mm] 186
    Body width B 145
    Spacing body right to central suspension point S2 112
    Distance suspension point min Emin [mm] 400
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Lever length K 378
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 1.5
    Weight approx. [kg] 11.43 [kg]
  • 3000
    1.5
    261147
    KHZ RHH-3.0T-ST1-LIFT-1.5M
    Reference no. 261147
    Working load limit [kg] 3000
    Number of legs AS 1
    Lever pressure under full load 34 [daN]
    Body length V [mm] 208
    Body width B 198
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 520
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 1.5
    Weight approx. [kg] 20.25 [kg]
  • 6000
    1.5
    261148
    KHZ RHH-6.0T-ST2-LIFT-1.5M
    Reference no. 261148
    Working load limit [kg] 6000
    Number of legs AS 2
    Lever pressure under full load 37 [daN]
    Body length V [mm] 208
    Body width B 230
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 640
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 1.5
    Weight approx. [kg] 29.5 [kg]
  • 250
    3
    303019
    KHZ RHH-0.25T-ST1-LIFT-3M
    Reference no. 303019
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 12 [daN]
    Body length V [mm] 100
    Body width B 86
    Spacing body right to central suspension point S2 71
    Distance suspension point min Emin [mm] 250
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Lever length K 168
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 3
    Weight approx. [kg] 3.07 [kg]
  • 500
    3
    261152
    KHZ RHH-0.5T-ST1-LIFT-3M
    Reference no. 261152
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 25 [daN]
    Body length V [mm] 150
    Body width B 118
    Spacing body right to central suspension point S2 90
    Distance suspension point min Emin [mm] 310
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Lever length K 253
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 3
    Weight approx. [kg] 6.26 [kg]
  • 1000
    3
    261154
    KHZ RHH-1.0T-ST1-LIFT-3M
    Reference no. 261154
    Working load limit [kg] 1000
    Number of legs AS 1
    Lever pressure under full load 27 [daN]
    Body length V [mm] 165
    Body width B 138
    Spacing body right to central suspension point S2 100
    Distance suspension point min Emin [mm] 350
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Lever length K 273
    Chain link length 18
    Chain link width 6
    Weight load chain 0.78
    Lifting height max Hmax 3
    Weight approx. [kg] 10.54 [kg]
  • 1500
    3
    261155
    KHZ RHH-1.5T-ST1-LIFT-3M
    Reference no. 261155
    Working load limit [kg] 1500
    Number of legs AS 1
    Lever pressure under full load 30 [daN]
    Body length V [mm] 186
    Body width B 145
    Spacing body right to central suspension point S2 112
    Distance suspension point min Emin [mm] 400
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Lever length K 378
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    Weight approx. [kg] 13.08 [kg]
  • 3000
    3
    261156
    KHZ RHH-3.0T-ST1-LIFT-3M
    Reference no. 261156
    Working load limit [kg] 3000
    Number of legs AS 1
    Lever pressure under full load 34 [daN]
    Body length V [mm] 208
    Body width B 198
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 520
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 3
    Weight approx. [kg] 23.2 [kg]
  • 6000
    3
    261157
    KHZ RHH-6.0T-ST2-LIFT-3M
    Reference no. 261157
    Working load limit [kg] 6000
    Number of legs AS 2
    Lever pressure under full load 37 [daN]
    Body length V [mm] 208
    Body width B 230
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 640
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 3
    Weight approx. [kg] 34.31 [kg]
Working load limit [kg] 250
Lifting height max Hmax 1.5
Reference no. 303020
  • Details
    KHZ RHH-0.25T-ST1-LIFT-1.5M
    Reference no. 303020
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 12 [daN]
    Body length V [mm] 100
    Body width B 86
    Spacing body right to central suspension point S2 71
    Distance suspension point min Emin [mm] 235
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Lever length K 168
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 1.5
    Weight approx. [kg] 2.53 [kg]
Working load limit [kg] 500
Lifting height max Hmax 1.5
Reference no. 261143
  • Details
    KHZ RHH-0.5T-ST1-LIFT-1.5M
    Reference no. 261143
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 25 [daN]
    Body length V [mm] 150
    Body width B 118
    Spacing body right to central suspension point S2 90
    Distance suspension point min Emin [mm] 310
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Lever length K 253
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 1.5
    Weight approx. [kg] 5.45 [kg]
Working load limit [kg] 1000
Lifting height max Hmax 1.5
Reference no. 261145
  • Details
    KHZ RHH-1.0T-ST1-LIFT-1.5M
    Reference no. 261145
    Working load limit [kg] 1000
    Number of legs AS 1
    Lever pressure under full load 27 [daN]
    Body length V [mm] 165
    Body width B 138
    Spacing body right to central suspension point S2 100
    Distance suspension point min Emin [mm] 350
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Lever length K 273
    Chain link length 18
    Chain link width 6
    Weight load chain 0.78
    Lifting height max Hmax 1.5
    Weight approx. [kg] 7.5 [kg]
Working load limit [kg] 1500
Lifting height max Hmax 1.5
Reference no. 261146
  • Details
    KHZ RHH-1.5T-ST1-LIFT-1.5M
    Reference no. 261146
    Working load limit [kg] 1500
    Number of legs AS 1
    Lever pressure under full load 30 [daN]
    Body length V [mm] 186
    Body width B 145
    Spacing body right to central suspension point S2 112
    Distance suspension point min Emin [mm] 400
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Lever length K 378
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 1.5
    Weight approx. [kg] 11.43 [kg]
Working load limit [kg] 3000
Lifting height max Hmax 1.5
Reference no. 261147
  • Details
    KHZ RHH-3.0T-ST1-LIFT-1.5M
    Reference no. 261147
    Working load limit [kg] 3000
    Number of legs AS 1
    Lever pressure under full load 34 [daN]
    Body length V [mm] 208
    Body width B 198
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 520
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 1.5
    Weight approx. [kg] 20.25 [kg]
Working load limit [kg] 6000
Lifting height max Hmax 1.5
Reference no. 261148
  • Details
    KHZ RHH-6.0T-ST2-LIFT-1.5M
    Reference no. 261148
    Working load limit [kg] 6000
    Number of legs AS 2
    Lever pressure under full load 37 [daN]
    Body length V [mm] 208
    Body width B 230
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 640
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 1.5
    Weight approx. [kg] 29.5 [kg]
Working load limit [kg] 250
Lifting height max Hmax 3
Reference no. 303019
  • Details
    KHZ RHH-0.25T-ST1-LIFT-3M
    Reference no. 303019
    Working load limit [kg] 250
    Number of legs AS 1
    Lever pressure under full load 12 [daN]
    Body length V [mm] 100
    Body width B 86
    Spacing body right to central suspension point S2 71
    Distance suspension point min Emin [mm] 250
    Clear span load hook W 18
    Hook opening width G [mm] 20
    Lever length K 168
    Chain link length 12
    Chain link width 4
    Weight load chain 0.36
    Lifting height max Hmax 3
    Weight approx. [kg] 3.07 [kg]
Working load limit [kg] 500
Lifting height max Hmax 3
Reference no. 261152
  • Details
    KHZ RHH-0.5T-ST1-LIFT-3M
    Reference no. 261152
    Working load limit [kg] 500
    Number of legs AS 1
    Lever pressure under full load 25 [daN]
    Body length V [mm] 150
    Body width B 118
    Spacing body right to central suspension point S2 90
    Distance suspension point min Emin [mm] 310
    Clear span load hook W 20
    Hook opening width G [mm] 22
    Lever length K 253
    Chain link length 15
    Chain link width 5
    Weight load chain 0.55
    Lifting height max Hmax 3
    Weight approx. [kg] 6.26 [kg]
Working load limit [kg] 1000
Lifting height max Hmax 3
Reference no. 261154
  • Details
    KHZ RHH-1.0T-ST1-LIFT-3M
    Reference no. 261154
    Working load limit [kg] 1000
    Number of legs AS 1
    Lever pressure under full load 27 [daN]
    Body length V [mm] 165
    Body width B 138
    Spacing body right to central suspension point S2 100
    Distance suspension point min Emin [mm] 350
    Clear span load hook W 25
    Hook opening width G [mm] 26
    Lever length K 273
    Chain link length 18
    Chain link width 6
    Weight load chain 0.78
    Lifting height max Hmax 3
    Weight approx. [kg] 10.54 [kg]
Working load limit [kg] 1500
Lifting height max Hmax 3
Reference no. 261155
  • Details
    KHZ RHH-1.5T-ST1-LIFT-3M
    Reference no. 261155
    Working load limit [kg] 1500
    Number of legs AS 1
    Lever pressure under full load 30 [daN]
    Body length V [mm] 186
    Body width B 145
    Spacing body right to central suspension point S2 112
    Distance suspension point min Emin [mm] 400
    Clear span load hook W 30
    Hook opening width G [mm] 29
    Lever length K 378
    Chain link length 21.2
    Chain link width 7.1
    Weight load chain 1.12
    Lifting height max Hmax 3
    Weight approx. [kg] 13.08 [kg]
Working load limit [kg] 3000
Lifting height max Hmax 3
Reference no. 261156
  • Details
    KHZ RHH-3.0T-ST1-LIFT-3M
    Reference no. 261156
    Working load limit [kg] 3000
    Number of legs AS 1
    Lever pressure under full load 34 [daN]
    Body length V [mm] 208
    Body width B 198
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 520
    Clear span load hook W 36
    Hook opening width G [mm] 37
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 3
    Weight approx. [kg] 23.2 [kg]
Working load limit [kg] 6000
Lifting height max Hmax 3
Reference no. 261157
  • Details
    KHZ RHH-6.0T-ST2-LIFT-3M
    Reference no. 261157
    Working load limit [kg] 6000
    Number of legs AS 2
    Lever pressure under full load 37 [daN]
    Body length V [mm] 208
    Body width B 230
    Spacing body right to central suspension point S2 120
    Distance suspension point min Emin [mm] 640
    Clear span load hook W 43
    Hook opening width G [mm] 43
    Lever length K 418
    Chain link length 28
    Chain link width 10
    Weight load chain 2.25
    Lifting height max Hmax 3
    Weight approx. [kg] 34.31 [kg]
Downloads
Contact
Market Contact Location type
All other markets
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Tel. +49 8331 937-9623
Fax +49 8331 937-380
E-Mail verkauf-azs@pfeifer.de
Web www.pfeifer.info
 Parent company/Head office
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Straße 66
DE-87700 Memmingen
Mobile Services
Tel. +49 800 7237244
Fax +49 8331 937-198
E-Mail pruefservice-azs@pfeifer.de
Web www.pfeifer.info
 Service centre
Germany
 PFEIFER Seil- und Hebetechnik GmbH
Dr.-Karl-Lenz-Strasse 66
DE-87700 Memmingen
Academy
Tel. +49 8331 937-462
E-Mail academy@pfeifer.de
Web www.pfeifer.info
 Service centre
Austria
 PFEIFER Seil- und Hebetechnik GmbH
Harterfeldweg 2
AT-4481 Asten
Tel. +43 7224 662 24-0
Fax +43 7224 662 24-13
E-Mail info@pfeifer-austria.at
Web www.pfeifer-austria.at
 Sales subsidiary
France
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +33 676 54 42 68 / +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Luxemburg
 PFEIFER SOGEQUIP S.à.r.l.
Zone Ind. Schifflange-Foetz
LU-3844 Schifflange
Tel. +352 57 42-42
Fax +352 57 42-62
E-Mail info@pfeifer-sogequip.lu
Web www.pfeifer-sogequip.lu
 Sales subsidiary
Poland
 PFEIFER Technika Linowa i Dźwigowa Sp. z o.o.
ul. Wrocławska 68
55-330 Krępice k/Wrocławia
Tel. +48 71 30 23 700
E-Mail info@pfeifer.pl
Web www.pfeifer.pl
 Sales subsidiary

Feel free to contact us

Tel.

+49 8331 937-9623

Inquiry

please leave empty!
* Required fields

Cookie settings

We use cookies to optimise our web page for you. By continuing to use the web page you agree to the use of cookies. Further information about cookies can be found in our data protection declaration.

Required cookies

Required cookies are mandatory for the basic functions of the website. Without these cookies, you will unfortunately not be able to use our website. These cookies are always set when you use the website. No personal data is collected or stored.

Functional cookies

These cookies allow us to analyze website usage so that we can measure and improve its performance. No personal data is collected or stored.

Data protection declaration
