Beam clamp

Beam clamp

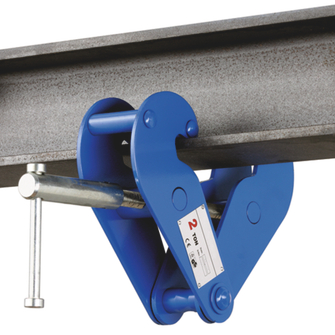

Beam clamp with low headroom for manual, electric and pneumatic hoists for attaching an attachment point to I-beams (with inclination of the lower flange up to 20 %) and for vertical suspension of hoists. Easy and simple installation, adjustable to the beam size using a screw jack.
Technical data

Design

  • Beam clamp
Product variants
Working load limit [kg]
Clamp aperture max Gmax [mm]
Reference no.
Details
  • 2000
    215
    136879
    TKL ECO-BEAM-CLAMP-2.0T-75-215MM-CH
    Reference no. 136879
    Working load limit [kg] 2000
    Clamp aperture max Gmax [mm] 215
    Distance suspension point min Emin [mm] 75
    Distance suspension point max Emax [mm] 260

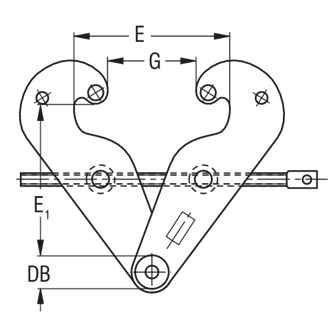

    Bolt Ø DB 23
    Spacing bolt centre to suspension points min E1min [mm] 102
    Spacing bolt centre to suspension points max E1max [mm] 155
    Weight approx. [kg] 5 [kg]
  • 3000
    320
    198086
    TKL ECO-BEAM-CLAMP-3.0T-80-320MM-CH
    Reference no. 198086
    Working load limit [kg] 3000
    Clamp aperture max Gmax [mm] 320
    Distance suspension point min Emin [mm] 80
    Distance suspension point max Emax [mm] 354
    Bolt Ø DB 24
    Spacing bolt centre to suspension points min E1min [mm] 140
    Spacing bolt centre to suspension points max E1max [mm] 225
    Weight approx. [kg] 10.5 [kg]
  • 5000
    320
    136881
    TKL ECO-BEAM-CLAMP-5.0T-80-320MM-CH
    Reference no. 136881
    Working load limit [kg] 5000
    Clamp aperture max Gmax [mm] 320
    Distance suspension point min Emin [mm] 80
    Distance suspension point max Emax [mm] 354
    Bolt Ø DB 28
    Spacing bolt centre to suspension points min E1min [mm] 140
    Spacing bolt centre to suspension points max E1max [mm] 225
    Weight approx. [kg] 11 [kg]
Working load limit [kg] 2000
Clamp aperture max Gmax [mm] 215
Reference no. 136879
  • Details
    TKL ECO-BEAM-CLAMP-2.0T-75-215MM-CH
    Reference no. 136879
    Working load limit [kg] 2000
    Clamp aperture max Gmax [mm] 215
    Distance suspension point min Emin [mm] 75
    Distance suspension point max Emax [mm] 260
    Bolt Ø DB 23
    Spacing bolt centre to suspension points min E1min [mm] 102
    Spacing bolt centre to suspension points max E1max [mm] 155
    Weight approx. [kg] 5 [kg]
Working load limit [kg] 3000
Clamp aperture max Gmax [mm] 320
Reference no. 198086
  • Details
    TKL ECO-BEAM-CLAMP-3.0T-80-320MM-CH
    Reference no. 198086
    Working load limit [kg] 3000
    Clamp aperture max Gmax [mm] 320
    Distance suspension point min Emin [mm] 80
    Distance suspension point max Emax [mm] 354
    Bolt Ø DB 24
    Spacing bolt centre to suspension points min E1min [mm] 140
    Spacing bolt centre to suspension points max E1max [mm] 225
    Weight approx. [kg] 10.5 [kg]
Working load limit [kg] 5000
Clamp aperture max Gmax [mm] 320
Reference no. 136881
  • Details
    TKL ECO-BEAM-CLAMP-5.0T-80-320MM-CH
    Reference no. 136881
    Working load limit [kg] 5000
    Clamp aperture max Gmax [mm] 320
    Distance suspension point min Emin [mm] 80
    Distance suspension point max Emax [mm] 354
    Bolt Ø DB 28
    Spacing bolt centre to suspension points min E1min [mm] 140
    Spacing bolt centre to suspension points max E1max [mm] 225
    Weight approx. [kg] 11 [kg]
