Roller running gear ECODUR

Roller running gear ECODUR

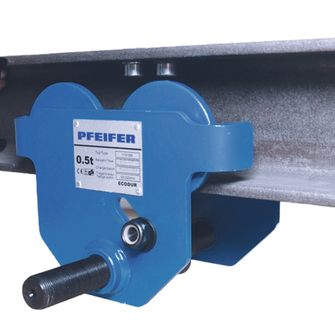

Infinitely adjustable sliding device for hand, electric and pneumatic hoists with tipping protection and wheel-fracture protection. Very simple, almost infinite adaptation to different flange widths and different profiles (e.g. INP, IPE, IPB).
Technical data

Design

  • Roller running gear
Product variants
Working load limit [kg]
for beam flange width min [mm]
for beam flange width max [mm]
Reference no.
Details
  • 500
    50
    220
    115188
    RFW HTP-I-ECODUR-0.5T-50-220MM
    Reference no. 115188
    Working load limit [kg] 500
    for beam flange width min [mm] 50
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 24
    Radius curve min [m] 0.9
    Weight approx. [kg] 5 [kg]
  • 1000
    58
    220
    115190
    RFW HTP-I-ECODUR-1.0T-58-220MM
    Reference no. 115190
    Working load limit [kg] 1000
    for beam flange width min [mm] 58
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 30
    Radius curve min [m] 1
    Weight approx. [kg] 9 [kg]
  • 2000
    66
    220
    115192
    RFW HTP-I-ECODUR-2.0T-66-220MM
    Reference no. 115192
    Working load limit [kg] 2000
    for beam flange width min [mm] 66
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 36
    Radius curve min [m] 1.1
    Weight approx. [kg] 13.5 [kg]
Working load limit [kg] 500
for beam flange width min [mm] 50
for beam flange width max [mm] 220
Reference no. 115188
  • Details
    RFW HTP-I-ECODUR-0.5T-50-220MM
    Reference no. 115188
    Working load limit [kg] 500
    for beam flange width min [mm] 50
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 24
    Radius curve min [m] 0.9
    Weight approx. [kg] 5 [kg]
Working load limit [kg] 1000
for beam flange width min [mm] 58
for beam flange width max [mm] 220
Reference no. 115190
  • Details
    RFW HTP-I-ECODUR-1.0T-58-220MM
    Reference no. 115190
    Working load limit [kg] 1000
    for beam flange width min [mm] 58
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 30
    Radius curve min [m] 1
    Weight approx. [kg] 9 [kg]
Working load limit [kg] 2000
for beam flange width min [mm] 66
for beam flange width max [mm] 220
Reference no. 115192
  • Details
    RFW HTP-I-ECODUR-2.0T-66-220MM
    Reference no. 115192
    Working load limit [kg] 2000
    for beam flange width min [mm] 66
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 36
    Radius curve min [m] 1.1
    Weight approx. [kg] 13.5 [kg]
