Reel chassis

Reel chassis

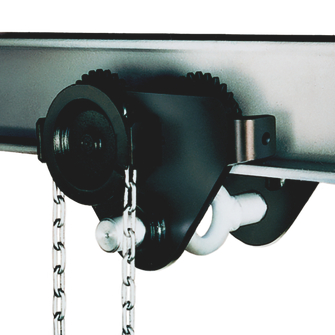

Reel chassis for hand, electric and pneumatic hoists. Driven by a continuously adjustable hand chain (effective length = 3 m) via a hand chain sprocket. Very simple and almost infinite adaptation to different flange widths and different profiles (e.g. INP, IPE and IPB).
Technical data

Design

  • Reel chassis
Options

Options on request

  • further chain lengths
  • for higher track heights
  • Swivelling hand chain guide
  • Rust and acid-resistant hand chains
  • Collision buffer
  • in corrosion-protected finish
Product variants
Working load limit [kg]
for beam flange width min [mm]
for beam flange width max [mm]
Reference no.
Details
  • 500
    50
    220
    168186
    HFW HTG-0.5T-50-220MM
    Reference no. 168186
    Working load limit [kg] 500
    Manual force at full load* 3
    for beam flange width min [mm] 50
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 0.9
    Weight approx. [kg] 9.7 [kg]
  • 500
    160
    300
    168187
    HFW HTG-0.5T-160-300MM
    Reference no. 168187
    Working load limit [kg] 500
    Manual force at full load* 3
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 12.6 [kg]
  • 1000
    58
    220
    168188
    HFW HTG-1.0T-58-220MM
    Reference no. 168188
    Working load limit [kg] 1000
    Manual force at full load* 6
    for beam flange width min [mm] 58
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 0.9
    Weight approx. [kg] 11.2 [kg]
  • 1000
    160
    300
    168189
    HFW HTG-1.0T-160-300MM
    Reference no. 168189
    Working load limit [kg] 1000
    Manual force at full load* 6
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 14.1 [kg]
  • 2000
    66
    220
    168190
    HFW HTG-2.0T-66-220MM
    Reference no. 168190
    Working load limit [kg] 2000
    Manual force at full load* 7
    for beam flange width min [mm] 66
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.15
    Weight approx. [kg] 18 [kg]
  • 2000
    160
    300
    168191
    HFW HTG-2.0T-160-300MM
    Reference no. 168191
    Working load limit [kg] 2000
    Manual force at full load* 7
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.15
    Weight approx. [kg] 21.3 [kg]
  • 3000
    74
    220
    168192
    HFW HTG-3.0T-74-220MM
    Reference no. 168192
    Working load limit [kg] 3000
    Manual force at full load* 7
    for beam flange width min [mm] 74
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.4
    Weight approx. [kg] 35.4 [kg]
  • 3000
    160
    300
    168193
    HFW HTG-3.0T-160-300MM
    Reference no. 168193
    Working load limit [kg] 3000
    Manual force at full load* 7
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.4
    Weight approx. [kg] 39.2 [kg]
  • 5000
    90
    220
    168194
    HFW HTG-5.0T-90-220MM
    Reference no. 168194
    Working load limit [kg] 5000
    Manual force at full load* 9
    for beam flange width min [mm] 90
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.8
    Weight approx. [kg] 51.8 [kg]
  • 5000
    180
    300
    168195
    HFW HTG-5.0T-180-300MM
    Reference no. 168195
    Working load limit [kg] 5000
    Manual force at full load* 9
    for beam flange width min [mm] 180
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.8
    Weight approx. [kg] 56 [kg]
Working load limit [kg] 500
for beam flange width min [mm] 50
for beam flange width max [mm] 220
Reference no. 168186
  • Details
    HFW HTG-0.5T-50-220MM
    Reference no. 168186
    Working load limit [kg] 500
    Manual force at full load* 3
    for beam flange width min [mm] 50
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 0.9
    Weight approx. [kg] 9.7 [kg]
Working load limit [kg] 500
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 168187
  • Details
    HFW HTG-0.5T-160-300MM
    Reference no. 168187
    Working load limit [kg] 500
    Manual force at full load* 3
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 12.6 [kg]
Working load limit [kg] 1000
for beam flange width min [mm] 58
for beam flange width max [mm] 220
Reference no. 168188
  • Details
    HFW HTG-1.0T-58-220MM
    Reference no. 168188
    Working load limit [kg] 1000
    Manual force at full load* 6
    for beam flange width min [mm] 58
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 0.9
    Weight approx. [kg] 11.2 [kg]
Working load limit [kg] 1000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 168189
  • Details
    HFW HTG-1.0T-160-300MM
    Reference no. 168189
    Working load limit [kg] 1000
    Manual force at full load* 6
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 14.1 [kg]
Working load limit [kg] 2000
for beam flange width min [mm] 66
for beam flange width max [mm] 220
Reference no. 168190
  • Details
    HFW HTG-2.0T-66-220MM
    Reference no. 168190
    Working load limit [kg] 2000
    Manual force at full load* 7
    for beam flange width min [mm] 66
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.15
    Weight approx. [kg] 18 [kg]
Working load limit [kg] 2000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 168191
  • Details
    HFW HTG-2.0T-160-300MM
    Reference no. 168191
    Working load limit [kg] 2000
    Manual force at full load* 7
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.15
    Weight approx. [kg] 21.3 [kg]
Working load limit [kg] 3000
for beam flange width min [mm] 74
for beam flange width max [mm] 220
Reference no. 168192
  • Details
    HFW HTG-3.0T-74-220MM
    Reference no. 168192
    Working load limit [kg] 3000
    Manual force at full load* 7
    for beam flange width min [mm] 74
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.4
    Weight approx. [kg] 35.4 [kg]
Working load limit [kg] 3000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 168193
  • Details
    HFW HTG-3.0T-160-300MM
    Reference no. 168193
    Working load limit [kg] 3000
    Manual force at full load* 7
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.4
    Weight approx. [kg] 39.2 [kg]
Working load limit [kg] 5000
for beam flange width min [mm] 90
for beam flange width max [mm] 220
Reference no. 168194
  • Details
    HFW HTG-5.0T-90-220MM
    Reference no. 168194
    Working load limit [kg] 5000
    Manual force at full load* 9
    for beam flange width min [mm] 90
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.8
    Weight approx. [kg] 51.8 [kg]
Working load limit [kg] 5000
for beam flange width min [mm] 180
for beam flange width max [mm] 300
Reference no. 168195
  • Details
    HFW HTG-5.0T-180-300MM
    Reference no. 168195
    Working load limit [kg] 5000
    Manual force at full load* 9
    for beam flange width min [mm] 180
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.8
    Weight approx. [kg] 56 [kg]
