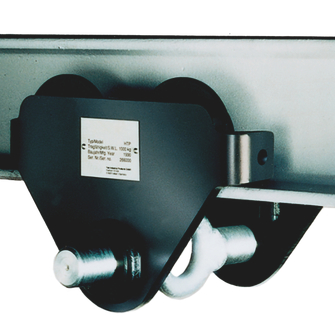

Roller running gear

Roller running gear
Infinitely adjustable sliding device for hand, electric and pneumatic hoists with tipping protection and wheel-fracture protection. Very simple, almost infinite adaptation to different flange widths and different profiles (e.g. INP, IPE, IPB). The ball-bearing track rollers are sealed with permanent lubrication for optimum running characteristics. They are designed for a maximum inclination of the beam flange of 14 % (DIN 1025-1).
Technical data

Design

  • Roller running gear
Options

Options on request

  • Collision buffer
  • in corrosion-protected finish
Product variants
Working load limit [kg]
for beam flange width min [mm]
for beam flange width max [mm]
Reference no.
Details
  • 500
    160
    300
    115189
    RFW HTP-0.5T-160-300MM
    Reference no. 115189
    Working load limit [kg] 500
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 10.6 [kg]
  • 1000
    160
    300
    115191
    RFW HTP-1.0T-160-300MM
    Reference no. 115191
    Working load limit [kg] 1000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 12 [kg]
  • 2000
    160
    300
    115193
    RFW HTP-2.0T-160-300MM
    Reference no. 115193
    Working load limit [kg] 2000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.15
    Weight approx. [kg] 19.3 [kg]
  • 3000
    74
    220
    115194
    RFW HTP-3.0T-74-220MM
    Reference no. 115194
    Working load limit [kg] 3000
    for beam flange width min [mm] 74
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.4
    Weight approx. [kg] 32 [kg]
  • 3000
    160
    300
    115195
    RFW HTP-3.0T-160-300MM
    Reference no. 115195
    Working load limit [kg] 3000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.4
    Weight approx. [kg] 35.8 [kg]
  • 5000
    90
    220
    115196
    RFW HTP-5.0T-90-220MM
    Reference no. 115196
    Working load limit [kg] 5000
    for beam flange width min [mm] 90
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.8
    Weight approx. [kg] 48 [kg]
  • 5000
    180
    300
    115197
    RFW HTP-5.0T-180-300MM
    Reference no. 115197
    Working load limit [kg] 5000
    for beam flange width min [mm] 180
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.8
    Weight approx. [kg] 52.2 [kg]
Working load limit [kg] 500
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 115189
  • Details
    RFW HTP-0.5T-160-300MM
    Reference no. 115189
    Working load limit [kg] 500
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 10.6 [kg]
Working load limit [kg] 1000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 115191
  • Details
    RFW HTP-1.0T-160-300MM
    Reference no. 115191
    Working load limit [kg] 1000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 0.9
    Weight approx. [kg] 12 [kg]
Working load limit [kg] 2000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 115193
  • Details
    RFW HTP-2.0T-160-300MM
    Reference no. 115193
    Working load limit [kg] 2000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.15
    Weight approx. [kg] 19.3 [kg]
Working load limit [kg] 3000
for beam flange width min [mm] 74
for beam flange width max [mm] 220
Reference no. 115194
  • Details
    RFW HTP-3.0T-74-220MM
    Reference no. 115194
    Working load limit [kg] 3000
    for beam flange width min [mm] 74
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.4
    Weight approx. [kg] 32 [kg]
Working load limit [kg] 3000
for beam flange width min [mm] 160
for beam flange width max [mm] 300
Reference no. 115195
  • Details
    RFW HTP-3.0T-160-300MM
    Reference no. 115195
    Working load limit [kg] 3000
    for beam flange width min [mm] 160
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.4
    Weight approx. [kg] 35.8 [kg]
Working load limit [kg] 5000
for beam flange width min [mm] 90
for beam flange width max [mm] 220
Reference no. 115196
  • Details
    RFW HTP-5.0T-90-220MM
    Reference no. 115196
    Working load limit [kg] 5000
    for beam flange width min [mm] 90
    for beam flange width max [mm] 220
    for beam flange thickness max [mm] 25
    Radius curve min [m] 1.8
    Weight approx. [kg] 48 [kg]
Working load limit [kg] 5000
for beam flange width min [mm] 180
for beam flange width max [mm] 300
Reference no. 115197
  • Details
    RFW HTP-5.0T-180-300MM
    Reference no. 115197
    Working load limit [kg] 5000
    for beam flange width min [mm] 180
    for beam flange width max [mm] 300
    for beam flange thickness max [mm] 40
    Radius curve min [m] 1.8
    Weight approx. [kg] 52.2 [kg]
